Applies to: All Reolink Cameras and NVRs.
You may follow the article below to connect Reolink products to the Network or the Internet.
1. Battery-powered cameras; E Series Cameras; Reolink Lumus; (include Argus; Argus 2; Argus Eco; Argus Pro; Argus PT; Reolink Go; Reolink Go PT; Reolink Keen; E1; E1 Pro; E1 Zoom; Reolink Lumus;)
Battery-powered cameras, E Series Cameras, and Reolink Lumus set WiFi during the initialization process, so the cameras can connect to the network after initialization.
How to Initially Set up Battery-powered Cameras via Reolink Client (New Client)
How to Initial Setup for Reolink Battery-powered Cameras via Reolink App
Reolink Go and Reolink Go PT need to install the SIM card for network connection. You may folllow the link below to find the correct SIM card for the camera.
Choose SIM Card for Reolink Go
And you may follow below article to initially set up Reolink Go/Reolink Go PT on your phone.
How to Initial Setup for Reolink Go via Reolink App
2. WiFi Cameras Except E Series Cameras, and Reolink Lumus (include C1; C1 Pro; C2; C2 Pro; RLC-410W; RLC-410W-5MP; RLC-410WS; RLC-411WS; RLC-411WS-5MP; RLC-422W; RLC-423WS; RLC-511W;RLC-422W-5MP; )
There are two methods to connect the WiFi cameras to the network.
Method 1. Connect the cameras to the LAN port of the router by an Ethernet cable directly.
Method 2. Set up WiFi connection for your cameras. Please refer to the guidelines below.
Set up WiFi Cameras via Reolink Client (New Client)
Set up WiFi Settings for WiFi Cameras via Web Browsers

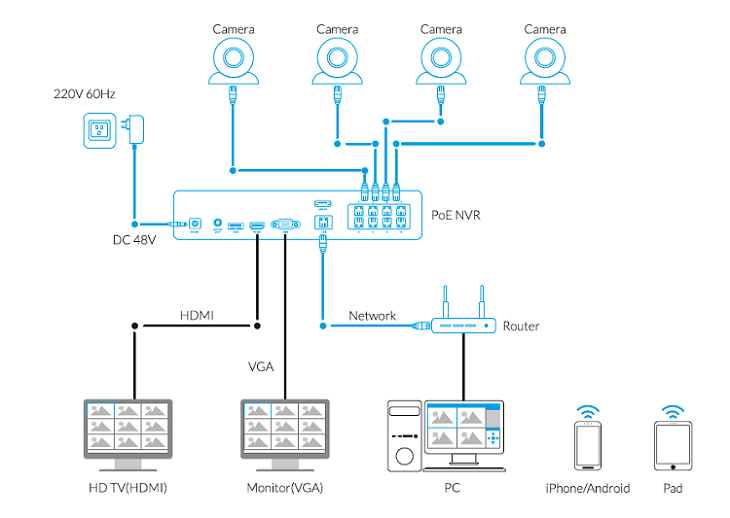

3. PoE Cameras(include RLC-410; RLC-410-5MP; RLC-410S; RLC-411; RLC-411-5MP; RLC-411S; RLC-411S-5MP; RLC-420; RLC-420-5MP; RLC-422-4MP; RLC-422-5MP; RLC-423; RLC-423S; RLC-511; RLC-520)
PoE cameras support both DC12V power supply and PoE power supply. There are two methods to connect the PoE cameras to the network.
Method 1. Power the PoE camera via a DC12V power adapter, then connect the cameras to the LAN port of the router by an Ethernet cable directly.
Method 2.Power the PoE camera a PoE switch/injector, then connect the PoE switch/injector to the LAN port of the router by an Ethernet cable.
4. RLN16-410;RLN8-410; RLN8-410-E; RLN-210W
To connect the NVR to network, you may hook up the NVR LAN port to the router by an Ethernet cable directly.
5. RLN4-211W NVR
There are two methods to connect the RLN4-211W NVR to the network.
Method 1. Ethernet cable connection: You may connect the NVR to the LAN port of the router by an Ethernet cable directly for the network.
Method 2. WiFi connection: You may change the NVR's WiFi Mode from "AP" to the "Station" mode, and then connect the NVR to your WiFi network.
