Motion detection on NVRs is enabled all the time by default. But users can also customize the schedule when the motion detection will work and when not according to actual needs.
Below are the steps to set up the motion detection schedule for NVR via Reolink App.
Applies to: Reolink NVRs with hardware version H3MB02/H3MB16.
Before setting up, upgrade the Reolink App to the latest version and the device to the latest firmware version.

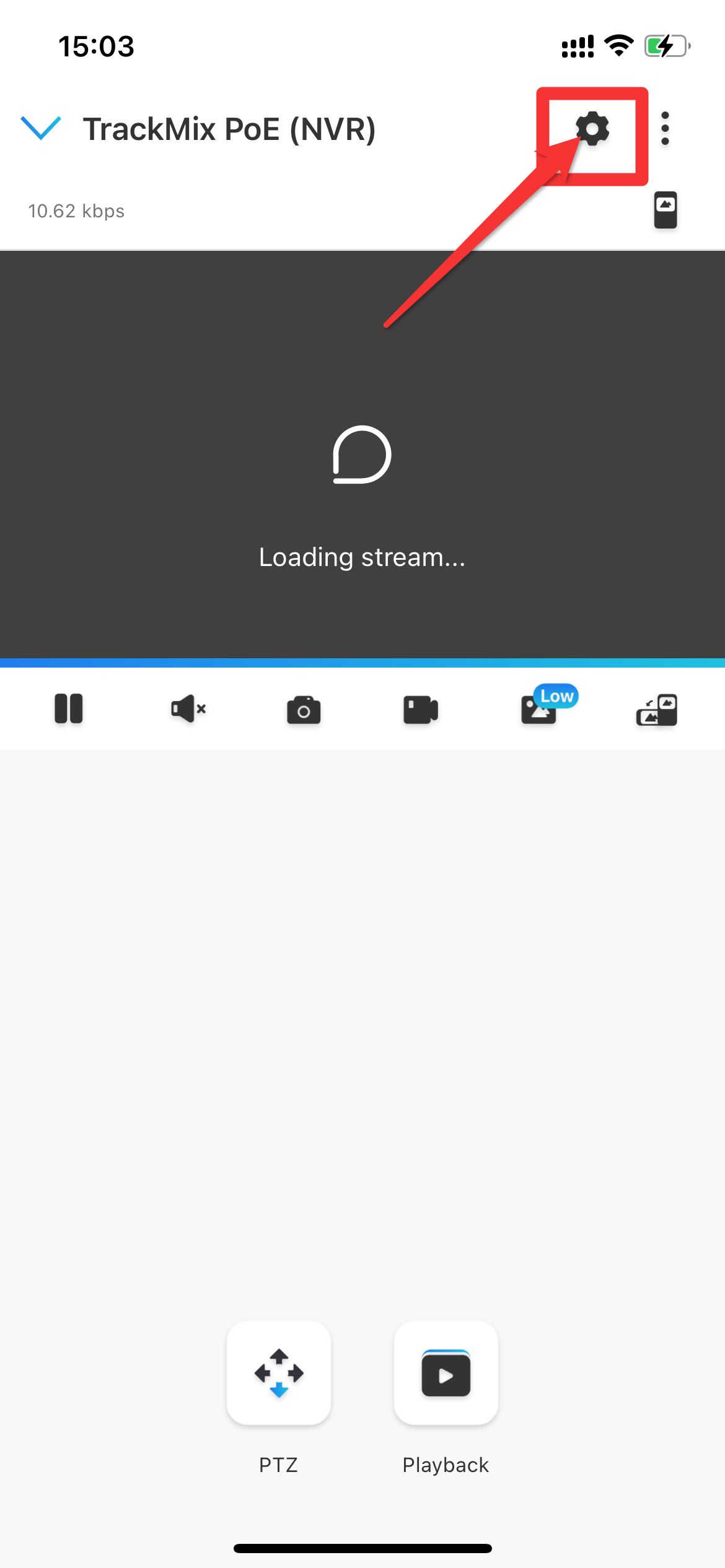

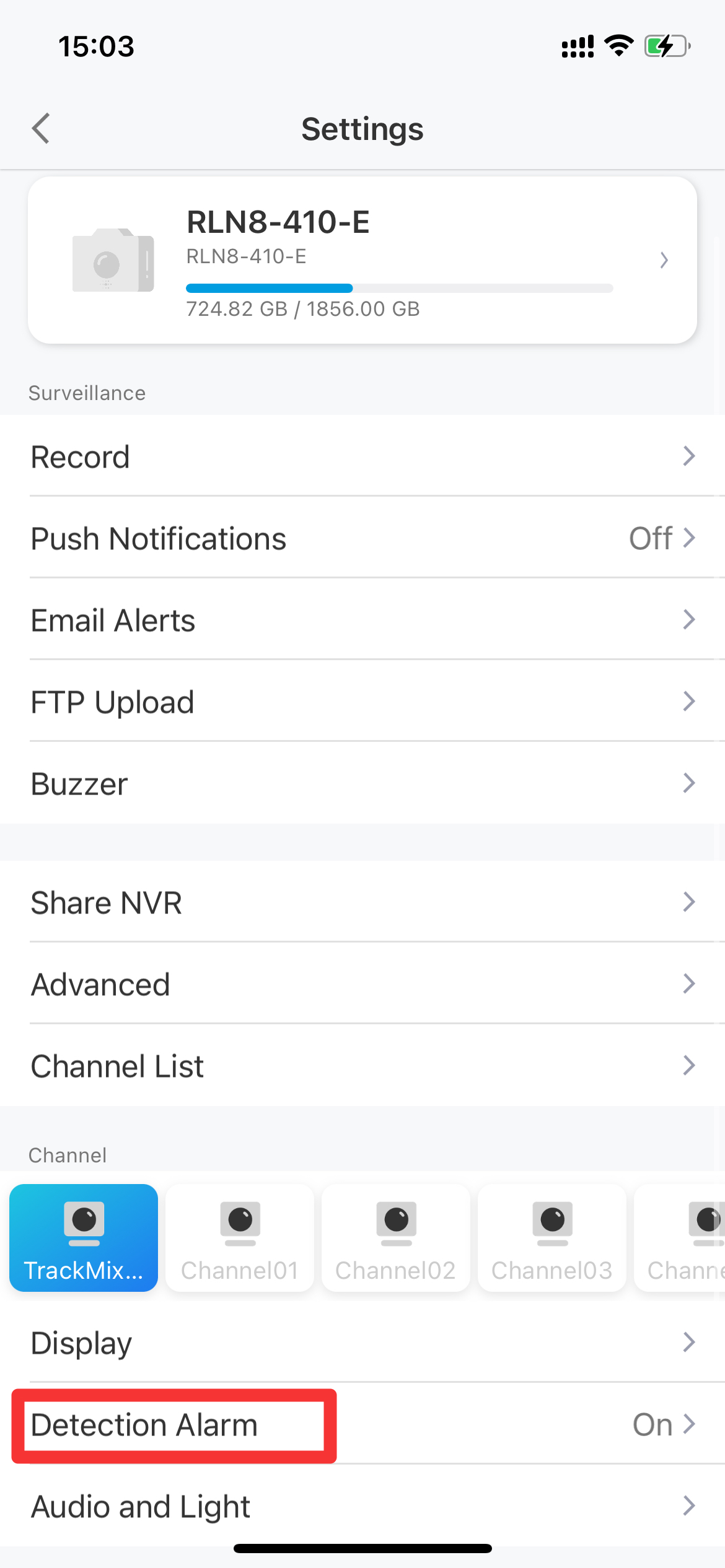

Step 1. Log in to your device on the Reolink App, and then tap icon >Record.

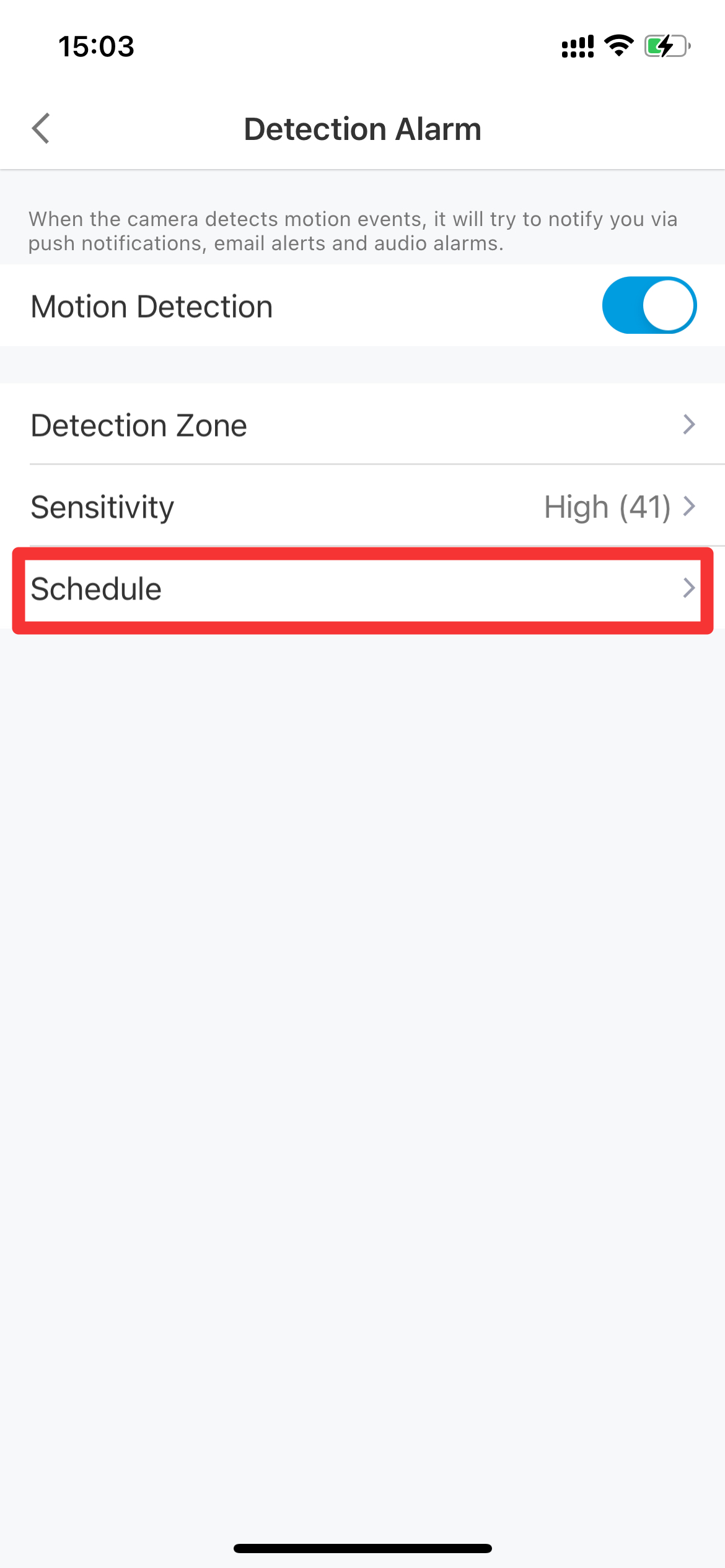

Step 2. Enable Record, and then tap Settings under the camera you want to set up. Tap Schedule to set up the recording schedule.

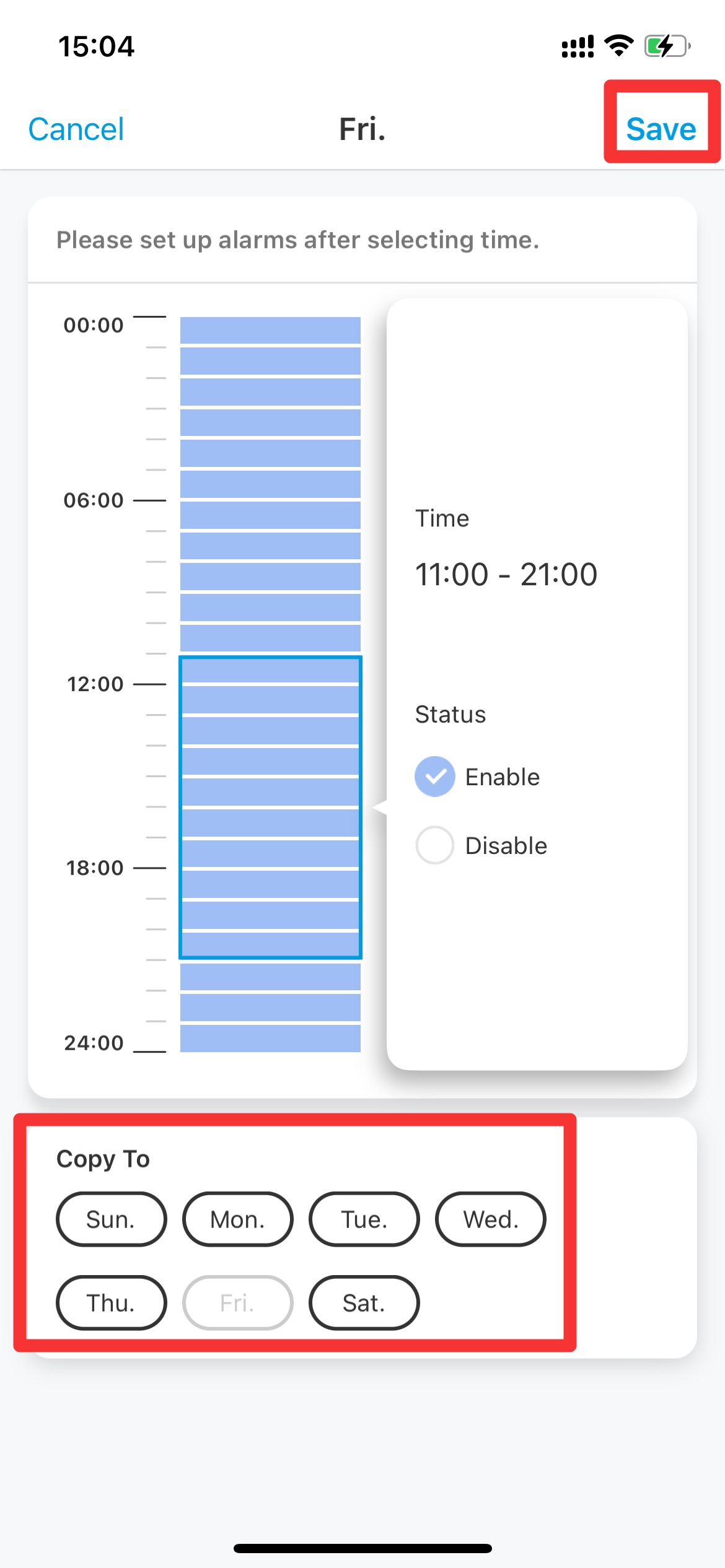

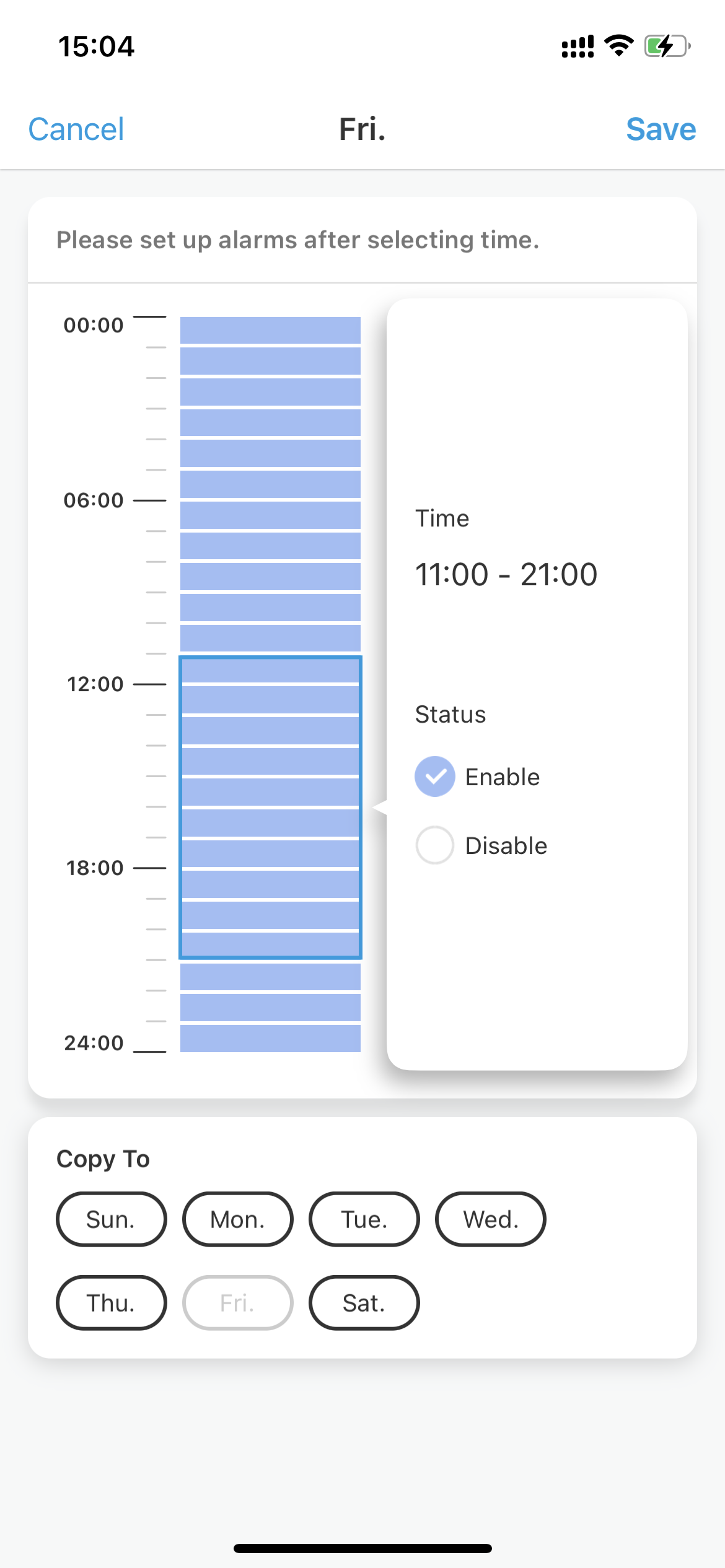

Step 3. Set up the recording schedule.
❶ Tap icon — event-triggered recording (Blue grids); or
icon — continuous recording (Orange grids) in the lower-left corner. After selecting the recording types, tap or drag across the schedule grid to configure the recording time. If you want to remove a scheduled period, tap
icon and then swipe the schedule grids. Blue grids indicate the periods when motion recording is enabled. Orange grids indicate the periods when continuous recording is enabled. White grids indicate recording is disabled for the selected time period.
❷ (Optional) Tap Select All to fill the entire schedule with the selected recording mode. Tap Erase All to remove all scheduled recordings.
❸ Tap Save to apply the settings.
Step 4. Tap Trigger Recording to enable the option to start recording on another camera when the selected camera is triggered to record. Tap Save to save settings.
After the above steps, you have only set the proper record schedule for one of the channels/cameras you want to record. Please switch the camera/ channel and repeat the same steps for all of them.
