B400/D400

Product Introduction

Product Name: B400

Product Type: Add-on Cam

Specs

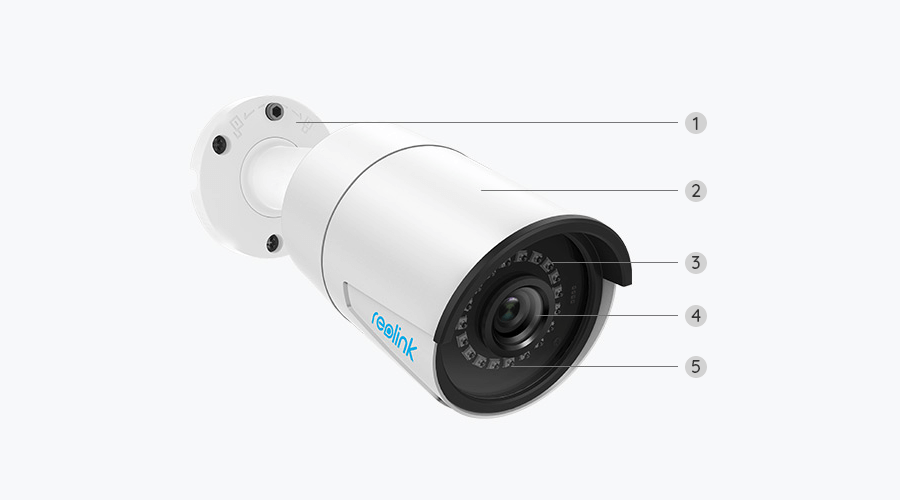

1 Mount
2 Metal Aluminum Case
3 18 IR LEDs
4 High Definition Lens (f=4.0mm)
5 Daylight Sensor
1. Unscrew it (counterclockwise) to loosen the bracket and adjust the camera in any direction.
2. After adjustment, twist it back to fix the camera.
1 Power
2 Reset Button
3 Network Cable
4 Waterproof Lid

Camera

Image Sensor

1/3" CMOS Sensor

Effective Pixels

2560x1440 (4.0 Megapixels)

Lens

f=4.0 mm Fixed, F=2.0

Angle of View

Horizontal: 80°, Vertical: 42°

Day/Night Mode

Auto Switchover

Min. Illumination

0 Lux (With IR Illuminator)

IR Distance

30 Meters (100ft)(LED: 18pcs/14mil/850nm)

Backlight Compensation

Support

Noise Reduction

3D DNR

Video

Compression

H.264

Resolution

Mainstream: 2560x1440, 1080p, 720p; Substream: 640x360

Bitrate

Mainstream: 1024Kbps~6144Kbps; Substream: 64Kbps~512Kbps

Frame Rate

Mainstream@30fps, Substream@7fps

Audio

Interface

Built-in Microphone

Network

Interface

One 10M/100Mbps RJ45

Network Protocol

SSL, TCP/IP, UDP, UPNP, NTP, DHCP, DNS, DDNS

General

Power Supply

DC12V & PoE (IEEE 802.3af, 48V Active)

Power Consumption

< 8W

Working Environment

-10°C~+55°C (14°F~131°F), Humidity: 10%~90%

Ingress Protection

IP66

Dimensions

Φ67x186 mm

Weight

415 g

Warranty

Limited Warranty

2-Year Limited Warranty. For Support, Visit https://support.reolink.com/hc/en-us/.

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
