Reolink offers three types of video doorbells—PoE, WiFi (Plug-in), and WiFi (Battery)—providing flexible options to suit various security needs. Beyond the common features like local and remote live view, recording, playback and alarm notifications, the doorbells include several unique functions tailored for enhanced user experience.

Table of Content

  1. Reolink Video Doorbell Overview
  2. Reolink Video Doorbell Key Features
  3. Comparison of Reolink Video Doorbell Models

1. Reolink Video Doorbell Overview

Reolink Video Doorbell PoE

It uses only one wire to get a stable network and non-stop powering at the same time. You can connect it to a PoE injector/switch to make it work. Alternatively, the Reolink Video Doorbell PoE can be powered by 24V DC or 12–24V AC (50/60 Hz) and connected to the network with an Ethernet cable.

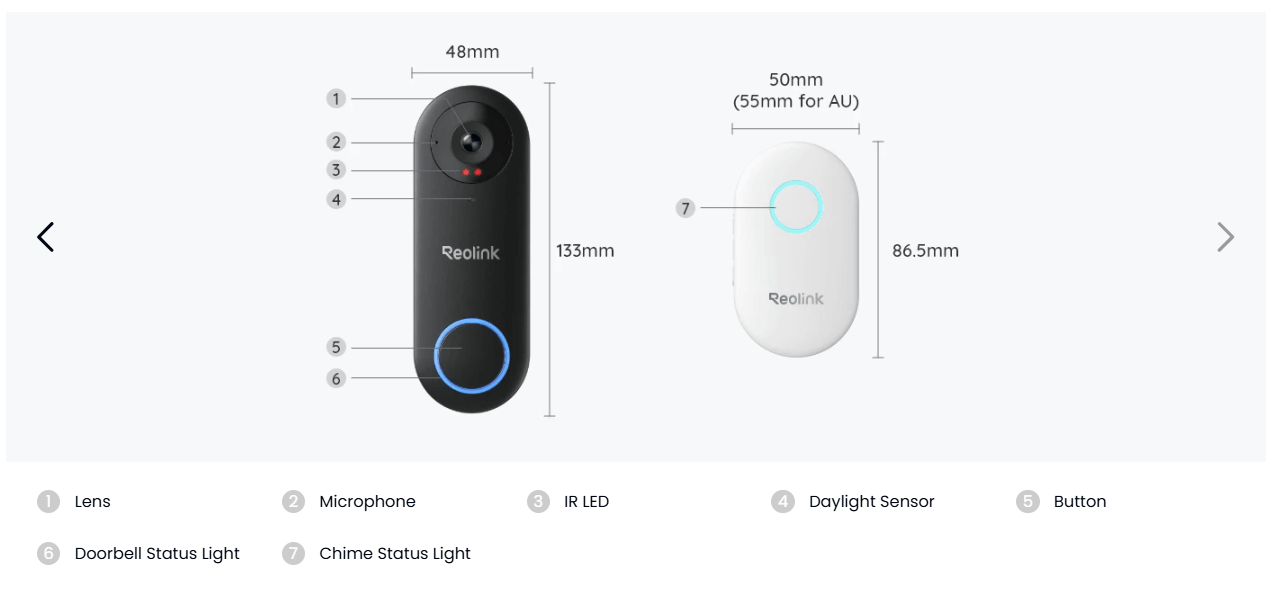

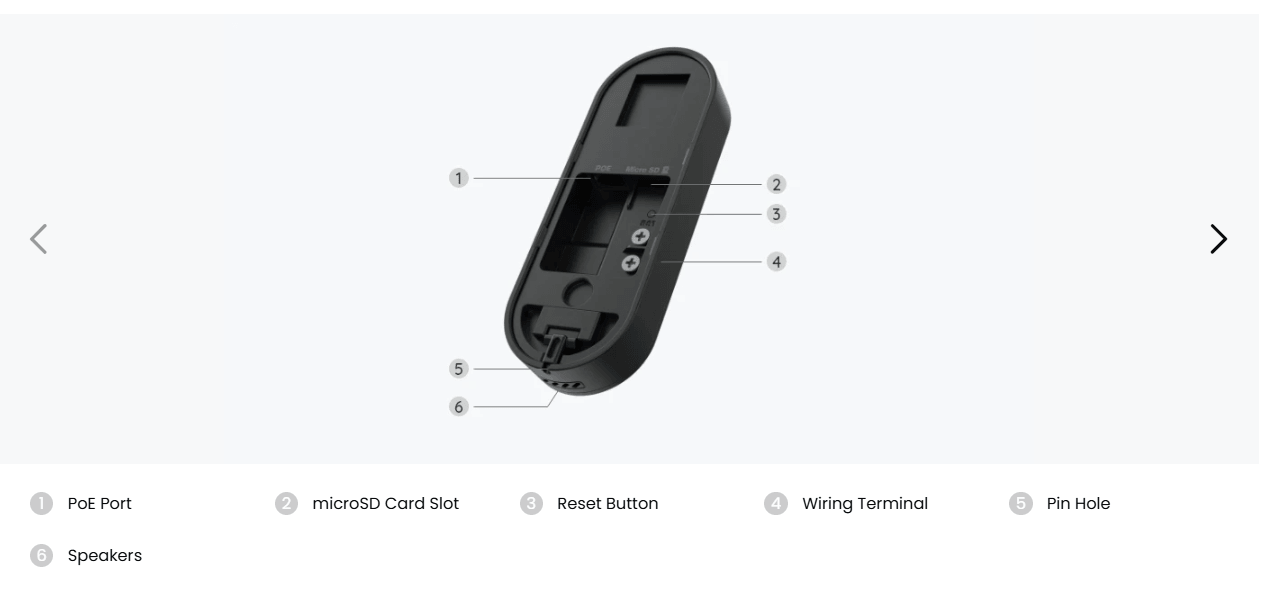

For the appearance and buttons of Video Doorbell PoE, please refer to the pictures below:

doorbell wifi 1 (1).png

doorbell poe 2 (1).png

Reolink Video Doorbell WiFi

Doorbell WiFi supports both 2.4GHz and 5GHz WiFi bands for a more stable connection. It needs a power supply of DC 24V or AC 12-24V, 50/60 Hz to power it up.

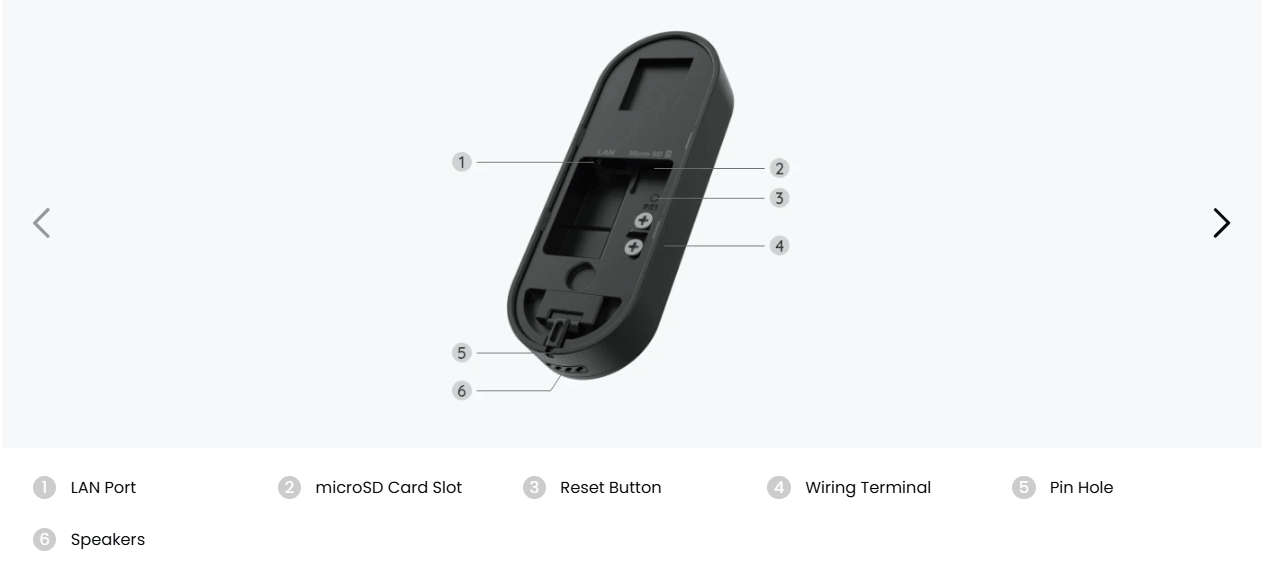

For the appearance and buttons of Video Doorbell WiFi, please refer to the pictures below:

doorbell wifi 1 (1).png

doorbell wifi 2 (1).png

Reolink Video Doorbell (Battery)

The Reolink Video Doorbell (Battery) supports both 2.4GHz and 5GHz WiFi bands for a more stable connection. It can be charged using a DC 5V 2A adapter or via a power supply of DC 24V or AC 8–24V, 50/60 Hz. (Note: In the latter case, it will only trickle charge the battery instead of powering the doorbell directly.)

For the appearance and buttons of Video Doorbell (Battery), please refer to the pictures below:

doorbell battery spec

Reolink Battery Video Doorbell (2nd Gen)

The Reolink Video Doorbell (Battery) 2nd Gen is an upgraded version of Reolink Video Doorbell (Battery). It can operate in Battery Power Mode or Wired Power Mode (requires 16–24V AC / 24V DC), which unlocks 24/7 recording and pre-recording functionality(standalone use). The battery offers up to 300 days of battery life based on five minutes of recording per day, and the doorbell can be charged via a USB Type-C port or trickle charged via hardwire input (8–24V AC / 24V DC).

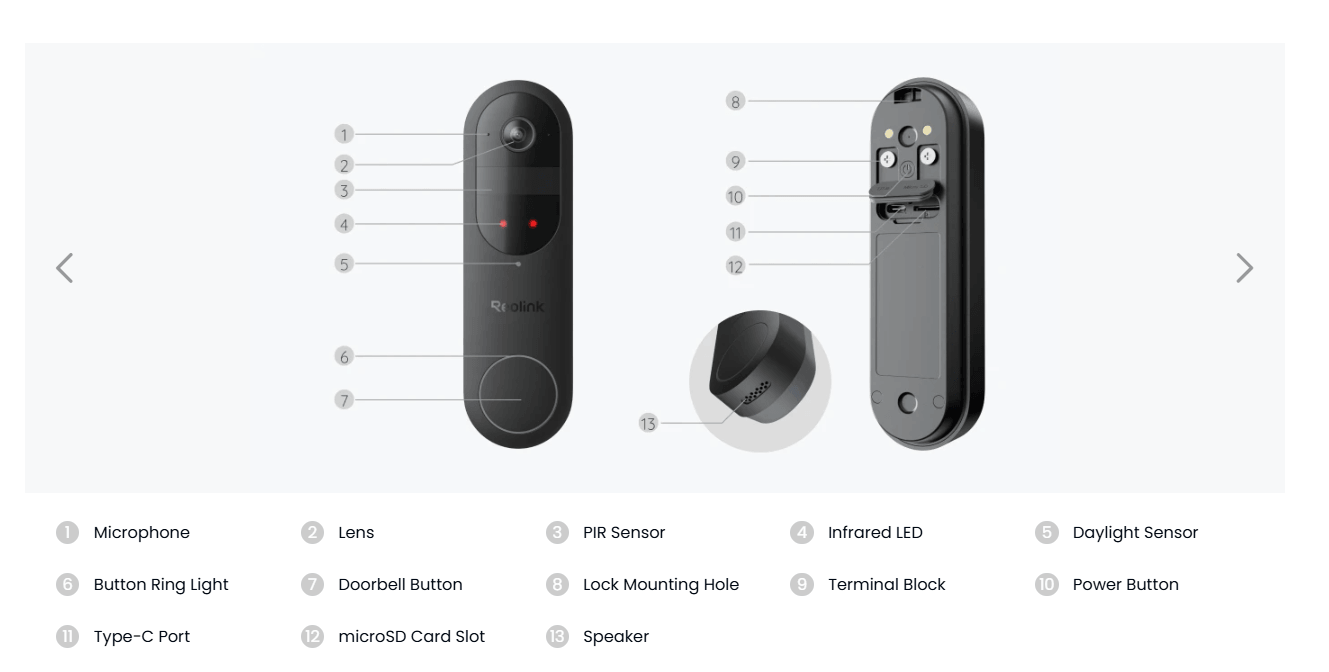

For the appearance and buttons of Reolink Battery Video Doorbell (2nd Gen), please refer to the pictures below:

2nd gen

2. Reolink Video Doorbell Key Features

  1. Two-Way Audio & Quick Reply
    Communicate with visitors in real time through the built-in two-way audio. When you’re unavailable, you can respond instantly using preset automatic voice replies or by customizing and recording your own message.
  2. Chime Support
    Connect a wireless chime to any power outlet in your home. The chime sounds to alert you whenever someone presses the doorbell button.
    PoE and WiFi (Plug-in) Doorbell: How to Pair Reolink Doorbell with Chime (Doorbell PoE/WiFi)
    Battery Doorbell: How to Connect Reolink Video Doorbell (Battery) to a Chime.
  3. Smart Motion Detection & Alerts (Including Visitor and Package Detection)
    Receive immediate push notifications and alarm emails when motion is detected. Advanced smart detection distinguishes people, vehicles, and visitors to reduce false alarms. Additionally, the white PoE and WiFi (Plug-in) models, as well as the battery-powered version, support package detection for extra convenience.
  4. Flexible Recording Options
    Store videos on an SD card, NVR HDD, Home Hub or FTP server. The WiFi plug-in and battery doorbells also support Reolink Cloud storage for easy backup and access.
  5. Smart Home Integration
    Compatible with Google Home and Alexa, and supports receiving push notifications on both platforms. In addition, doorbell series supports integration with Home Assistant (Note: doorbell battery can only be used with Home Assistant when paired with a Reolink Home Hub series device).
  6. Rich Notifications
    For the WiFi Plug-in and Battery models, rich notification is also supported, with a free plan available for subscription. This feature delivers not only text alerts but also snapshot an image along with push notifications to your phones, enabling you to quickly see what’s happening.

3. Comparison of Reolink Video Doorbell Models

The table below highlights the feature differences among the various doorbell models. Each model is available in both white and black versions. For the Video Doorbell PoE and WiFi (Plug-in), there are slight differences in specifications between the black and white versions.

Feature Battery Video Doorbell (2nd Gen) Battery Video Doorbell (1st Gen) Video Doorbell WiFi Video Doorbell PoE
Resolution & Aspect Ratio 2K (4MP, 2048 × 2048)
1:1 Head-to-Toe 		2K (4MP, 2048 × 2048)
1:1 Head-to-Toe 		2K+ (5MP, 2560 × 1920)
4:3 or 3:4 (by color variant) 		2K+ (5MP, 2560 × 1920)
4:3 or 3:4 (by color variant)
Field of View (FOV) Horizontal: 150°
Vertical: 150°
Diagonal: 180° 		Horizontal: 150°
Vertical: 150°
Diagonal: 180° 		Black:
Horizontal: 135°
Vertical: 100°
Diagonal: 180°

White:
Horizontal: 100°
Vertical: 135°
Diagonal: 180° 		Black:
Horizontal: 135°
Vertical: 100°
Diagonal: 180°

White:
Horizontal: 100°
Vertical: 135°
Diagonal: 180°
Power Requirements ① Battery-Only
② Wired Connection (Battery Mode: 8-24V AC/ 24V DC; Wired Mode: 16-24V AC/ 24V DC) 		①Battery-only
②Trickle charge: 8–24V AC/ 24V DC 		12–24V AC / 24V DC (existing doorbell wiring required) PoE (IEEE 802.3af) or 12–24V AC / 24V DC
Operating Modes Wire-free or trickle-charged standby (battery mode) or always-on (wired power mode) Wire-free (battery) or trickle-charged standby Always-on (wired) Always-on (wired)
Mechanical Chime Support ✅ (requires hardwiring; RLA-PK1 or Jumper Cable needed for Wired Power Mode) ✅ (requires hardwiring) ❌ ❌
Pre-Recording ✅ (Wired Power Mode only) ❌ ✅ ✅
24/7 Continuous Recording ✅ (Wired Power Mode, standalone only) ❌ (motion-triggered only) ✅ ✅
24/7 Recording to NVR or Home Hub ❌ (records motion events only) ❌ (records motion events only) ✅ ✅
ONVIF / RTSP Support ✅ (Requires Reolink Home Hub; standalone support in Wired Power Mode coming in a future firmware update.) ✅ (Requires Reolink Home Hub) ✅ ✅
Home Assistant Support ✅ (Requires Reolink Home Hub; standalone support coming in a future firmware update.) ✅ (requires Reolink Home Hub) ✅ (direct integration) ✅ (direct integration)
Compatible Chime Reolink Chime Plus
Reolink Chime (2.1)
Mechanical chime (hardwired) 		Reolink Chime (V1)
Reolink Chime (V2)
Reolink Chime Plus
Reolink Chime (2.1)
Mechanical chime (hardwired) 		Reolink Chime (V1)
Reolink Chime (V2)
Reolink Chime (2.1)
Reolink Chime Plus 		Reolink Chime (V1)
Reolink Chime (V2)
Reolink Chime (2.1)
Reolink Chime Plus
RLA-PK1 Compatibility ✅ (required for mechanical chime in Wired Power Mode) ❌ (not needed; mechanical chime works via trickle-charge wiring) ❌ ❌
Reolink Doorbell Solar Charger Compatibility ✅ ✅ ❌ (no battery) ❌ (no battery)
Zone Loitering Alert ✅ ❌ ❌ ❌
Tamper Alert ✅ ❌ ❌ ❌
Voice Masking ✅ ❌ ❌ ❌
Purchase Advice Best overall choice for most users — start wire-free today, hardwire later for 24/7 recording; the only model with package detection, tamper alert, and voice masking Choose only if budget is the top priority; otherwise, the 2nd Gen offers significantly better battery life, detection, and future-proofing for a modest price difference Choose if you already have doorbell wiring and need ONVIF/RTSP or direct Home Assistant — otherwise the Battery 2nd Gen offers more features Choose if you are building a new home or need the most reliable, latency-free connection — overkill for most residential retrofits

In summary, when choosing a Reolink Video Doorbell, consider your preferred power and network setup, desired field of view, and required resolution. Each video doorbell offers distinct features and capabilities to meet different home security needs, allowing you to select the one that best fits your environment and usage preferences.
