How to Hide the Camera Name and Timestamp on the Video

Avatar
Sylvie
  • Updated
Follow



Applies to: All Reolink Cameras.



The camera‘s name and timestamp are very useful information for users to find the exact footage from lots of videos. However, if you need a clear image without any other information, then you may follow the guides below to hide the OSD on the image.



Method 1: Set up via Reolink Client (Windows)

Please go to Device Settings -> Display -> OSD page, then uncheck the Camera Name and Date/Time, and click OK to save the settings.

OSD Page

Method 2: Set up via Reolink New Client

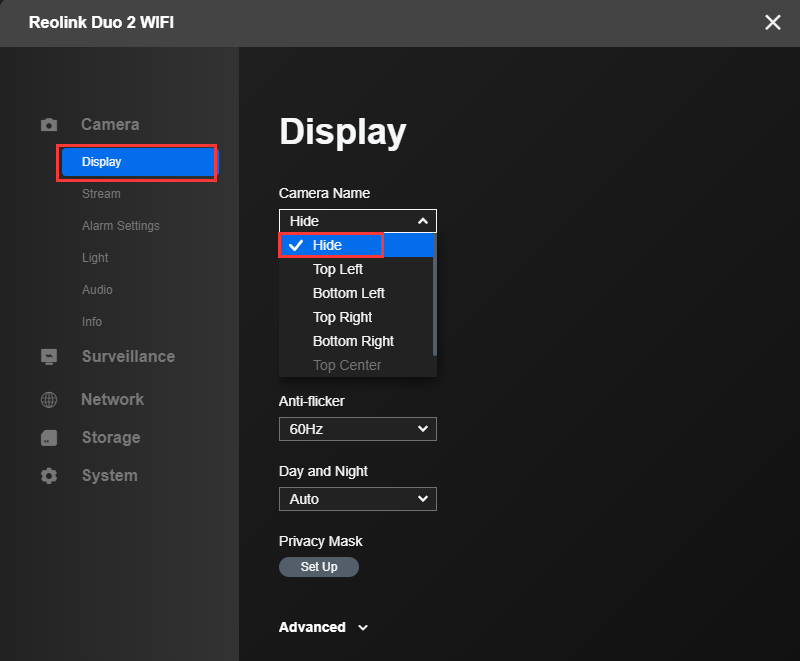

Please go to Settings ->Display page, then click the option below Camera Name/ Date & Time to choose Hide.





Method 3: Set up via Reolink APP

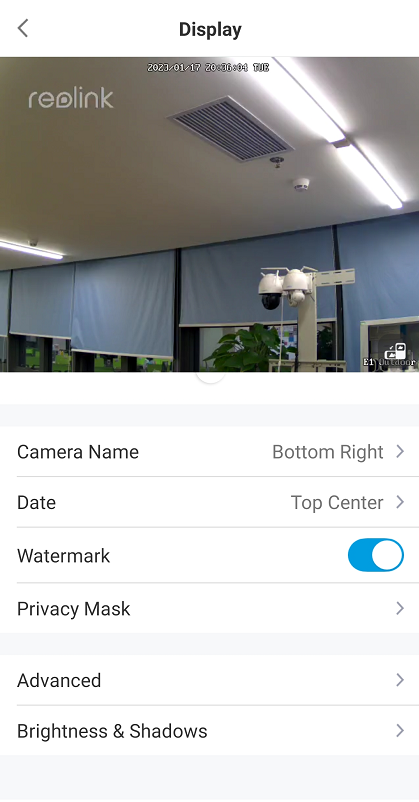

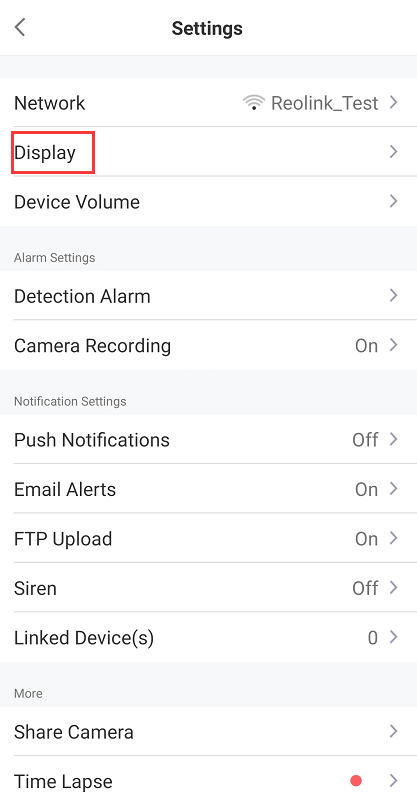

Step 1. Log in to the camera and go to Device Settings -> Display page.

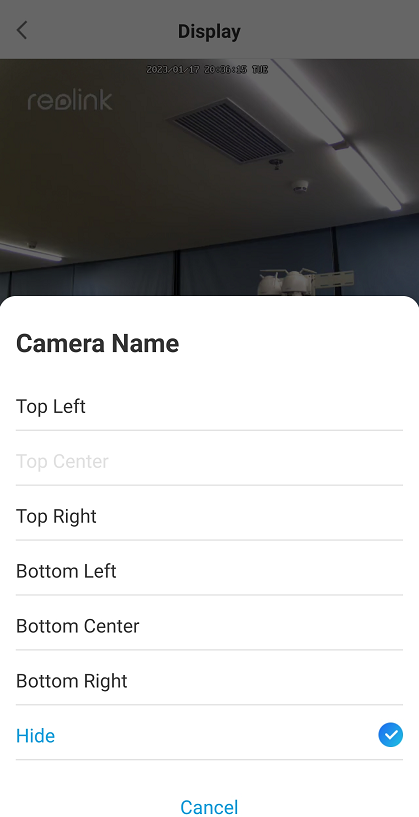

Step 2: Click Camera name/Date to choose Hide.


Method 4: Set up via Reolink NVR

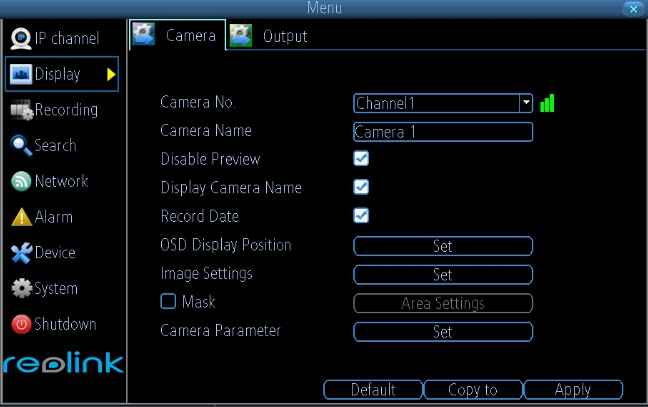

Step 1. Log in the NVR and go to Menu -> Display -> Camera page:

Step2. Uncheck the Display Camera Name.


Method 5: Set up via Reolink New UI NVR.

Step 1. Log in the NVR and go to Settings -> Camera -> Display page:

Step2. Choose None in the Camera Name/Time Stamp option.



For more information about OSD, see Change the OSD for Reolink Cameras.
