The following steps describe how to set up a motion detection area via Reolink PoE NVR.

Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

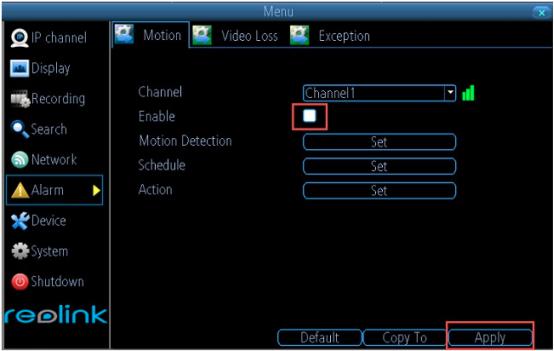

Step 1. Log in to the Reolink PoE NVR via an NVR monitor, then go to  MenuAlarmMotion page. Select the channel (camera) you want to set, and then check Enable.


Motion Page

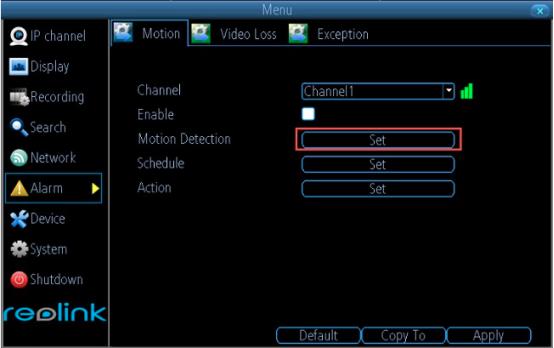

Step 2. Click Set next to Motion Detection to set the detection area.

Set Motion Detection

Step 3. You will see a page covered with red grids which represent the motion detection area.

Left-click on the interface and drag the mouse to set the motion detection area. For reducing false alarms, you can exclude the area within which you don’t need motion detection.

Motion Detection Area

Step 4. Right-click on this page to save the settings, then go back to the Motion page and click on the Apply button.

Note: You can click Copy To to copy the settings to other channels.

You may also configure the motion detection area by using other methods. Check details in:
