My Wi-Fi camera is connected to the Wi-Fi of the Wi-Fi NVR, but the connection is often unstable. What should I do? This article will tell you how to strengthen Wi-Fi signals.

Applies to: RLN12W

Methods to Enhance Wi-Fi Signal Include

1. Cameras equipped with external antennas can use antenna extension cables to enhance their signal strength: https://store.reolink.com/accessories/#antenna-extension-cable

2. If the camera is far from the NVR and there are many obstacles in between, you can try fixing the camera to a 2.4GHz Wi-Fi. Please refer to this article for details: How to Set up Wi-Fi Band Preference via Wi-Fi NVR

3. Connect the camera to the router's Wi-Fi or add a wireless security camera signal booster.

  • Read this article to learn how to connect the camera to different Wi-Fi networks: How to Change Wi-Fi on Wi-Fi NVR

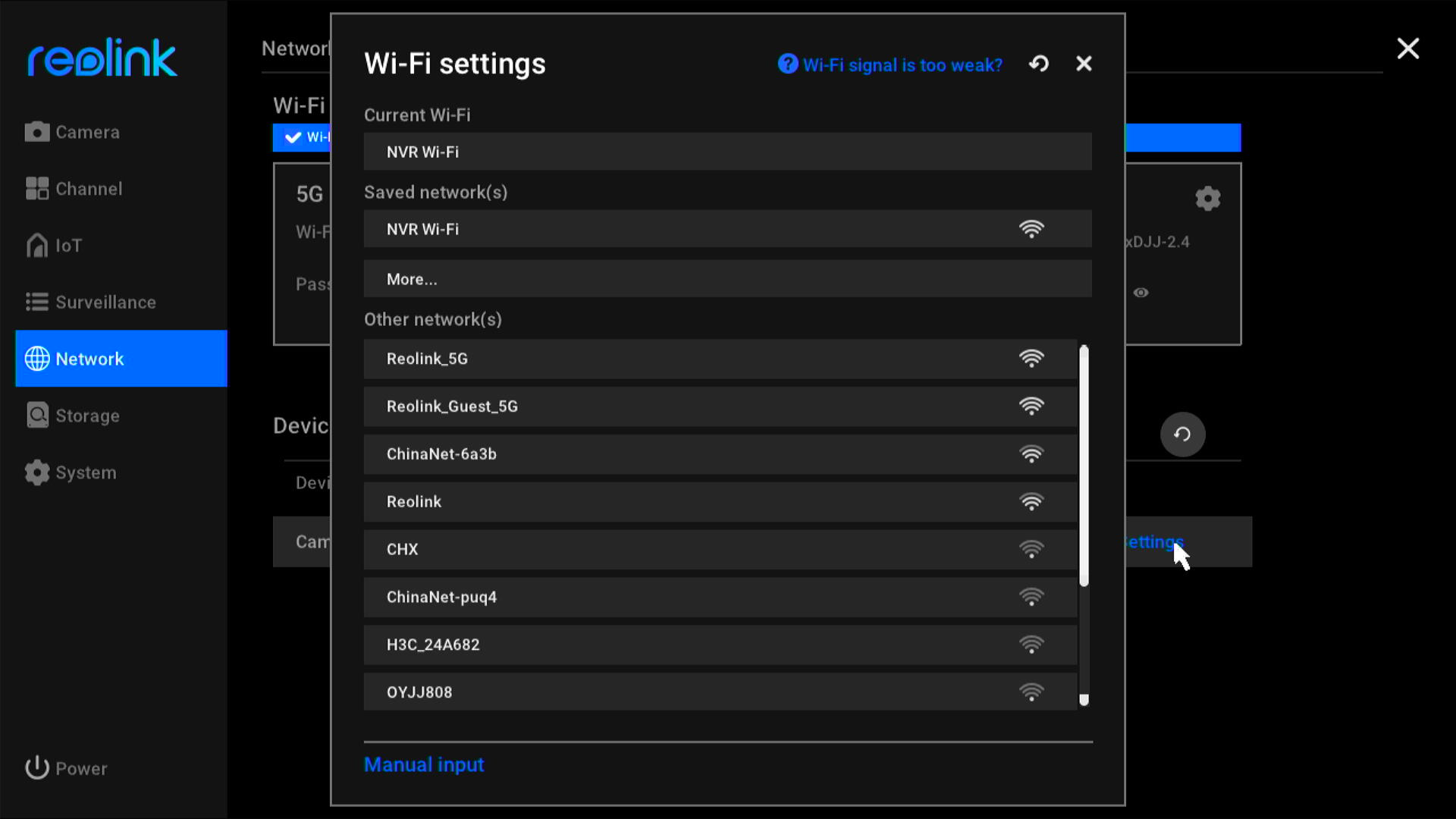

  • Click Wi-Fi signal is too weak for a topology map for reference, illustrating three different connection methods due to weak Wi-Fi signal.

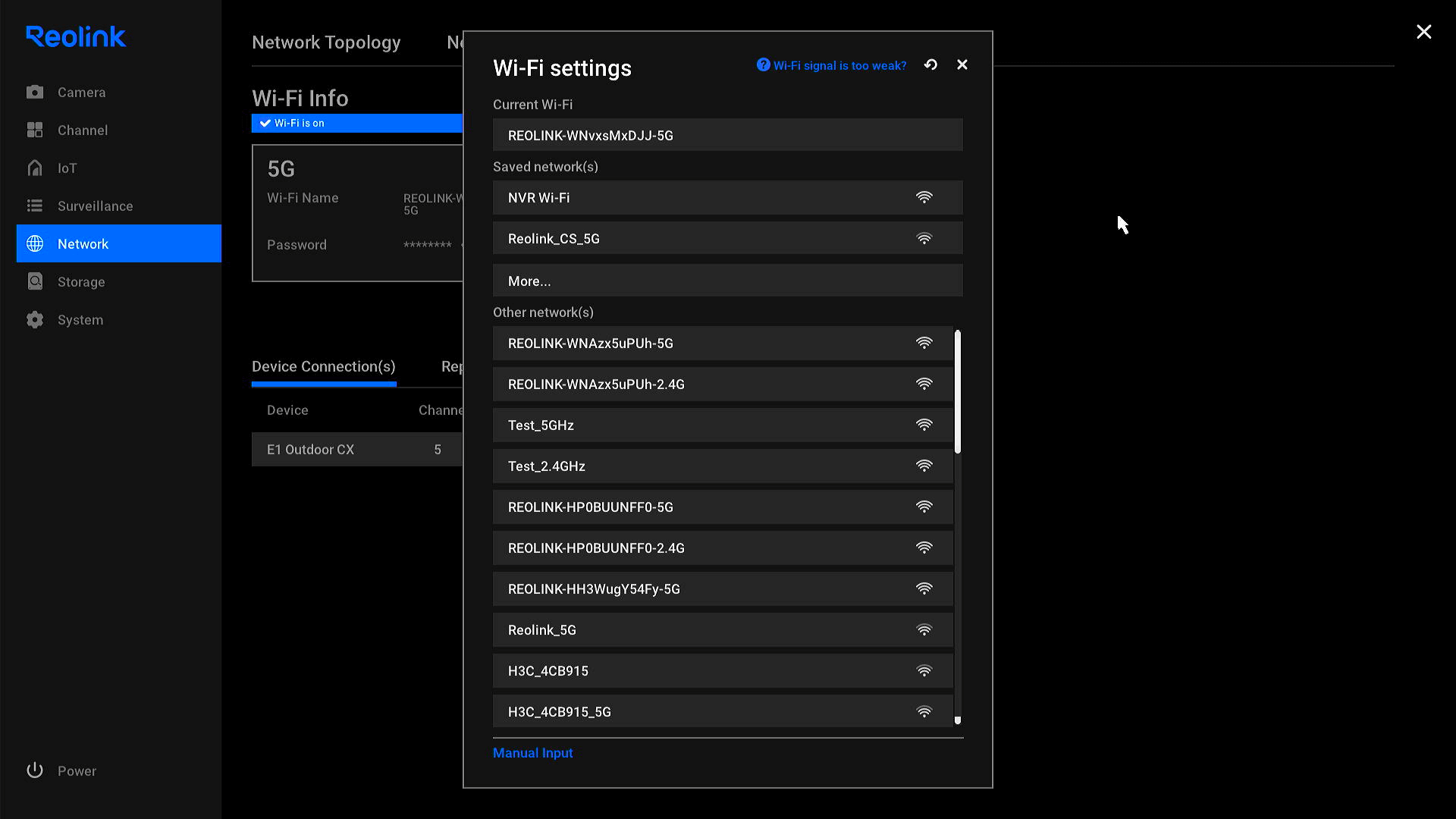

NVR wifi

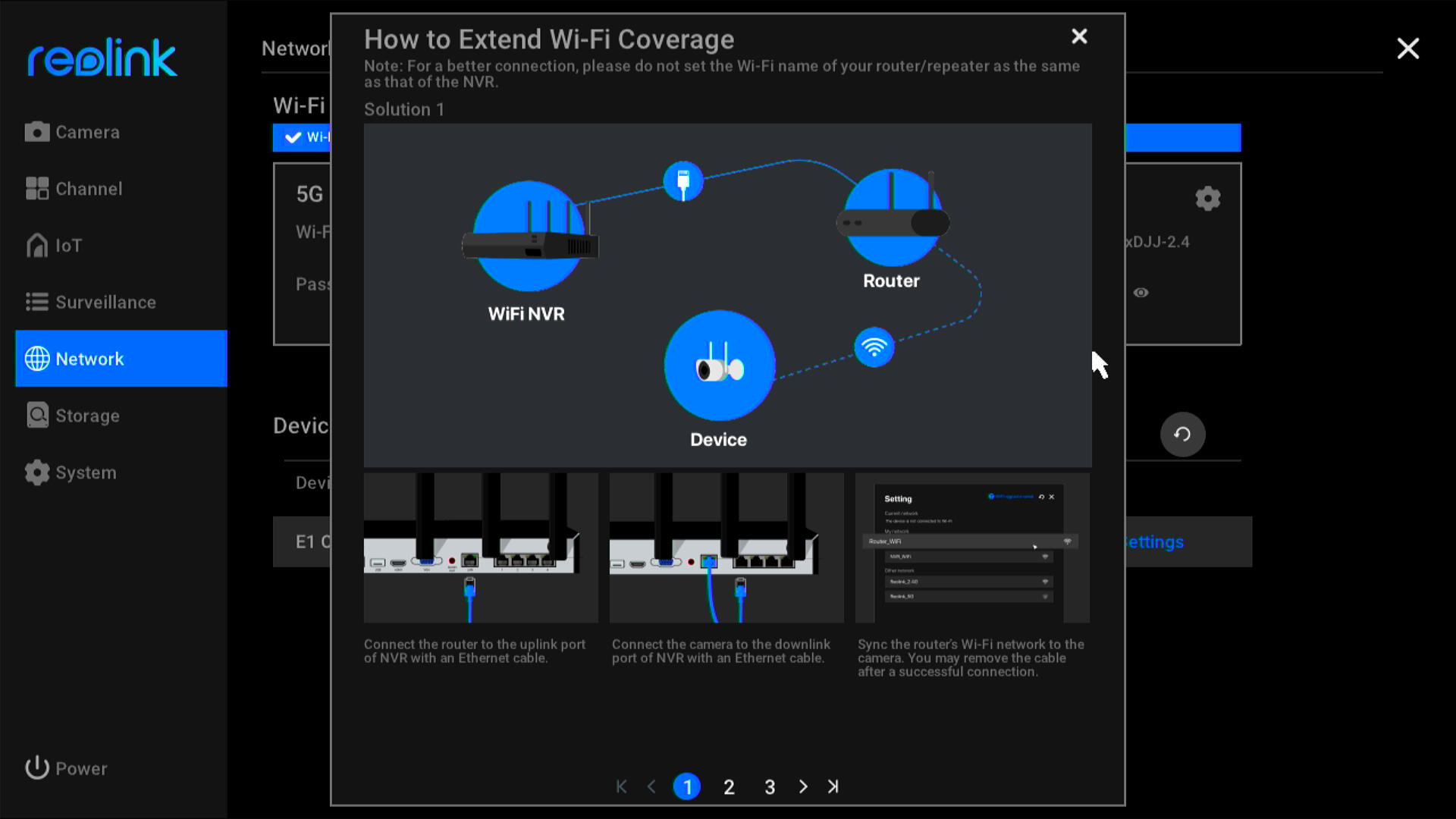

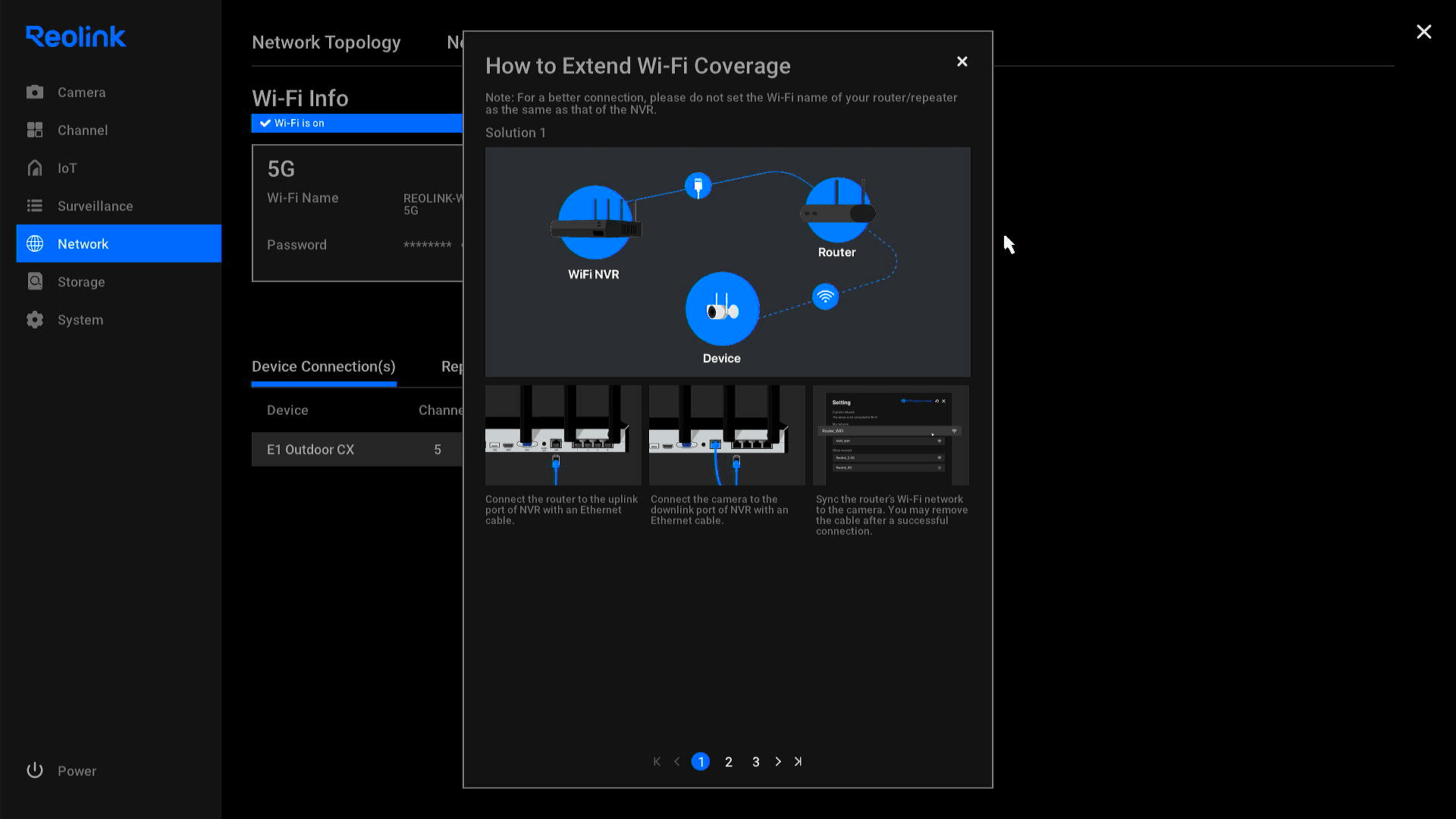

Solution 1: Connect the camera to the router's Wi-Fi.

extend wifi coverage

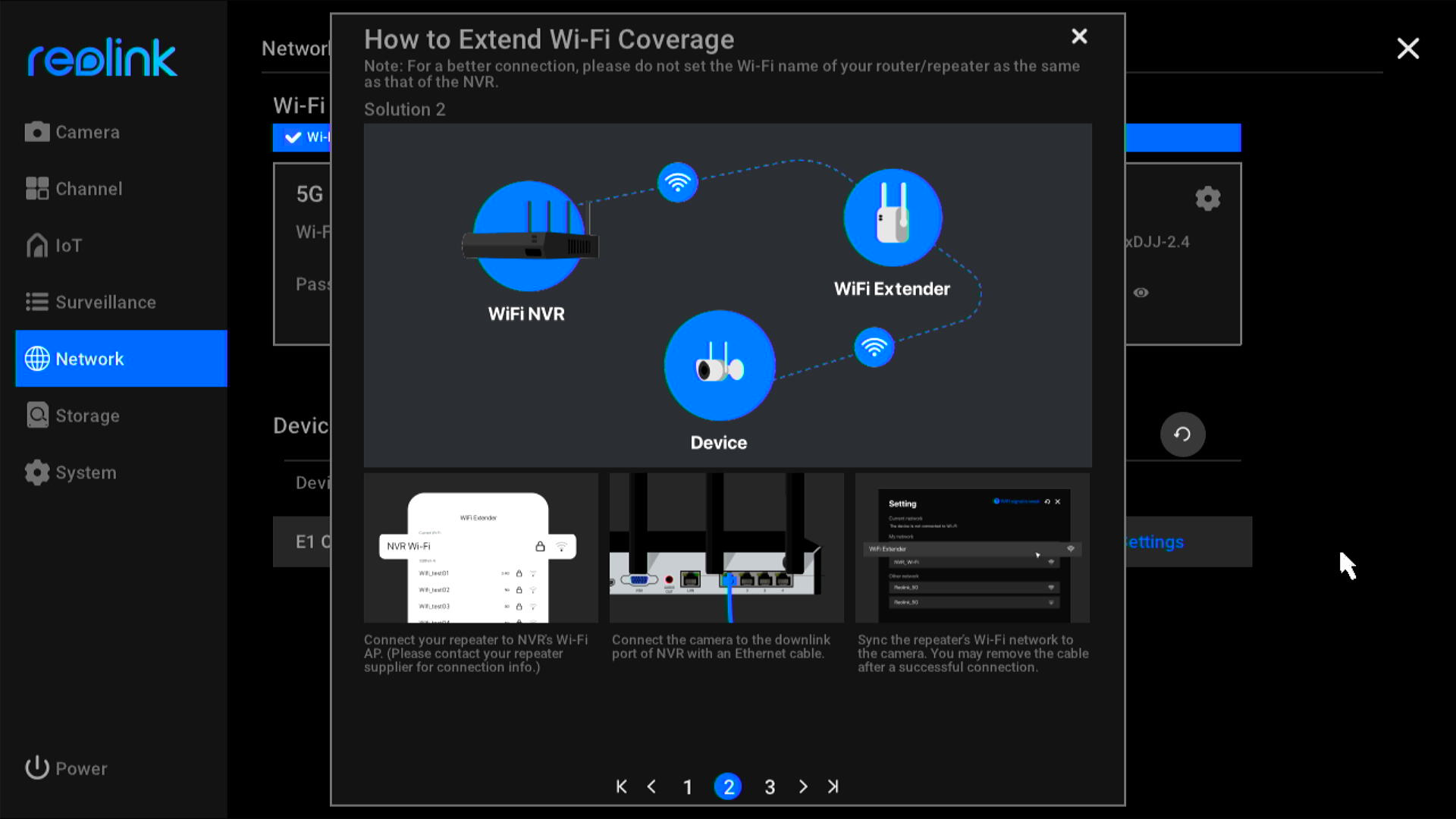

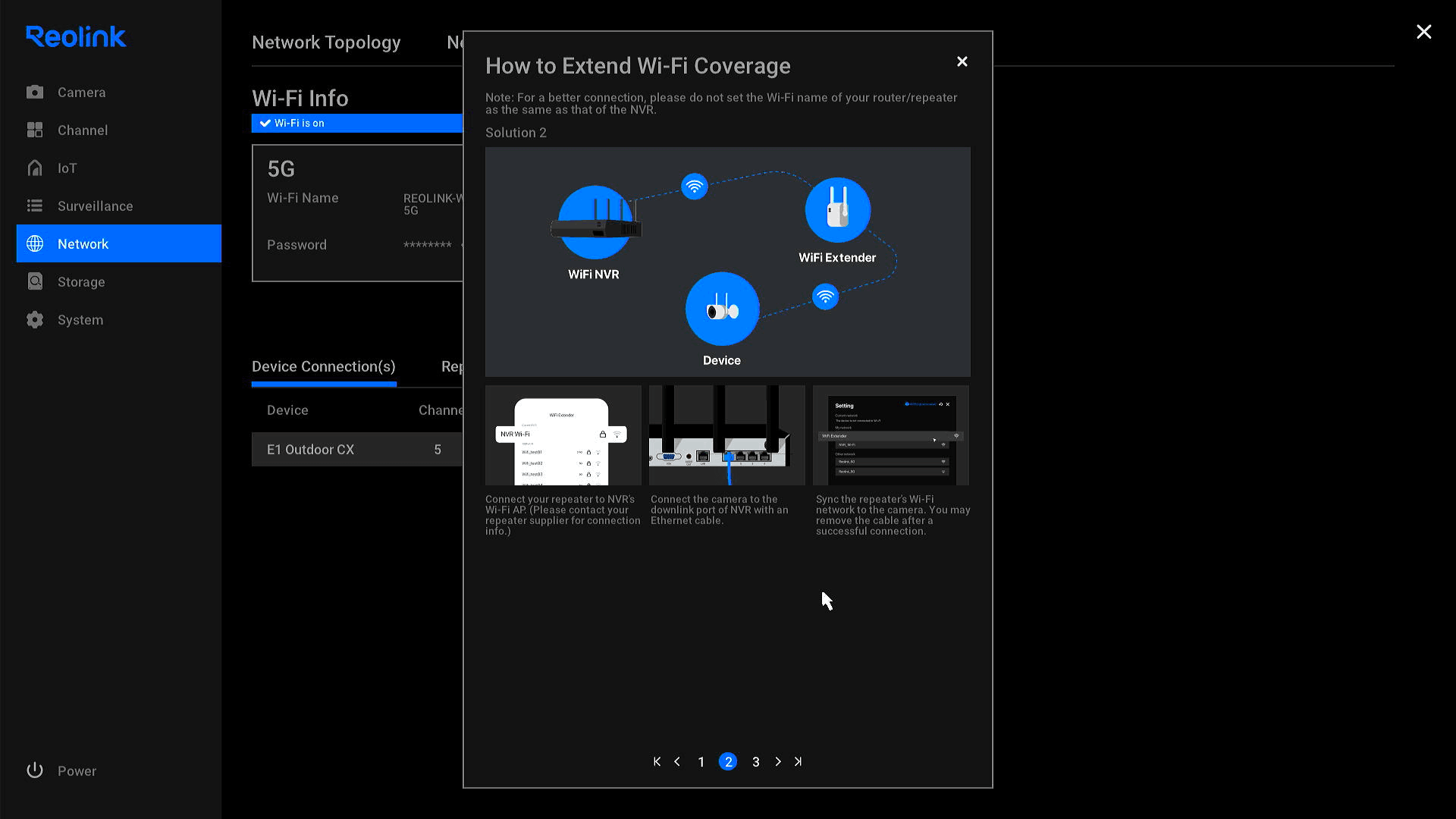

Solution 2: Connect the Wi-Fi extender to the Wi-Fi of the Wi-Fi NVR, set a different SSID name, and connect the camera to the Wi-Fi extender to enhance the signal.

extend wifi coverage

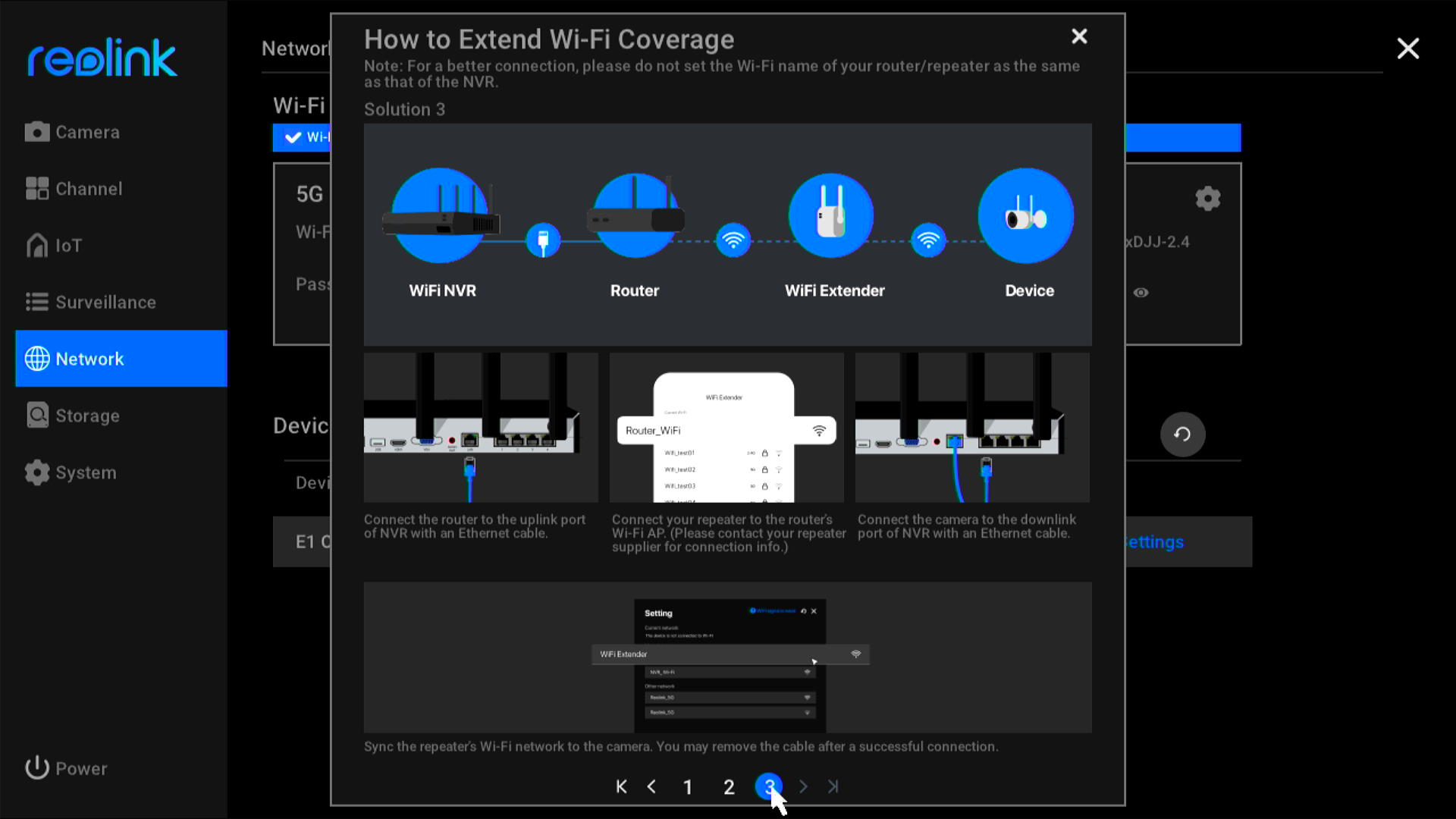

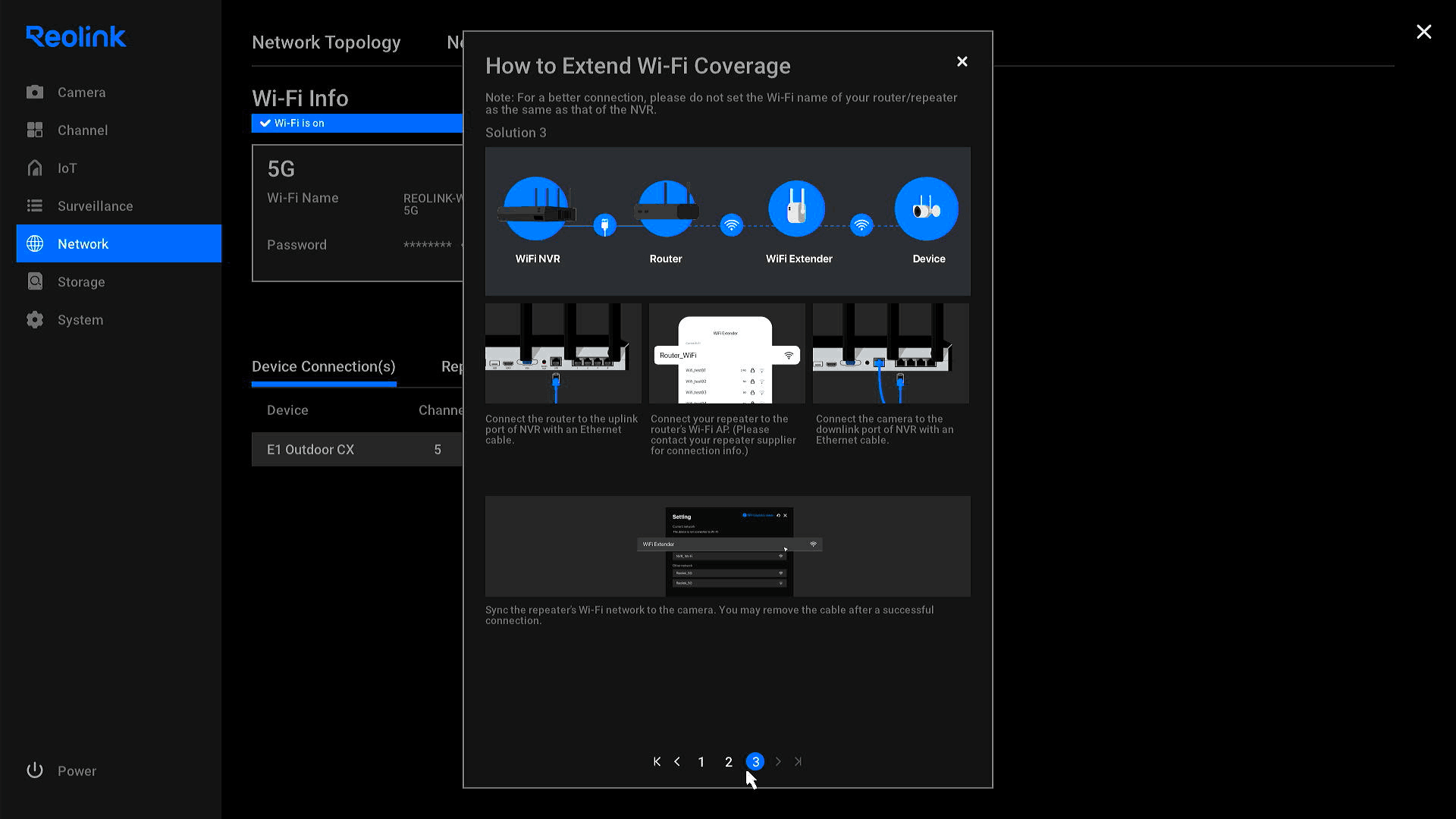

Solution 3: Connect the Wi-Fi extender to the router, then connect the camera to the Wi-Fi extender.extend wifi coverage

Configure Wi-Fi Extender for Security Cameras

Here are the simplified steps for configuring a Wi-Fi Extender:

  1. During setup wireless camera signal booster, you will be prompted to choose which Wi-Fi network to extend. Select the Wi-Fi network of your NVR/router.

  2. Enter the password for your NVR/router Wi-Fi network.

  3. Set the SSID (network name) of the extender to be different from the SSID of your NVR/router Wi-Fi network.

  4. No additional information such as IP addresses or MAC addresses needs to be entered.

These steps ensure a basic configuration that extends the range of your Wi-Fi network effectively. Different extenders may have slightly different configuration methods. For more detailed guidance, it's advisable to consult the support provided by the extender's manufacturer. They can offer specific instructions tailored to your extender model, ensuring you set it up correctly for optimal performance.
