Image Sensor

1/2.8" CMOS sensor

Video Resolution

Default: 3840X2160 (8.0 Megapixels) at 25 frames/sec

Lens

f=2.7-13.5mm F=1.6-3.3, zoom module

Optical Zoom

Video Compression

H.265

Field of View

• Horizontal: 105°-31°
• Vertical: 55°-17°

Day & Night

Auto-switching with IR-cut filter

Infrared Night Vision

Up to 60 meters (190 ft) (LED: 4pcs/28mil/850nm)

Color Night Vision

Spotlight: 3pcs/5700K/945 lumens

Audio

Two-way audio

PoE

IEEE 802.3at, 48V Active

DC Power

DC 12.0V⎓2A, <24W

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

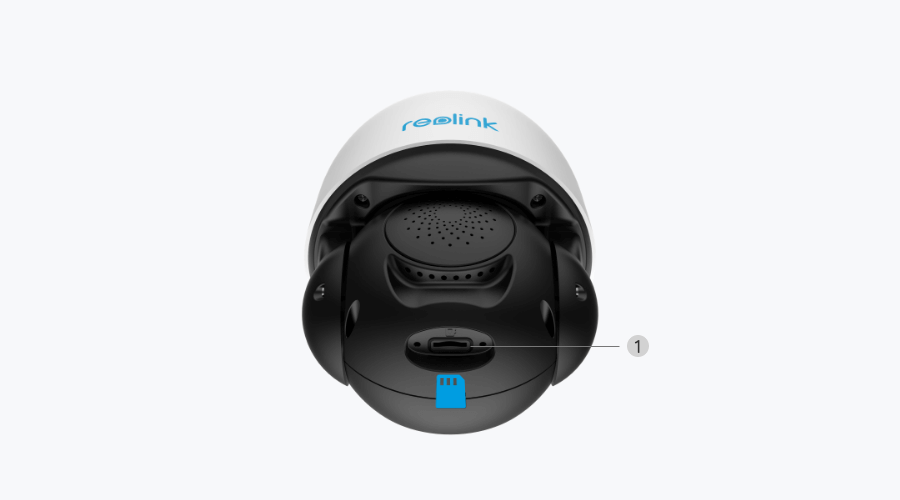

Storage

microSD card slot (Max. 256GB)

Audio

Built-in microphone and speaker

Pan & Tilt Range

Pan: 360°, Tilt: 0° ~ 90°

Pan Speed

2.5°-150°/s (Speed can be set)

Tilt Speed

1.5°-60°/s (Speed can be set)

Preset Points

64

Patrol

1 Patrol; up to 16 presets per patrol

Auto Tracking

Support

Power-off Memory Function

Support

Frame Rate

• Mainstream: 2fps - 25fps (default: 25fps)
• Substream: 4fps - 15fps (default: 10fps)

Code Rate

• Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 256Kbps)

Browsers Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection; person detection; vehicle detection; pet detection

Record Mode

Motion-triggered recording (default); 24/7 recording; scheduled recording

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Smart Home

Google Assistant

Temperature

Operating temperature: -10°C ~ +55°C (14°F ~ 131°F)

Humidity

Operating humidity: 10% ~ 90%

Waterproof

IP66

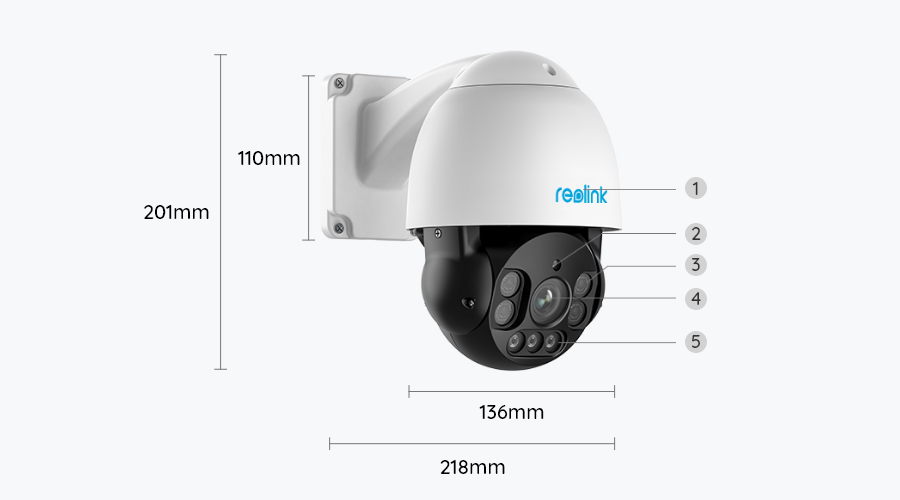

Dimensions

Φ136*201mm

Weight

1.8kg

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/
