Reolink device offers user-friendly features for easily checking network information. Whether troubleshooting connection matter or verifying smooth operation, knowing how to access this information is crucial. In the following sections, we'll guide you through the steps to find and check the Information on the network status of your Reolink device.

Applies to: All Reolink cameras (except for battery-powered 4G cameras), Home Hubs and NVRs.
Note: For TrackMix Wired LTE, it will gain an IP address only when using cable connection.

  • Via Reolink App

    1. For Reolink Standalone Camera

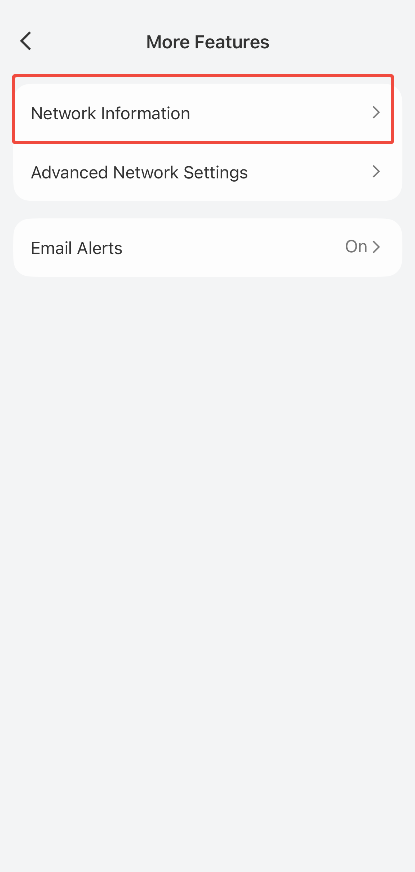

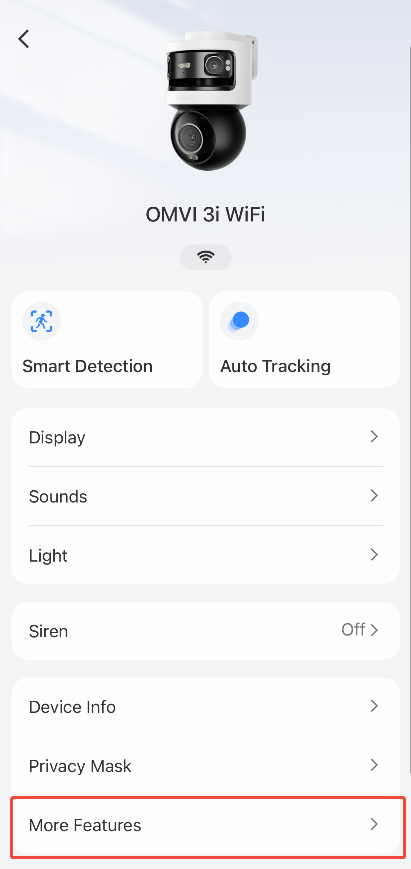

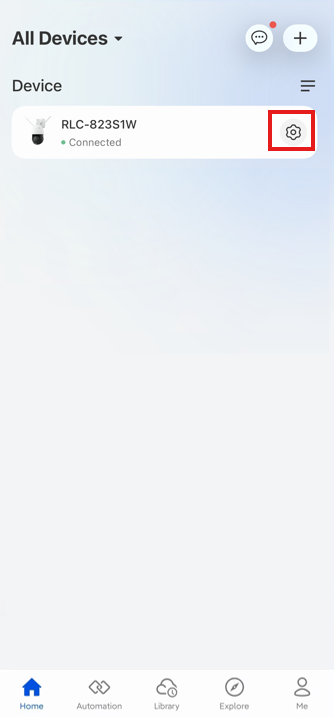

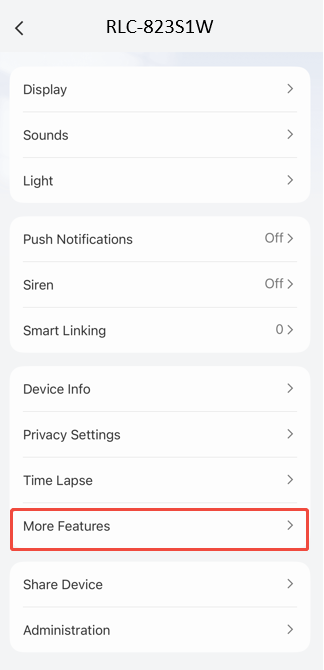

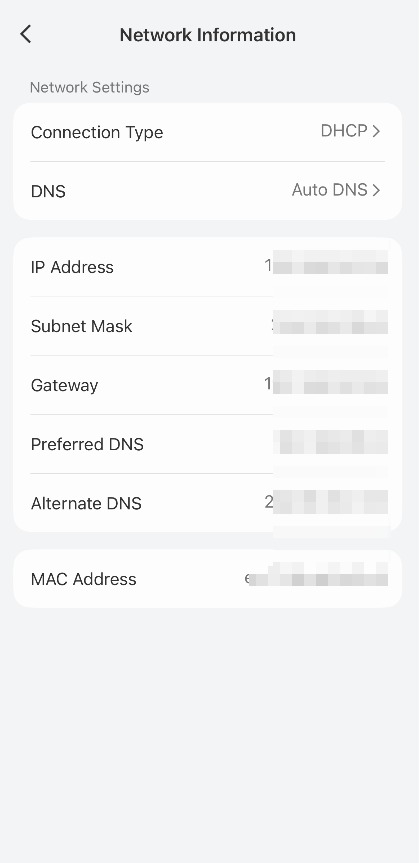

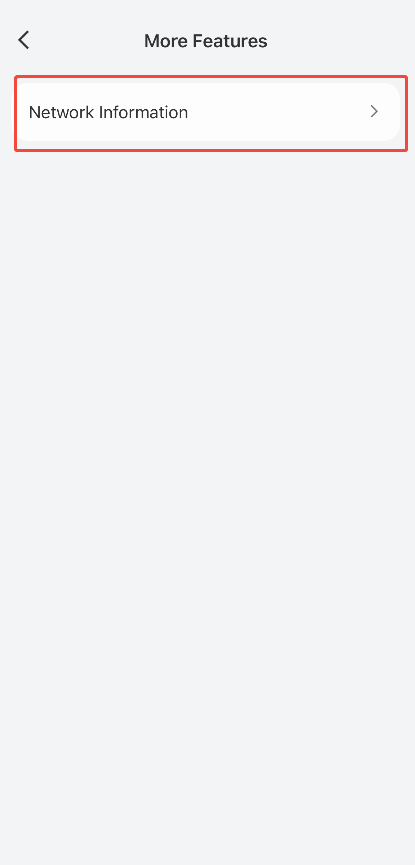

    Log in to your camera on the Reolink App on your cellphone. Tap the gear.png icon > More Features > Network Information.

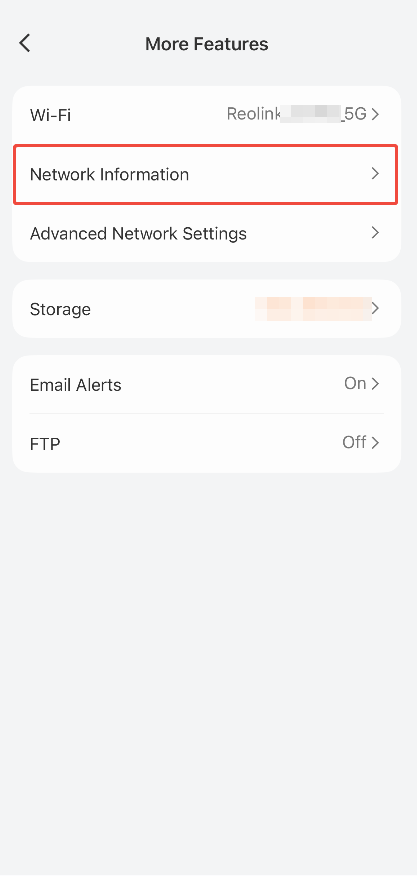

    setting  More FeaturesNetwork Information  Network Information

    2. For Reolink NVR / Home Hub

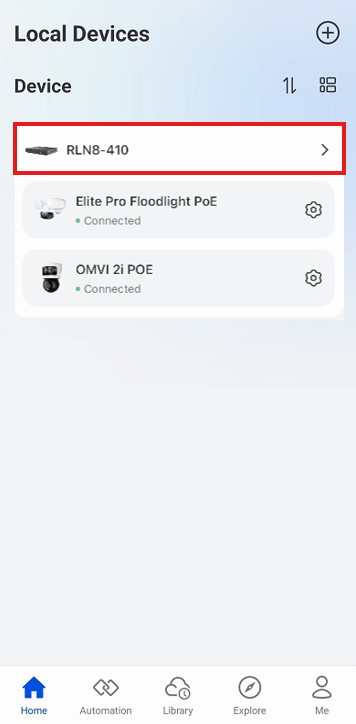

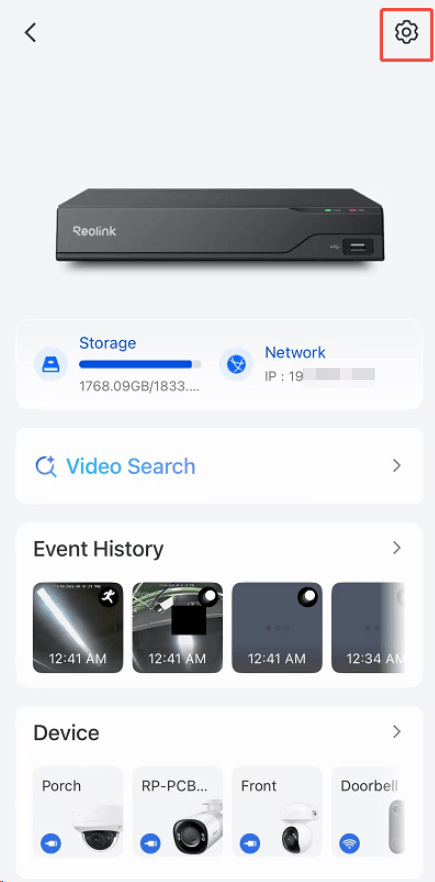

    Log in to your NVR / Home Hub on the Reolink App on your cellphone. Tap NVR / Home Hub >  gear.png icon > More Features > Network Information.

    tap nvr  nvr setting app

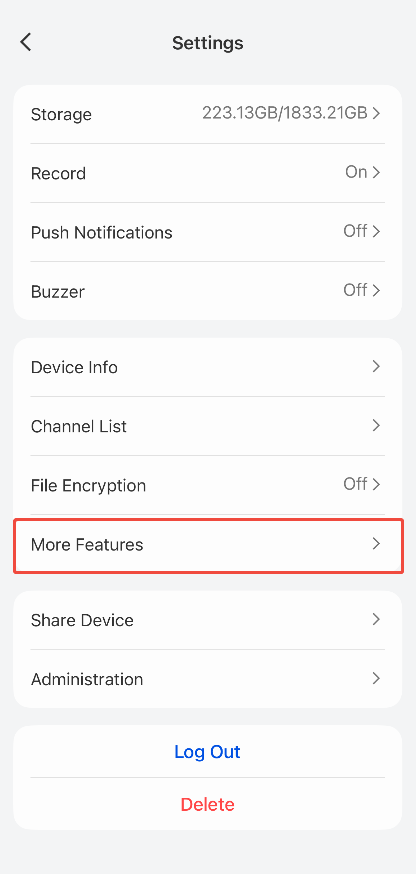

    More Features  Network InformationNetwork Information

    3. For cameras added to Reolink NVR / Home Hub

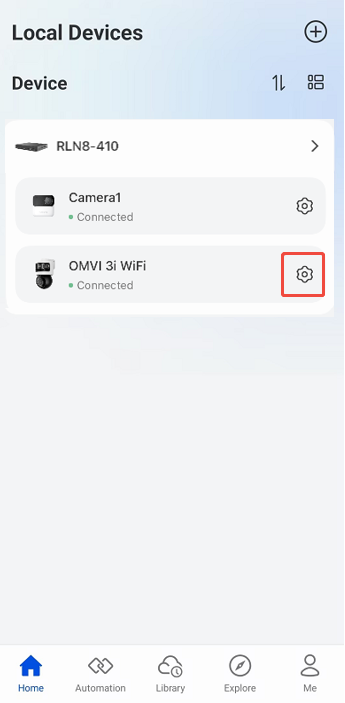

    Log in to your NVR and camera on the Reolink App on your cellphone. Tap the gear.png icon next to the camera > More Features > Network Information.

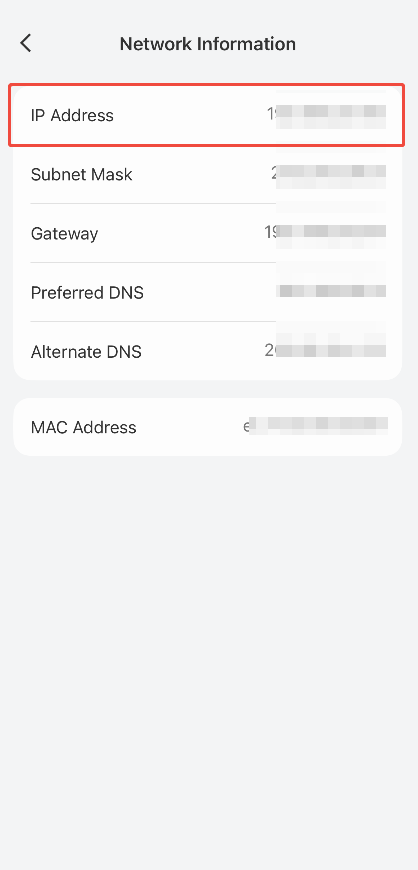

    nvr-cam  More FeaturesNetwork Information  hub/nvr-cam ip

  • Via Reolink Client

    1. For Reolink Standalone Camera

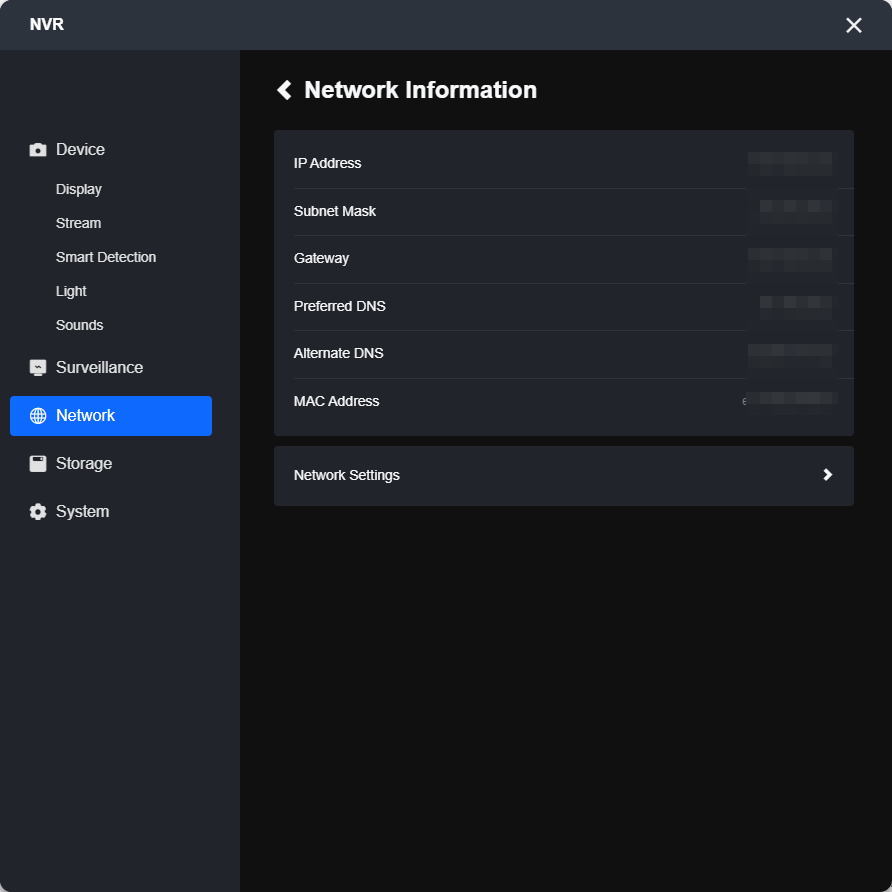

    Log in to your device on Reolink Client, go to Device Settings > Network > Network Information, and check the network information of your device.

    client Network Info(1).png

    check the client network information

    2. For Reolink NVR / Home Hub

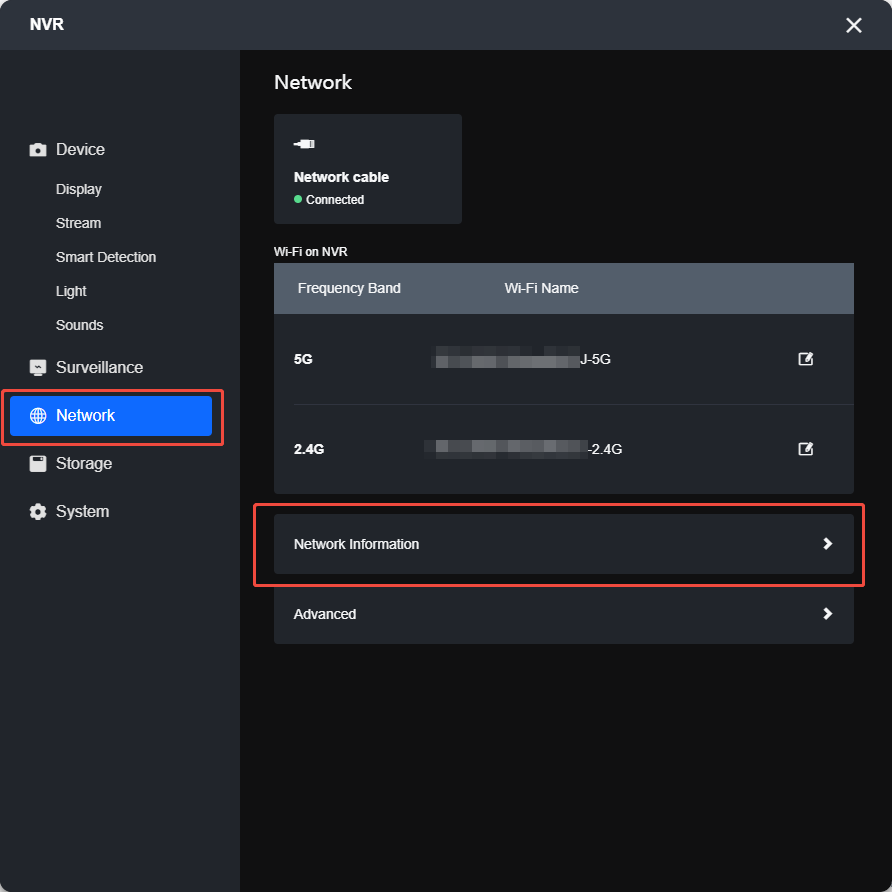

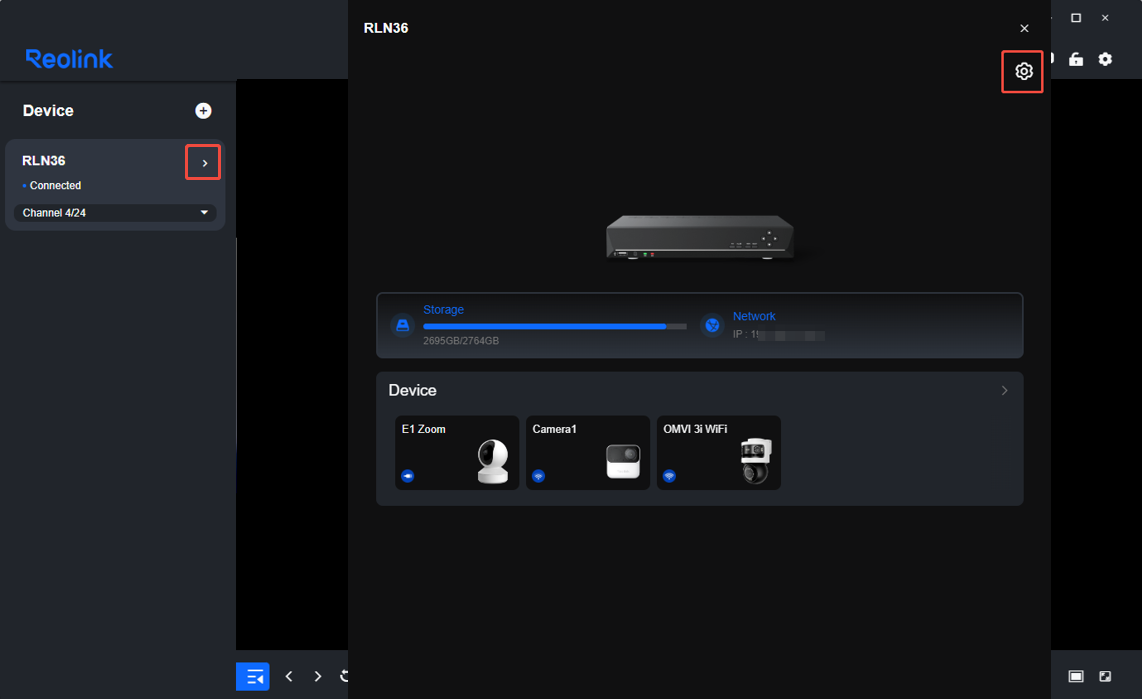

    For Reolink NVR, click nvr setting.png icon > gear.png icon > Network > Network Information, and check the network information of your device.

    nvr setting

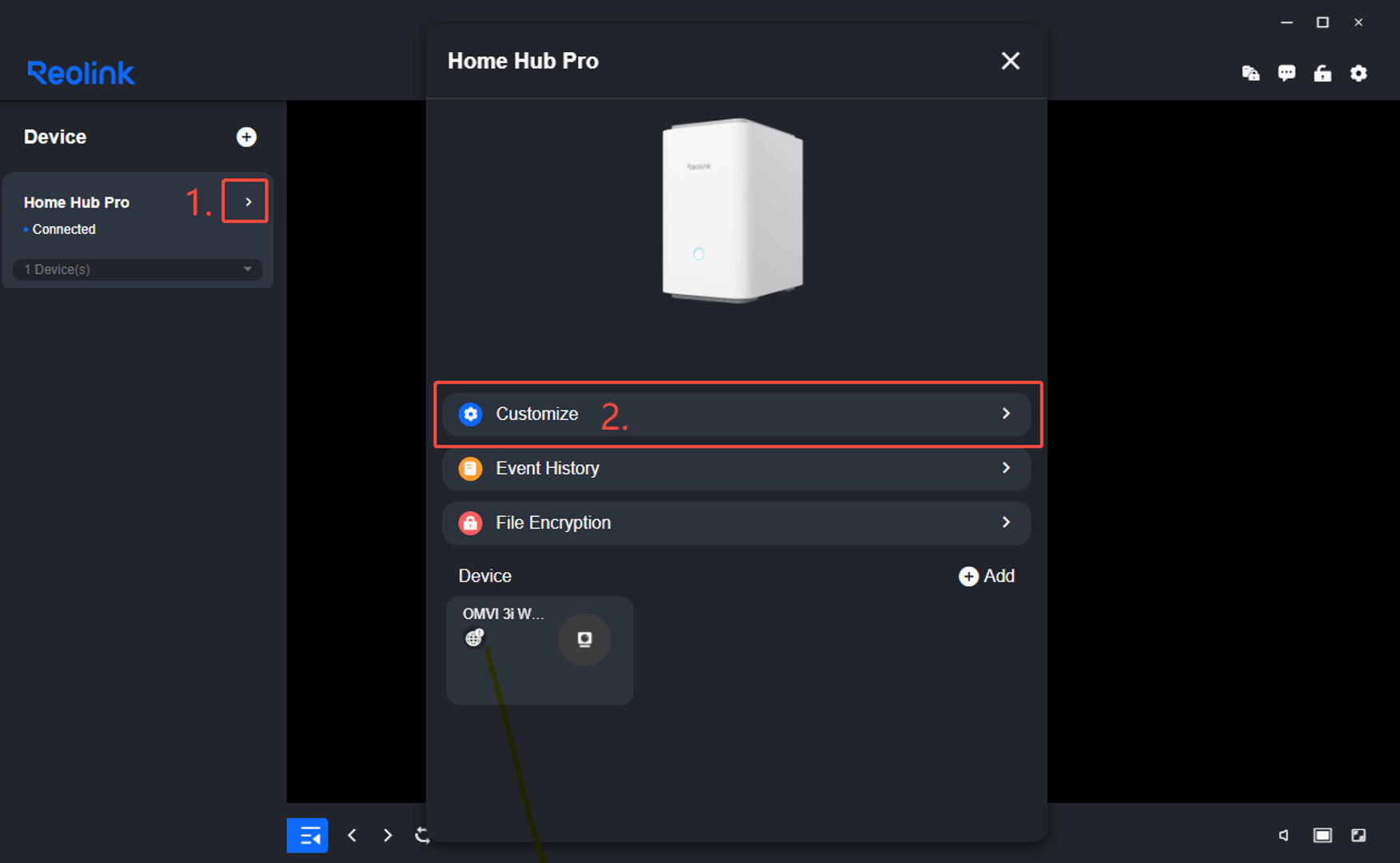

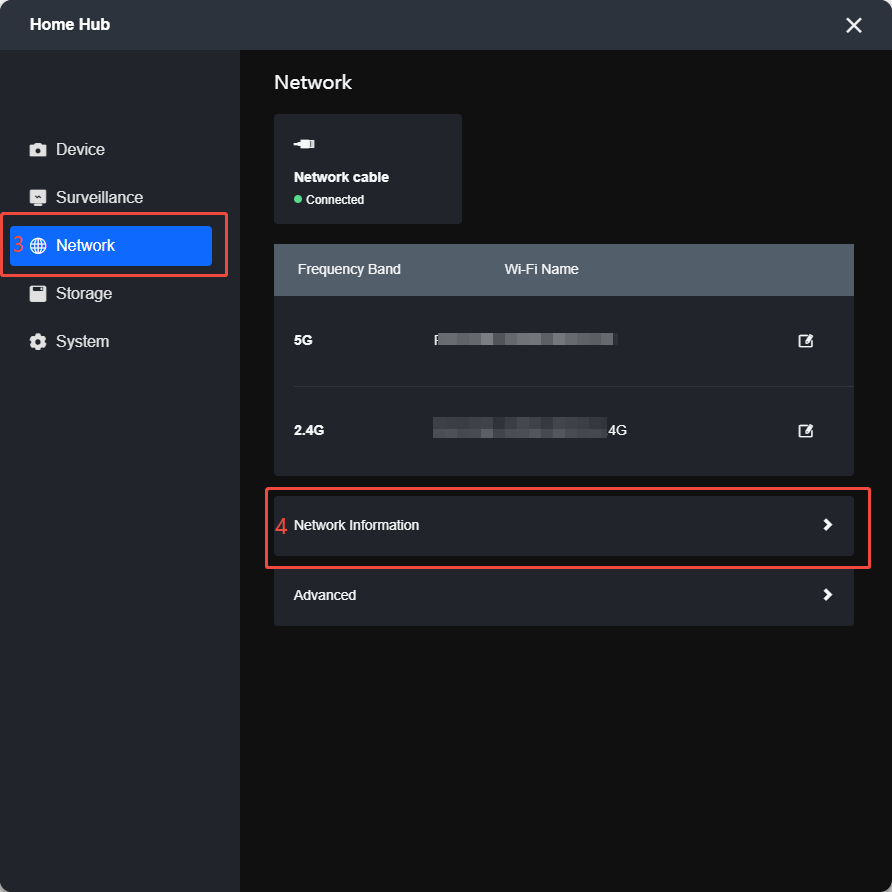

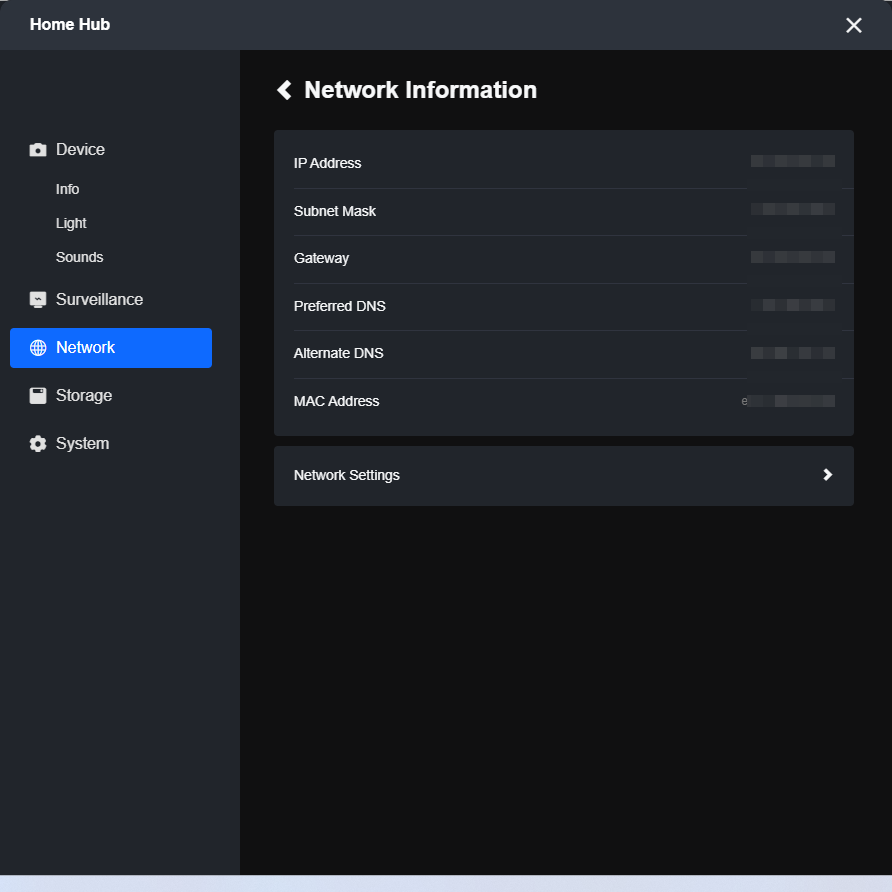

    For Reolink Home Hub,  click nvr setting.png icon > Customize > Network > Network Information, and check the network information of your device.

    Home Hub settings

    3. For cameras added to Reolink Home Hub

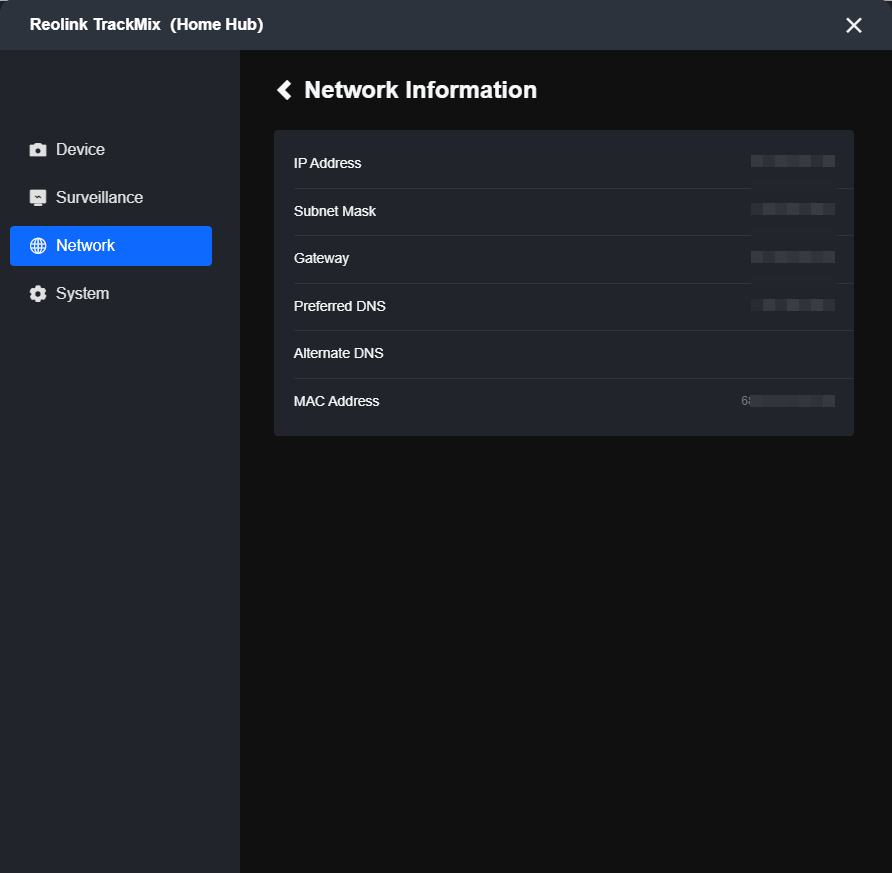

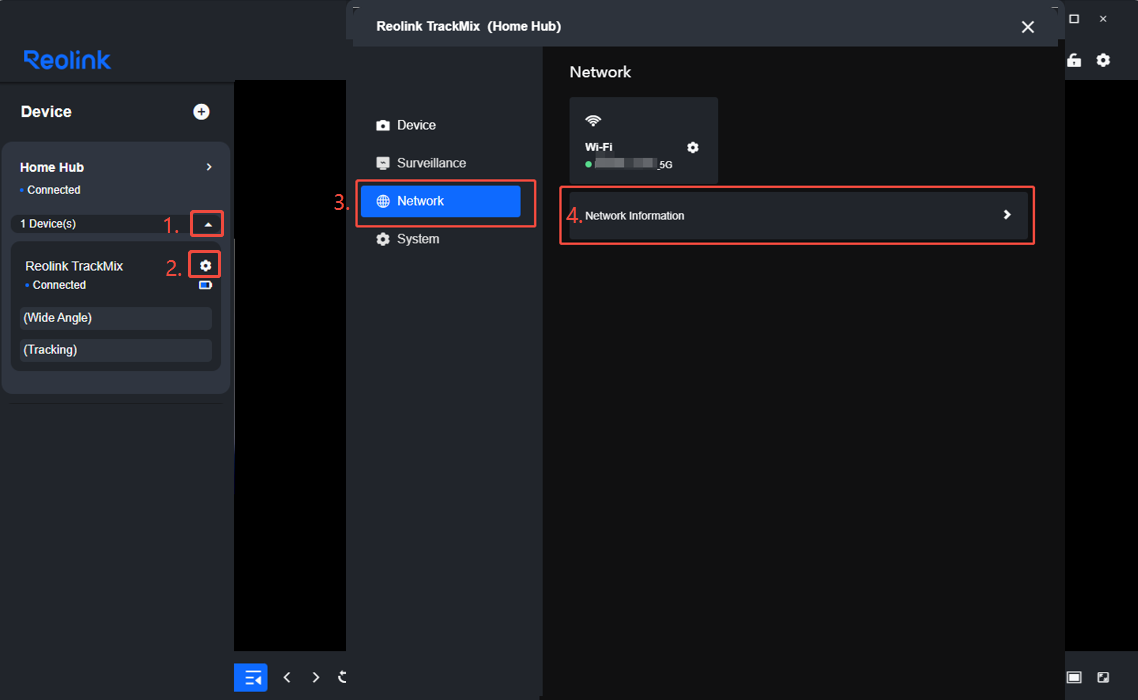

    Click expand icon to expand the cameras. Then click the gear icon next to the camera > Network > Network Information, and check the network information of your camera.

    Note: If you have added your camera to the Reolink NVR, you will not be able to check the network information for the added cameras on the Reolink Client. Instead, go to the Reolink App or NVR monitor to check.

  • Via Reolink Web browser

    Step 1. Log in to your camera via Web Browser and then click the gear icon on the top right to get to the settings page.

    web Network Info

    Step 2. Click Network. And check the network information of your device.

    web check the network information

  • Via Reolink NVR (new UI)

    Applies to: RLN8-410 (hardware version NVR_NNT3NA78P / N7MB01 / N3MB01 / N2MB02 / H3MB18), RLN16-410 (hardware version NVR_NNT4NA716P / N6MB01 / H3MB18), RLN4E, RLN36, RLN12W, NVS4E, NVS8, NVS12W, NVS16, NVS36, RP-PN8, RP-PN16, RP-N64.

    Step 1. Go to the live-view page and click the Settings icon in the top left corner to enter the menu.

    nvr settings

    Step 2. Go to Network on the left-hand side, then click on Network Status to check the network status information of the NVR.

    nvr Network Info

  • Via Reolink NVR (Old UI)

    Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

    Step 1. Log into your Reolink PoE NVR on the monitor, and click on the icon menu icon to open to Menu.

    POE main menu

    Step 2. Go to Network on the left-hand side, then click on Network Status to check the network status information of the NVR.

    network status old ui
