This article provides step-by-step instructions for installing Reolink OMVI Series cameras. You'll learn how to securely mount the cameras on a wall, ceiling, and corner, with clear diagrams and important installation notes to ensure a smooth, successful install.

Applies to: Reolink OMVI 3i PoE, OMVI 3i WiFi, OMVI Series P931/W931

Installation Overview and Tips

The Reolink OMVI 3i Series camera supports three installation options: wall mount, ceiling mount, and corner mounting, along with flexible cable routing methods, as shown in the images below. Select an installation option and cable routing method based on your scenario.
Note: The corner bracket RLA-BKC1 V2.0 needs to be purchased separately while corner mounting.

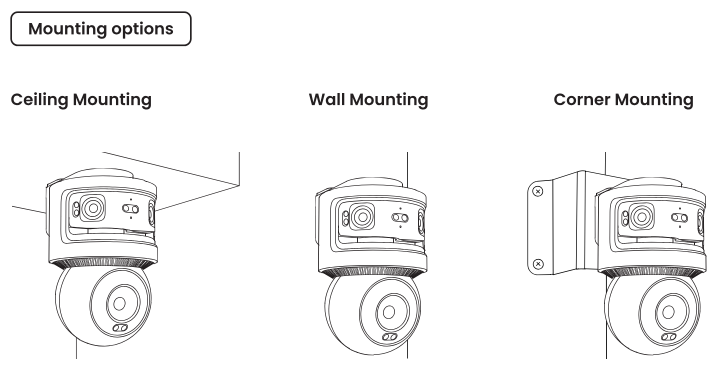

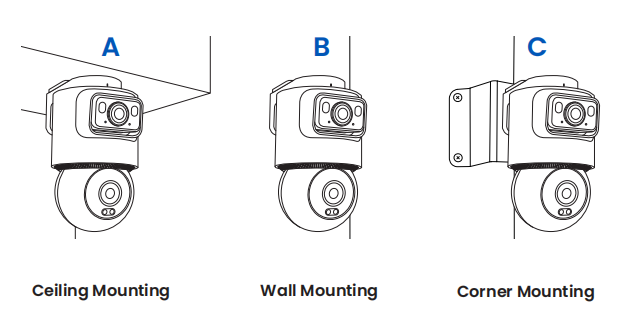

mounting options

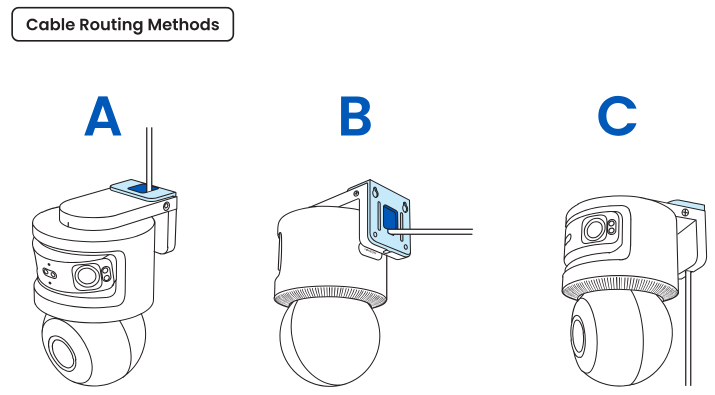

cable routing methods

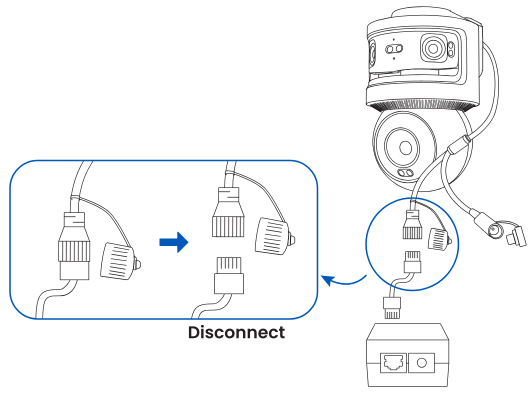

Tips 1. Disconnect the Ethernet Cable Before Installation (Applies to the OMVI 3i PoE only.)
For easier installation, it is recommended to disconnect the camera’s Ethernet cable before starting. Reconnect them according to the instructions during installation. And keep the LAN port and power port protected from water, moisture, dirt, and debris.

Disconnect the Ethernet Cable

Tips 2.  Choose a Proper Mounting Location and Positioning

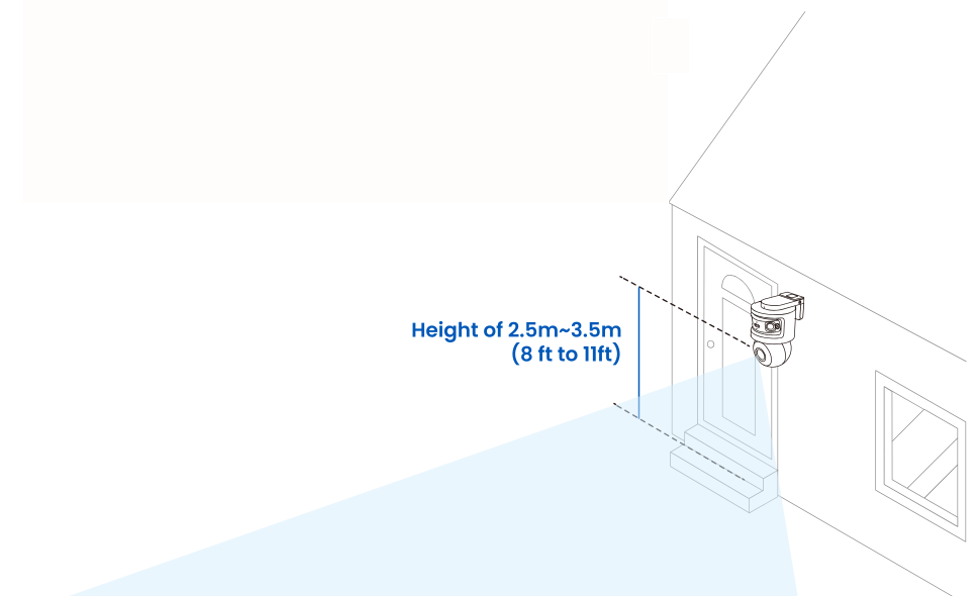

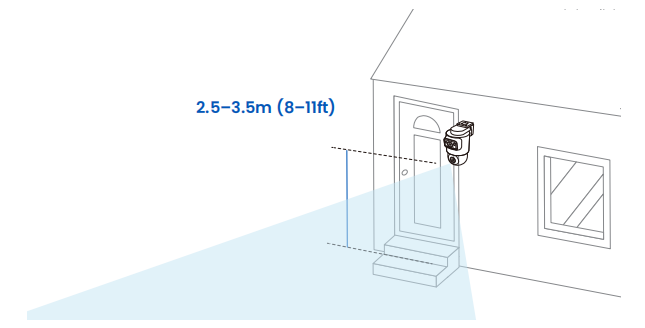

Height: The recommended mounting height is 2.5–3.5 m (8–11 ft), which helps ensure accurate motion detection and a wider field of view.
Height and Angle

Positioning: Avoid pointing the camera directly at light sources, windows, or heavily shaded areas, as glare or poor lighting conditions may affect image quality; instead, aim the camera toward a well-lit area.

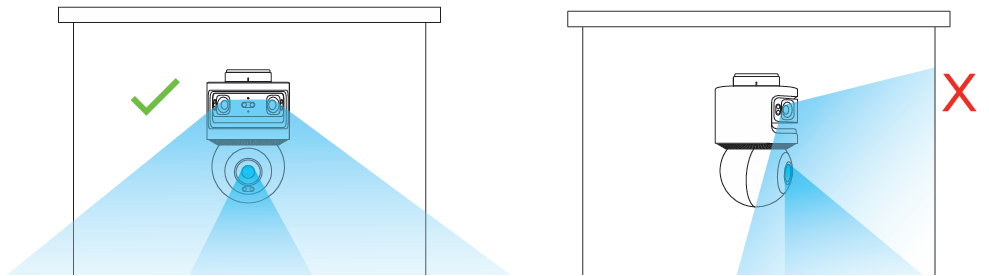

● Wall Mount — Position the camera to face directly forward, centering the monitored area. Avoid angling the camera too far to either side, as capturing excessive wall surface in the frame can cause glare.
Positioning-wall mount

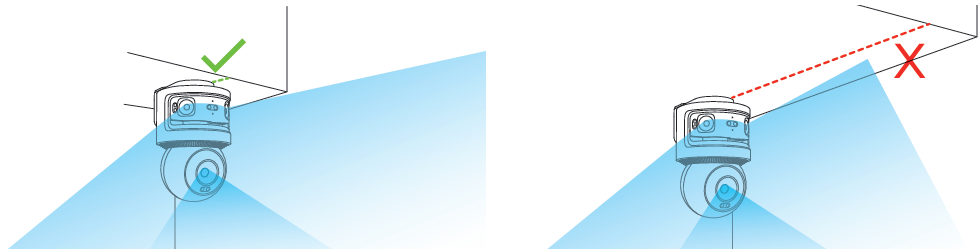

● Ceiling Mount Install the camera as close to the edge as possible to minimize ceiling reflection and blind spots.
Positioning-ceiling mount

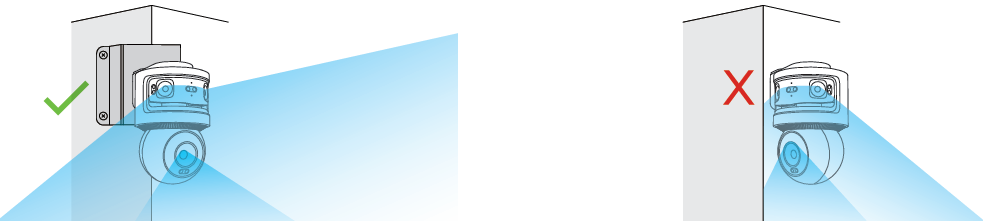

● Corner mounting — For best results, we recommend using a corner bracket RLA-BKC1 V2.0.
Positioning-corner mount


Select the correct installation guide based on your camera.

  • Reolink OMVI 3i PoE Installation Guide

    Required Accessories & Tools

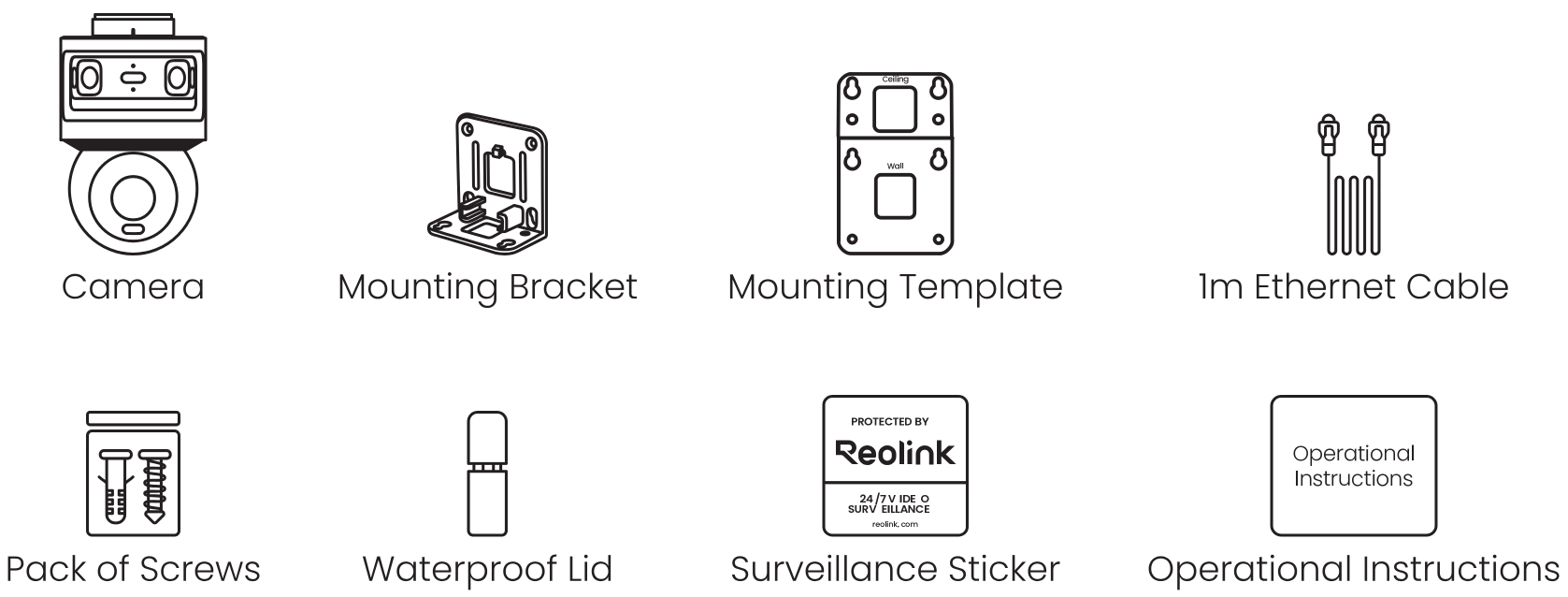

    The following accessories will be used during installation (included in the camera package):

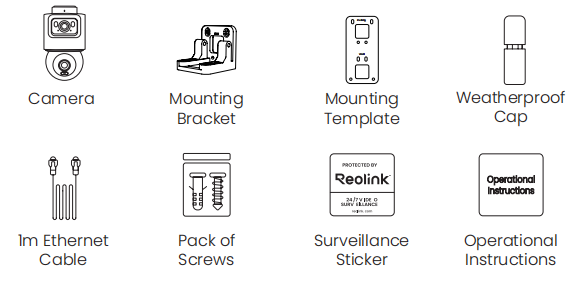

    Accessories

    The following tools may be required during installation (not included in the camera package):

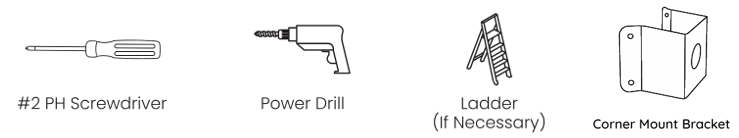

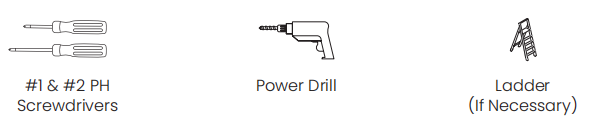

    Tools

    Installation Steps

    Step 1. Secure the Mounting Bracket

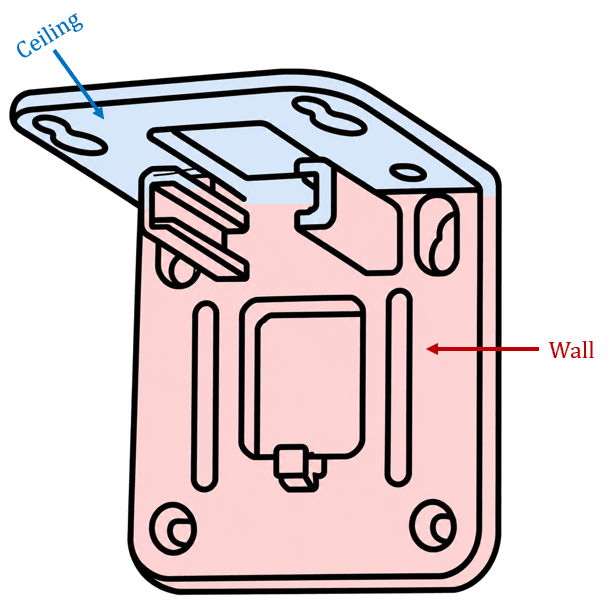

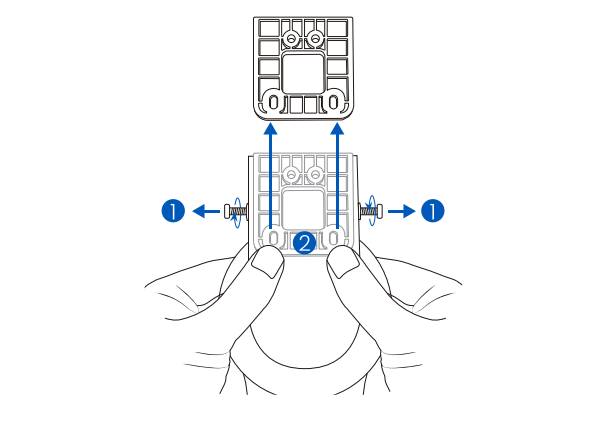

    The mounting bracket has two sides: the wider side should be secured to the wall, while the narrower side should be secured to the ceiling. During installation, select a mounting option based on your scenario and make sure the mounting bracket is oriented correctly before tightening the screws.

    Secure the Mounting Bracket

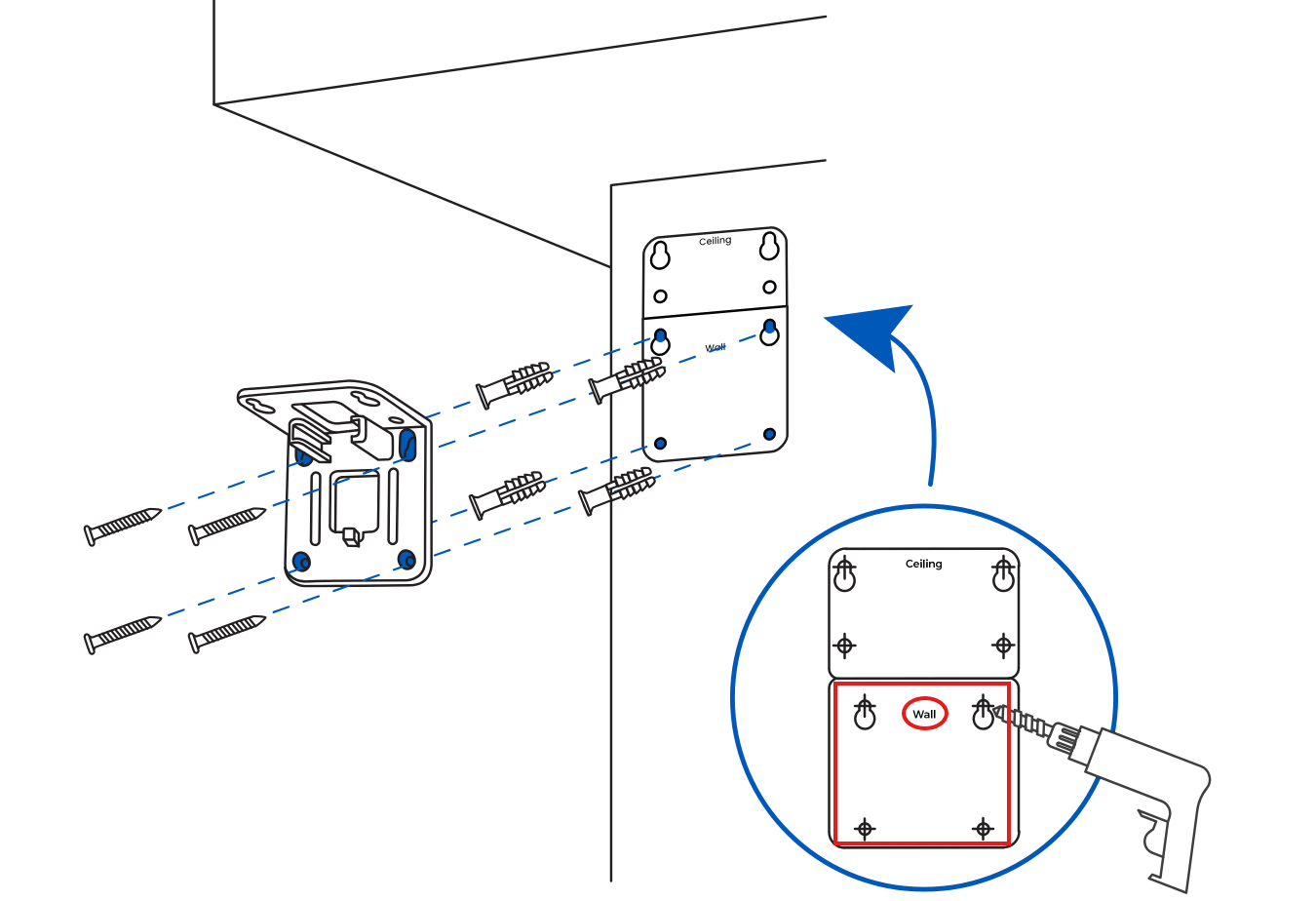

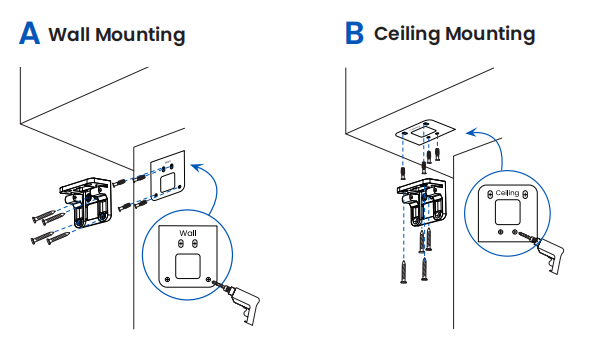

    Option 1. Wall Mounting
    Using the “Wall” section on the mounting template as a guide, mark 4 drilling points with a pencil and drill holes into the wall with a power drill. The use included long screws to secure the mounting bracket to the wall. (Use the included drywall anchors if needed.)

    Wall Mounting

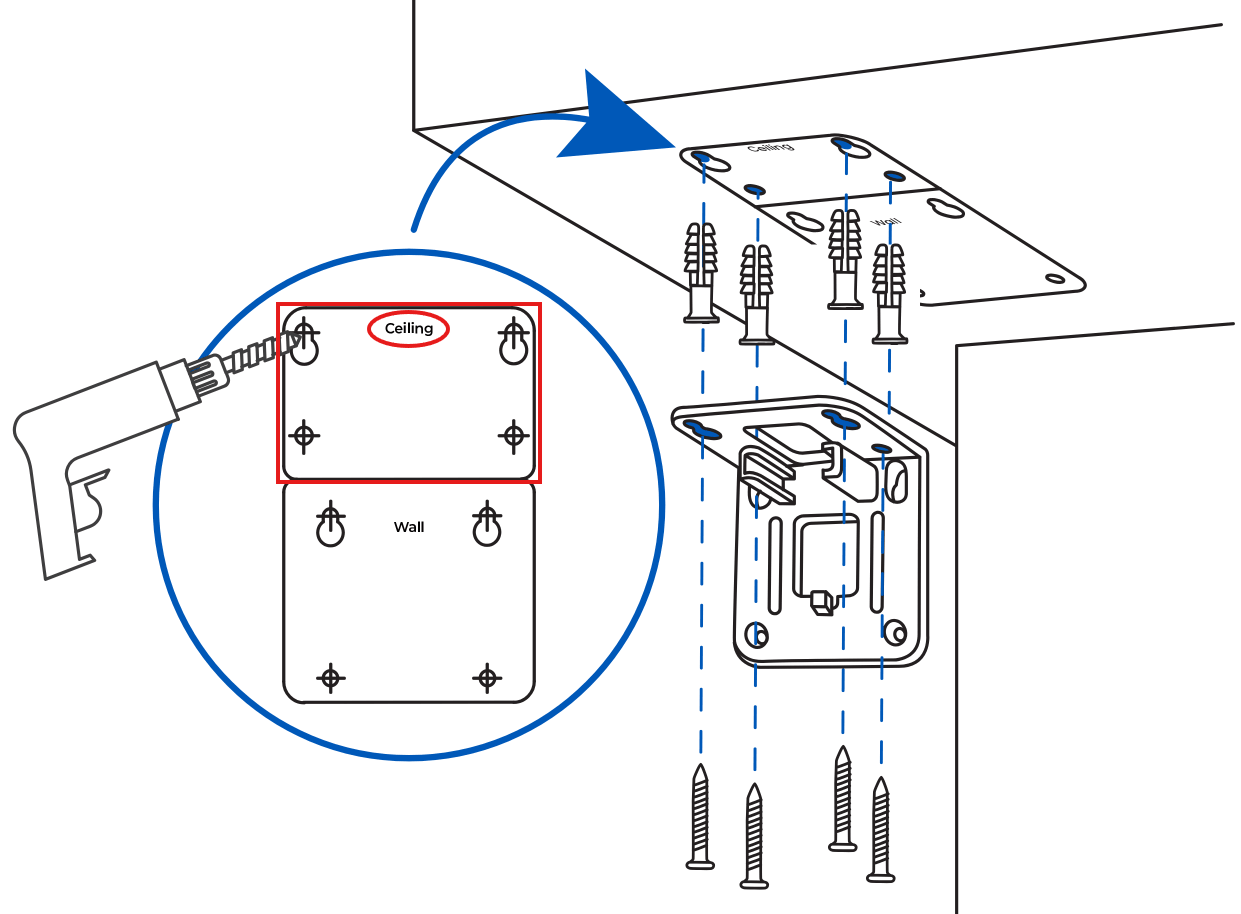

    Option 2. Ceiling Mounting
    Using the “Ceiling” section on the mounting template as a guide, mark 4 drilling points with a pencil and drill holes into the ceiling with a power drill. The use included long screws to secure the mounting bracket to the ceiling. (Use the included drywall anchors if needed.)

    Ceiling Mounting

    Option 3. Corner Mounting
    The corner mounting bracket RLA-BKC1 V2.0 is not included in the camera package. If you prefer corner mounting, you need to purchase it separately.

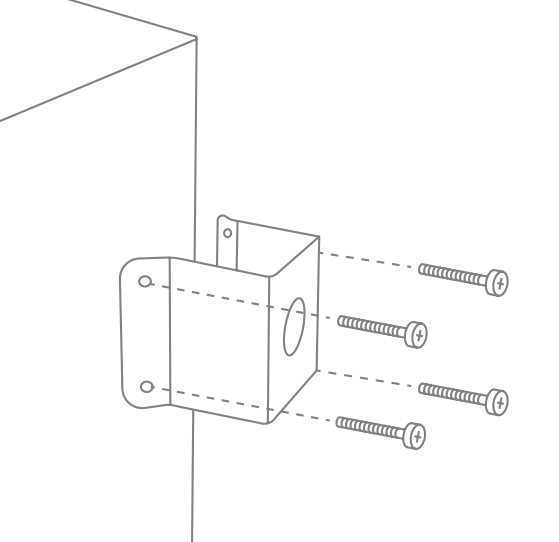

    ❶ Select a wall corner that can support the combined weight of the bracket and camera. With the “▲UP” mark facing upward, hold the corner bracket against the corner, mark the drilling points with a pencil, and drill the holes. Use the four screws included in the corner bracket package to secure the corner bracket to the wall corner.
    attach the bracket

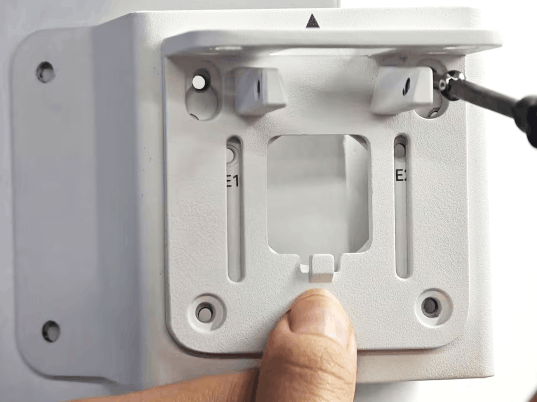

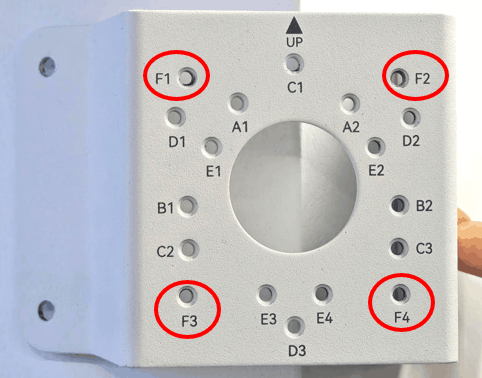

    ❷ Locate the four Pattern-F holes on the corner bracket. Align the “Wall” side of the mounting bracket with these Pattern-F holes (ensure correct orientation, as shown in the figure below), and then secure the mounting bracket to the corner bracket using four screws.
    Pattern-F holes on the corner bracketecure the mounting bracket to the corner bracket

    For more information about corner mounting, refer to Reolink RLA-BKC1 Corner Mounting Bracket: Installation Guide and Compatibility.

    Step 2. Connect the Waterproof Cap Kit and Ethernet Cable

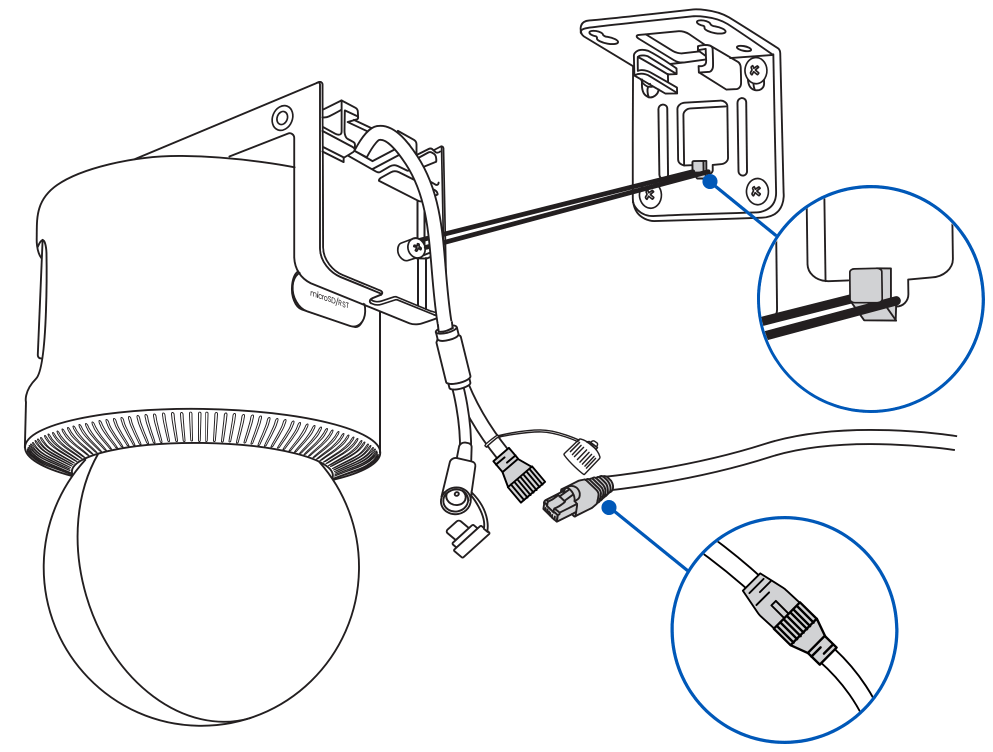

    Hang the camera on the mounting bracket and connect the waterproof cap kit (as shown below) and Ethernet cable.

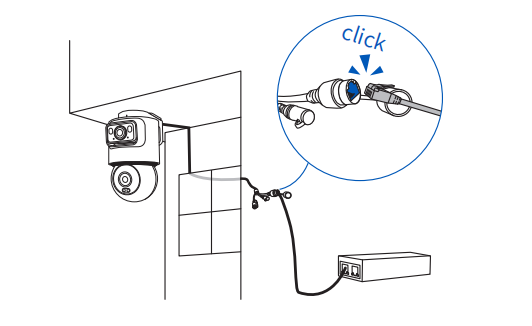

    Connect the Waterproof Lid and Ethernet Cable

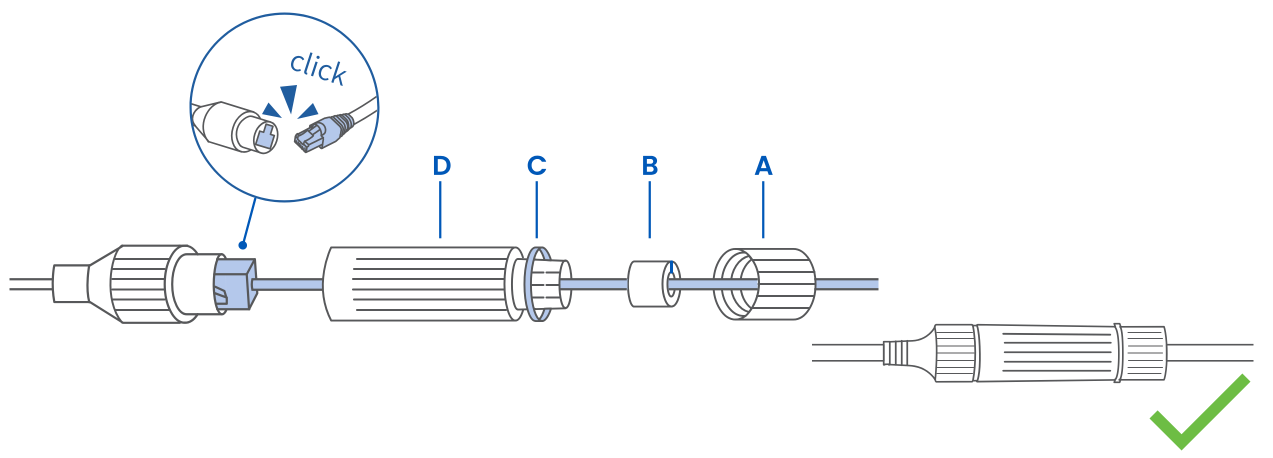

    Waterproof Cap Kit Connection:
    ❶ Route the Ethernet cable through the components in this order: A, B, C, then D. B is a split rubber seal that allows side-entry installation over the Ethernet cable.
    ❷ Insert the Ethernet cable into the camera's PoE connector.
    ❸ Attach component D to the camera's PoE connector and twist to lock it in place.
    ❹ First insert C into D, then firmly press B into D, and finally screw A into D. Do not overtighten, as this may push B and C out of position.

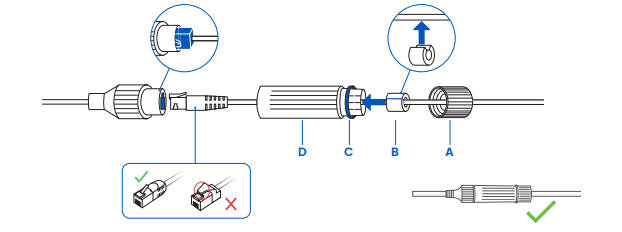

    Waterproof Cap Connection
    After connecting, wait for the indicator light on the lens to turn solid blue.

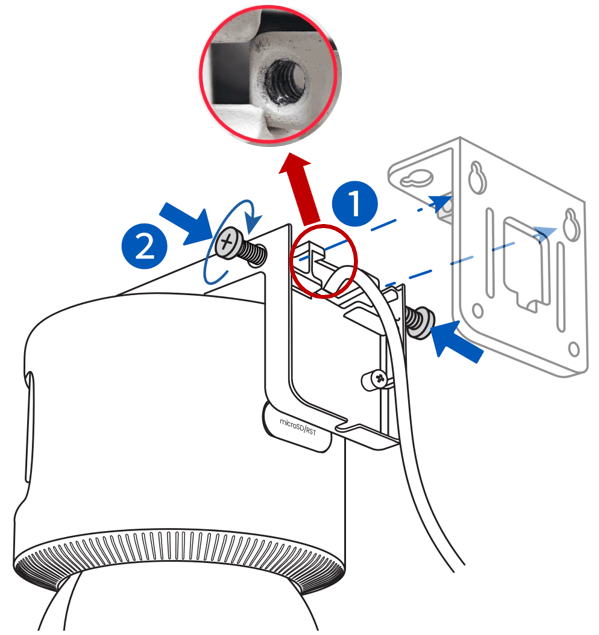

    Step 3. Secure the Camera
    ❶ Align the camera with the mounting bracket, slide it into place (see the red circle below).
    ❷ Tighten the screws with a PH screwdriver on both sides to secure it.

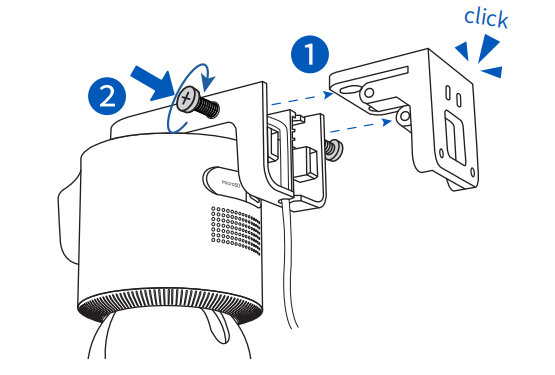

    Secure the Camera

    Step 4. Adjust the Camera Angles
    After installing the camera, adjust the upper panoramic cam and the lower PT cam, and manually tilt the lenses to your preferred angle to ensure the best field of view. For the lower PT cam, it can also be remotely controlled through the Reolink App, Client, or NVR.

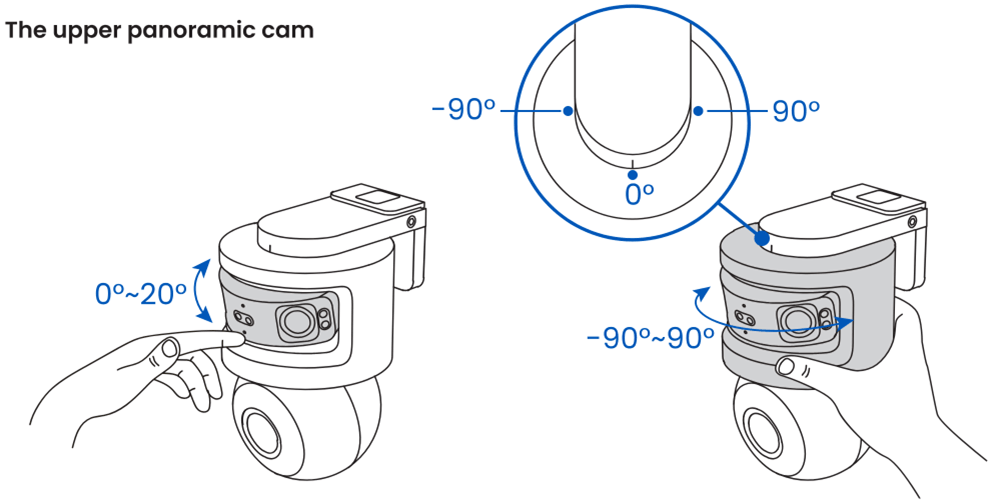

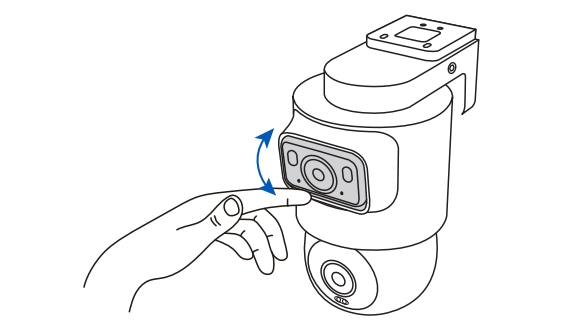

    The upper panoramic cam

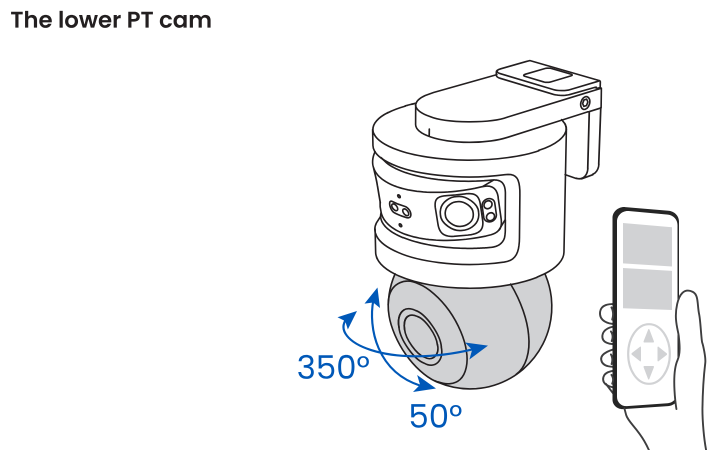

    The lower PT cam

  • Reolink OMVI 3i WiFi Installation Guide

    Required Accessories & Tools

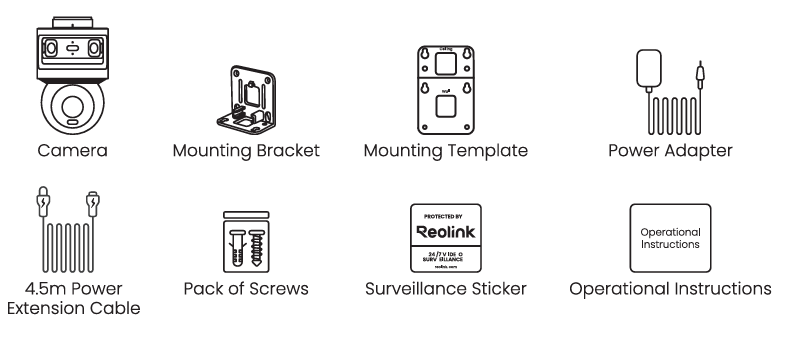

    The following accessories will be used during installation (included in the camera package):

    Accessories

    The following tools may be required during installation (not included in the camera package):
    Tools

    Installation Steps

    Step 1. Secure the Mounting Bracket
    The mounting bracket has two sides: the wider side should be secured to the wall, while the narrower side should be secured to the ceiling. During installation, select a mounting option based on your scenario and make sure the mounting bracket is oriented correctly before tightening the screws.

    Secure the Mounting Bracket

    Option 1. Wall Mounting
    Using the “Wall” section on the mounting template as a guide, mark 4 drilling points with a pencil and drill holes into the wall with a power drill. The use included long screws to secure the mounting bracket to the wall. (Use the included drywall anchors if needed.)

    Wall Mounting

    Option 2. Ceiling Mounting
    Using the “Ceiling” section on the mounting template as a guide, mark 4 drilling points with a pencil and drill holes into the ceiling with a power drill. The use included long screws to secure the mounting bracket to the ceiling. (Use the included drywall anchors if needed.)

    Ceiling Mounting

    Option 3. Corner Mounting
    The corner mounting bracket RLA-BKC1 V2.0 is not included in the camera package. If you prefer corner mounting, you need to purchase it separately.
    ❶ Select a wall corner that can support the combined weight of the bracket and camera. With the “▲UP” mark facing upward, hold the corner bracket against the corner, mark the drilling points with a pencil, and drill the holes. Use the four screws included in the corner bracket package to secure the corner bracket to the wall corner.
    attach the bracket
    ❷ Locate the four Pattern-F holes on the corner bracket. Align the “Wall” side of the mounting bracket with these Pattern-F holes (ensure correct orientation, as shown in the figure below), and then secure the mounting bracket to the corner bracket using four screws.
    Pattern-F holes on the corner bracketecure the mounting bracket to the corner bracket

    For more information about corner mounting, refer to Reolink RLA-BKC1 Corner Mounting Bracket: Installation Guide and Compatibility.

    Step 2. Secure the Camera
    (Optional) You can use a safety rope to hang the camera on the mounting bracket for easier operation when passing the wire through the top.

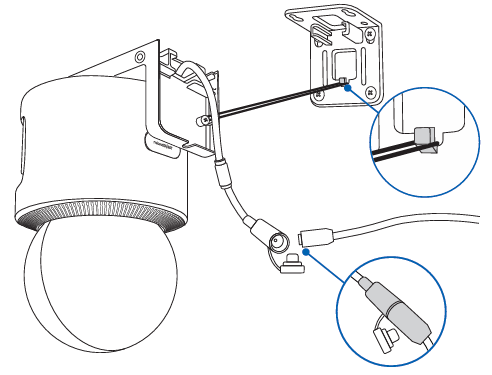

    ❶ Open the waterproof cap, then connect the power adapter to the camera.
    Secure wifi Camera
    ❷ Align the camera with the mounting bracket, slide it into place (see the red circle below).
    ❸ Tighten the screws with a PH screwdriver on both sides to secure it.

    Secure the Camera

    Step 3. Adjust the Camera Angles

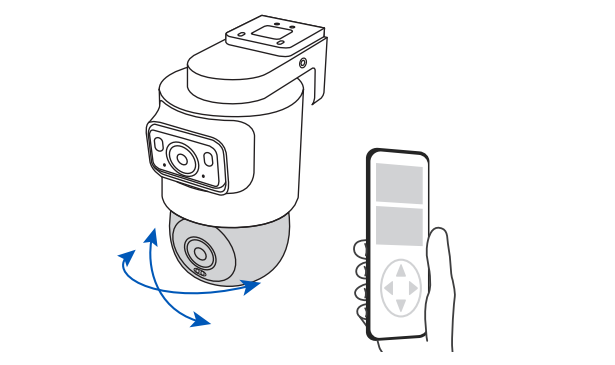

    After installing the camera, adjust the upper panoramic cam and the lower PT cam, and manually tilt the lenses to your preferred angle to ensure the best field of view. For the lower PT cam, it can also be remotely controlled through the Reolink App, Client, or NVR.

    The upper panoramic cam
    The lower PT cam

By following this installation guide, you'll set up your camera securely and safely, ensuring reliable protection and performance for years to come.
