How to Charge Reolink TrackMix LTE Plus Series

Charging the Reolink TrackMix LTE Plus Series requires a specific approach that differs from other Reolink battery-powered cameras. In this article, we’ll guide you through the unique charging process to ensure your camera operates efficiently.

Applies to: Reolink TrackMix LTE Plus, Reolink TrackMix LTE Plus 2

How to Charge Reolink TrackMix LTE Plus 2

Charging Compatibility

Reolink TrackMix LTE Plus 2 can only be powered by connecting to RLA-BP1(battery pack) or a DC 5V/2A power adapter. A solar panel alone cannot power the camera and is used only to recharge the RLA-BP1(battery pack).
Charging Steps

Option 1. Charging Outdoor:

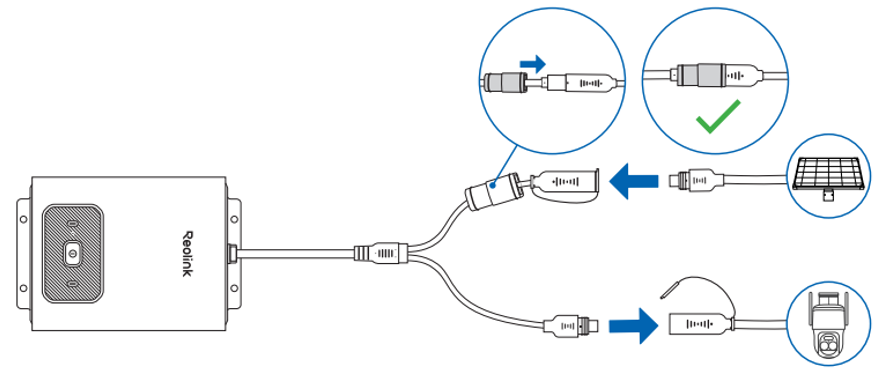

Step 1. Connect the Solar Panel to the Battery Pack
Plug the solar panel's USB-C OUT port into the battery pack's USB-C IN port.

Step 2. Connect the Camera to the Battery Pack
Plug the battery pack's USB-C OUT port into the camera's USB-C IN port.

Note: Please slide the silicone sleeve along the battery pack's tail cable until it fully covers the connection.

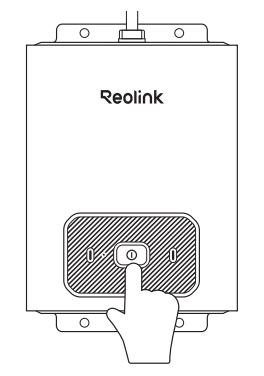

Step 3. Turn On the Battery Pack
Long-press the power button for 1 second to turn on the battery pack.

NOTE: After successful power-on, the green and red lights will flash rapidly simultaneously for 3 seconds, then stay on for 3 seconds. If you want to power it off, long-press it for 3 seconds. Short-press it to check the battery pack status.

Option 2. Charging Indoor:

Connect the Camera to the DC 5V/2A adapter (or Battery Pack if moving it indoors).

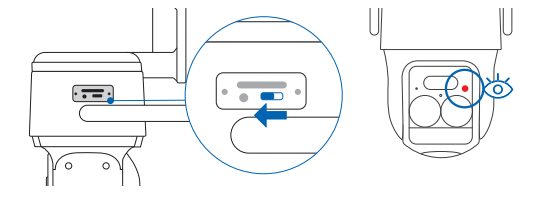

Step 4. Switch on the Camera
Turn on the power switch and check that the indicator light turns on. (Note that the indicator light will be on for a few seconds before turning off automatically). Ensure that the RLA-BP1(battery pack), Reolink Solar Panel Plus, and Reolink TrackMix LTE Plus 2 camera are all connected before turning on the power switch.

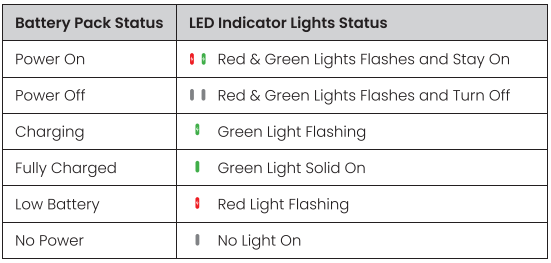

Different States of the Battery Pack

How to Charge Reolink TrackMix LTE Plus

Charging Compatibility
- The Reolink TrackMix LTE Plus supports charging only via the Reolink Solar Panel Plus.
- The Reolink Solar Panel Plus must always remain connected to the battery, even if the battery is fully charged. Without the solar panel connected, the camera will not operate even if the battery has remaining power.
- The Reolink TrackMix LTE Plus's power input interface and the Reolink Solar Panel Plus output interface are non-standard interfaces, so they can only be mutually adapted for use. The solar panel cannot support other regular battery units, and the camera also cannot be powered by regular Reolink solar panels or power adapters.
Charging Steps

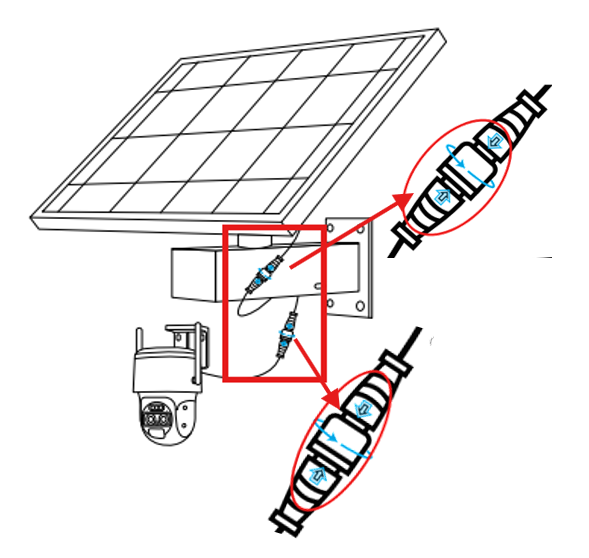

Step 1. Connect the cables

It is required to connect the cable from the solar panel to the shorter cable on the bracket and the camera charging cable to the longer one. Then tighten their gray parts.

NOTE: Ensure that the arrows on the two cables are aligned.

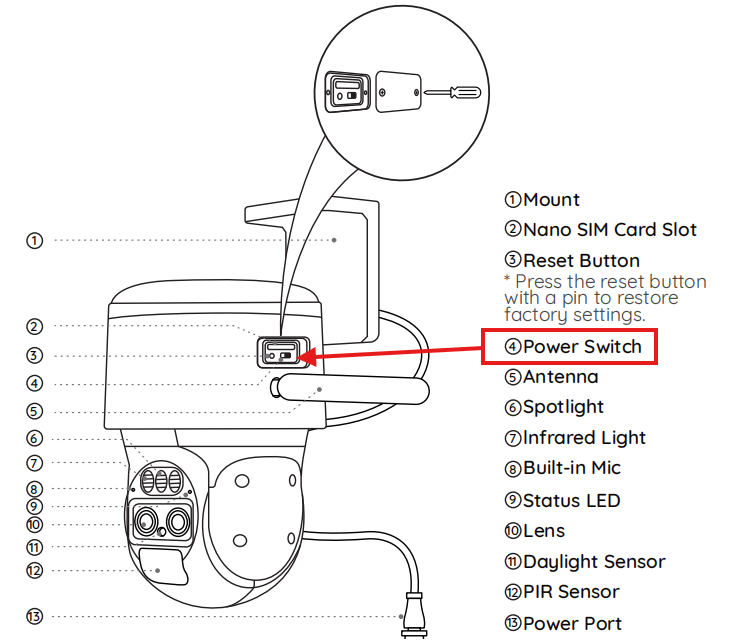

Step 2. Switch on the Camera

The Reolink TrackMix TLE Plus has a power switch that must be turned on for the system to function properly. Ensure that the battery pack, Reolink Solar Panel Plus, and Reolink TrackMix LTE Plus camera are all connected before turning on the power switch.

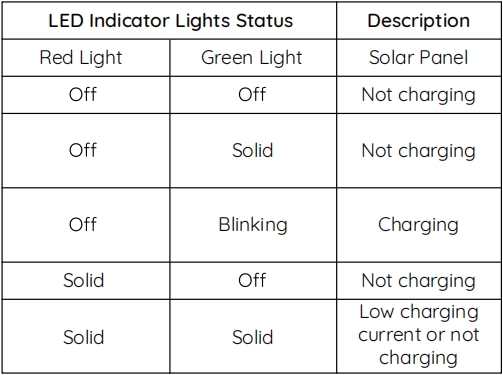

Different States of the LED Indicator Light

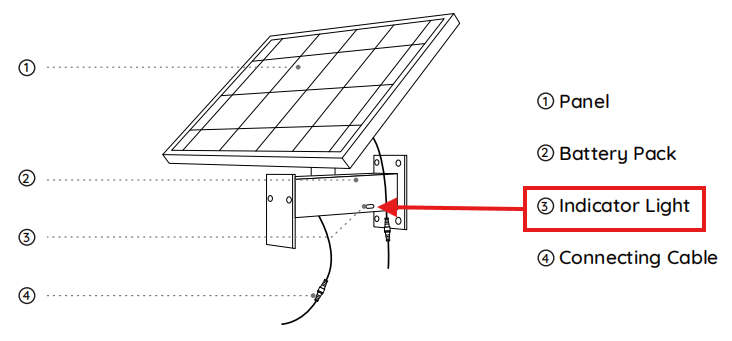

Each time you connect the cable from the solar panel to the shorter cable on the battery pack, the green light will be on for 10 seconds, which means the battery pack is ready to work. Then, you can check the state of the indicator light below:
