Object size is an effective way to reduce false alarms. If the moving objects are smaller than the minimum object size or larger than the maximum object size, it will not trigger the alarm, reducing false alarms caused by spider webs, light changes, and raindrops. This section will present the ways to set up object sizes for your Reolink cameras.

Applies to: Reolink cameras that support smart detection.

  • Via Reolink App

    Here is a video for your reference.

    Before setting up, upgrade the Reolink App to the latest version and the device to the latest firmware version.

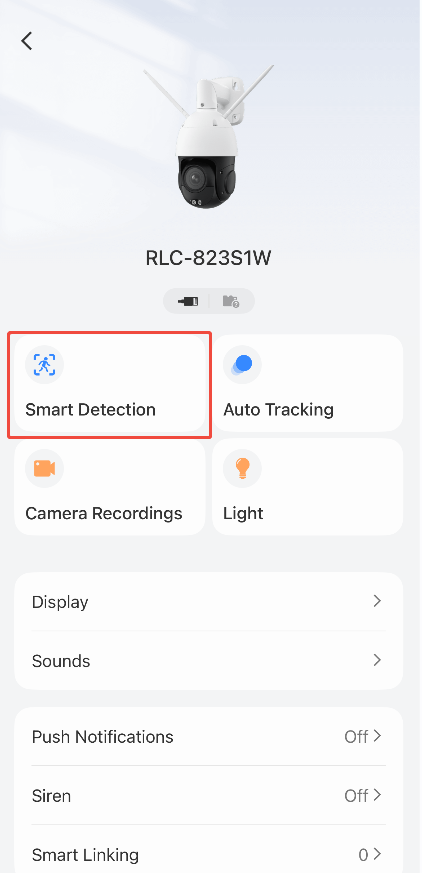

    Step 1. Log in to your device on the Reolink App to access the Smart Detection page.

    Note: The navigation path differs depending on the device connection.

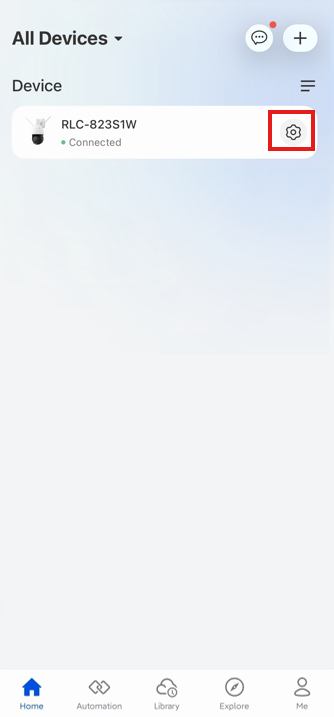

    For the standalone camera (left image) — tap the gear.png icon > Smart Detection;

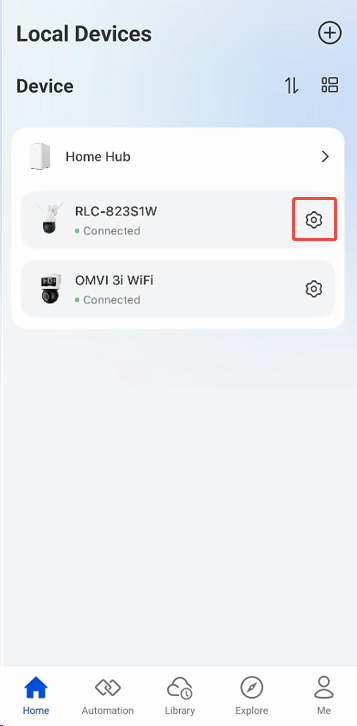

    For Reolink camera added to Home Hub/NVR (right image) — tap the gear.png icon next to the camera> Smart Detection.

    setting   hub-cam setting app

    Smart Detection

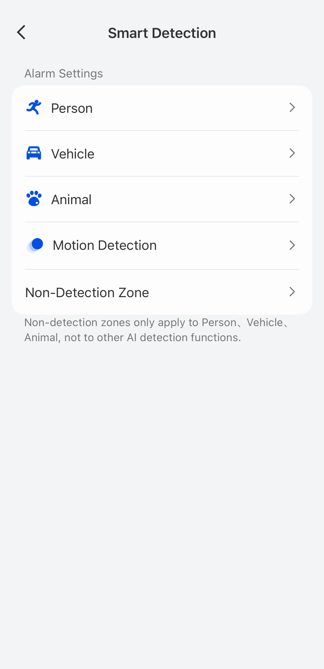

    Step 2. Tap Person, Vehicle or Animal to set the corresponding alarm settings.

    Smart Detection types

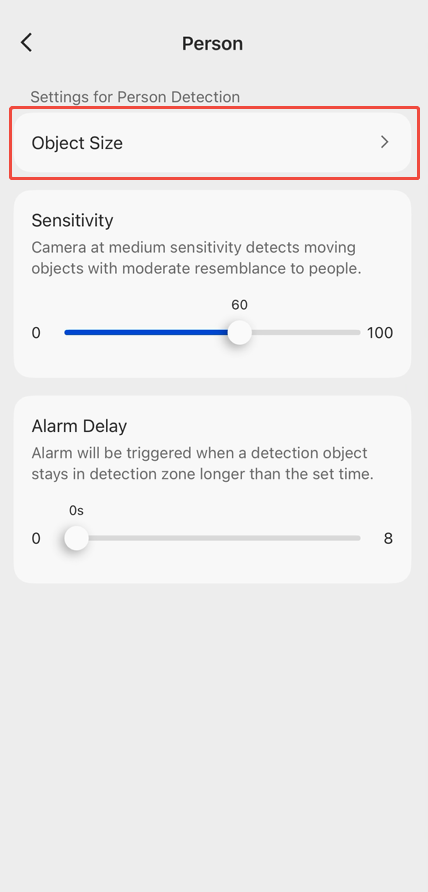

    Step 3. Tap Object Size to create object sizes.

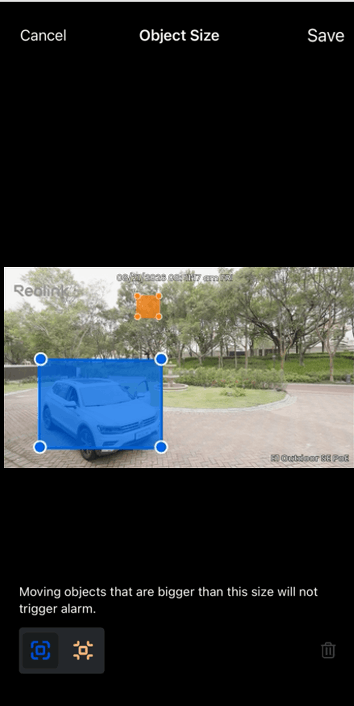

    • Tap Minimum Object, then drag to adjust the size of the orange rectangle. If a moving object is smaller than this rectangle, it will not trigger the alarm.
    • Tap Maximum Object, then drag to adjust the size of the blue rectangle. If a moving object is larger than this rectangle, it will not trigger the alarm.

    Tap Object Size  create object sizes

  • Via Reolink Client

    Before setting up, upgrade the Reolink Client to the latest version and the device to the latest firmware version.

    Step 1. Log in to your device on the Reolink App to access the Object Size page.

    Note: The navigation path differs depending on the device connection.

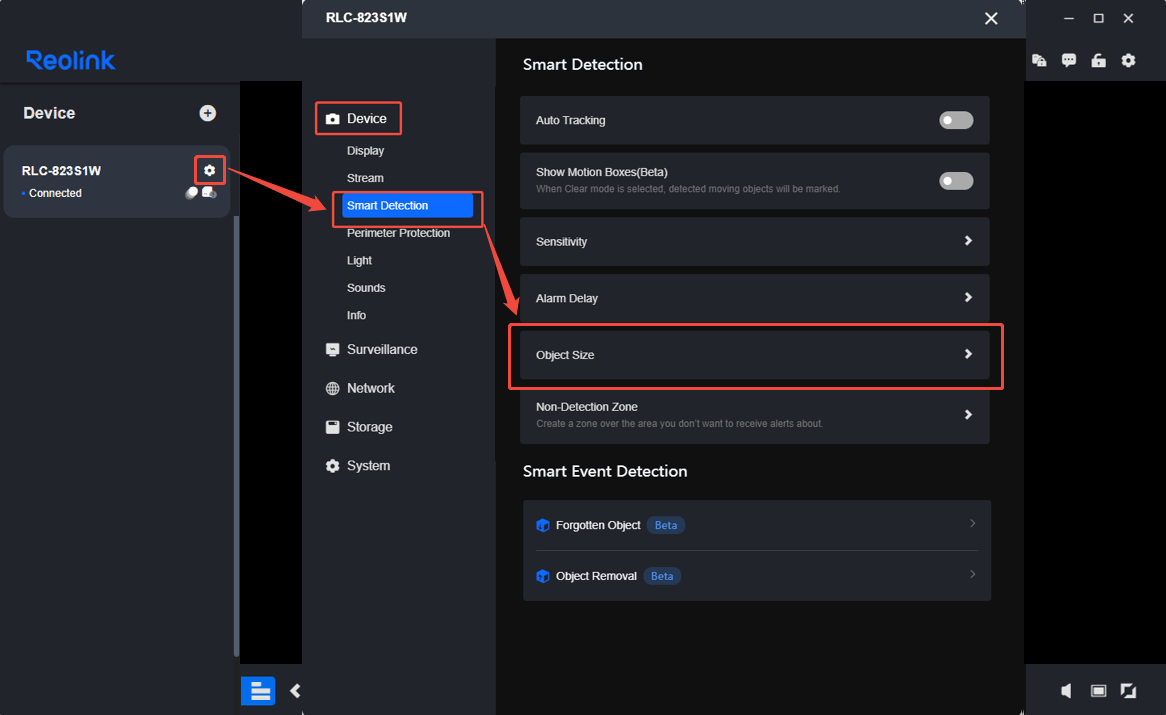

    ❶ For the standalone Plug-in cameras — Click the gear icon > Smart Detection > Object Size.
    For the standalone Plug-in cameras client

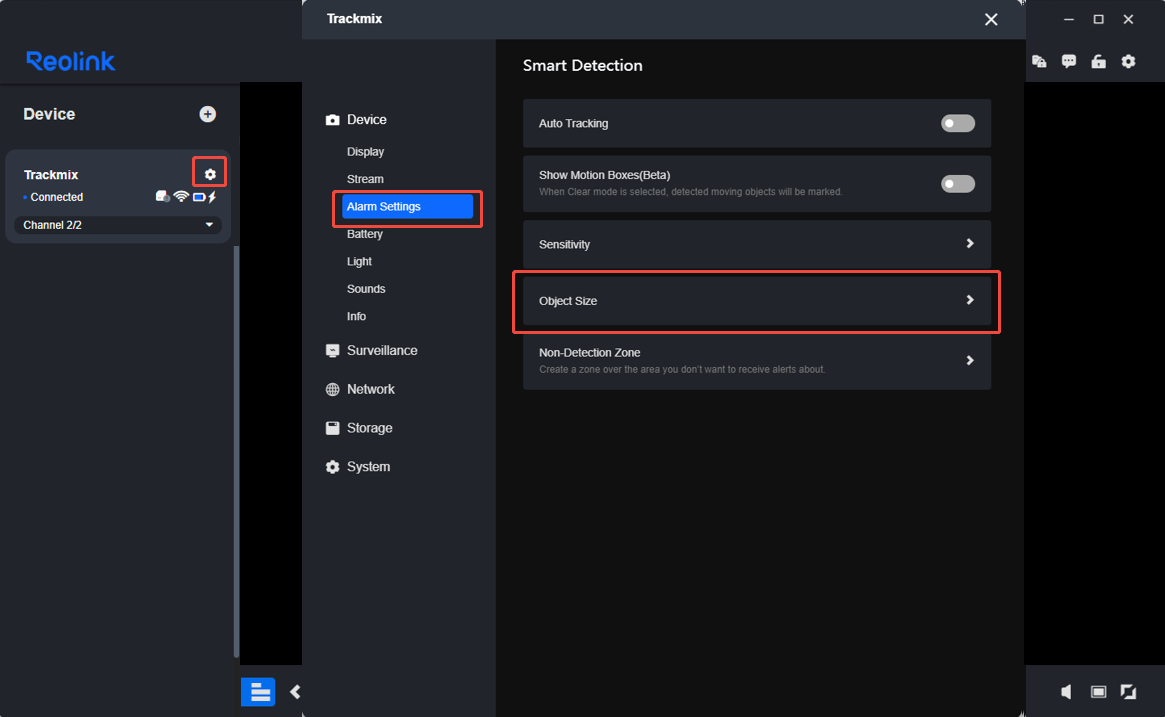

    ❷ For the standalone Battery-powered cameras — Click the gear icon > Alarm Settings > Smart Detection > Object Size.
    For the standalone Battery-powered cameras

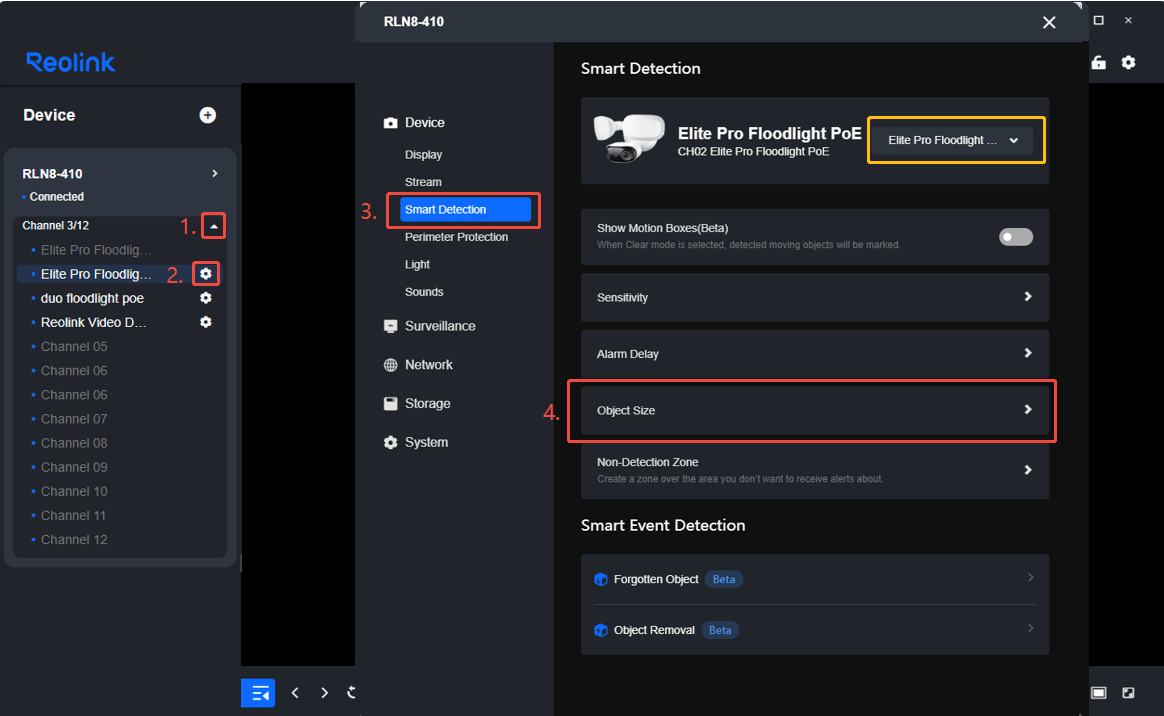

    ❸ For camera added to Home Hub/NVR — Click expand.png icon to expand the camera > gear icon next to the camera> Smart Detection  > ( or select the camera channel you want to set >) Object Size.
    For camera added to Home Hub/NVR

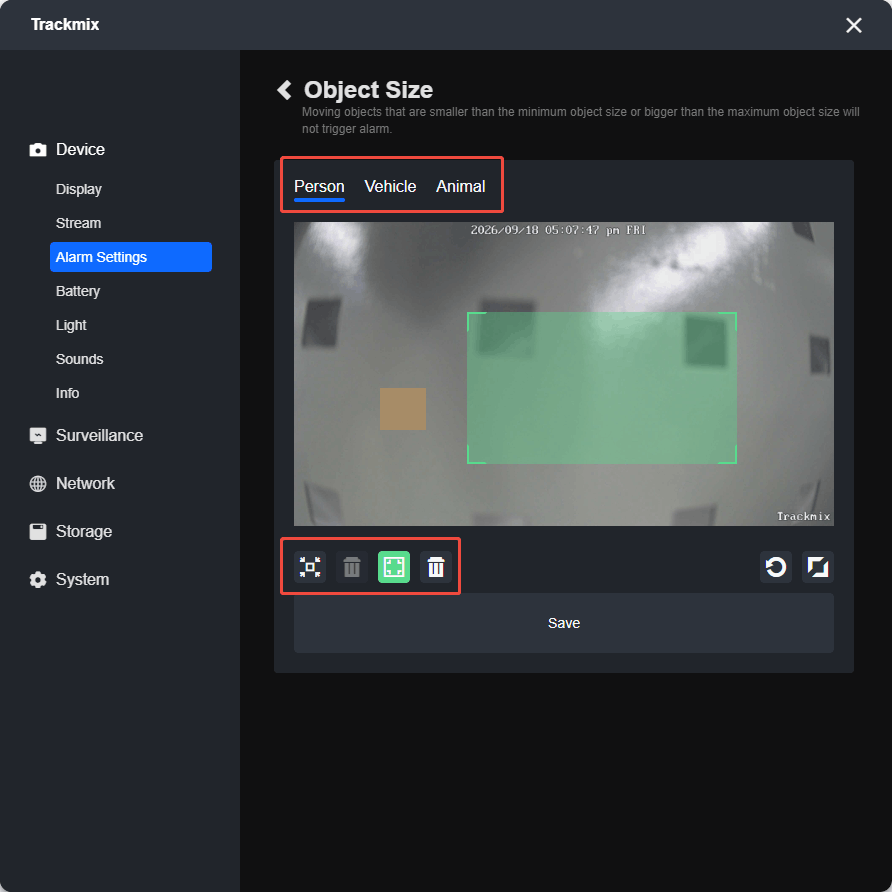

    Step 2. On the Object Size page, select Person, Vehicle or Animal/Pet to create Minimum Object Size or Maximum Object Size. Then click Save.

    • Click Minimum Object, then drag to adjust the size of the orange rectangle. If a moving object is smaller than this rectangle, it will not trigger the alarm.
    • Click Maximum Object, then drag to adjust the size of the green rectangle. If a moving object is larger than this rectangle, it will not trigger the alarm.

    create Object Size client

  • Via Reolink Web browser

    Applies to: All Reolink cameras except battery-powered cameras, Reolink E1, Reolink E1 Pro, and Reolink Lumus, and the add-on cameras in the NVR Kit. For details of the models that can be accessed via web browsers, refer to Which Reolink Devices Can Be Accessed via Web Browsers.

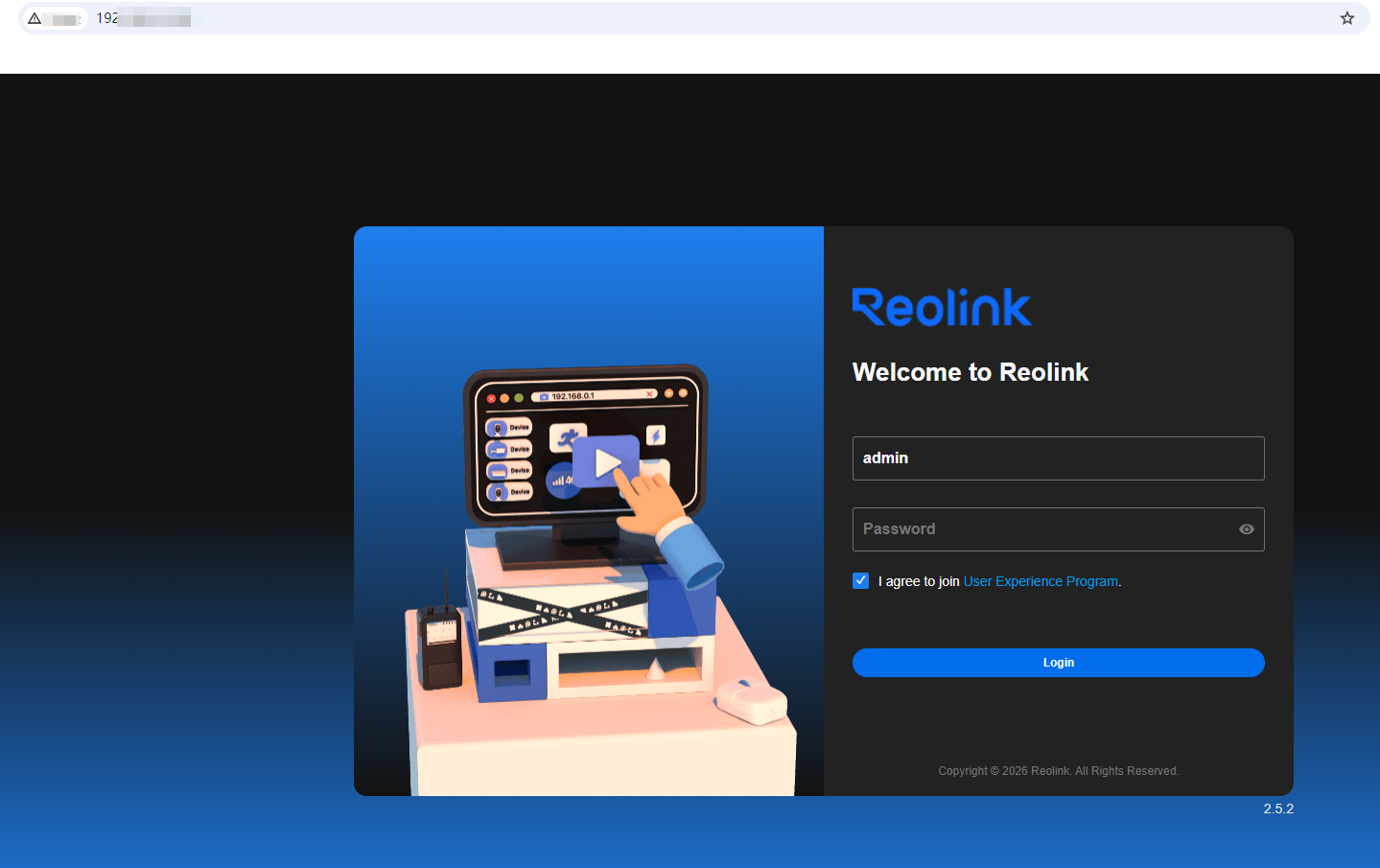

    Step 1. Log in to your camera via a web browser with the camera IP address.

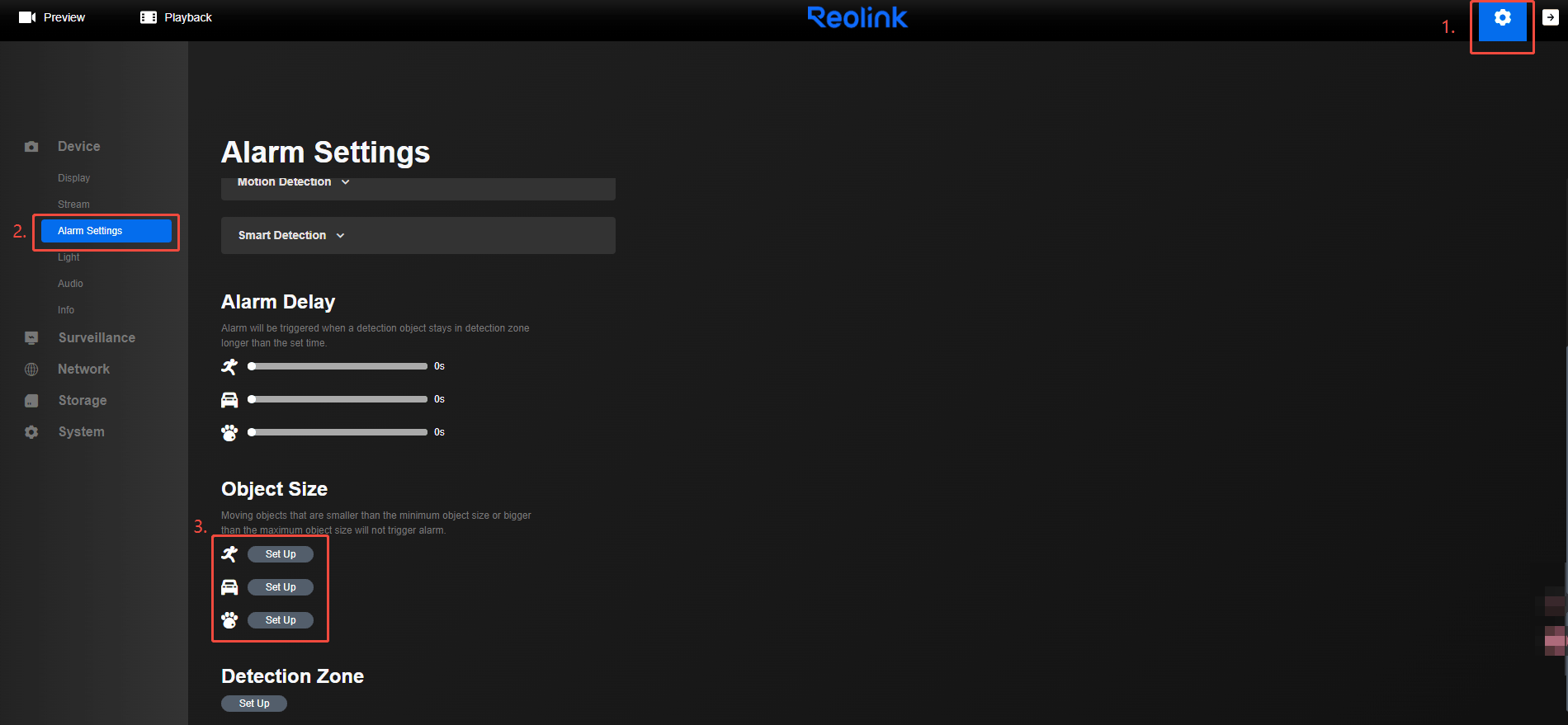

    Step 2. Go to Device Settings > Alarm Settings > scroll down to find the Object Size. Click Set Up for Person, Vehicle or Animal/Pet.

    Click Set Up

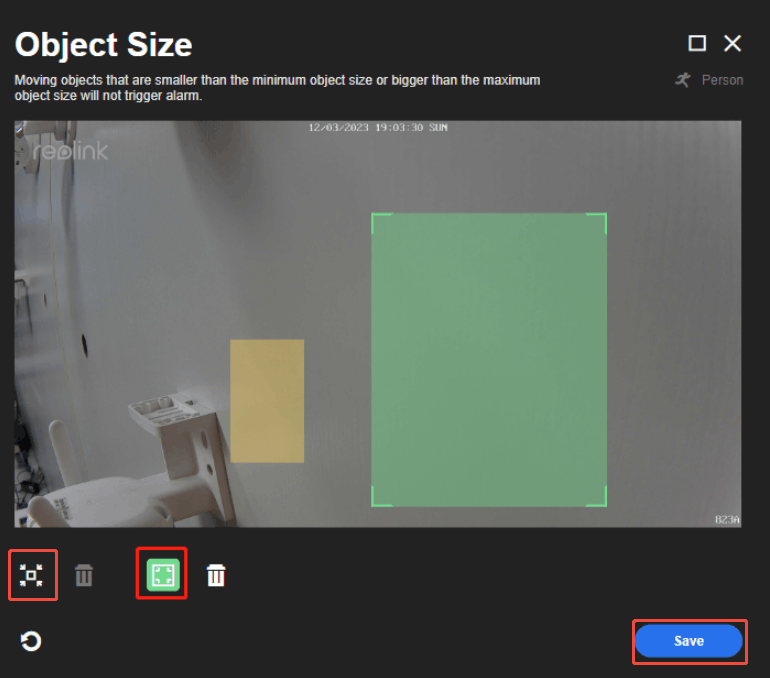

    Step 3. Create Minimum Object Size or Maximum Object Size. Then click Save.

    • Click Minimum Object, then drag to adjust the size of the orange rectangle. If a moving object is smaller than this rectangle, it will not trigger the alarm.
    • Click Maximum Object, then drag to adjust the size of the green rectangle. If a moving object is larger than this rectangle, it will not trigger the alarm.

    create Object Size web

  • Via Reolink NVR (new UI)

    Applies to: RLN8-410 (hardware version NVR_NNT3NA78P / N7MB01 / N3MB01 / N2MB02 / H3MB18), RLN16-410 (hardware version NVR_NNT4NA716P / N6MB01 / H3MB18), RLN4E, RLN36, RLN12W, NVS4E, NVS8, NVS12W, NVS16, NVS36, RP-PN8, RP-PN16, RP-N64.

    Here is a video for your reference:

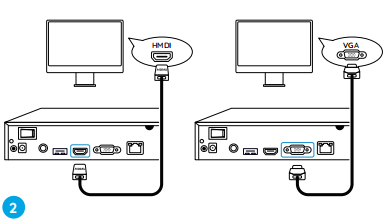

    Step 1. Connect your Reolink NVR to a monitor via HDMI/VGA.

    monitor

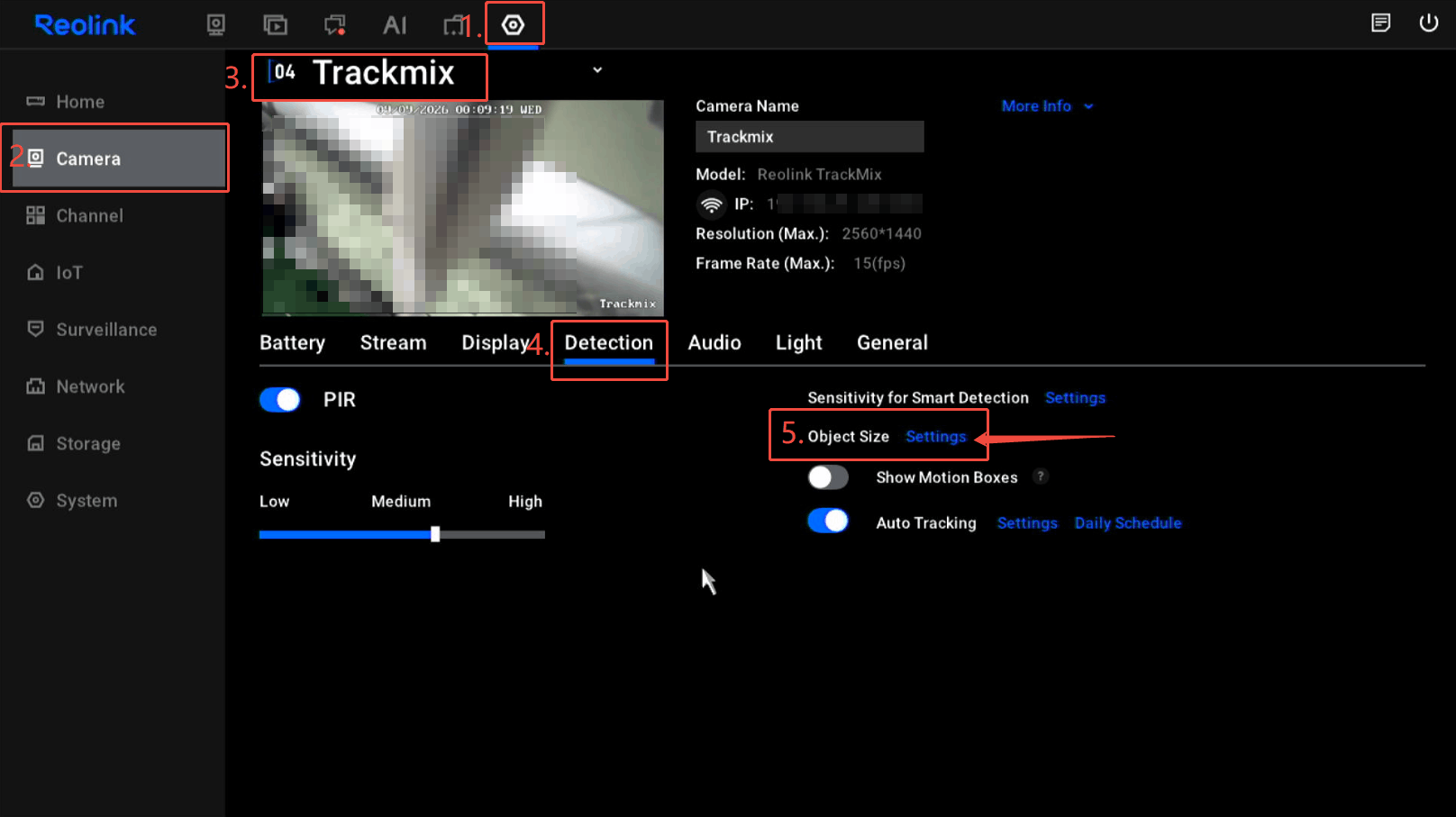

    Step 2. Log in to your Reolink NVR on the monitor. Right-click on the screen and then click the gearicon > Camera > Select the camera channel > Detection > Object Size.

    Object Size nvr

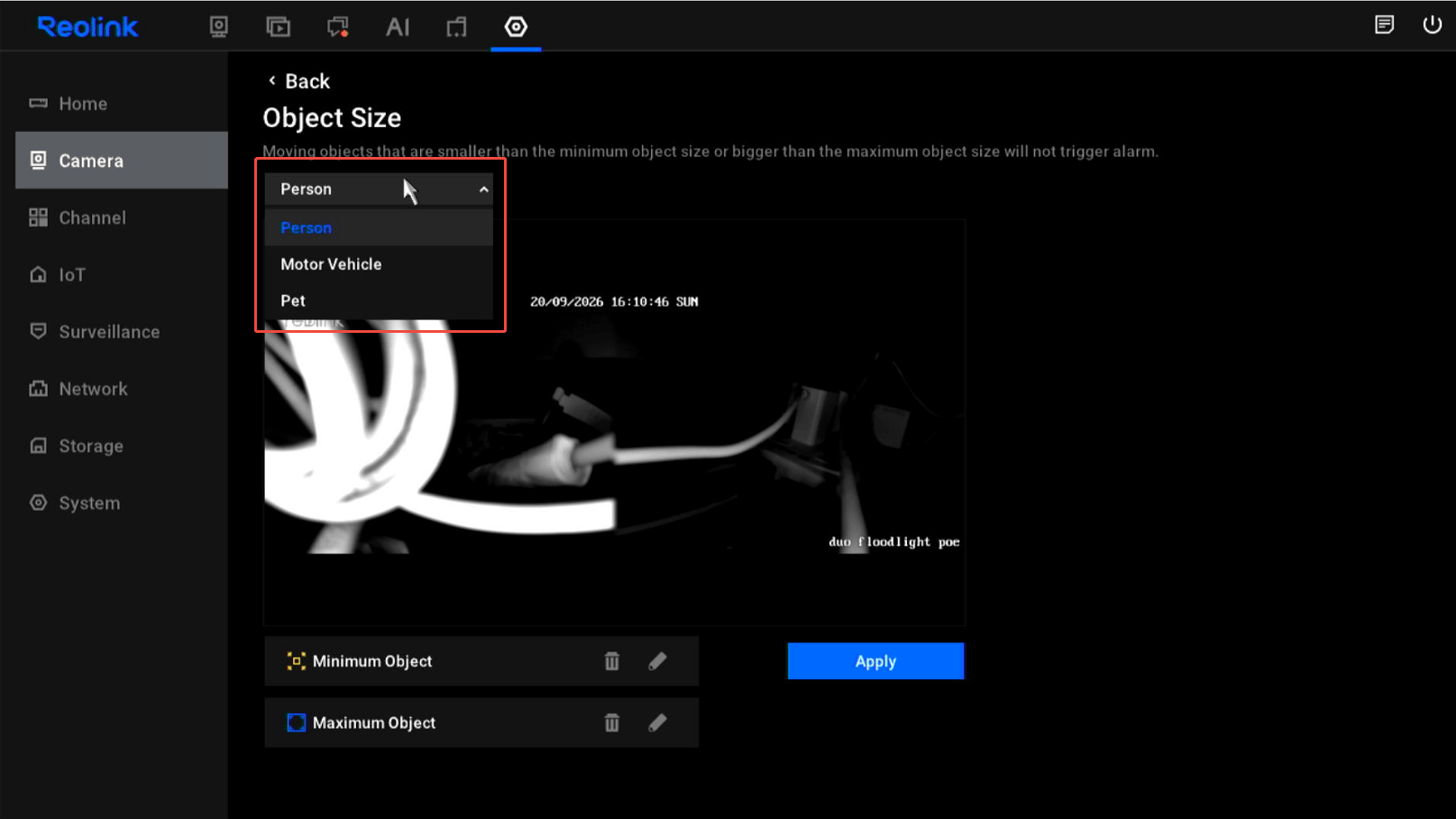

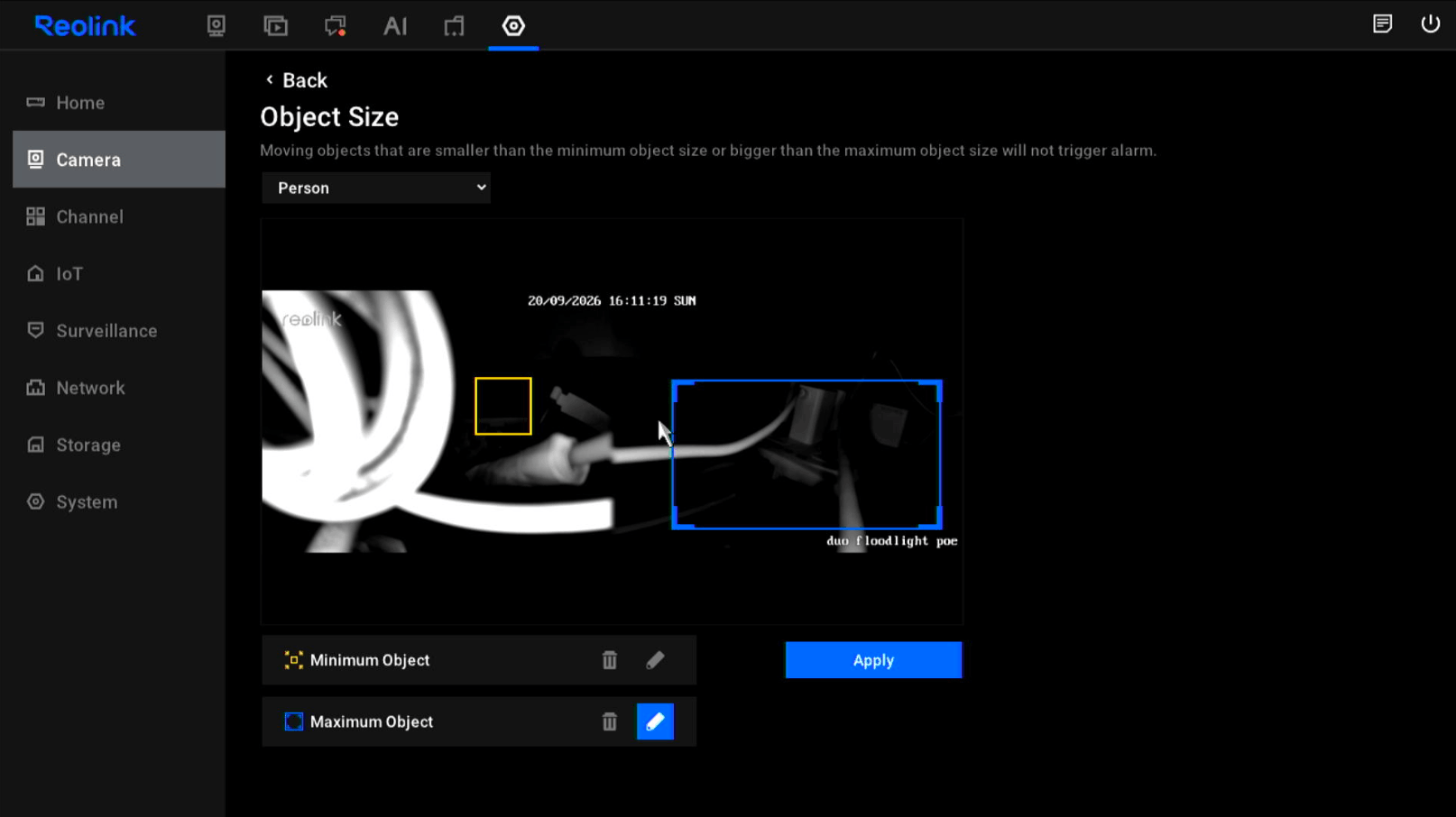

    Step 3. Select Person, Vehicle or Animal/Pet to create Minimum Object Size or Maximum Object Size. Then click Apply.

    • Minimum Size: Click the paint icon (turn it blue), then left-click your mouse and drag to draw the minimum object size (the yellow rectangle).
    • Maximum Size: Click the paint icon (turn it blue), then left-click and drag your mouse to create the maximum object size (the blue rectangle).

    Select Person, Vehicle or Animal/Petcreate Object Size web

Important Notes:

  • The size of the object and its placement are not important.  If you reopen the settings and find that the frame’s position has changed, this is normal and does not affect the object size settings you have made.
  • You can only set up a minimum size or a maximum size, or set up both at the same time. If you draw both of them, make sure the Maximum Object (blue rectangle) is bigger than the Minimum Object (yellow one).
  • If you want to redraw the minimum/maximum object, just click the Trash Can icon and repeat the above operations.
  • For Dual-lens series, object size is set for two lenses (Camera 1/Camera 2) together, and cannot be set separately.

Related Articles

Introduction to Reolink Smart Detection

How to Configure PIR, Motion and Smart Detection Settings

Troubleshooting Guide: Reolink Camera Misses Motion from Smart Detection

How to Set up Smart Detection for Battery-powered Cameras via Reolink App

If you have any questions, click “Submit a request” below to contact the Reolink Support Team.
