This article will guide you on how to install a SIM card for Reolink Duo 4G, Reolink Duo 2 LTE, TrackMix LTE, TrackMix Wired LTE, TrackMix LTE Plus, and TrackMix LTE Plus 2. Check for detailed information below.

Required Materials

SIM card, SIM-eject tool/Reset pin, screwdriver

Step-by-Step Guide

For Reolink Duo 4G/Duo 2 LTE

Step 1. Use a screwdriver to remove the lower part of the semi-dome cover. Then open the rubber cover to find the SIM card slot.

remove the cover

Step 2. Insert a SIM-eject tool into the hole beside the SIM tray and push it in to pop open the tray.
Place the SIM card into the tray, then insert the tray into the camera completely.

insert the sim card

Step 3. Press back the rubber cover and screw the semi-dome cover in place.

For Reolink TrackMix LTE/TrackMix Wired LTE/TrackMix LTE Plus/TrackMix LTE Plus 2

Step 1. Use a screwdriver to remove the metal cover.

unscrew the cover

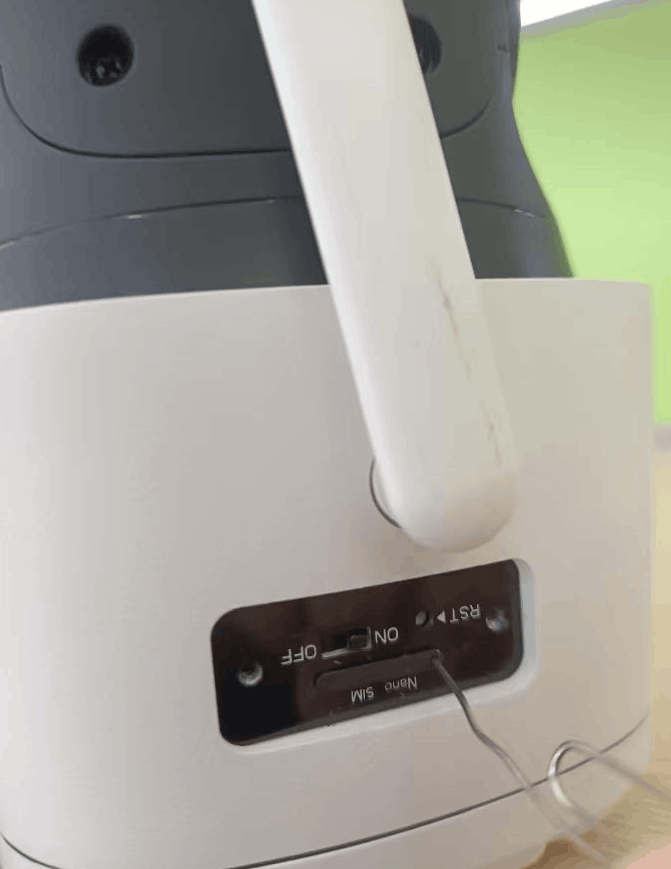

Step 2. Insert a SIM-eject tool into the hole beside the SIM tray and push it in to pop open the tray.

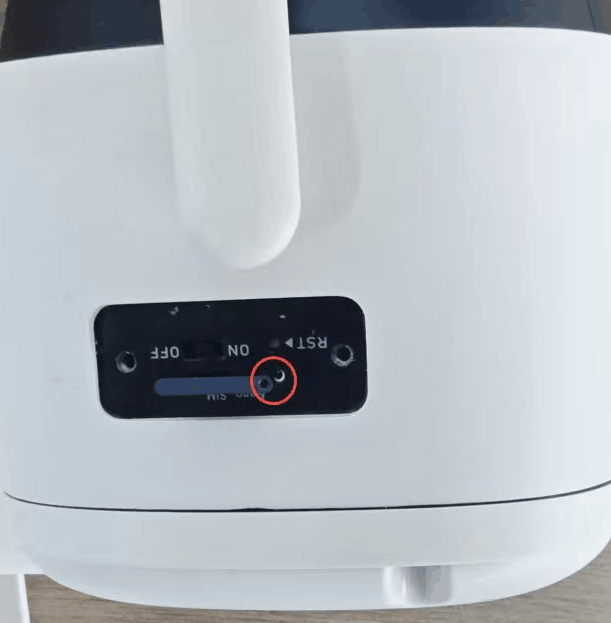

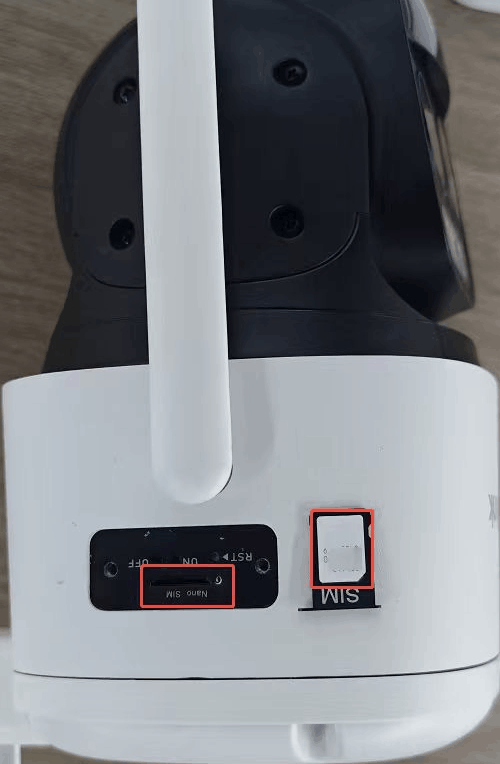

Place the SIM card into the tray, then align the holes and insert the tray into the camera completely.

insert the sim card  insert the SIM to tray  insert the tray to camera

Step 3. Screw the cover back firmly.

Note:

  1. To install the SIM card for all above cameras, please remember that the gold contacts shall face down.

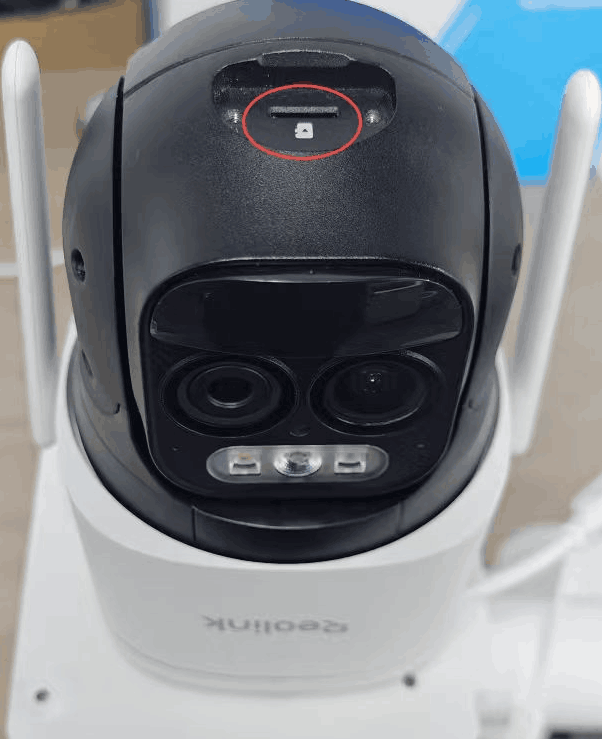

  2. Please distinguish this from the SD card slot. The slot above the lens is for the SD card, not the SIM card.
    SD card slot

Installing a SIM card on your camera is quick and straightforward when you follow the steps above. If you want to initiate the camera, refer to How to Initially Set up Reolink 4G Cameras via Reolink App
