Image Stitching is designed to improve the stitching effect. For dual-lens cameras, since two lenses are combined to form a single image, the stitched area may be affected by the distance of objects being monitored. This can sometimes cause visual discontinuity or overlapping objects. The following explains how to adjust the Image Stitching settings to optimize image fusion for Reolink dual-lens cameras.
Applies to: Reolink Duo 2 PoE, Duo Series P730, Reolink Duo 2 Wi-Fi, Reolink Duo 2 LTE, Duo Series G750, Reolink Duo Floodlight PoE, Floodlight Series F750P, Reolink Duo Floodlight Wi-Fi, Duo 3 PoE, Duo 3 WiFi, Duo 3V PoE, Duo 2V PoE, Argus 4, Argus Series B740, Argus 4 Pro, Argus Series B740X, Reolink Elite WiFi, Reolink Elite Floodlight WiFi.
Note: The first-generation Duo is not supported.
Image Stitching Parameters
Only a few scenes might need to be fine-tuned. Users are not required to manually adjust the distance and horizontal and vertical parameters for most of the scenes.
On Image Stitching page, you can adjust Distance, Horizontal, Vertical.
- Distance: the distance between the camera and the object. The default distance is 8 meters. If the object/area is close to or far from the camera and results in the object missing or ghosting, you can adjust the distance value. The adjustable range is 2m - 20m.
- Horizontal: The value represents how many pixels the two images from the dual-lens are overlapped horizontally. To decrease the value means to separate the two images, and to increase the value means to close the gap between the two images.
- Vertical: To decrease the value means to move the image on the right down, and to increase the value means to move it up.
Instruction of Setting up Image Stitching for Reolink Camera
Refer to the following guides to set up image stitching for your Reolink cameras on different platform:
-
Via Reolink App

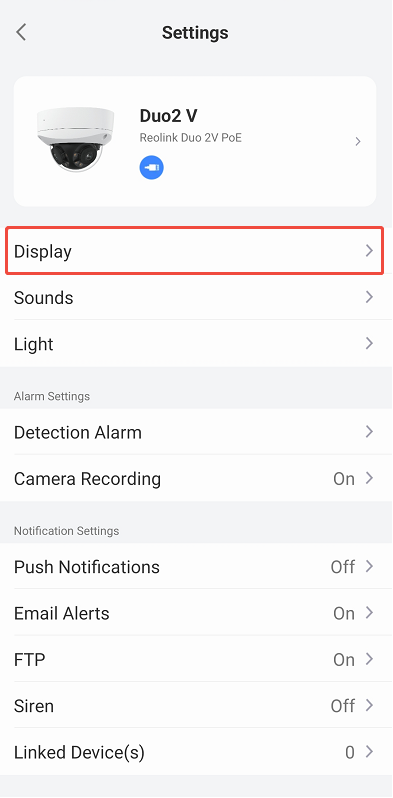

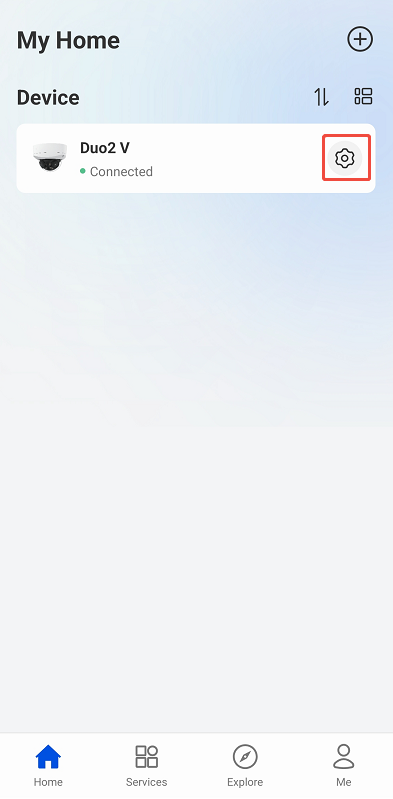

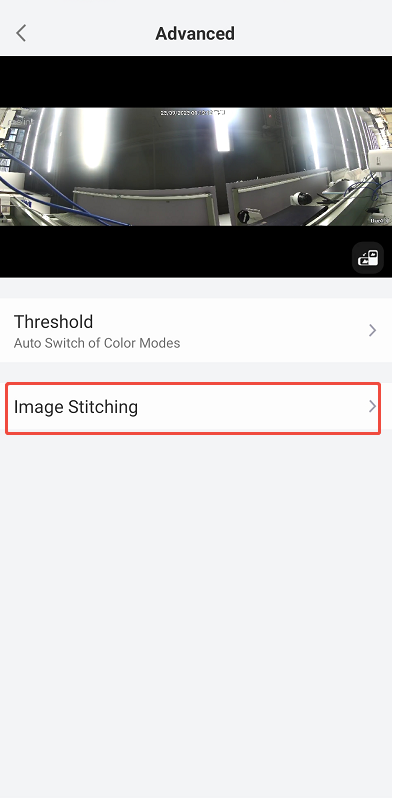

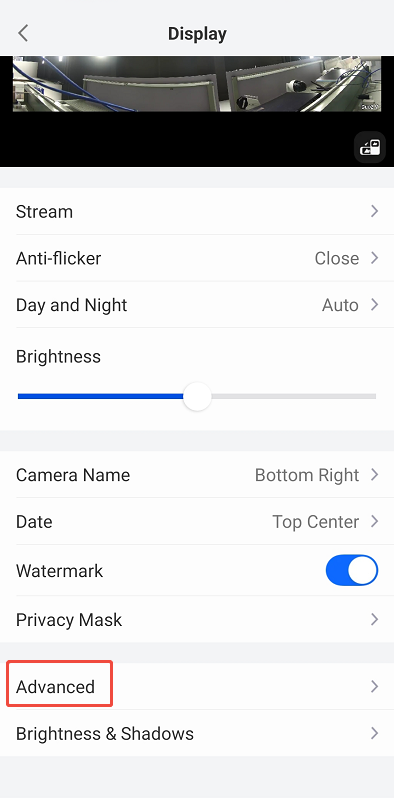

Step 1: Open the App and go to Device's Settings > Display > Advanced > Image Stitching.

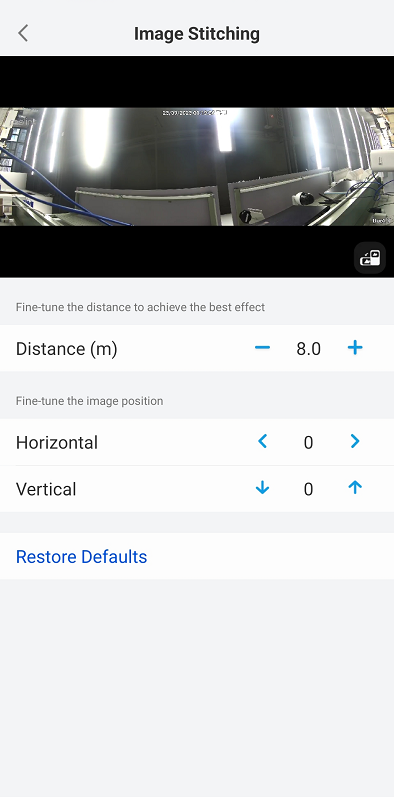

Step 2: Adjust the value according to the actual scene for a better stitching effect. If the settings are incorrect or you want to revert to the original configuration, tap Restore Defaults.
Video Reference
-
Via Reolink Client
Step 1: Click the Camera Settings button and go to Display > Advanced.
Step 2: Click Image Stitching to view and adjust image stitching settings. If the settings are incorrect or you want to revert to the original configuration, click Restore Defaults.
Video Reference
-
Via Reolink Web browser
👉 Applies to: Cameras used alone (except battery version) or cameras added to a Reolink NVR/Home Hub.
Step 1: Access your camera via a web browser: How to Access Reolink Product via Web Browsers.

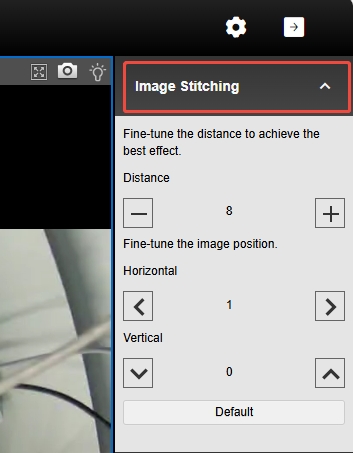

Step 2: In the right-side panel, click Image Stitching to expand the feature. Adjust the values according to the actual scene for a better stitching effect. If the settings are incorrect or you want to revert to the original configuration, click Default.
(Note: If the dual-lens camera is added to a Reolink NVR or Home Hub, make sure to select the correct camera under Channels first to access the Image Stitching function.)
-
Via Monitor Connected to Reolink NVR
👉 Applies to: Reolink NVR users.

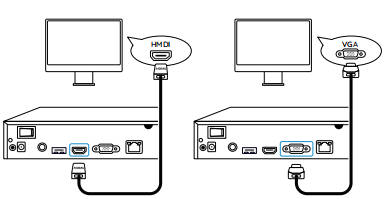

Step 1: Connect a TV/Monitor to the NVR via HDMI or VGA cable.

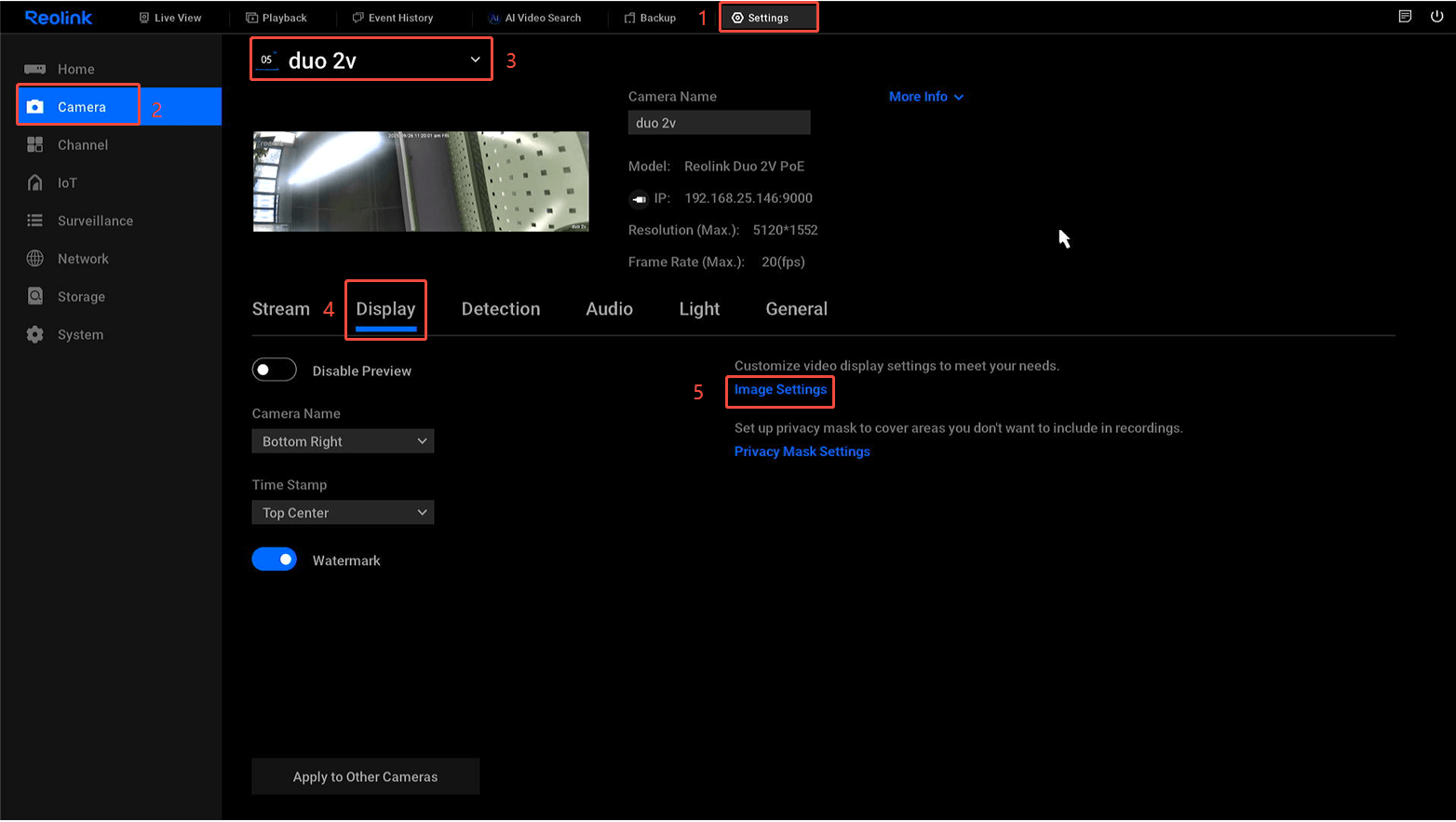

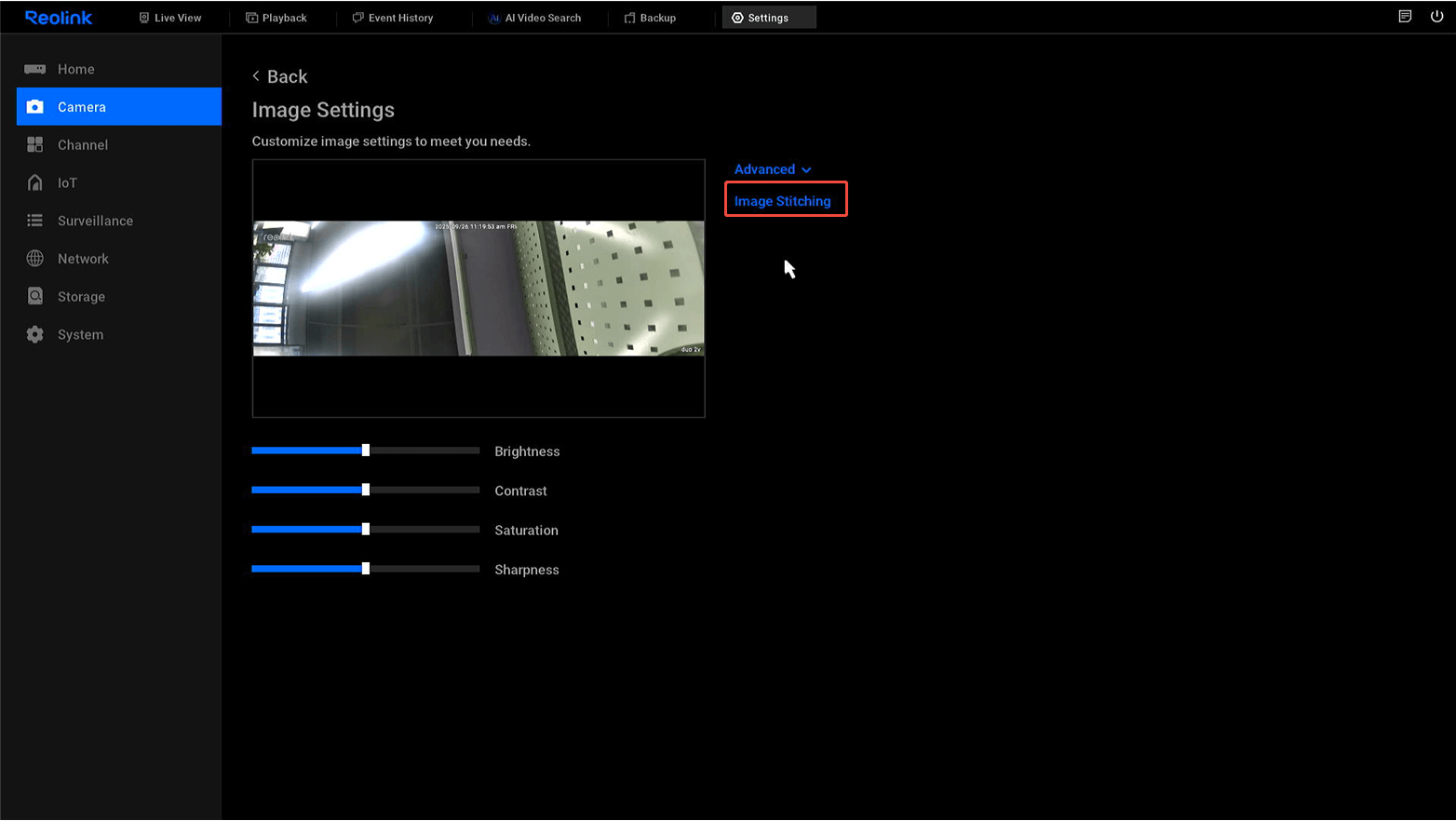

Step 2: Click Settings > Camera, select your dual-lens camera, then go to Display > Image Settings > Image Stitching to access the feature.
(Depending on the version, Settings button may be on the top or bottom toolbar, image below is for reference).

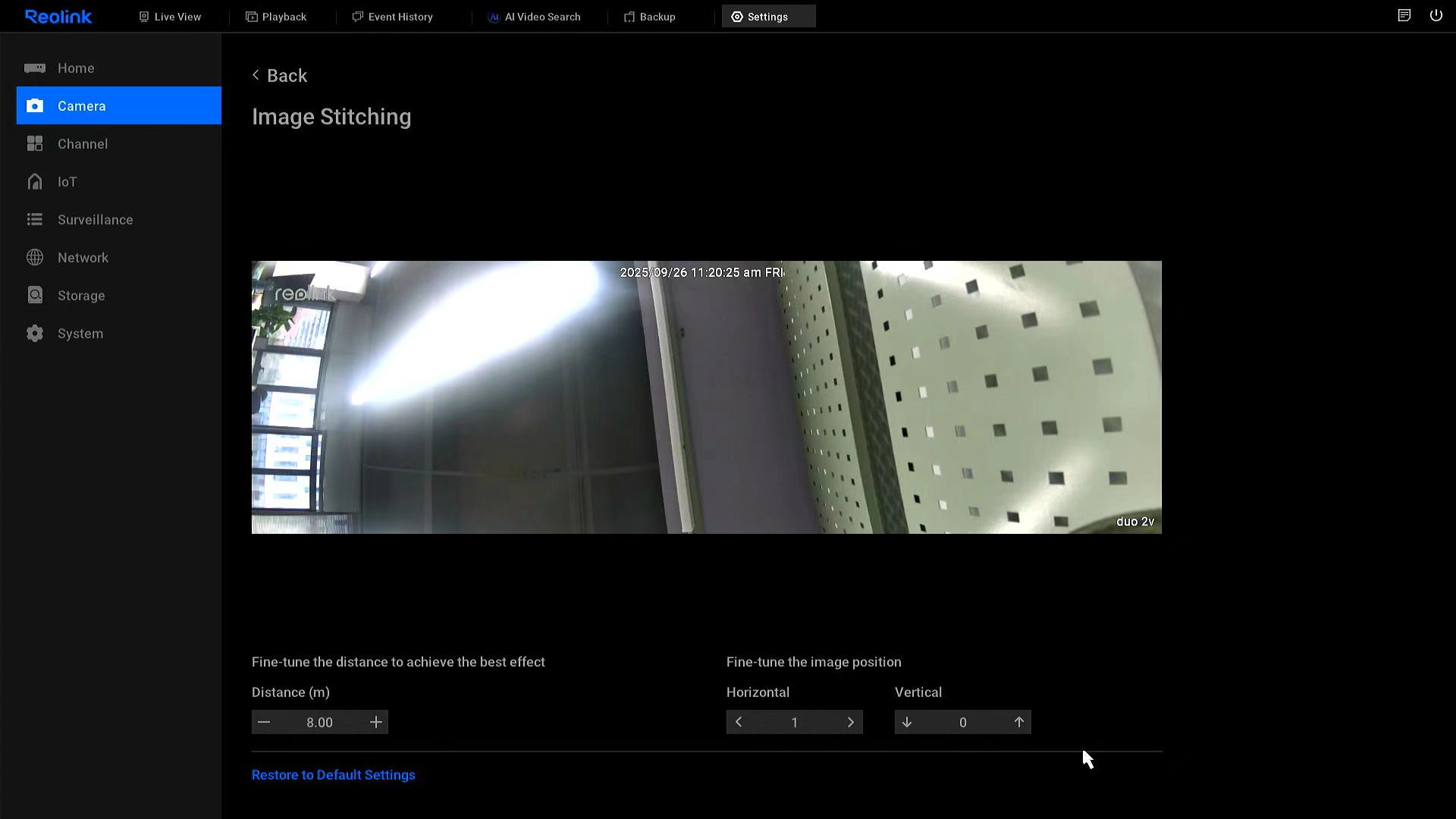

Step 3: Adjust the values according to the actual scene for a better stitching effect. If the settings are incorrect or you want to revert to the original configuration, click Restore to Default Settings.
Following these steps, you can optimize Image Stitching on your Reolink dual-lens camera for better images. If needed, the default settings can be restored to start over. If the concern persists, make sure your camera is updated to the latest firmware, and if it still cannot be resolved, click "Submit a Request" below to contact Reolink Support.
