How to Install Waterproof Lid

This is an intuitive tutorial that can help you know how to install the waterproof lid for your camera.

Applies to: All Reolink PoE Cameras.

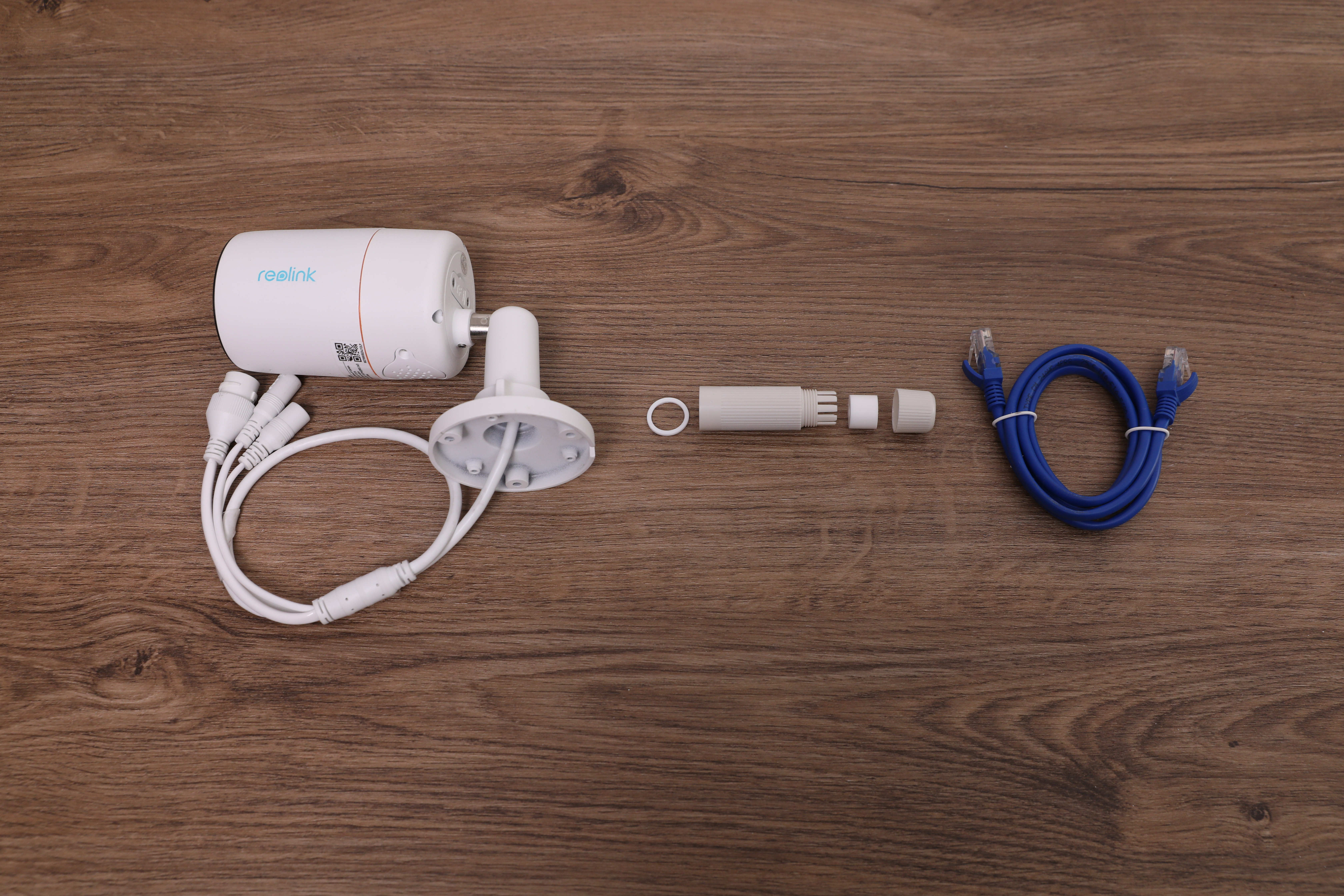

Step 1. Separate all the parts of the waterproof lid.

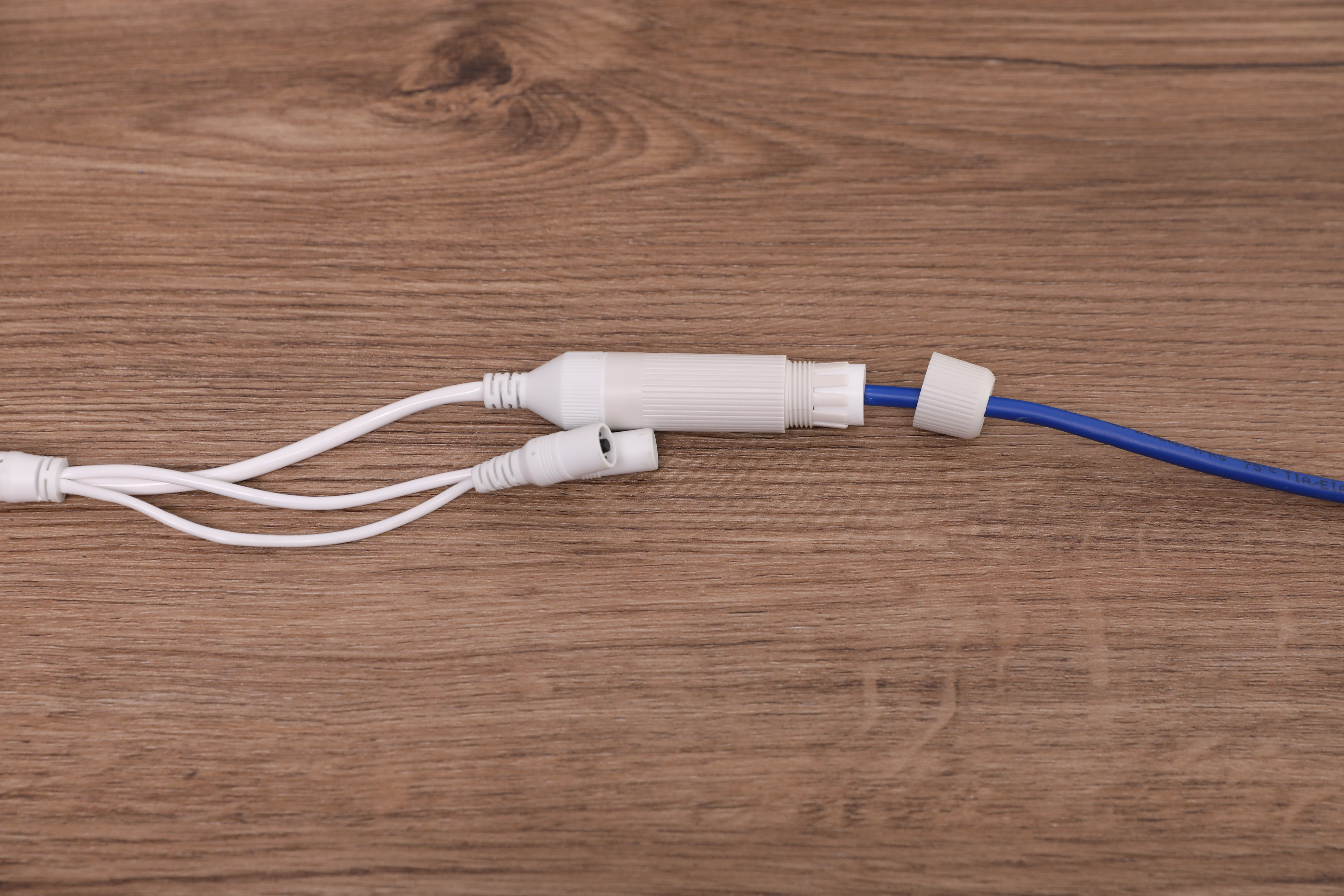

Step 2. Thread the Ethernet cable through the waterproof lid.

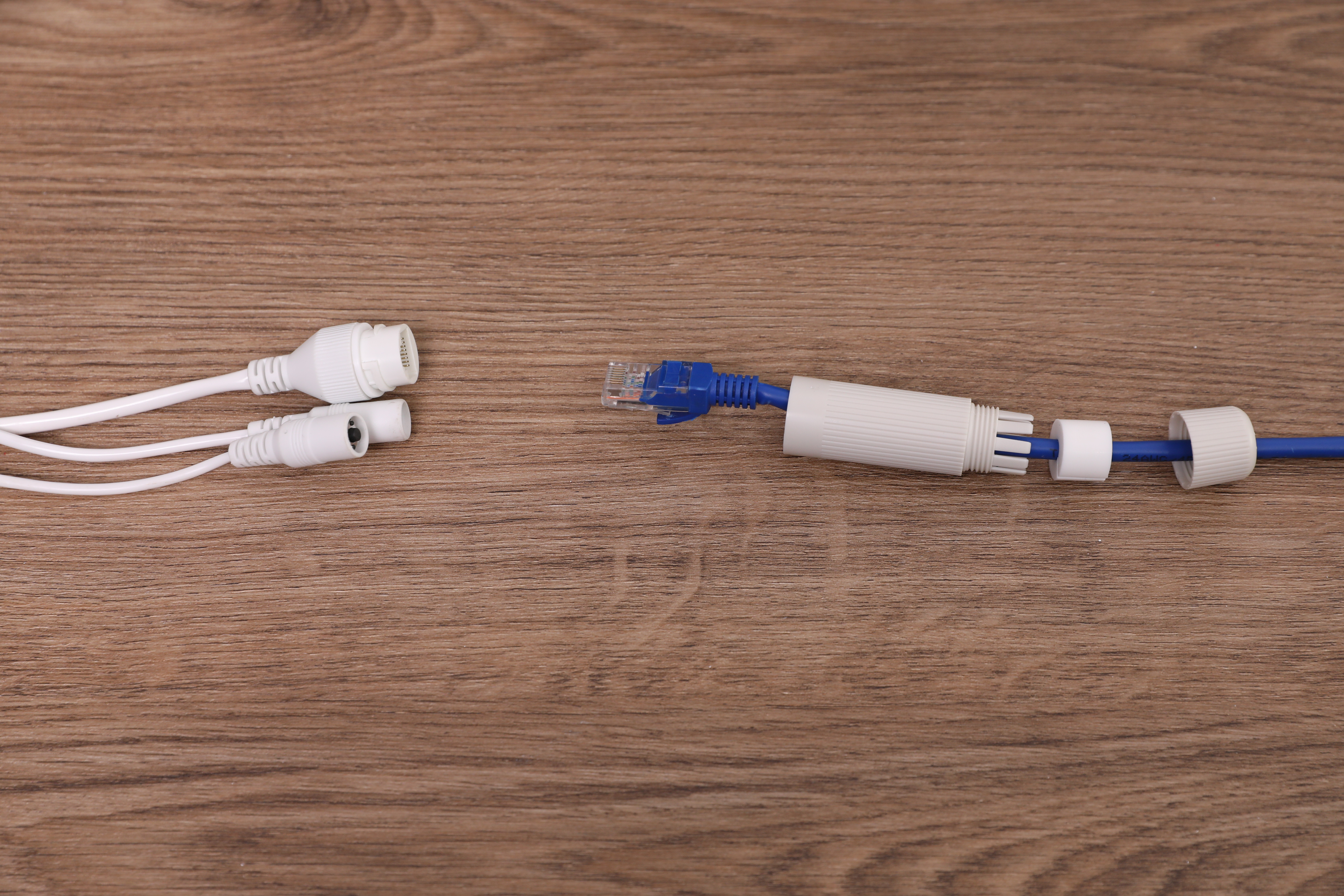

Step 3. Push the Rubber ring to the main body.

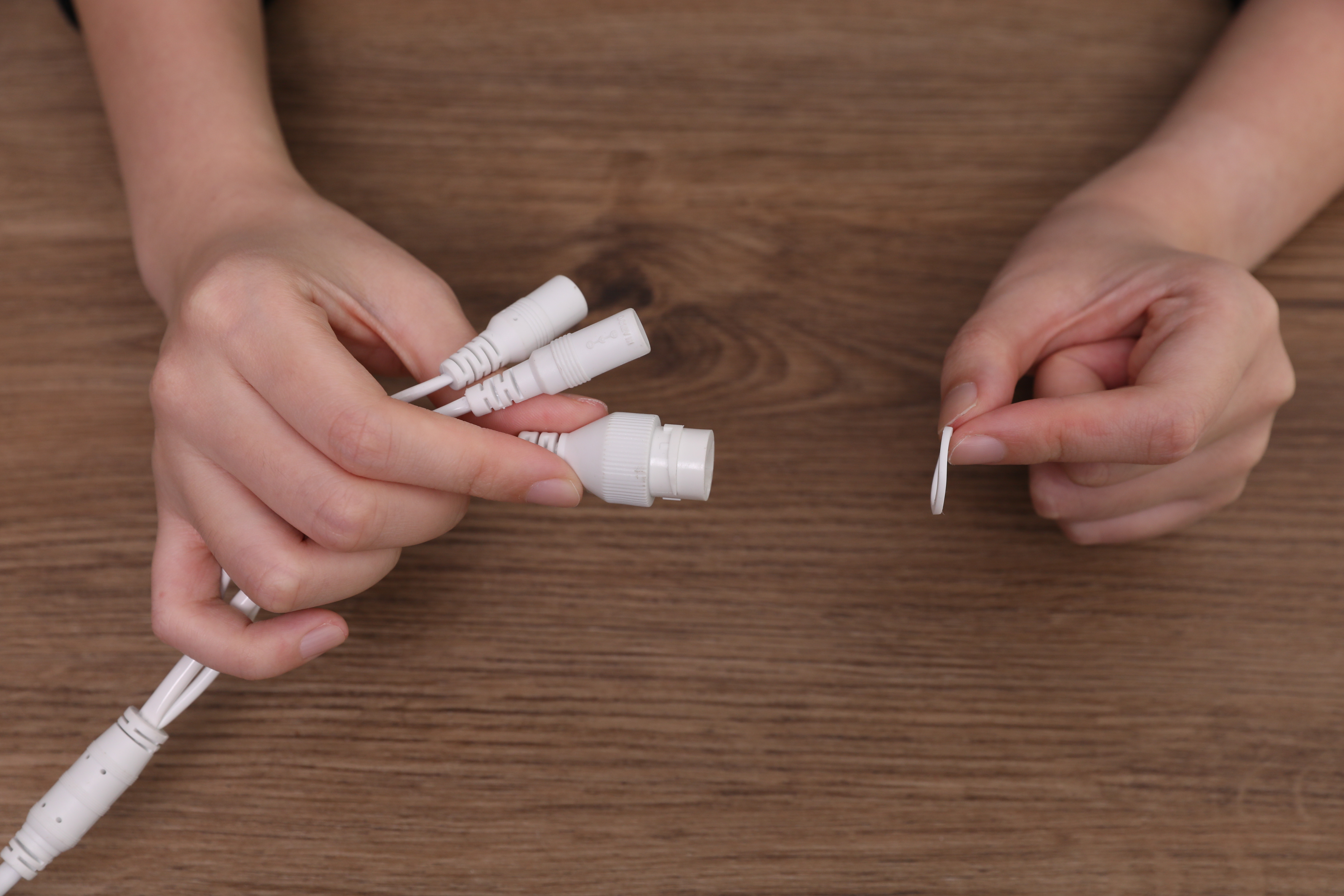

Step 4. Install the white rubber band to the RJ45 connector.

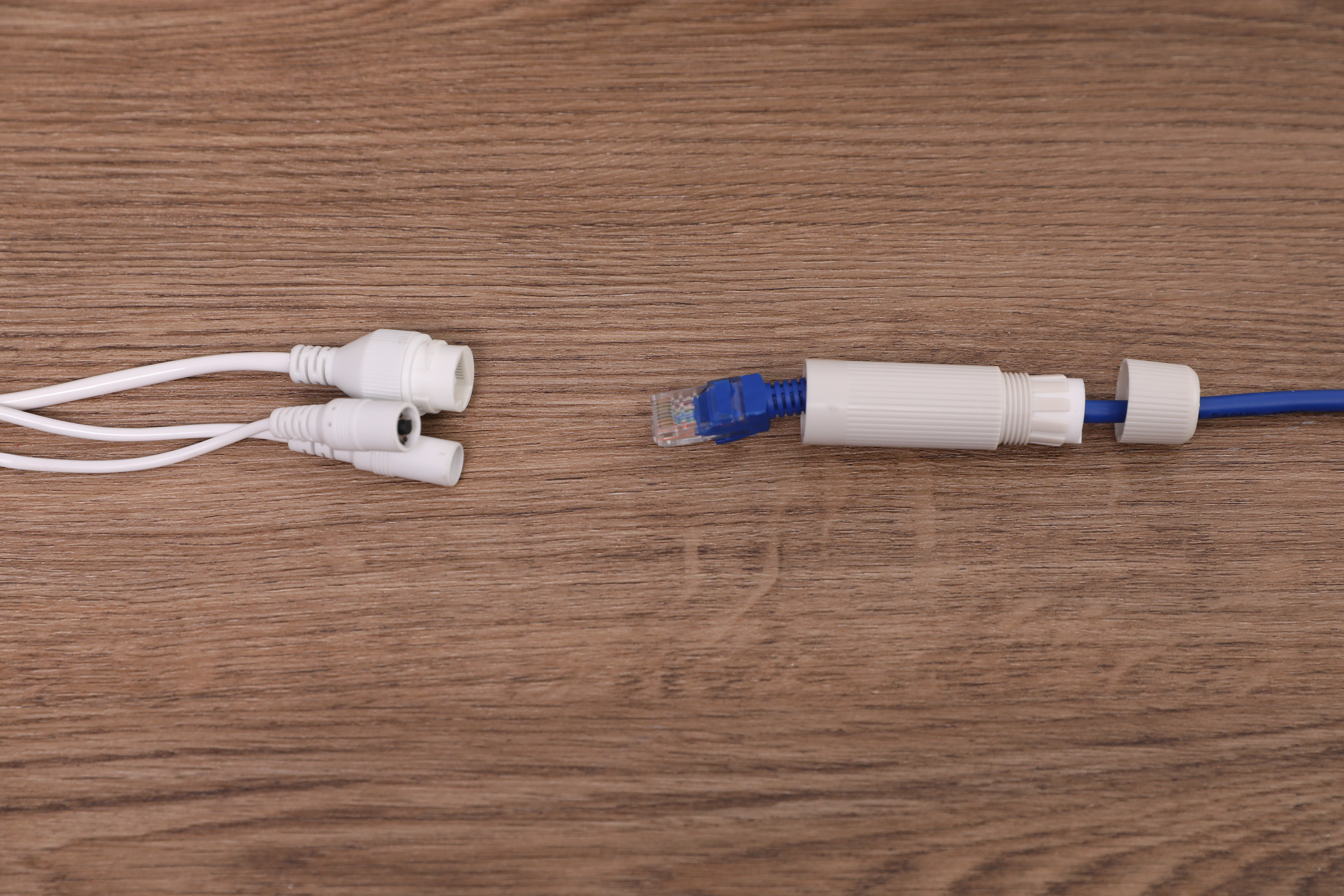

Step 5. Plug the ethernet cable into the RJ45 connector.

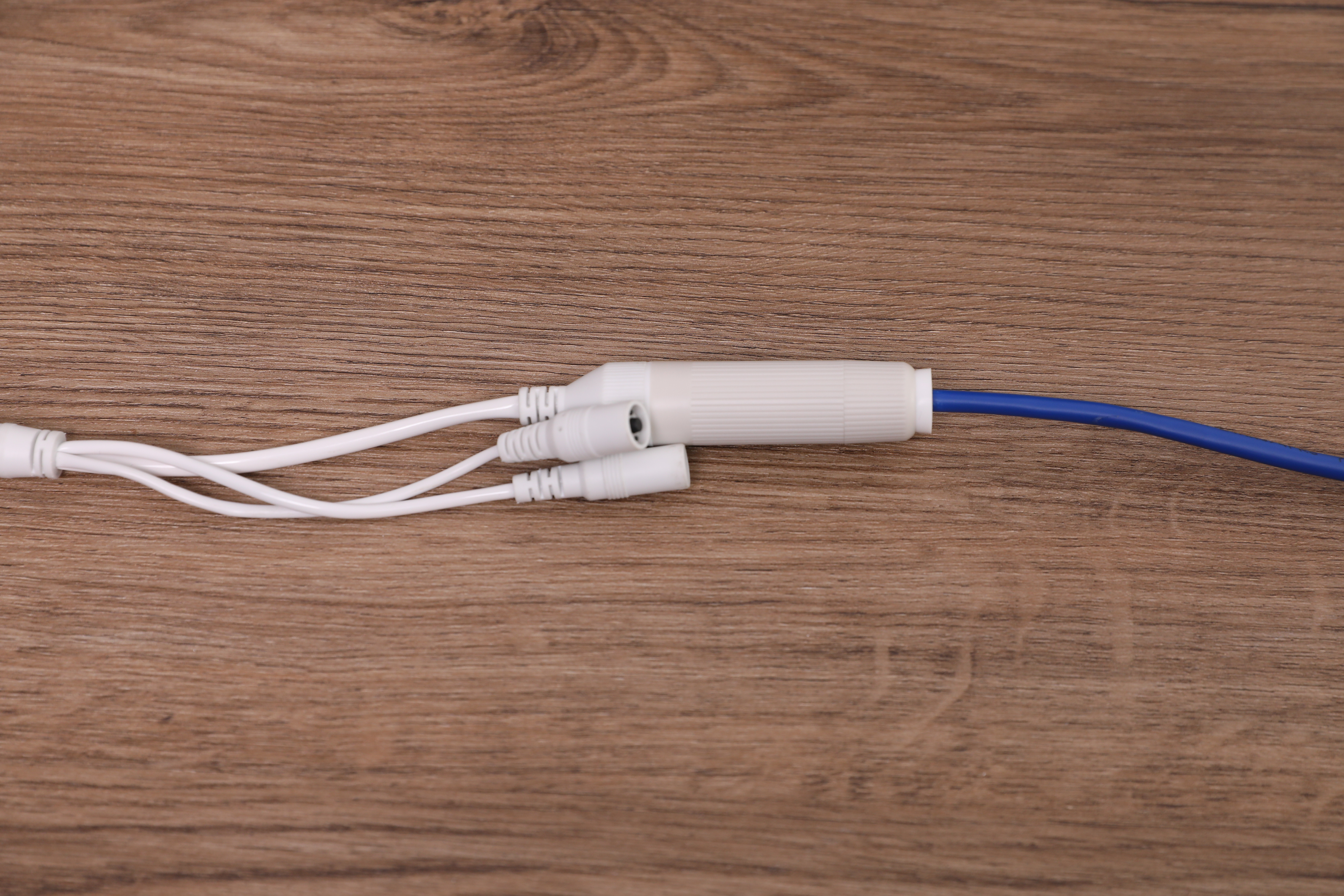

Step 6. Combine all parts. Done！
