How to Set up Patrol Speed and Duration via Reolink Client

The camera doesn't have to patrol all the preset points at the same speed and stays at each point for the same time duration. You could change these parameters.

Applies to: RLC-423, RLC-423W, RLC-523WA, RLC-823A, and RLC-823A 16X.

This article will show you how to set up patrol speed and patrol time duration for your camera on Reolink Client.

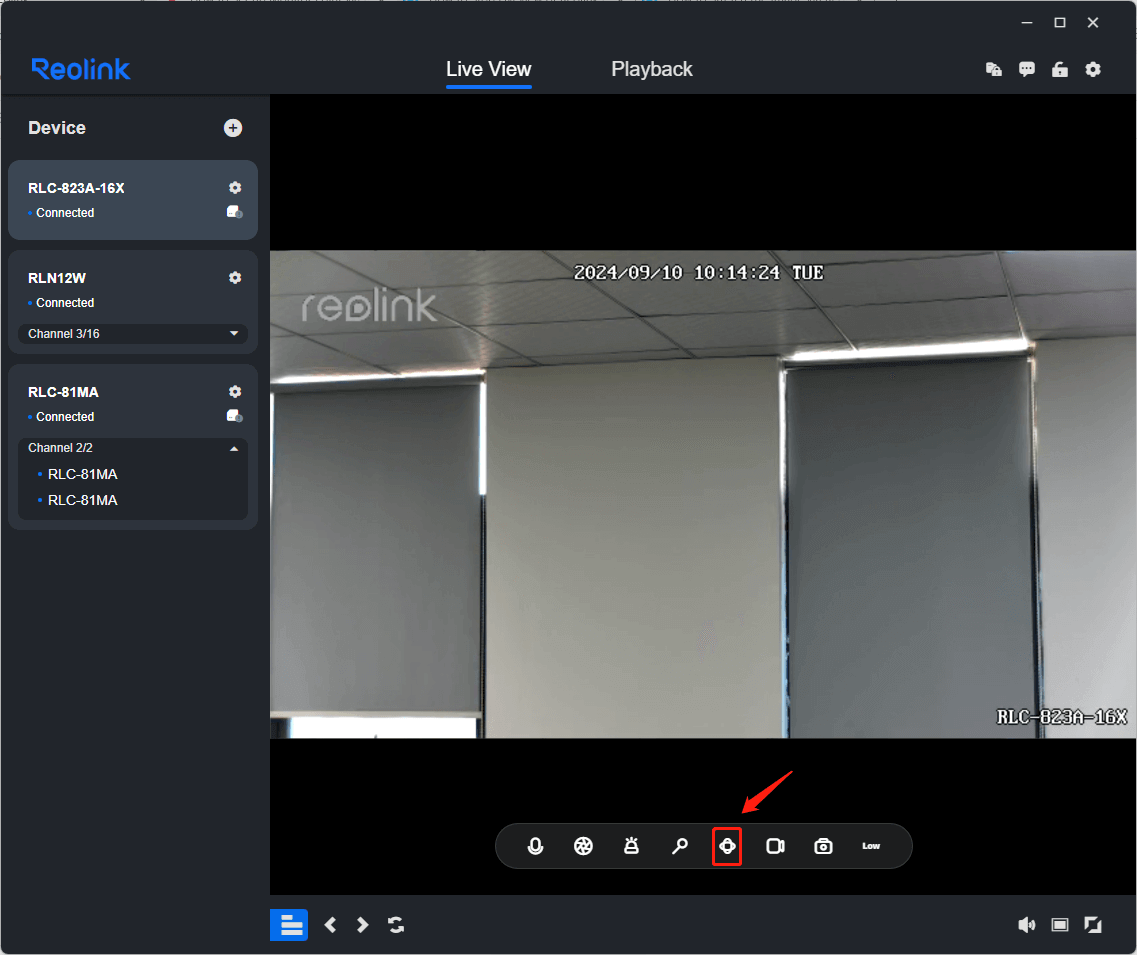

Step 1. Launch the Reolink Client and enter the live-view page of the camera. Then click the PTZ icon to call the PTZ panel.

Step 2. Click Patrol and you will see a patrol route on the Patrol page. If you haven't set any patrol route before, please refer to here for a guide.

Step 3. Click to modify the Patrol Time and Speed for a specific preset. Then click Confirm.

For example, the picture below shows that the camera will move to preset 1 at a speed of 14 and stays there for 22 seconds.

Notes:

• Patrol Time refers to how long the camera will stay after it moves to a specific preset point.
• The larger the Speed, the faster the camera moves to that specific preset.

Step 4. You can set the patrol speed and duration of other presets by repeating the above steps.
