When viewing your cameras on a monitor/TV plugged into your NVR, you probably need to reorder the sequence of those cameras. Below are the steps to re-arrange the display order for the cameras.

Applies to: RLN8-410 (hardware version H3MB18/N2MB02/N3MB01/N7MB01), RLN16-410 (hardware version H3MB18/N6MB01), RLN36 and RLN12W.

Note: Make sure that you have connected a monitor and a mouse to the NVR before the following steps.

Method 1

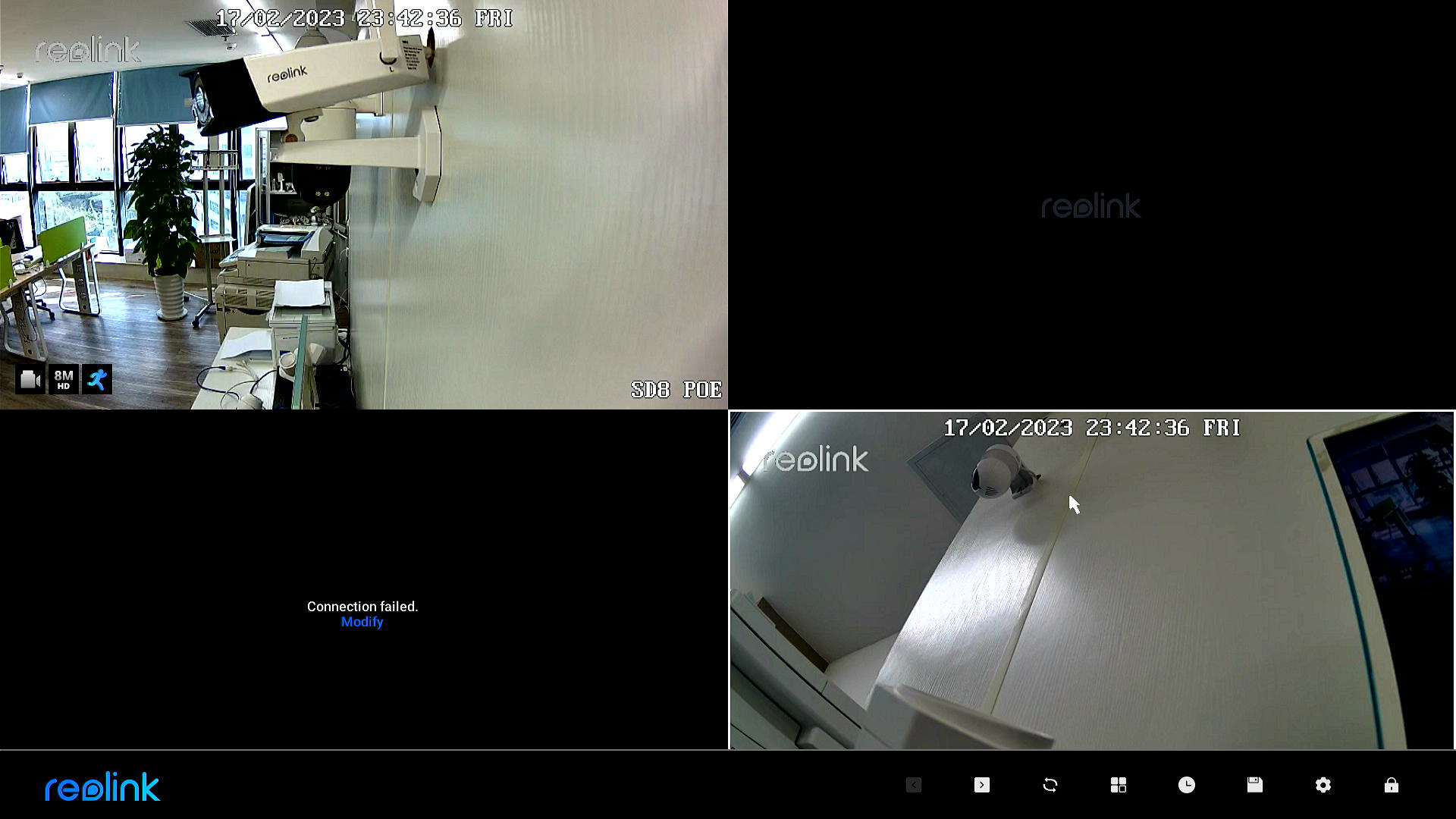

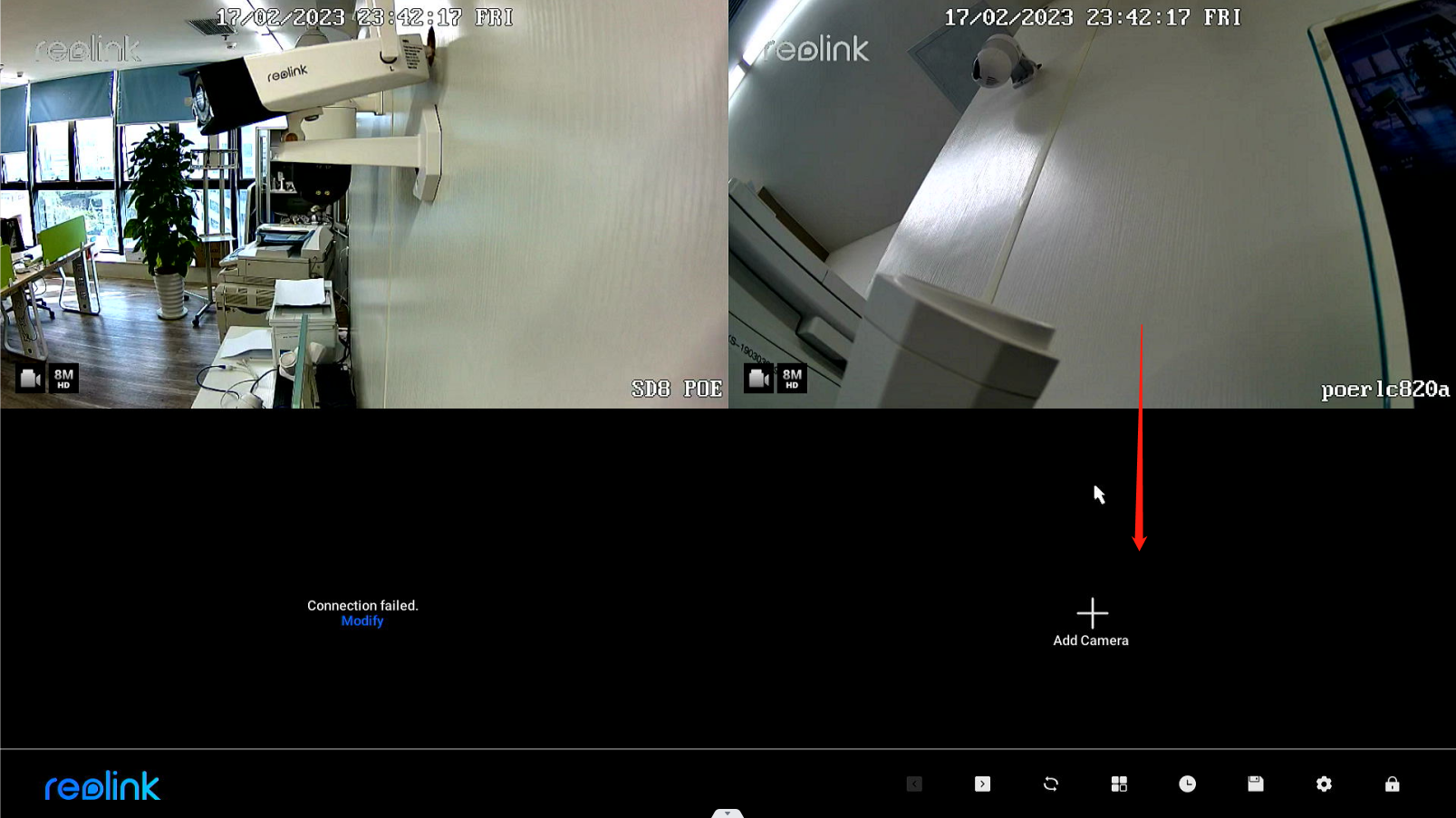

Drag the camera to the channel you want in multiple live view screens.



Method 2

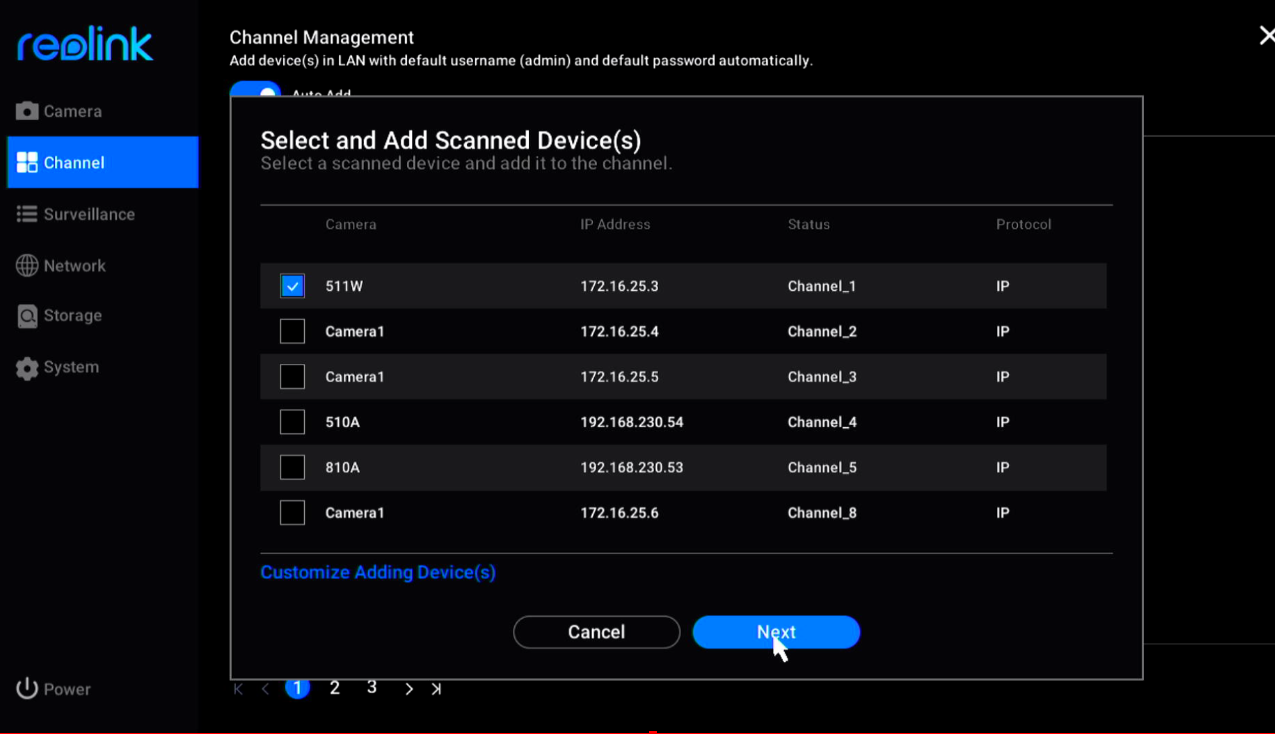

Go to Settings > Channel interface, click the channel you want, and then select camera for that channel.

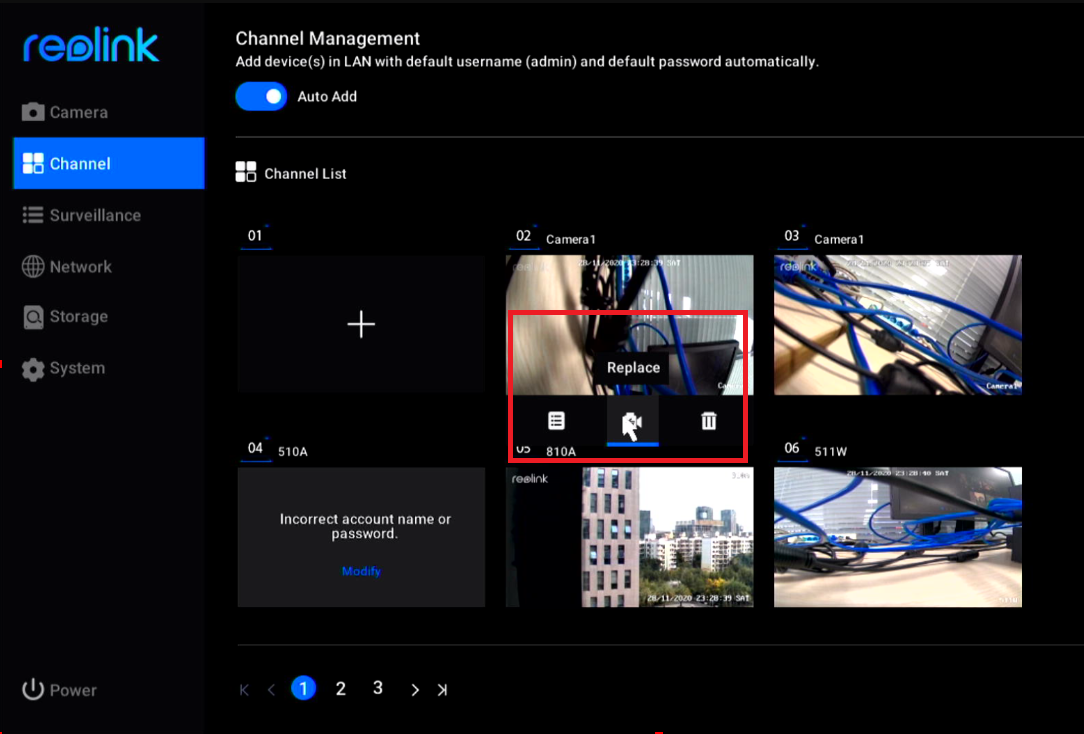

If that channel has distributed for other cameras, please click Replace to arrange the camera for that channel again.
