Applies to: RLC-520A, P325, RLC-820A, P335, RLC-822A, P433, RLC-824A, RLC-833A, P434, RLC-1224A, P345, CX820, ColorX Series P335X.
Note: Before installing/uninstalling the SD card, please power off the camera first, in case it damages the SD card.
RLC-520A, RLC-820A, RLC-822A

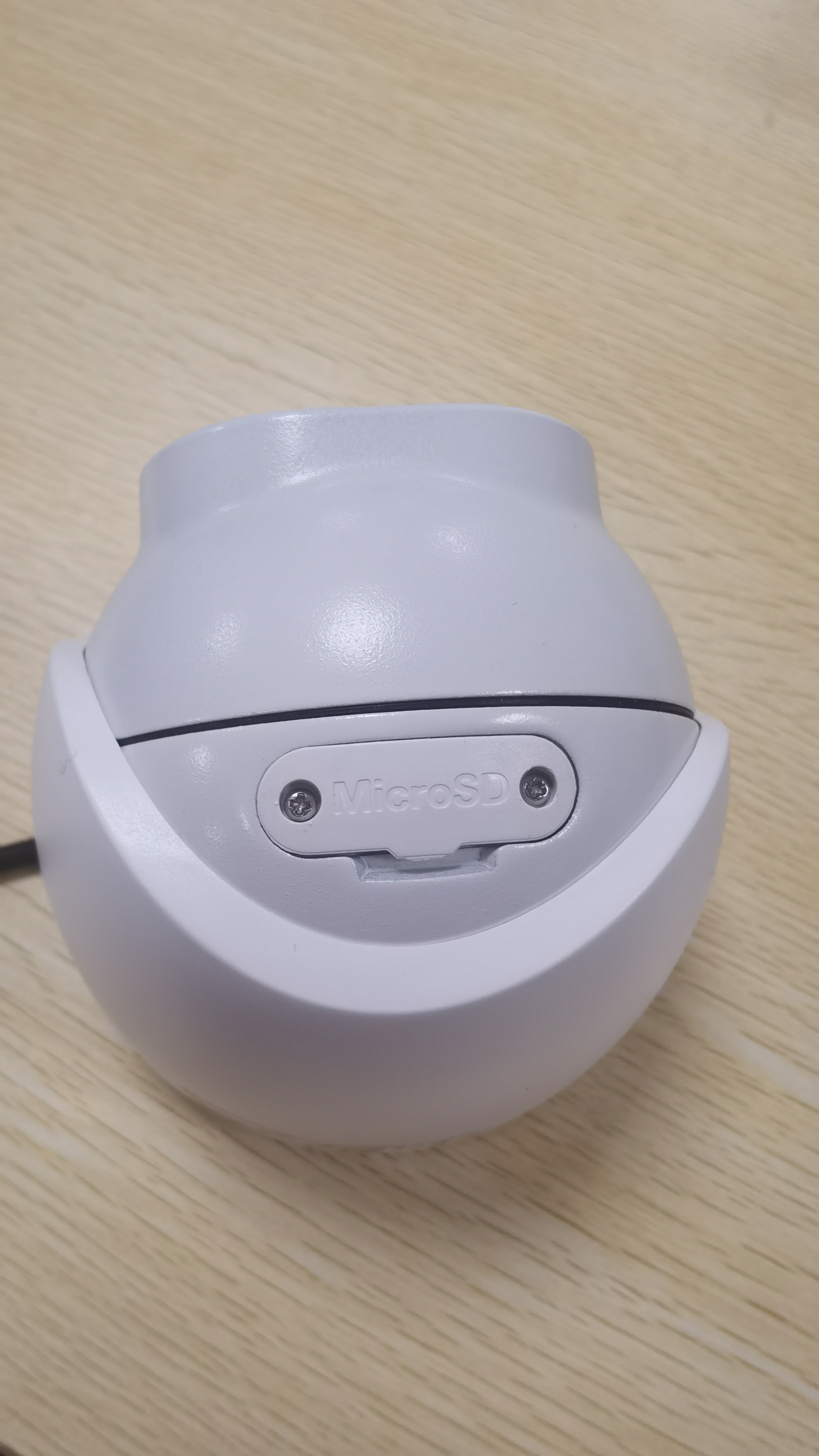

Step 1. Find the micro SD card slot at the top of the camera and unscrew the screws to open it.

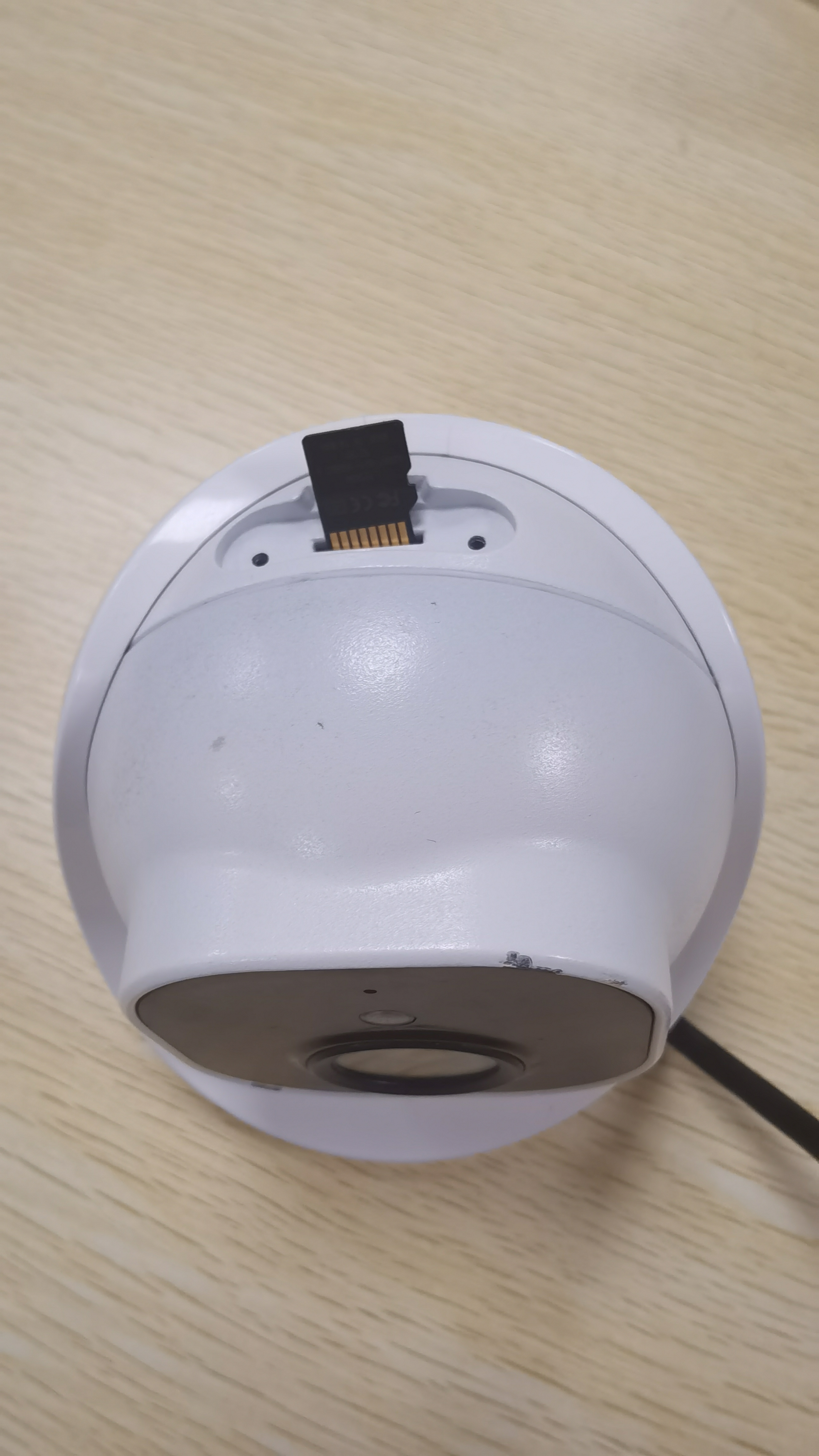

Step 2. Insert the micro SD card like the direction of the micro SD card in the picture below, please use your fingernail (or use the provided reset needle) to push the micro SD card in until you feel it is locked, and you will hear a click sound and the micro SD card will not pop out if the camera is inserted in properly.
Step 3. Screw the screws to close the cover tightly.
RLC-824A, RLC-833A, RLC-1224A, CX820
Rotate the lens to find the microSD card on the bottom. Unscrew the screws, insert the microSD card like the direction of the micro SD card in the picture below, please use your fingernail (or use the provided reset needle) to push the micro SD card in until you feel it is locked, and you will hear a click sound and the micro SD card will not pop out if the camera is inserted in properly.
