This article is about configuring general system settings on Reolink NVRs.
Applies to: RLN8-410 (hardware version H3MB18/N2MB02/N3MB01/N7MB01), RLN16-410 (hardware version H3MB18/N6MB01), RLN36, NVS36, RLN12W, NVS12W, NVS8, NVS16.

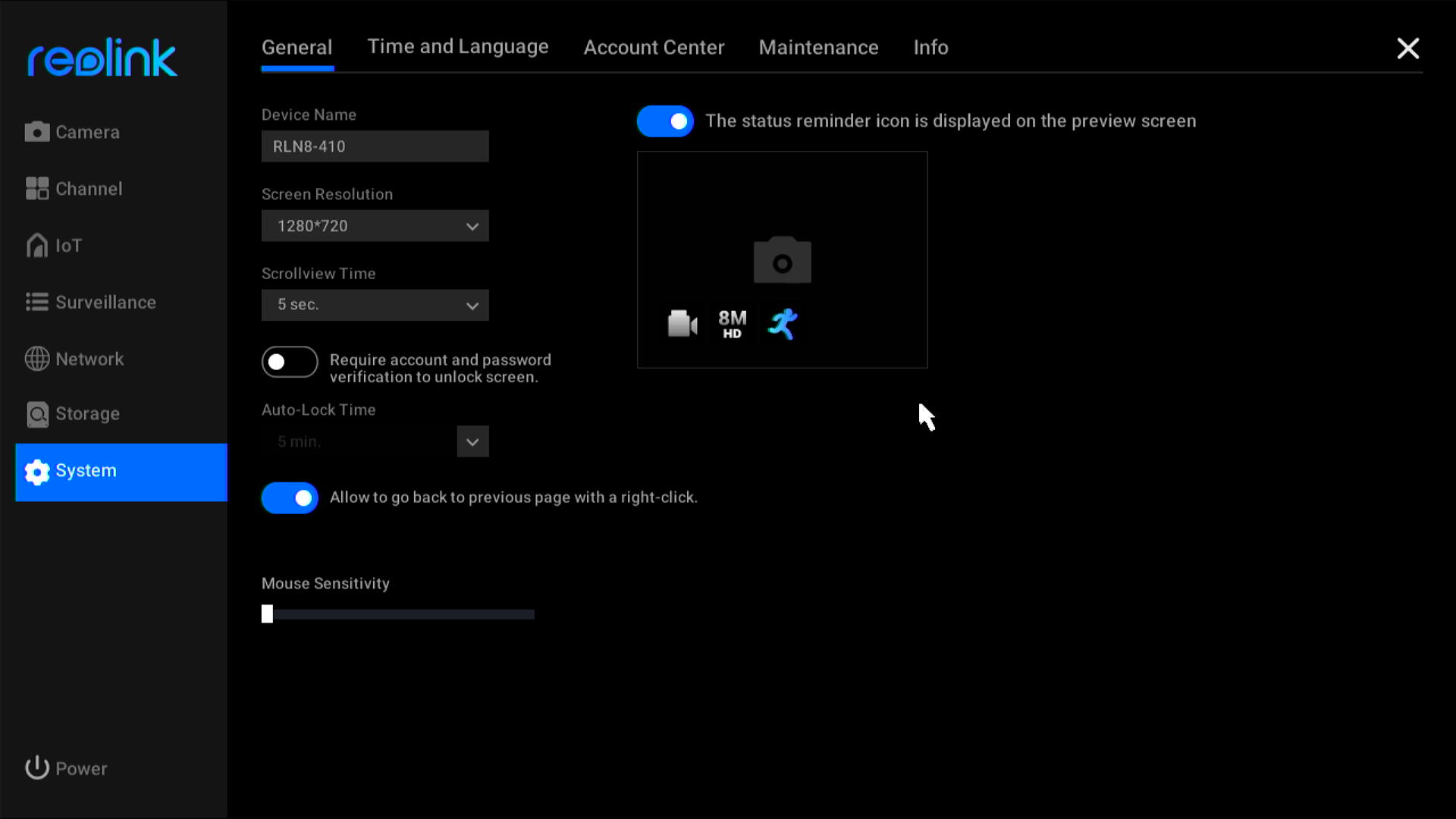

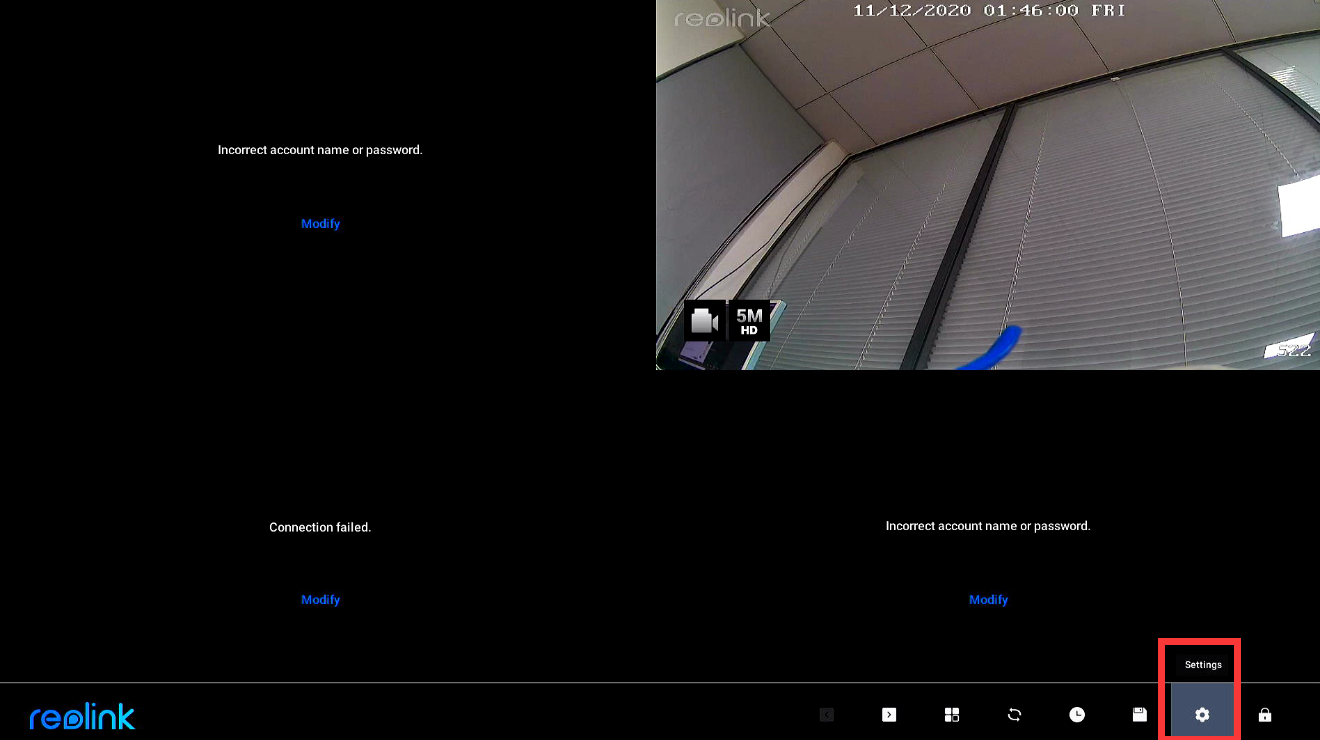

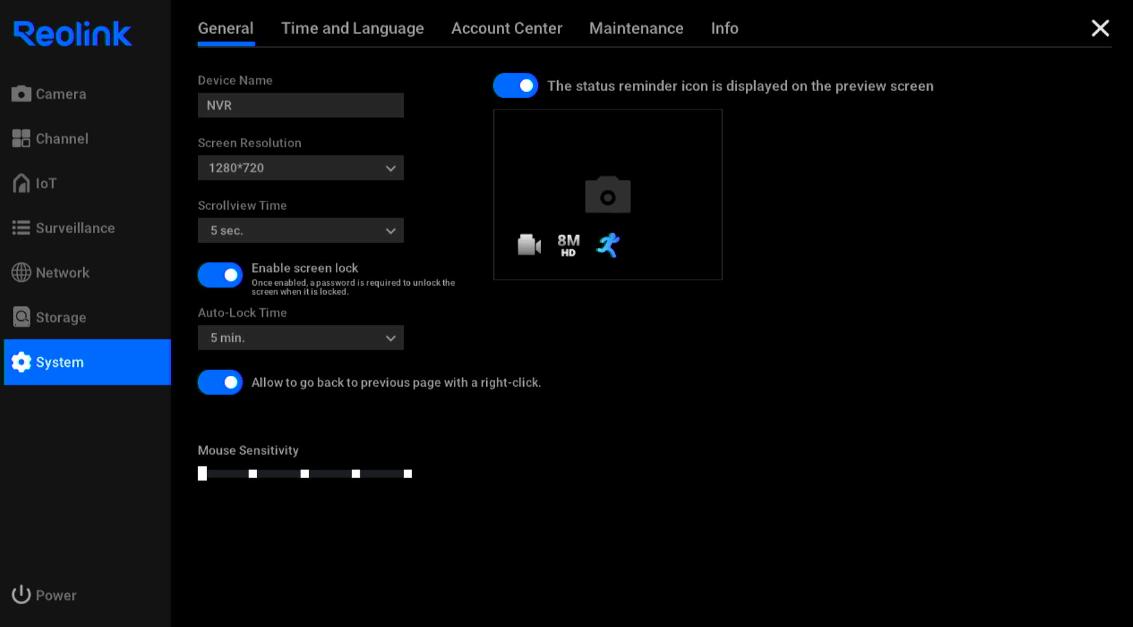

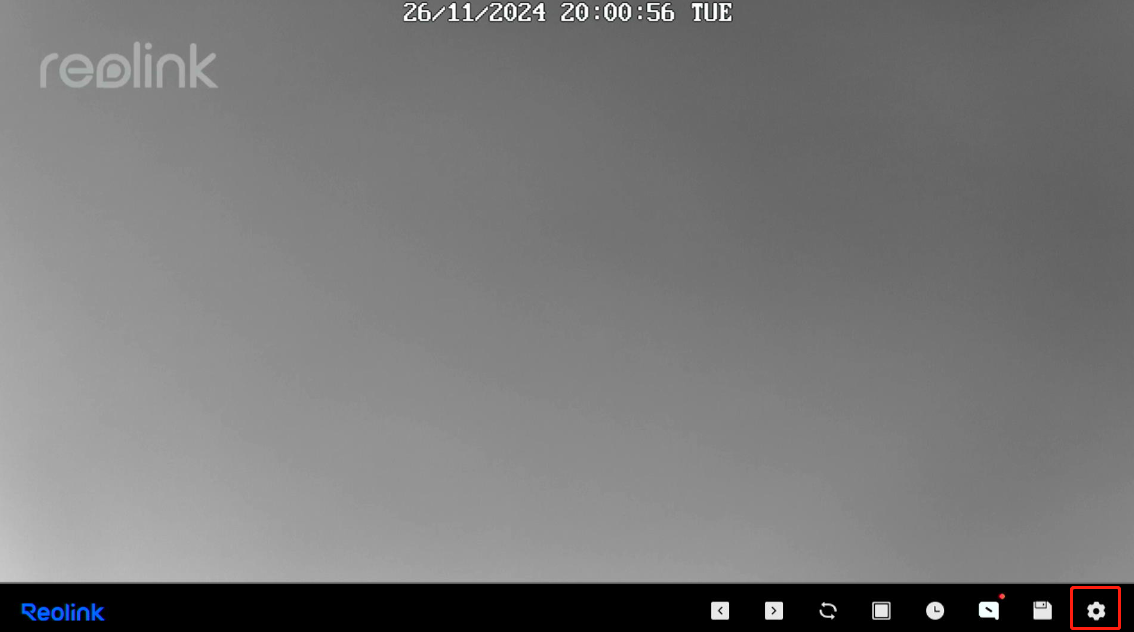

Log in to your NVR, go to Settings > System > General.
There are eight options on this page:
- Device Name: Customize the name of your NVR system.
- Screen Resolution: Adjust the output resolution of the NVR.
- Scrollview Time: When you use Scrollview, you can set the time last on each channel.
- Enable "screen lock": With this option enabled, users need to enter the username and password each time when logging in to the system.
- Auto-Lock Time: This option can be chosen when you enable the above option. It is divided into four types, none, 1 min, 5 min, and 10 min.
- Enable "Allow to go back to the previous page with a right-click": When this option is enabled, with a right-click, you can go back to the previous page.
- Mouse sensitivity: Adjust the sensitivity of the mouse.
- Enable "Status Reminder Icon": With this option enabled, the status reminder icons will be displayed on the preview page.
If you have any other questions, please click the link Submit a request below to contact Reolink Support.
