How to Configure Exposure and Backlight Settings

It's recommended to leave the two settings by default. If you feel the image is overexposed/underexposed, with image problems like too bright, too dark, smearing, or noisy pictures, you can try to adjust the two parameters to see if the image quality could be improved. This article will be presented in 3 parts:

1. Settings of Exposure and Backlight

2. Step-by-Step Instructions

3. Related Articles

1. Settings of Exposure and Backlight

Settings of Exposure:

Exposure adjusts the amount of light captured by the camera, optimizing brightness and clarity in both dark and bright areas of the image.

Settings of Backlight:

Backlight​ will optimize brightness and contrast levels to compensate for differences between dark and bright objects.

1. Off: There will be no backlight compensation for the image.

2. Backlight​: The image will be lightened up if you slide the value higher. And the contrast between the bright parts and the darker parts will be optimized.

3. Dynamic Range: The backlight will be compensated dynamically according to the range you've set.

Take the interface of the Reolink Client as an example:

2. Step-by-Step Instructions

Click the link of the software you use for the corresponding step-by-step instructions.

• Via Reolink App

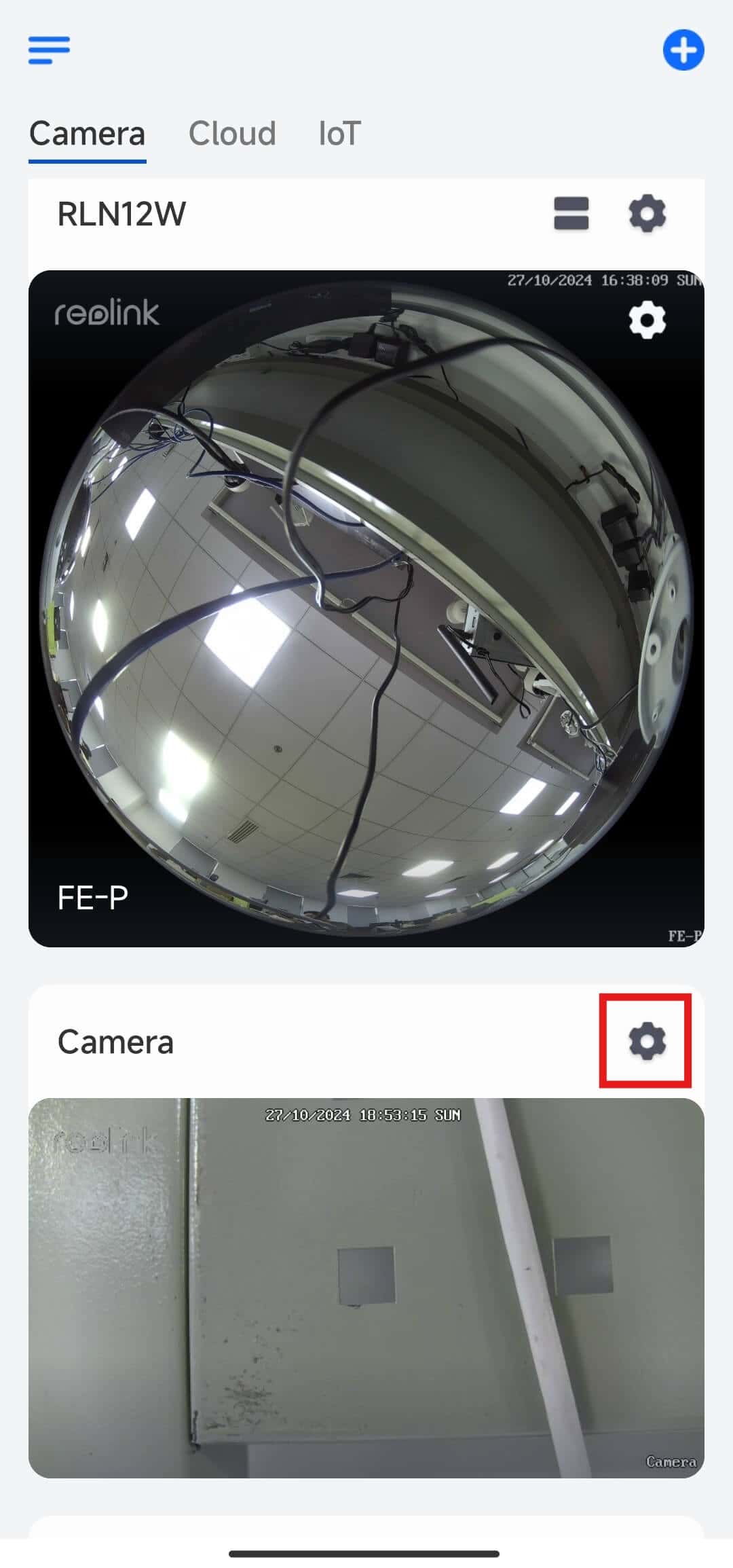

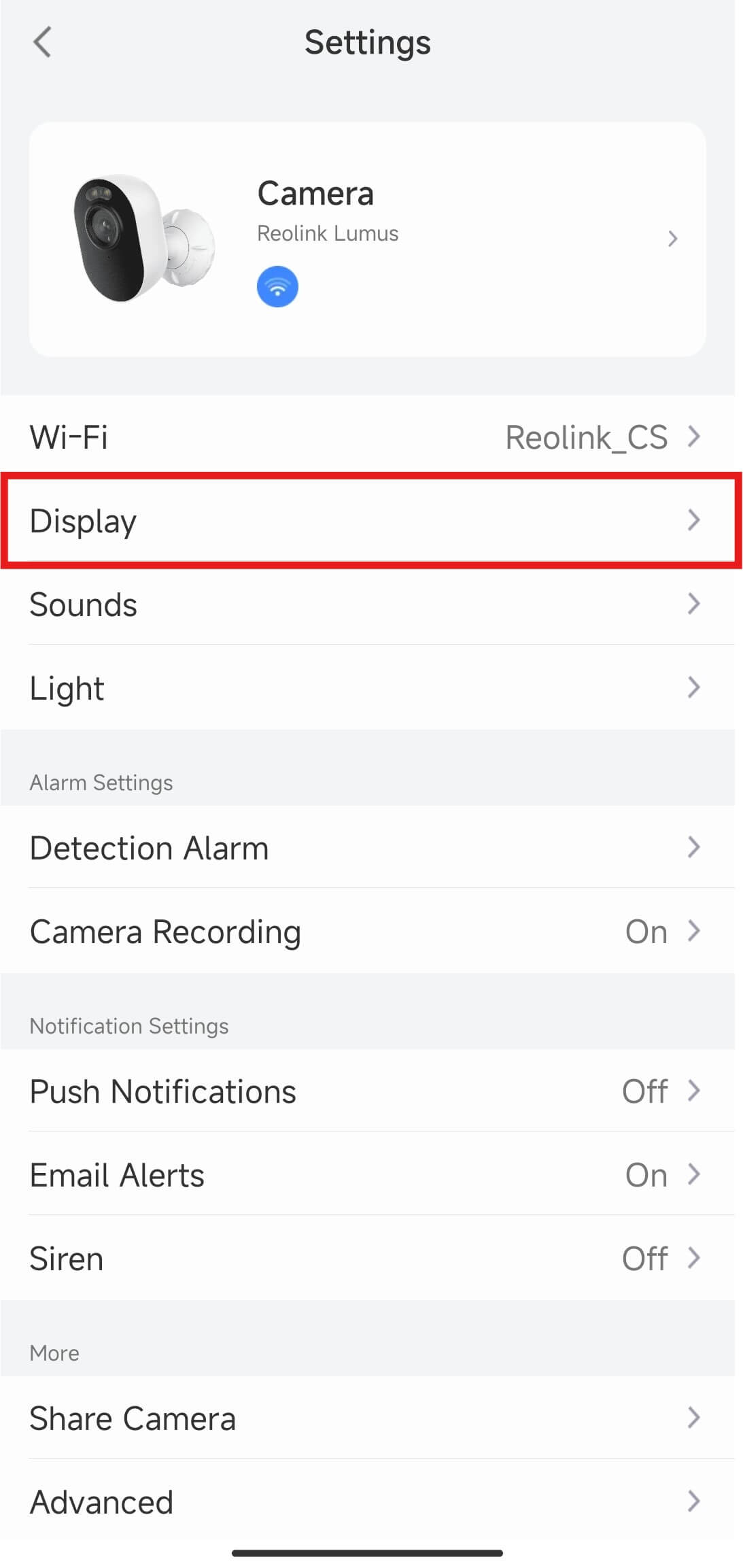

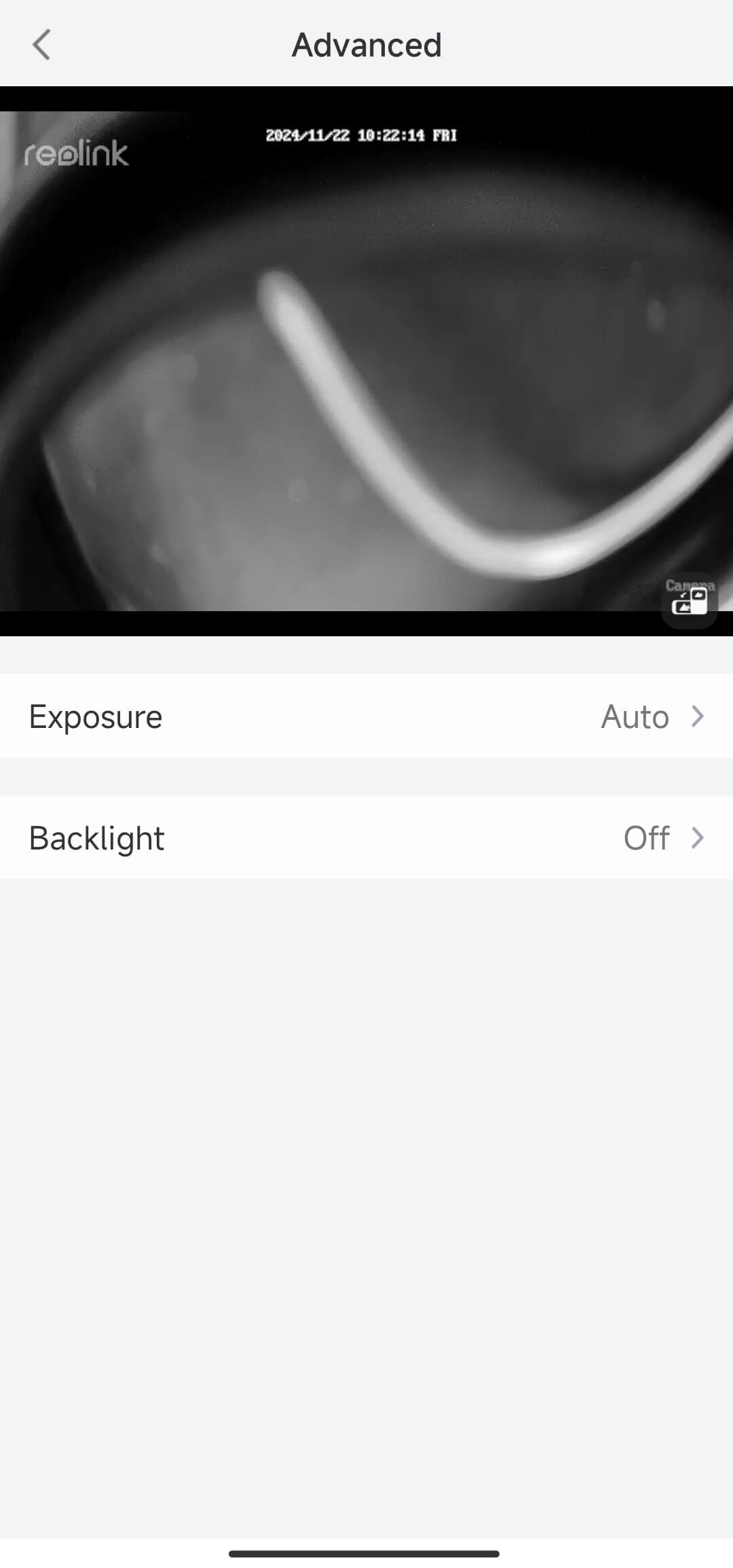

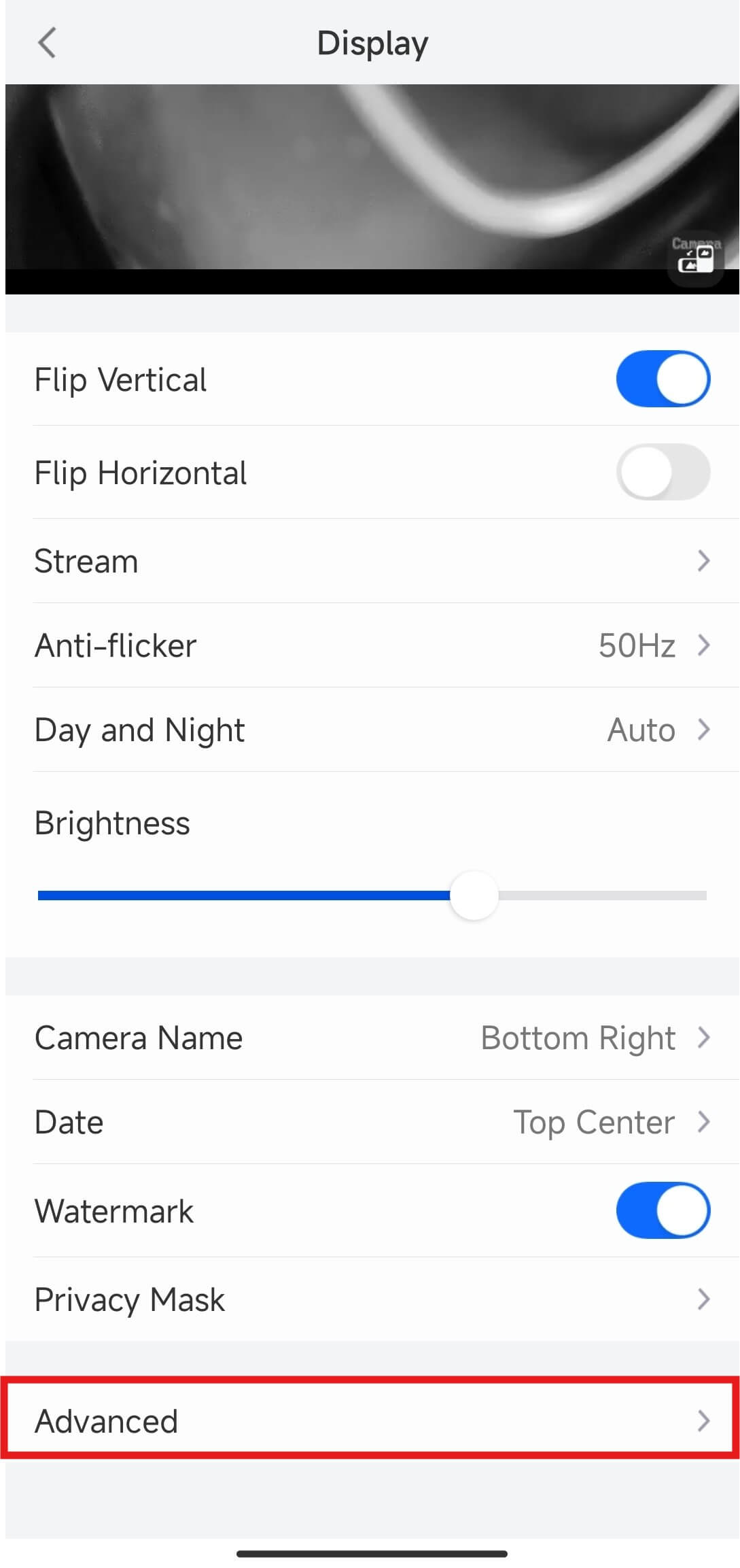

  Step 1. Launch Reolink App and log in to your camera. Go to Device Settings > Display page. Then tap Advanced. You will see the Exposure of the camera is set to Auto by default and the Backlight is Off.

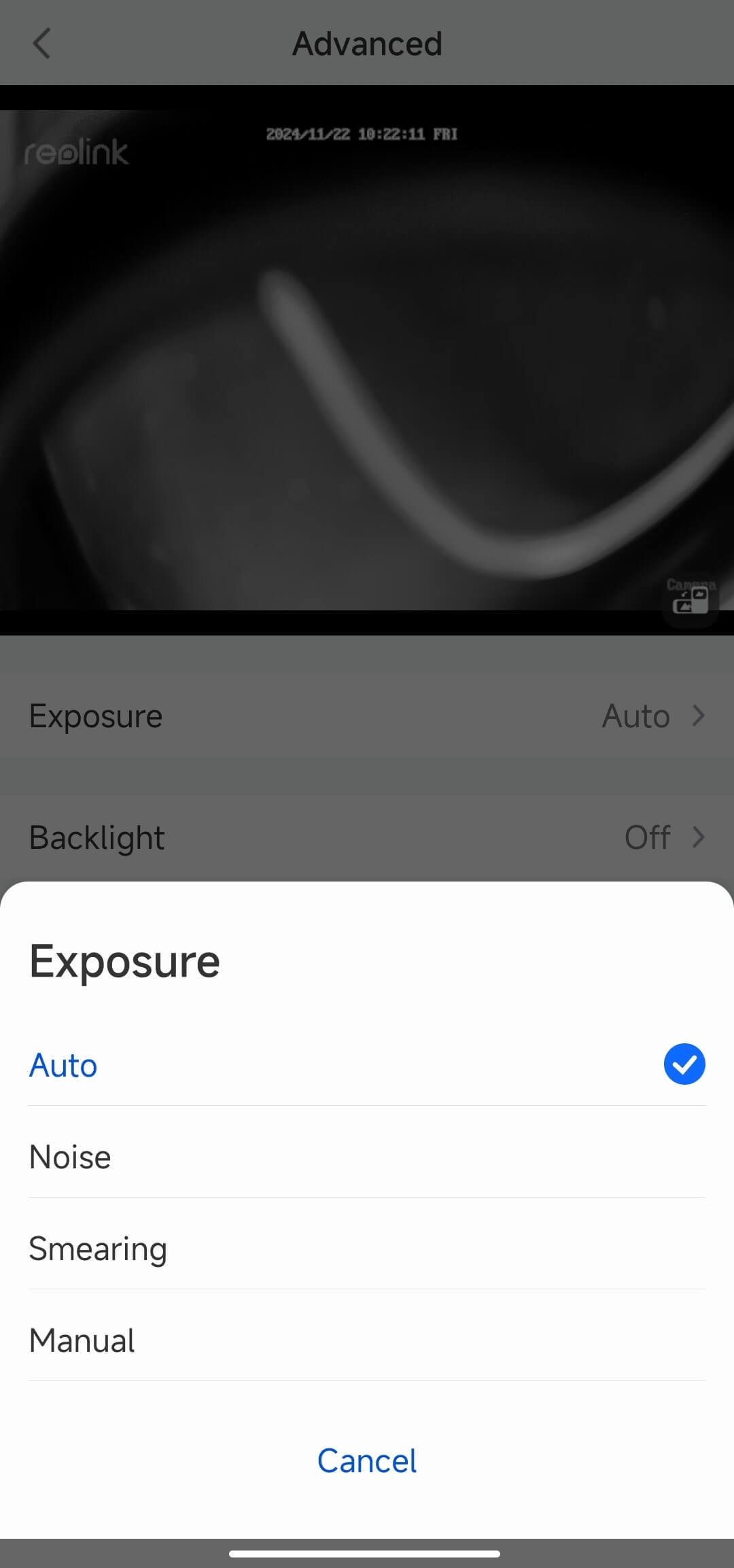

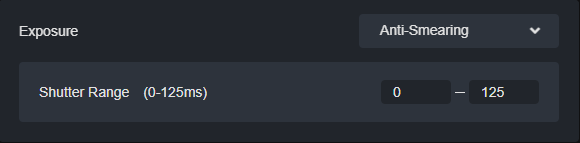

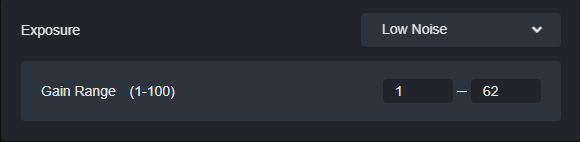

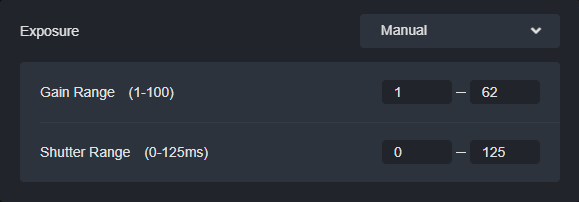

  Step 2. Tap Exposure to select an exposure mode and adjust its parameter with the slider.

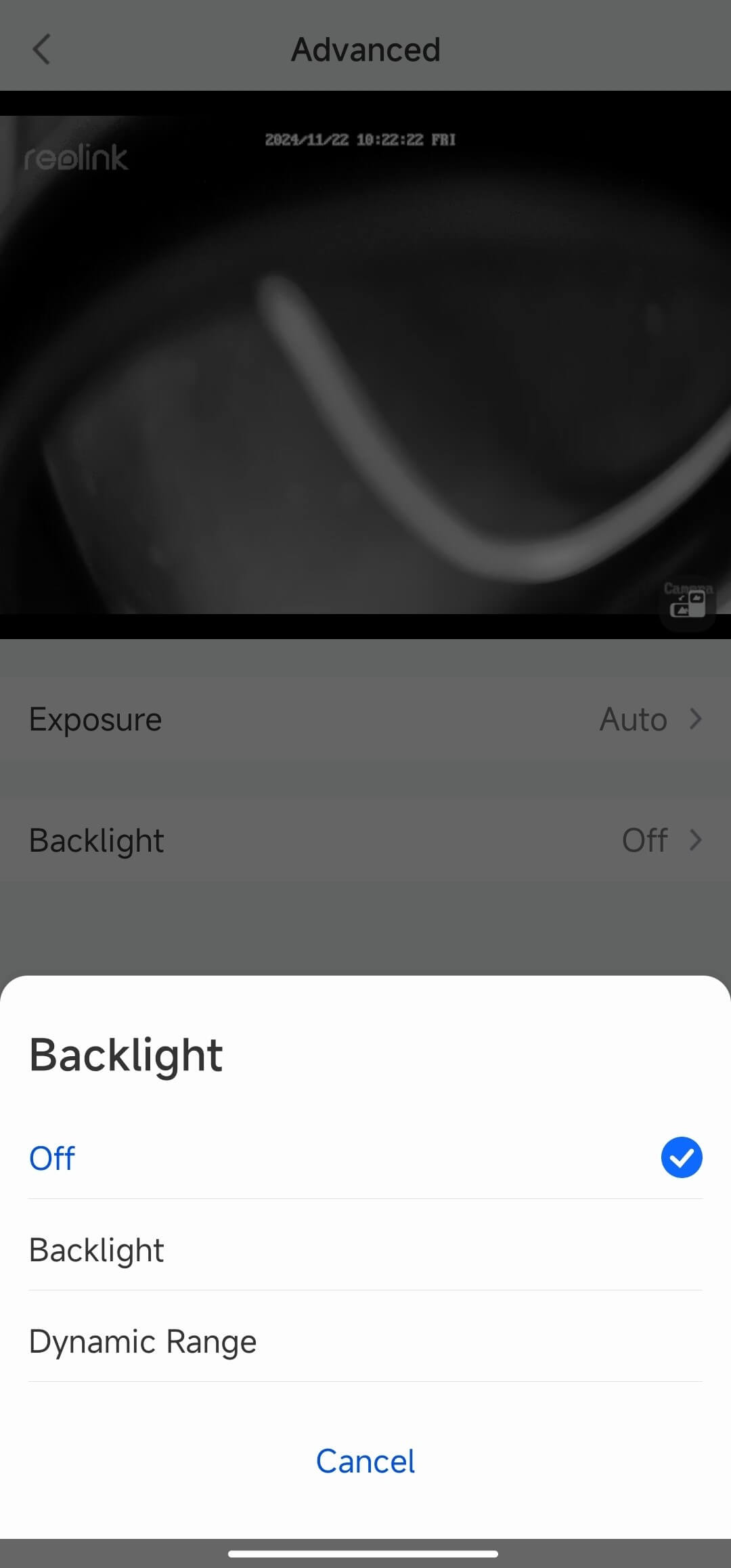

  Step 3. Tap Backlight on the Advanced page, then select a mode based on your needs.



• Via Reolink Client

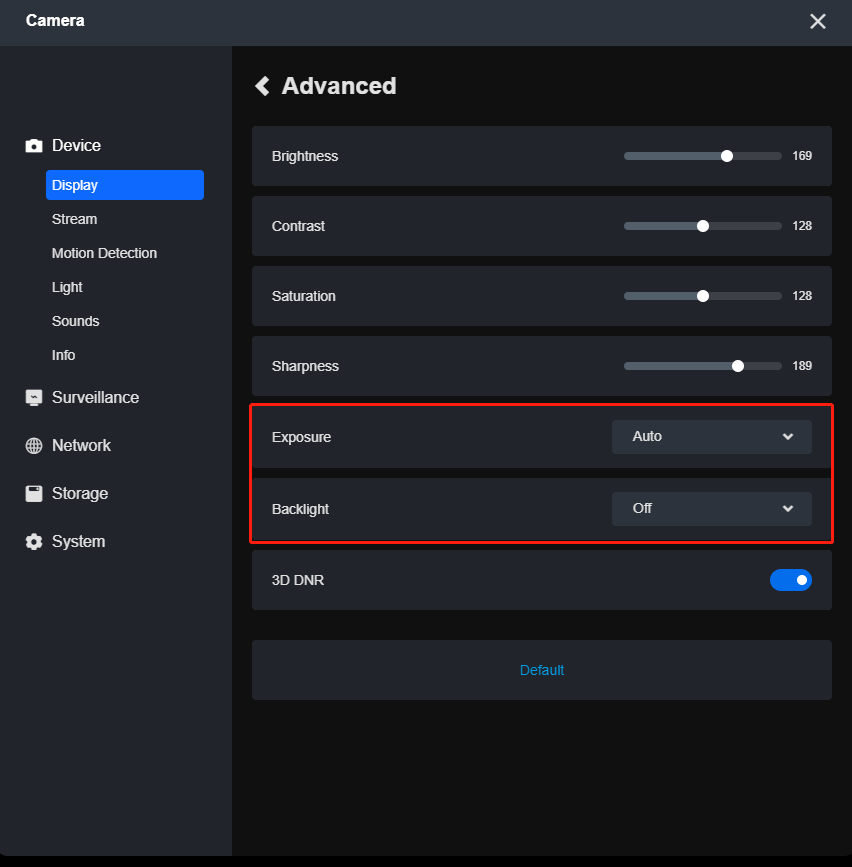

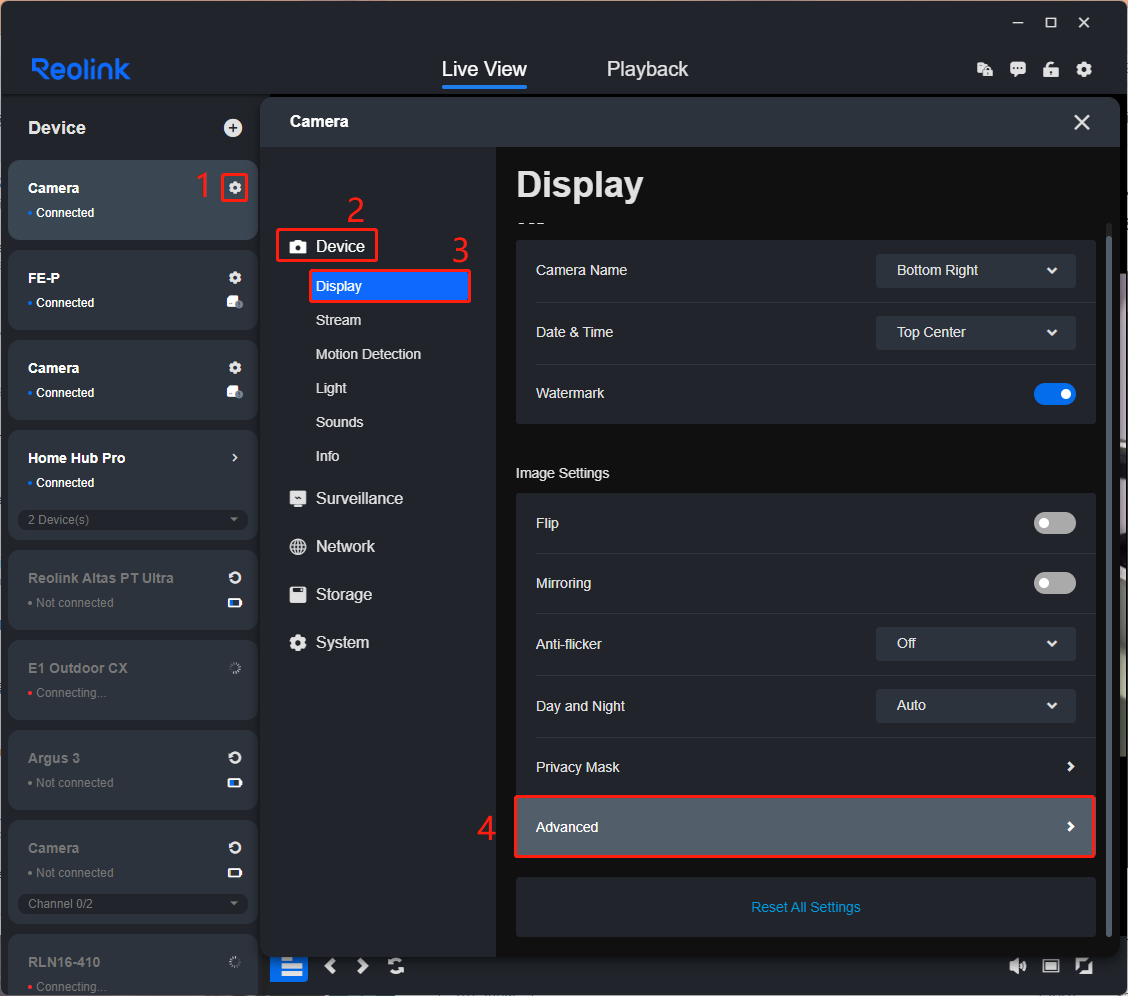

  Step 1. Please go to Settings > Display > Advanced page, and you can find options of Exposure and Backlight.

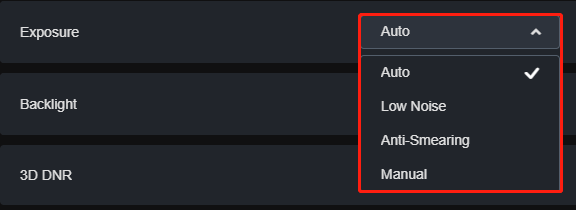

  Step 2. Click the Exposure drop-down menu. Choose the exposure mode according to your needs.

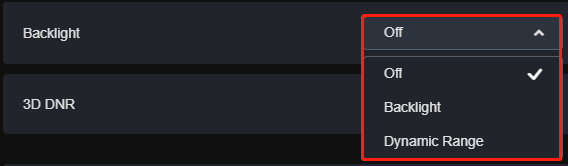

  Step 3. Click the Backlight drop-down to configure Backlight.



• Via Reolink Web browser

  Applies to: All Reolink cameras with microSD card slot (exclude battery-powered cameras, Reolink Lumus, Reolink E1, and Reolink E1 Pro).

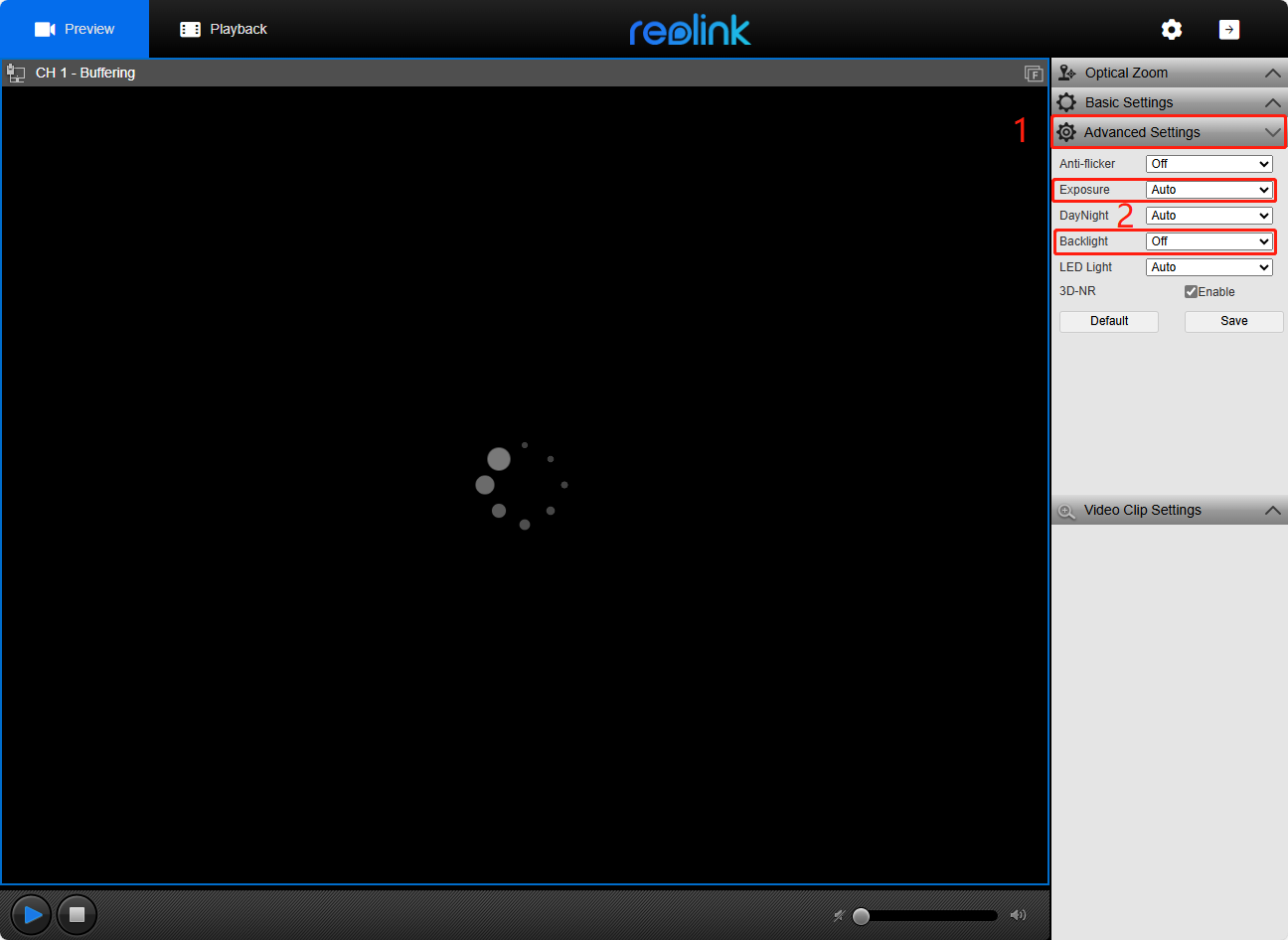

  Step 1. Log in to your device through a web browser by entering the IP address of your Reolink camera into the browser's address bar. On the Preview page, click Advanced Settings on the right, then you can set up Exposure and Backlight.

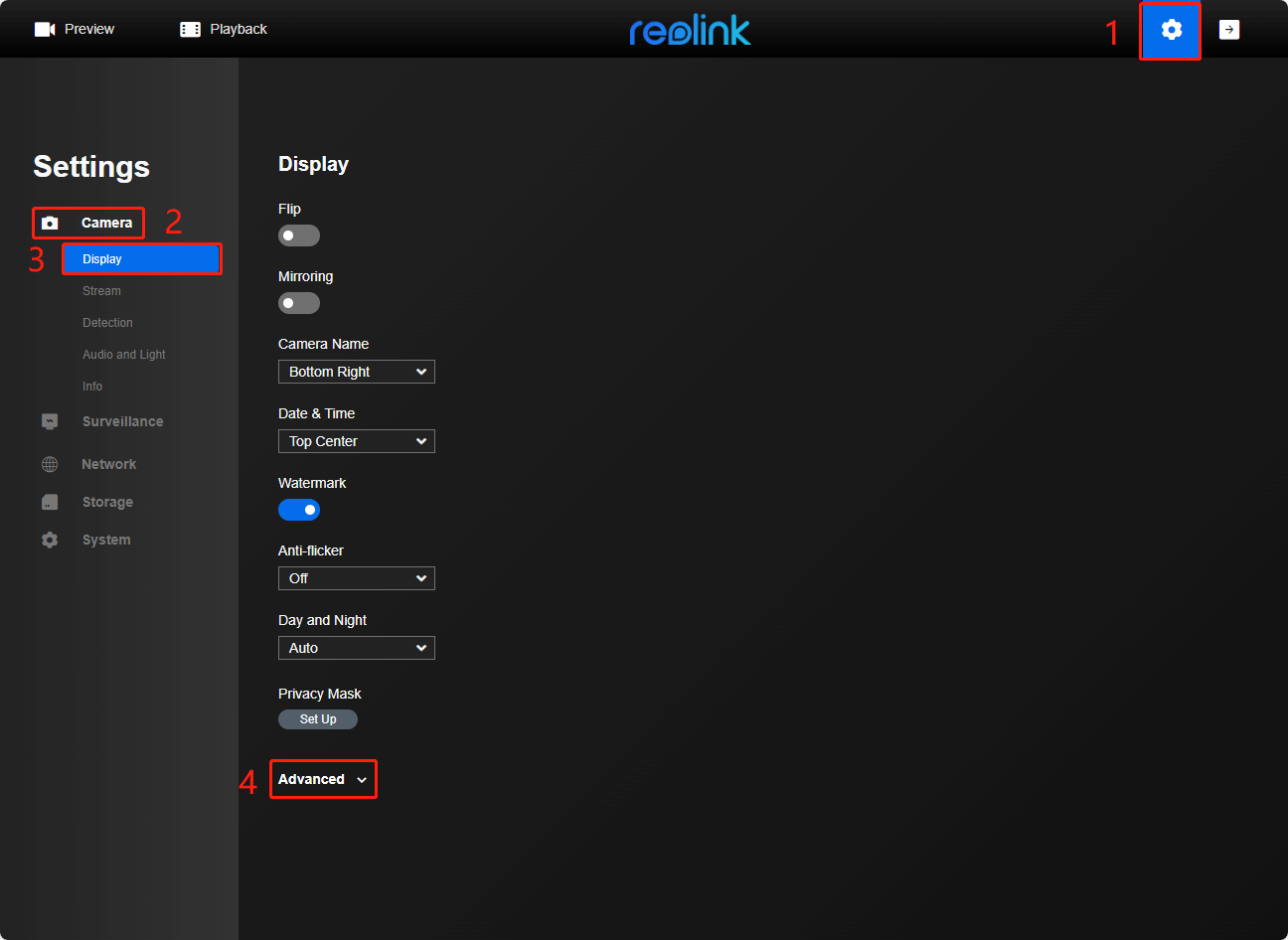

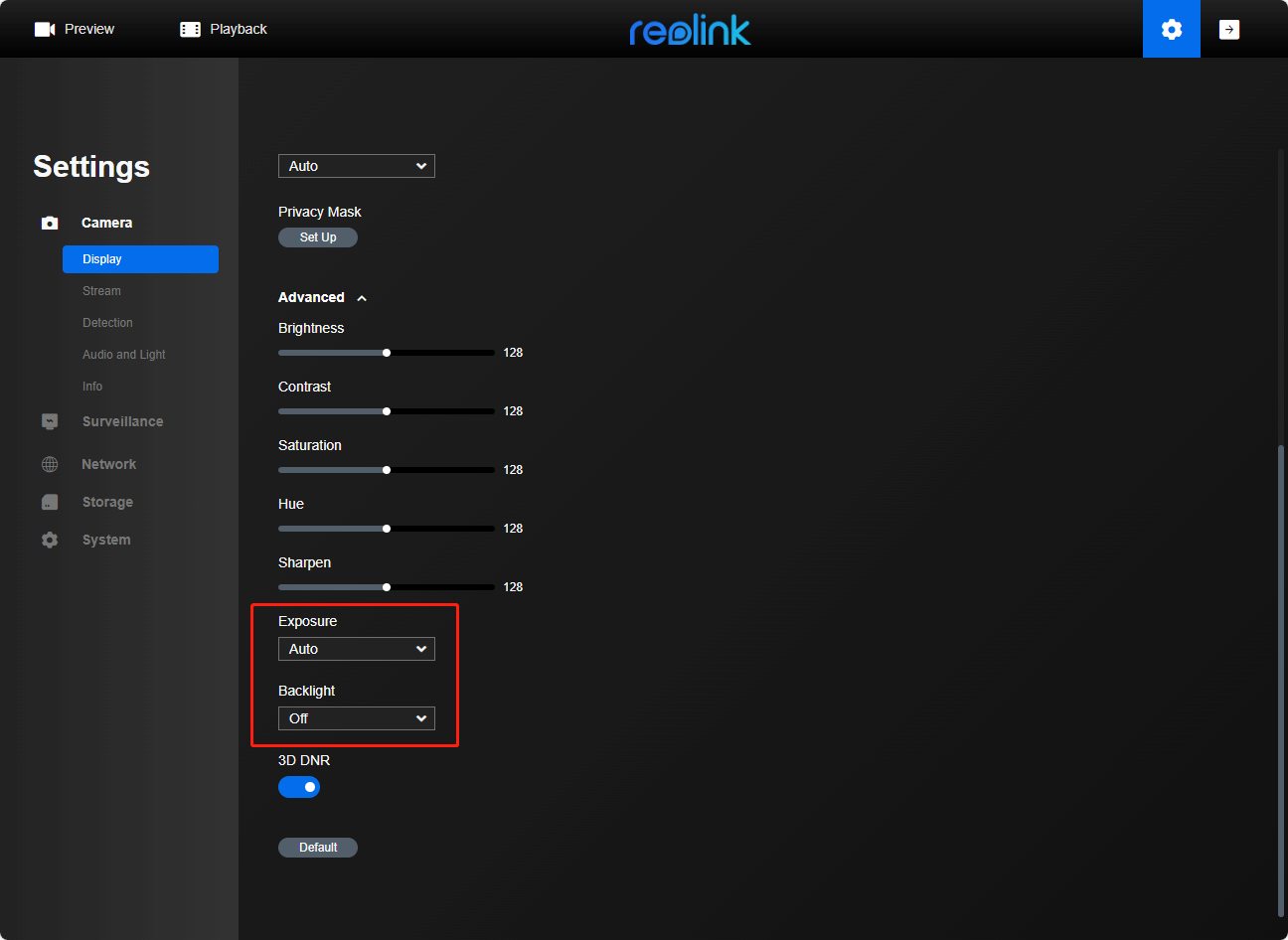

  Step 2. Alternatively, you can go to the Device Settings page, then navigate to Camera > Display. Find and click on Advanced, where you can adjust Exposure and Backlight settings as needed.



• Via Reolink NVR (new UI)

  Applies to: RLN8-410 (hardware version H3MB18/N2MB02/N3MB01/N7MB01), RLN16-410 (hardware version H3MB18/N6MB01), RLN36 and RLN12W.

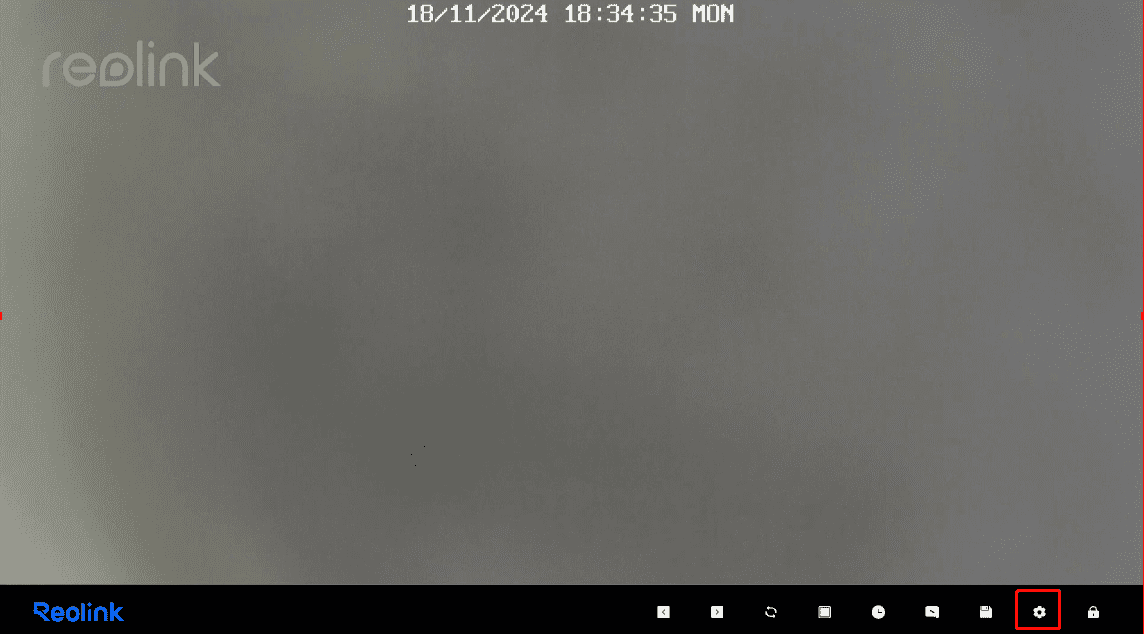

  Step 1. Launch your Reolink NVR and log in to your device. Right-click on the screen to bring up the bottom sheet settings menu, then click the gear icon to go to the settings page.

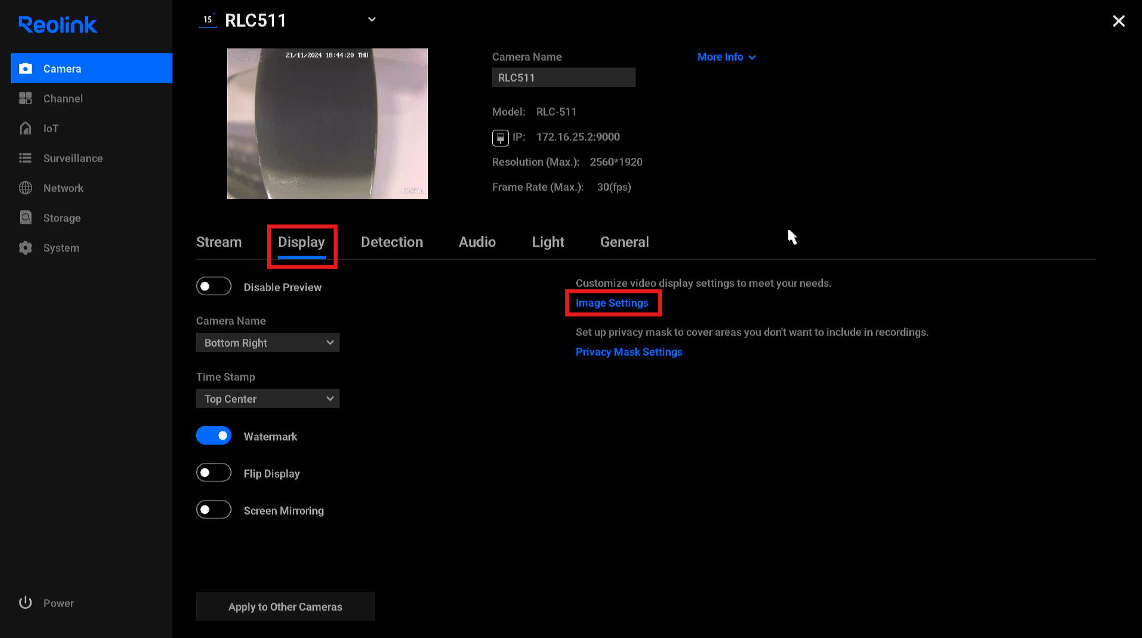

  Step 2. Go to Camera page. Click Display and then Image Settings.

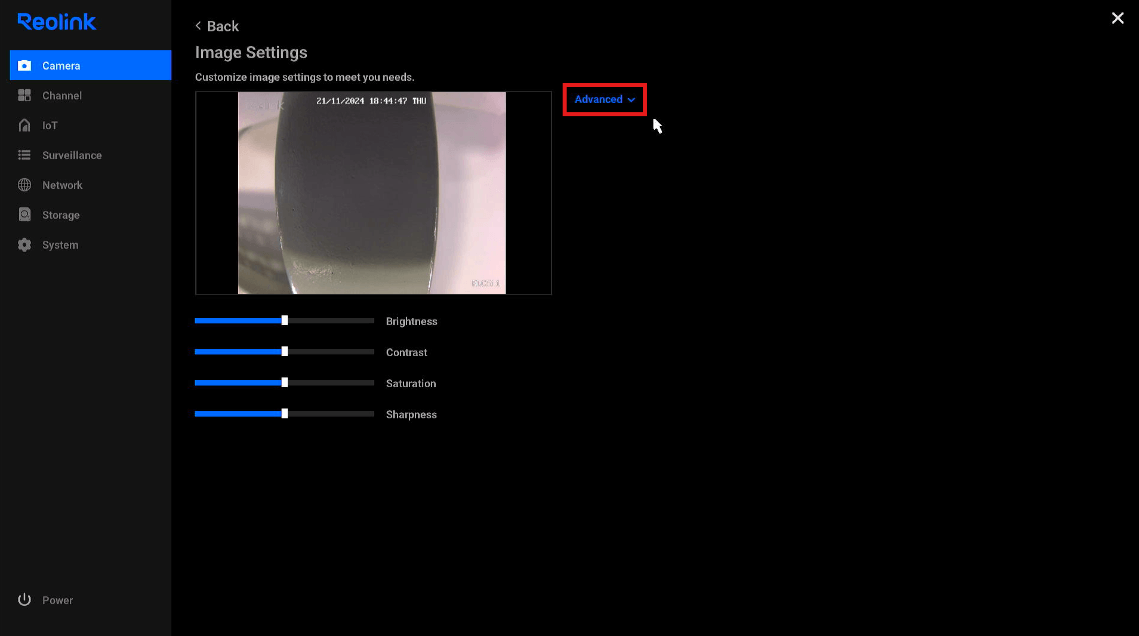

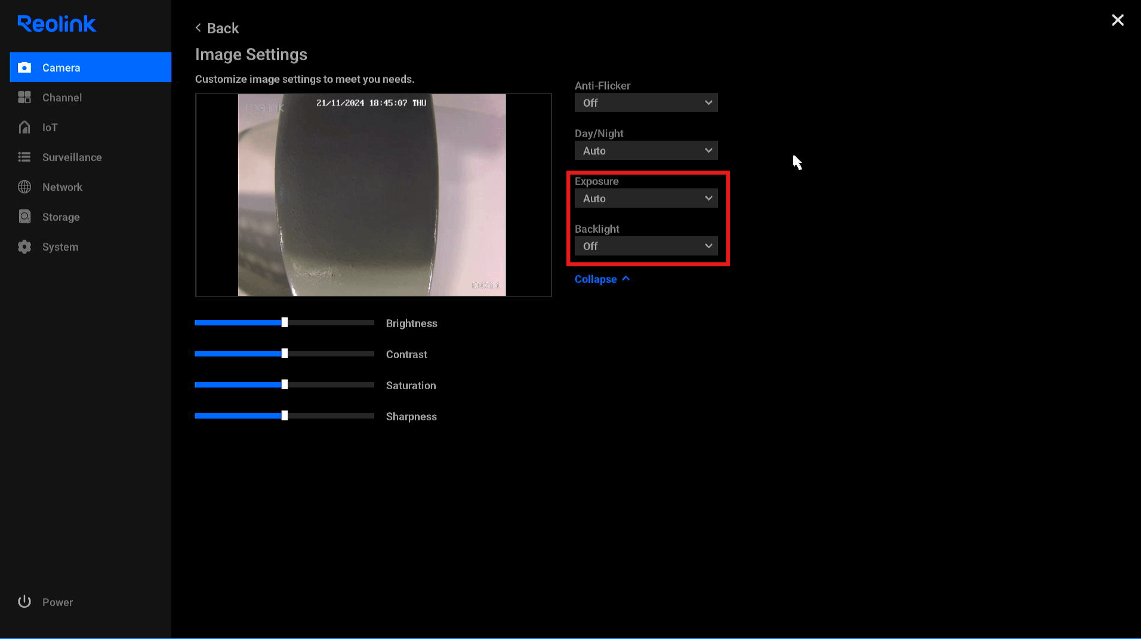

  Step 3. On the Image Settings page, click Advanced, and then you can set up Exposure and Backlight as you need.



• Via Reolink NVR (Old UI)

  Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

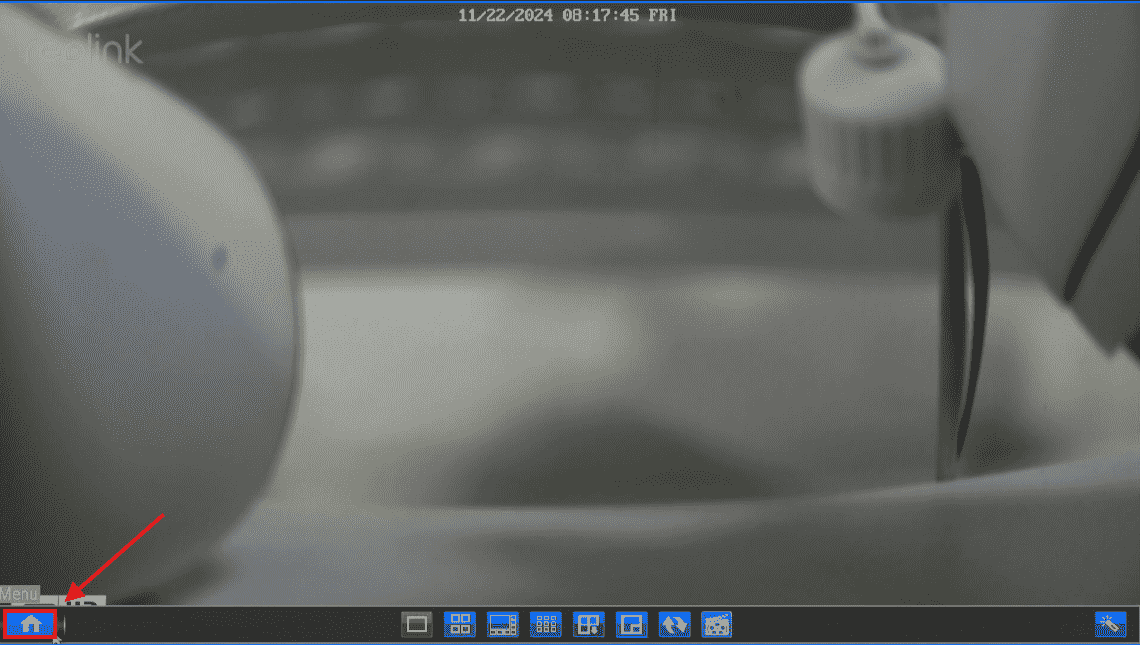

  Step 1. Launch your Reolink NVR and log in to your device. On the live view page, left-click on the screen to bring up the bottom sheet settings menu, then click the house icon to go to the settings page.

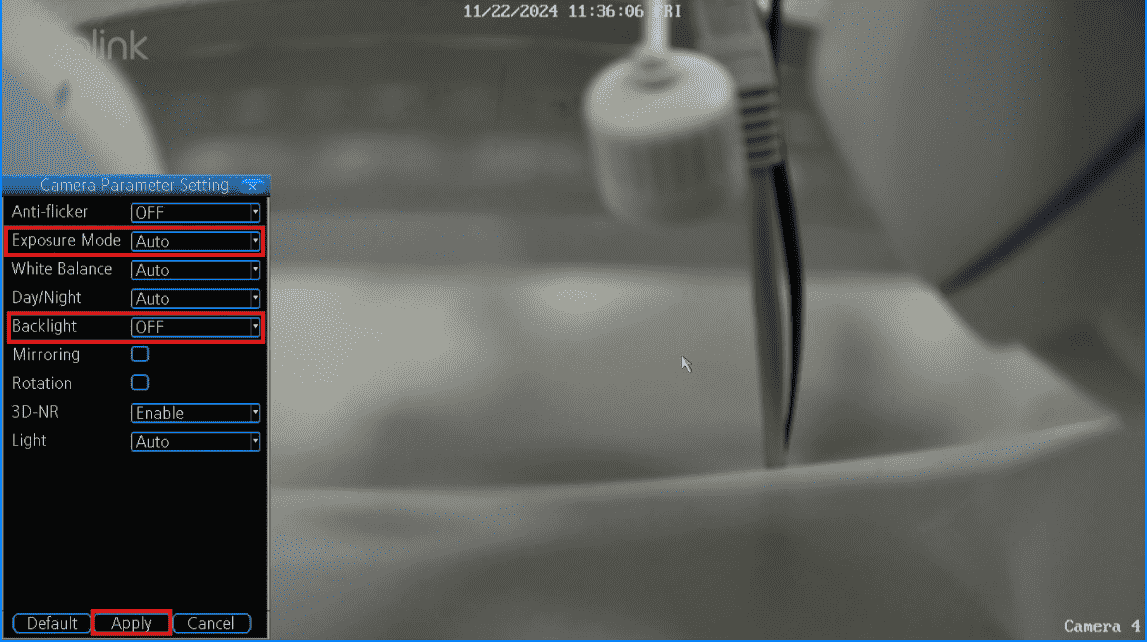

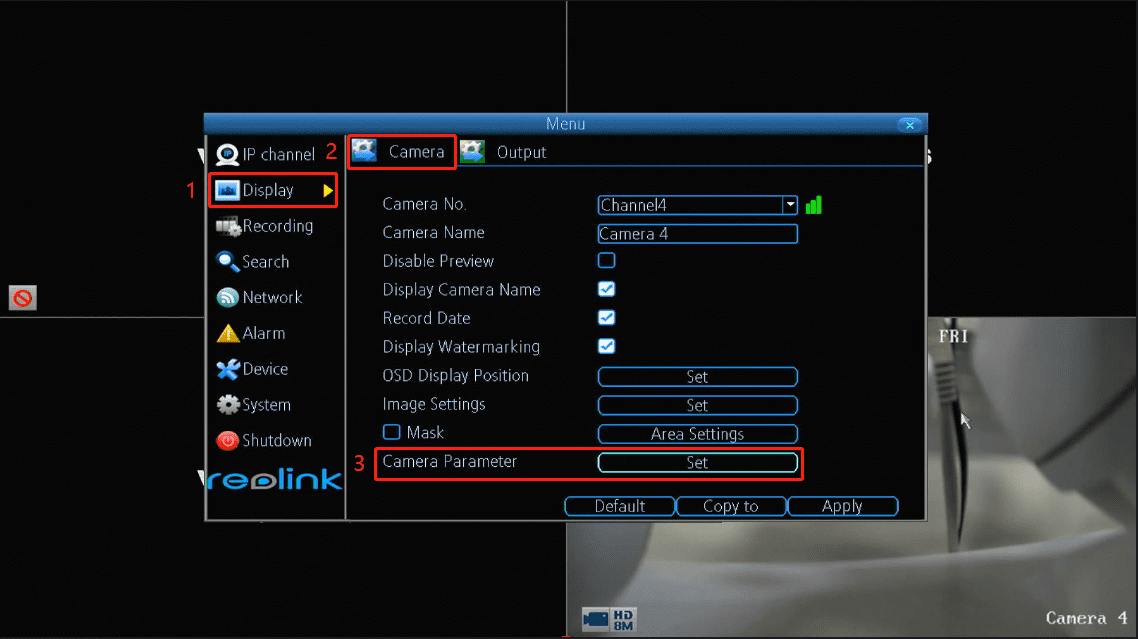

  Step 2. Go to Display > Camera page, then click Set next to Camera Parameter.



  Step 3. Now, you can set up Exposure Mode and Backlight as you need.



  Note: BLC refer to Backlight, and DRC refer to Dynamic Range.
