You may follow the steps below to quickly set up or change the record schedule for your camera on the Reolink Client.

Applies to: All Reolink cameras with micro SD card or SD card slot except the battery-powered cameras without smart detection such as Argus 2/Pro.

For cameras with a micro SD card inserted, you can set the camera to record motion-triggered alarm recordings or continuous recordings as you want. Here is a video for your reference:

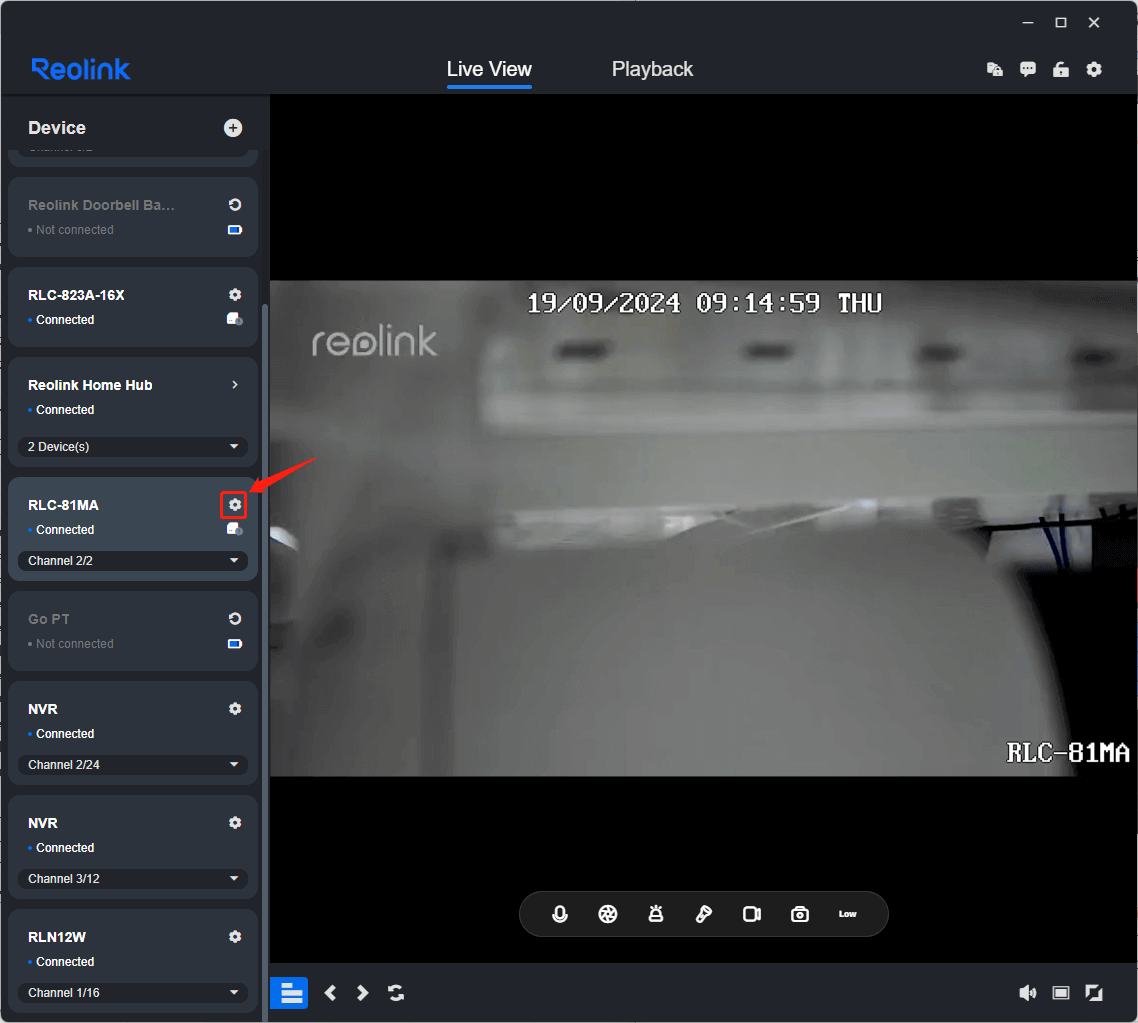

Step 1. Log in to the camera on the Reolink Client, and click the Device Settings icon.

open RLC

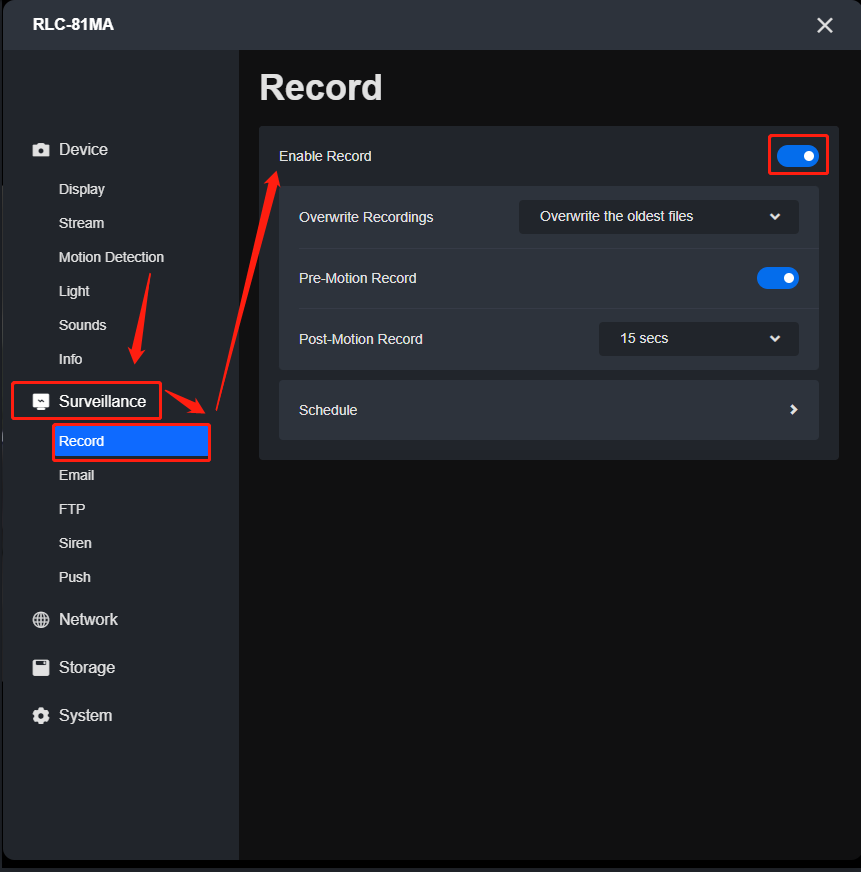

Step 2. Go to Surveillance > Record page. Please enable Record first.

ENABLE RECORD RLC

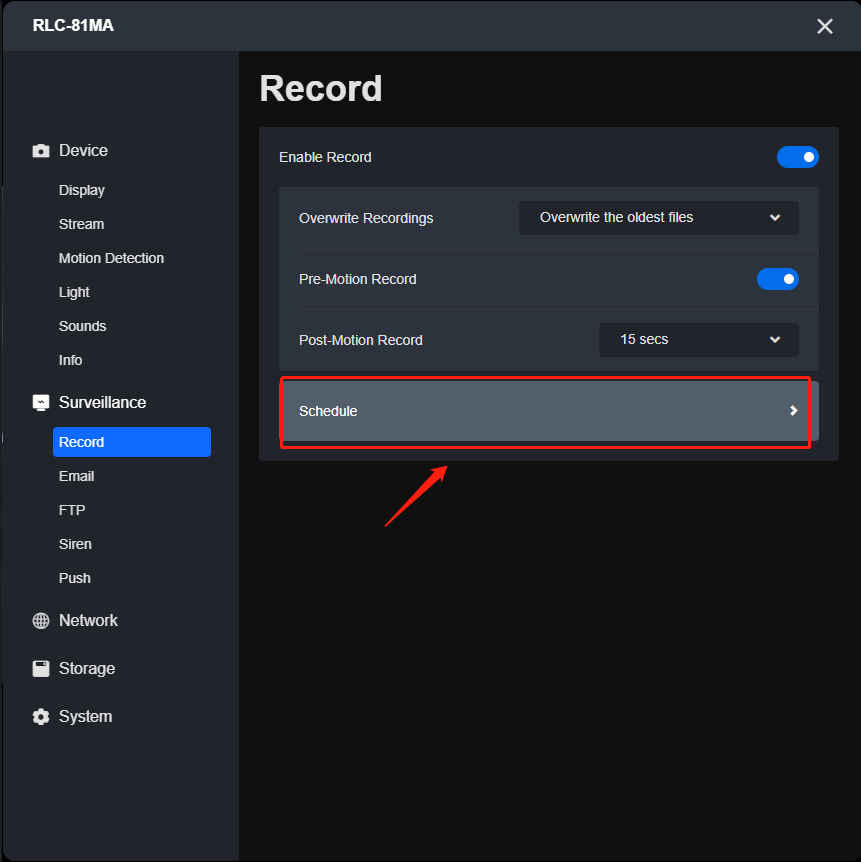

Step 3. Click Schedule to configure the motion recording schedule and the continuous recording schedule.

open schedule

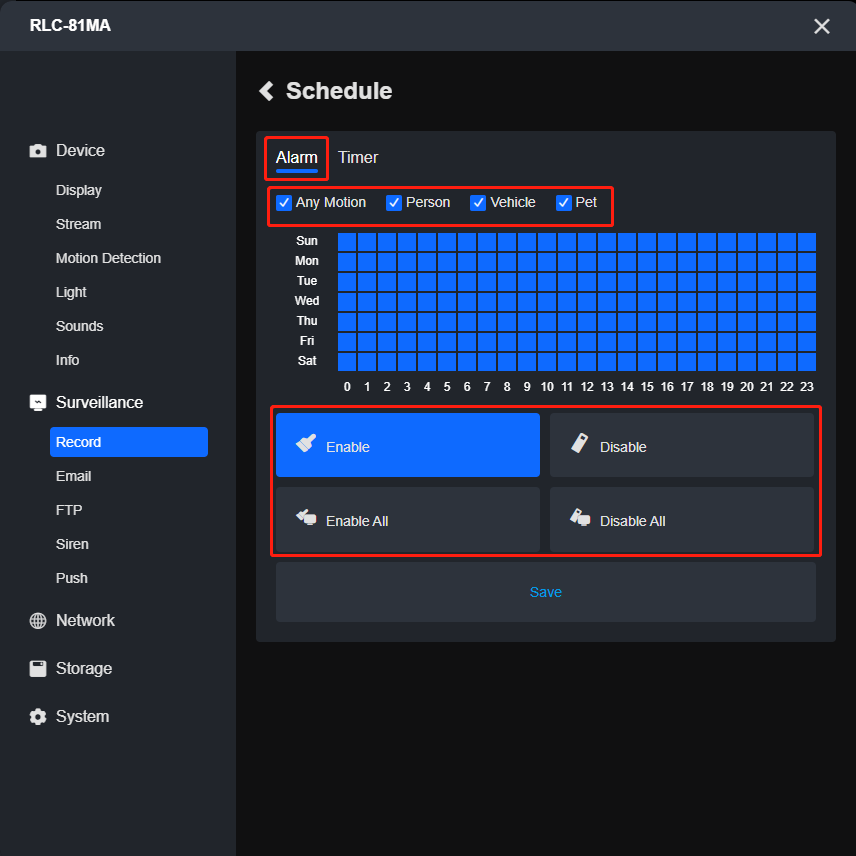

Part 1. Configure an Alarm recording schedule.

Click Alarm, then tick the motion types of the alarm recording you want. Select Enable/Disable and click the grids (one for an hour) on the timetable. Blue means the motions of the selected alarm type will trigger the camera recording at that hour, while grey means none. Click Save if you finish setting up.

alarm select

Notes:

  • For cameras with smart detection, there are four detection types: any motion, person, vehicle, and pet/animal. Tick to choose which types of recording you want the camera to record. If you choose Any Motion only, then it will only detect normal motions and you can't see Person, Vehicle, Pet/Animal recording while playback.
  • The detection types vary from different models of your camera, and some cameras (8MP and 12MP) support setting the recording for your pet. For some models which do not support smart detection, there is no detection type that can be chosen. The camera record all motion-triggered alarm events.

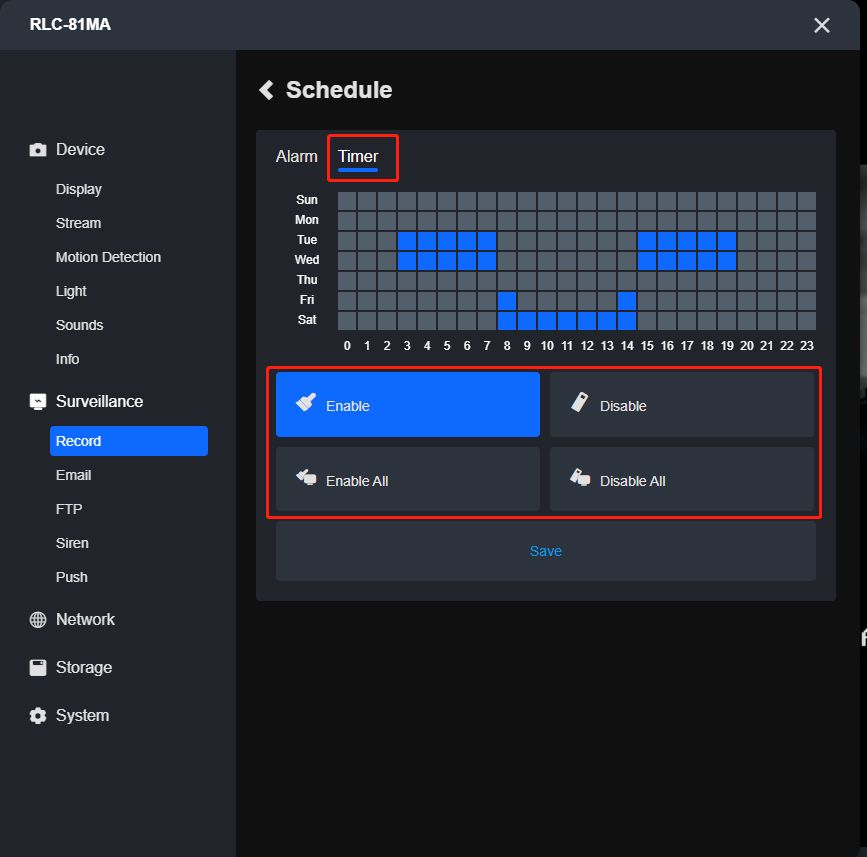

Part 2. Configure a Continuous recording schedule (Applicable to PoE cameras, Wi-Fi plug-in cameras, Altas PT, Altas PT Ultra)

Click Timer. Then select Enable/Disable and click the grids (one for an hour) on the timetable. Blue means the camera will record non-stop at that hour, while grey means none. Click Save if you finish setting up.

timer schedule

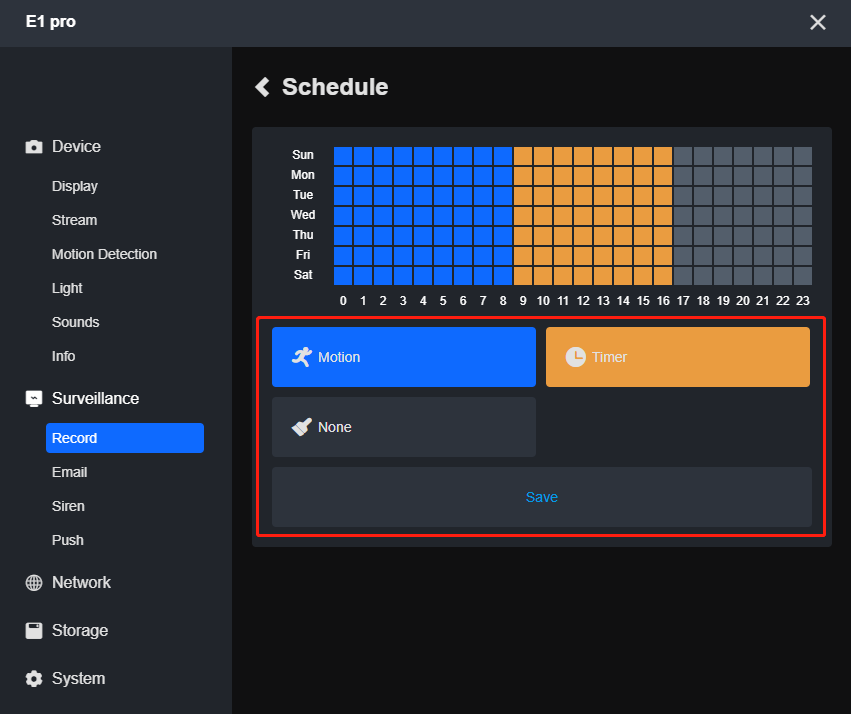

Part 3. Recording Schedule settings are slightly different for PoE/WiFi plug-in cameras without smart detection.

If you have PoE/WiFi cameras without smart detection such as E1 pro, the recording schedule will be a little bit different from other cameras.

  •  Click the Motion (alarm recording)/Timer (continuous recording)/None (no recording) button, and then click on the grids to enable/disable different recordings for that hour. They are blue, yellow and grey respectively.
  • Click the Save button in the bottom right corner if you finish setting.

EI schedule
