Many users wonder if it's possible to connect a keyboard to their NVR (Network Video Recorder) for easier control and navigation. In this article, we’ll explore whether this option is supported.
Applies to: All Reolink NVRs.
Reolink NVR Keyboard Compatibility
The table below shows the compatibility between Reolink NVR models and keyboards:
| NVR Model | Hardware Version | Firmware Version | Keyboard Support |
| RLN8-410 | N3MB01, N7MB01, N2MB02, H3MB18 |
v3.5.1 |
Supported |
| RLN16-410 | N6MB01, H3MB18 | ||
| RLN36 | / | ||
| RLN12W | / | ||
| Other NVRs | Not Supported | ||
How to Connect and Use a Keyboard?
Step 1. Connecting the Keyboard

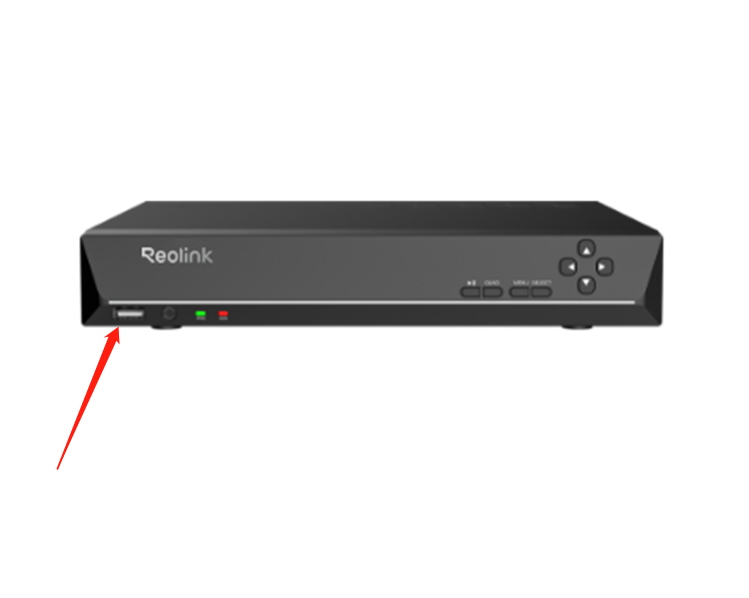

You can connect the keyboard by plugging it into either the front or back USB port of the NVR.
Step 2. Using the Keyboard
Once connected, the keyboard can be used to type in input fields, such as entering the NVR or camera login password, modifying the IP address, and more.
Notes:
1. The symbols that can be entered using the keyboard are limited to those available on the soft keyboard displayed on the NVR monitor.
2. Only English is supported.
3. Wireless keyboards are not supported.
4. Pressing the Enter key on the keyboard indicates the input is complete. Pressing the Enter key only means that you have entered the information in the input field. To save the settings, you also need to perform additional actions manually with mouse on the monitor.
Connecting a keyboard to your NVR can enhance ease of use, Reolink is committed to meeting the needs of customers and will continue working to expand this feature. If you have any questions, feel free to click "Submit a Request" below to contact Reolink Support team.
