Introduction to Status LEDs of Reolink NVRs

There are two different lights on the NVR: The power light and the HDD light. Please check the following information to understand the light status.

Applies to: All Reolink NVRs

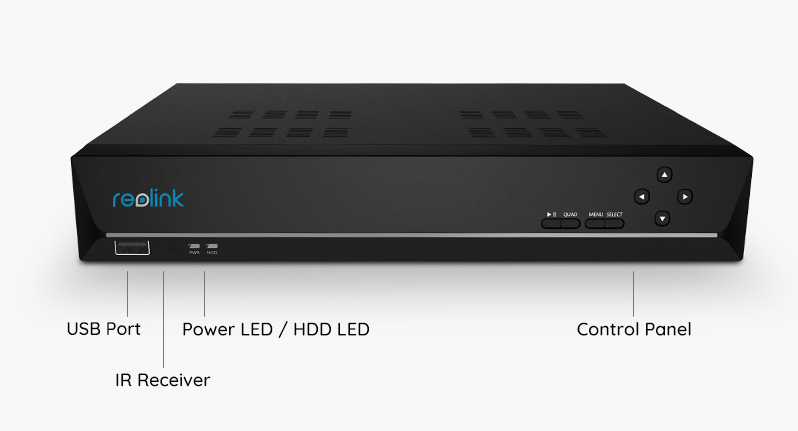

You can check the NVR power connection from the different power light statuses on the front of the NVR.

Off power light: The NVR has no power.
Green/Blue solid power light: The NVR has power.

You may check the HDD working modes from the different HDD light statuses on the front of the NVR.

Off HDD light: The NVR hasn't detected the HDD.
Red solid HDD light: The NVR has detected the HDD but not recording.
Red blinking HDD light: The cameras connected to the NVR are recording to the HDD.
