How to Enable Audio for Recording and Live Viewing on POE NVR

Avatar
Fiona-Facebook
  • Updated
Follow

Applies to: B400; B800; D400; D800; RLC-410; RLC-410-5MP; RLC-410S; RLC-411S; RLC-411S-5MP; RLC-420;RLC-420-5MP; RLC-511; RLC-522; RLC-520; C1; C1 Pro; C2; C2 Pro; E1; E1 Pro; E1 Zoom; Reolink Lumus; RLC-210W; RLC-211W; RLC-410W; RLC-410W-5MP; RLC-410WS; RLC-511W; RLC-423; RLC-423S; RLC-423WS

You could follow the steps below to enable audio for recording and live viewing on your PoE NVR.

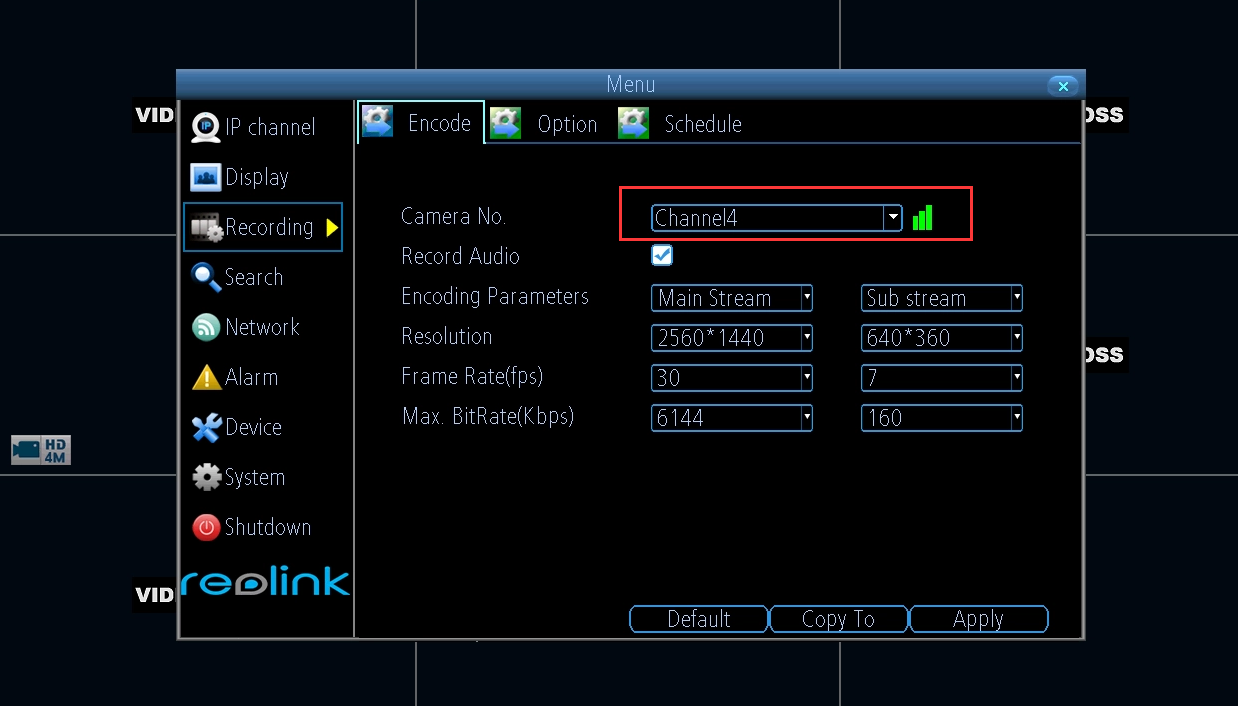

Step 1. Log in your PoE NVR on a monitor, then go to Menu->Recording->Encode page. Choose the channel that you want to enable audio.

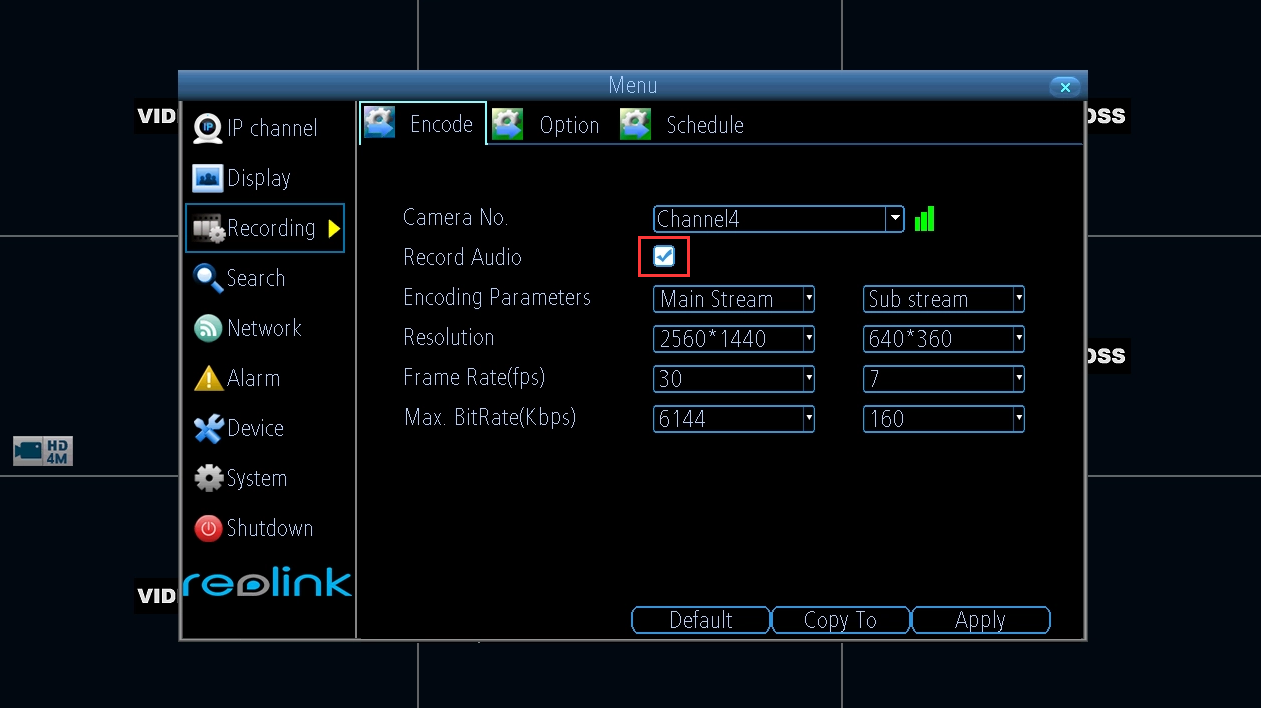

Step 2. Choosing the Record Audio option, click Apply to save your settings.

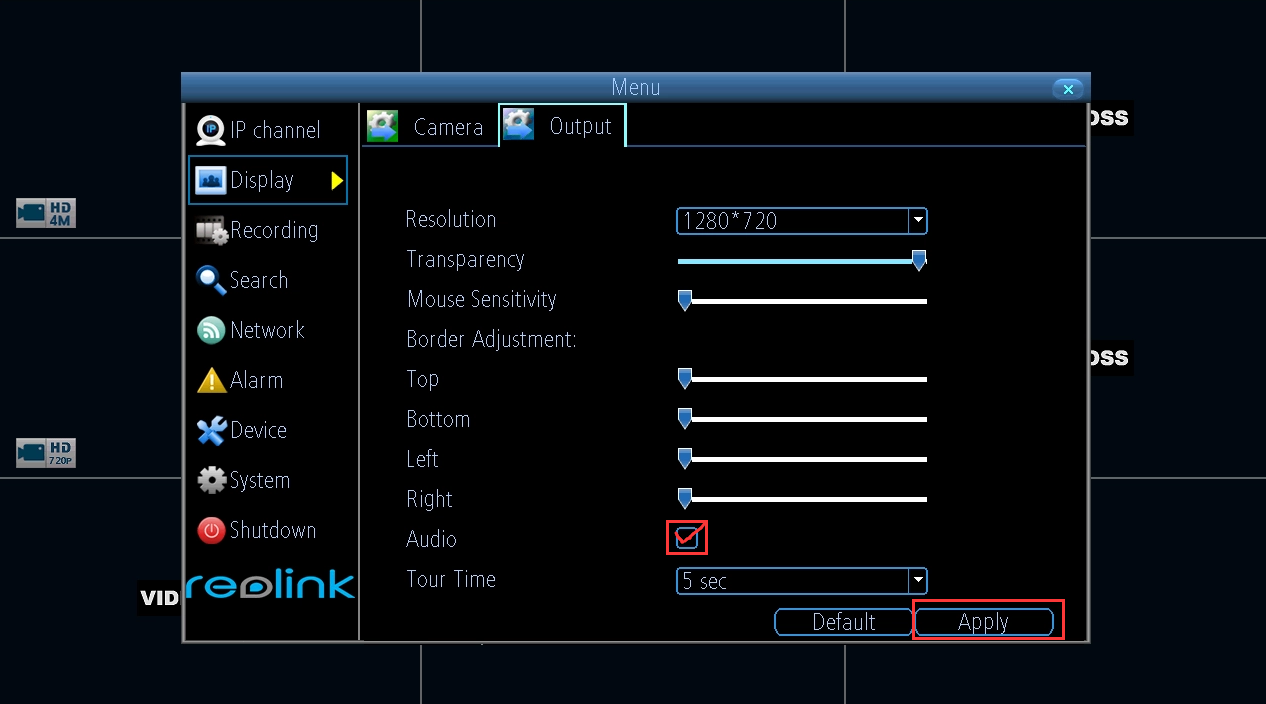

Step 3. Go to Display->Output page, enable the Audio option, and click Apply to save your settings.

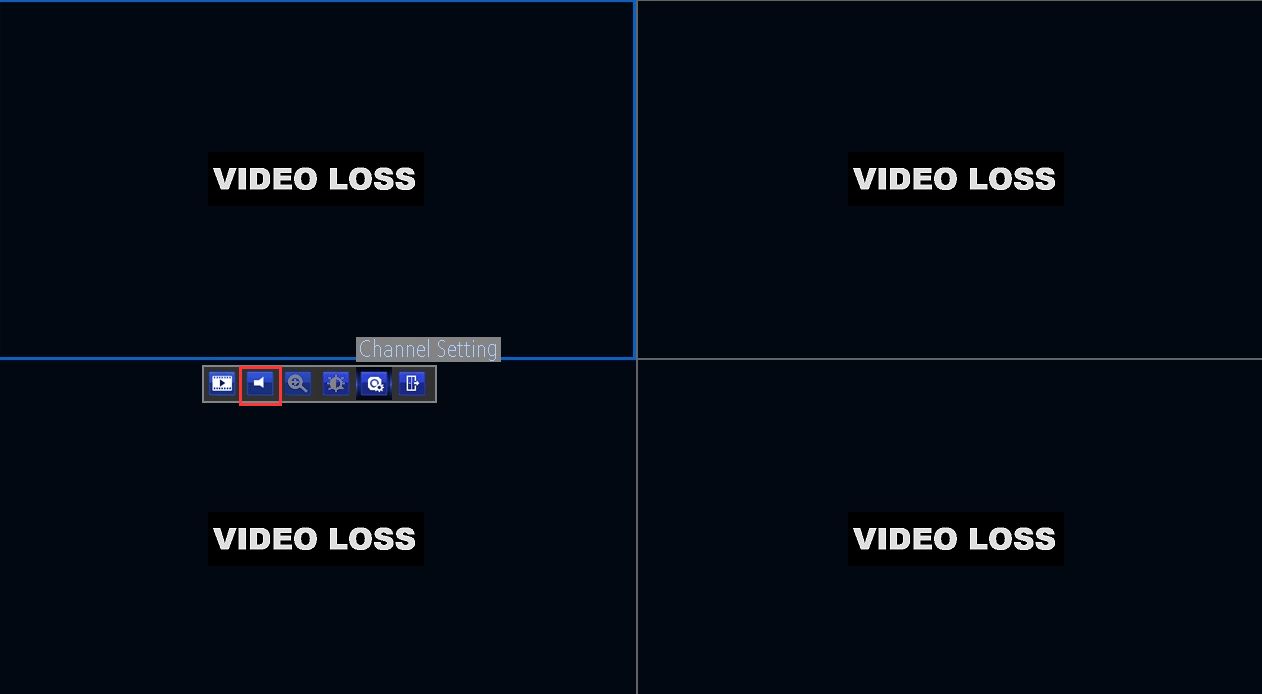

Step 4. Click the speaker icon mceclip3.pngof your channel on live view page or playback page to enable audio.


Note:

1. You need to turn on the speaker corresponding to the channel which you want to enable audio.

2. After choosing the Record Audio option of one channel, you could click Copy To to copy your settings to other channels.
