A Preset is a user-defined position of the camera‘s pan/tilt and zoom settings. Creating camera presets in advance allows it to easily go to the wanted monitoring positions. This instruction will show how to set up preset points for your camera via PoE NVR with a monitor connected.

Applies to: RLC-423, RLC-423S, RLC-423WS, C1, C2, C1 Pro, C2 Pro, E1, E Series E320, E1 Pro, E Series E330, E1 Zoom, E Series E340, E1 Outdoor, E Series E540, RLC-523WA, RLC-823A

Add a Preset

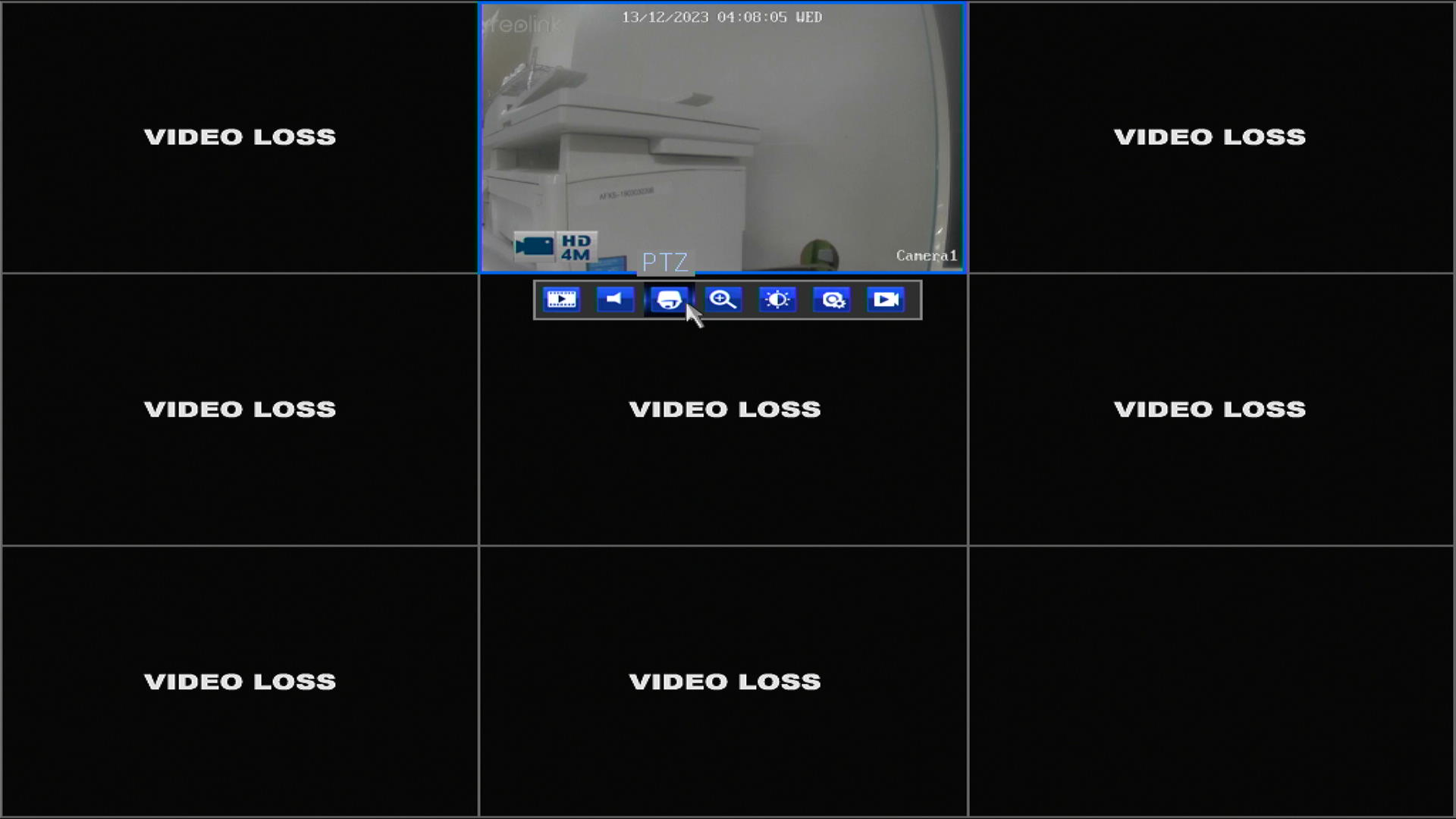

Step 1. Left-click on the live view window of the camera and then click the PTZ icon to open the PTZ panel.


Step 2. Click on the arrow to set a position for the preset.


Step 3. Tap on Preset and choose a No, name the preset, then click Set to save the preset.



Delete a Preset

Choose the preset that you want to delete, and then click Clear.
