This article will guide you on how to set up camera image settings, for example, day/night mode, white balance, brightness, etc. via Reolink NVR on the monitor.

Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

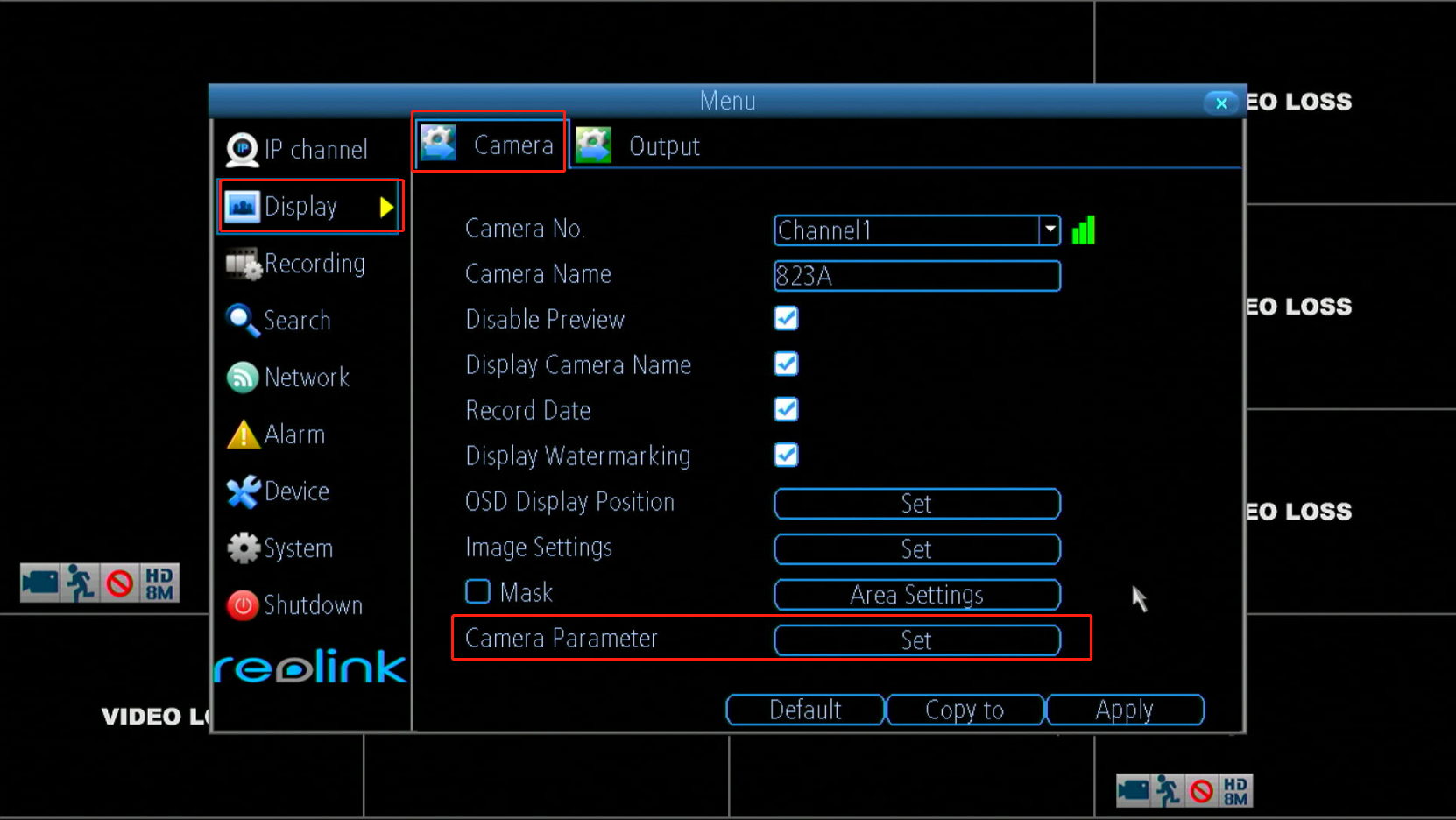

Step 1. Please go to Menu > Display > Camera, and select Camera No. you want to configure the image settings, then go to the Camera Parameter page.

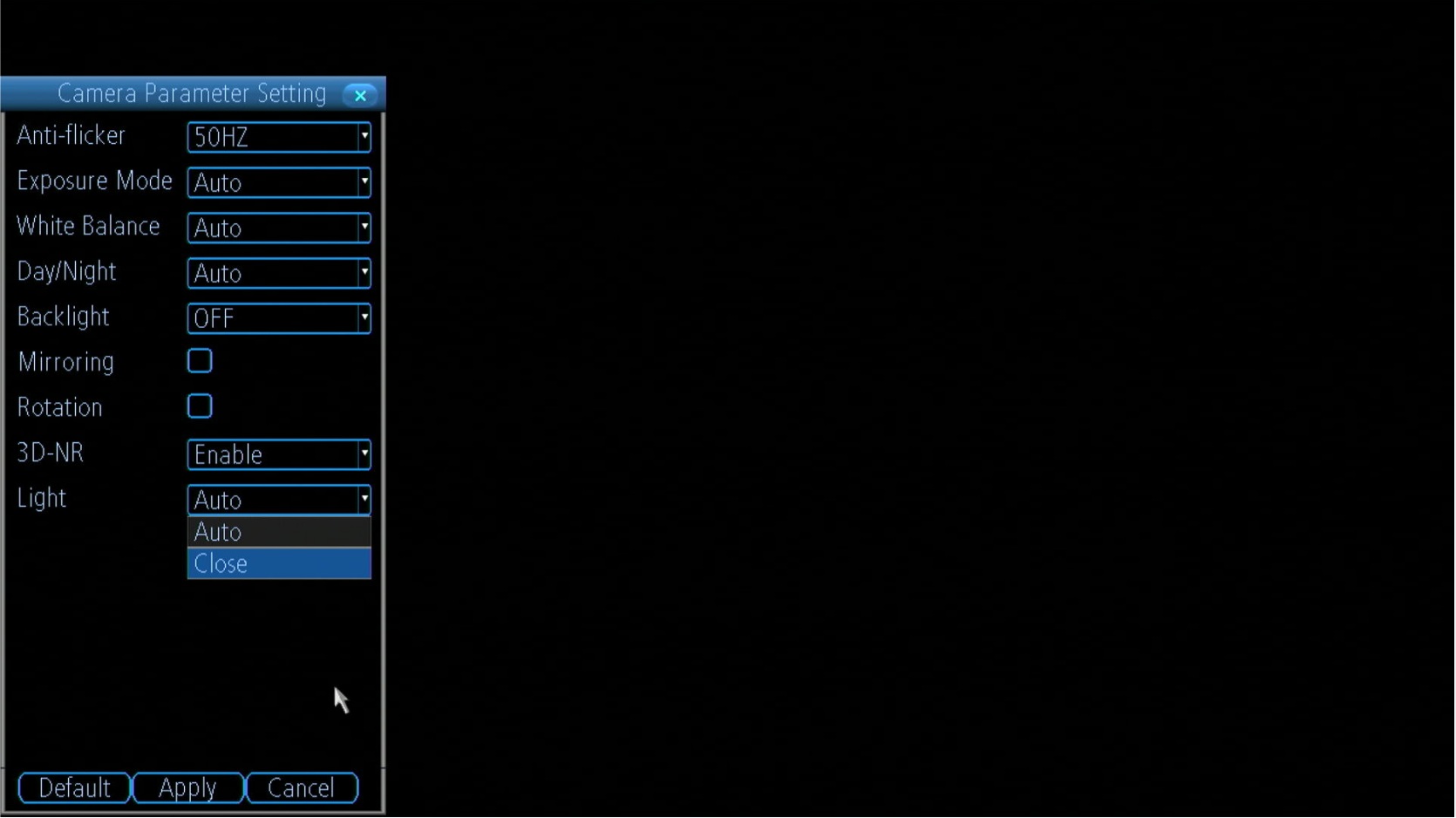

Step 2. Set up the camera's image parameter according to your needs.

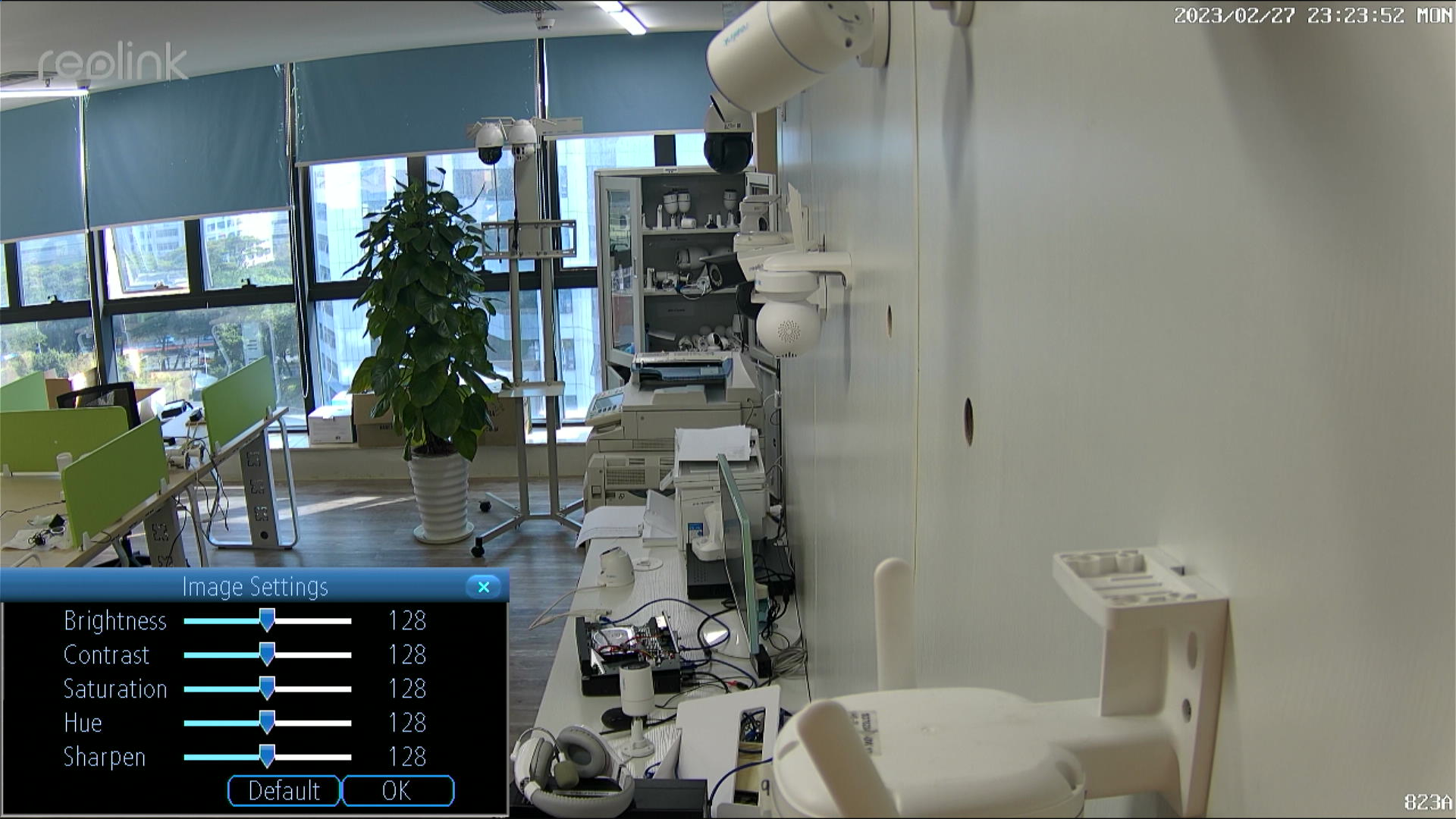

Step 3. Left-click on the live-view image of your camera, then click Image settings and change the brightness, contrast, etc. settings accordingly.

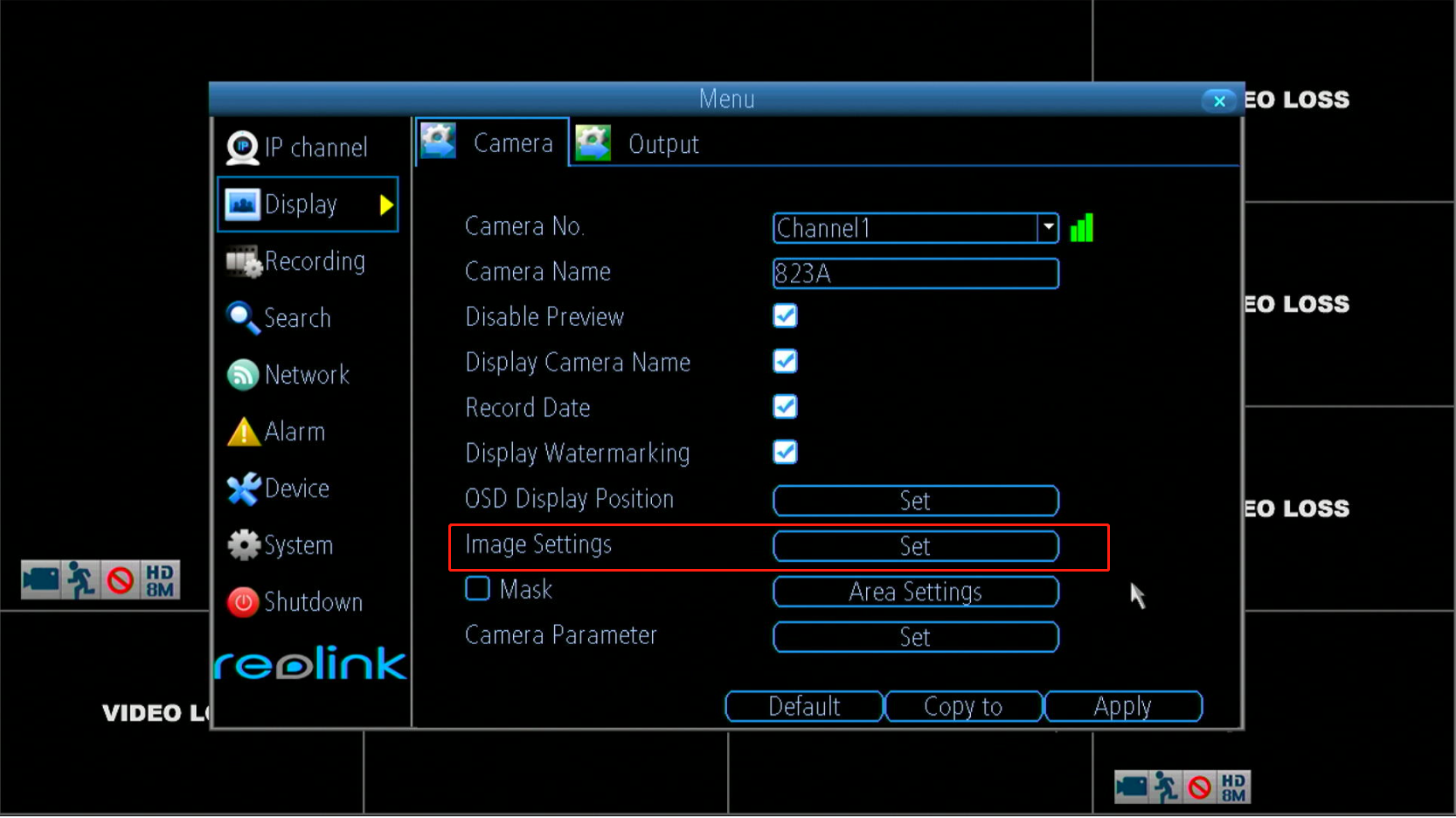

Or you can find the image settings entrance here.
