Below is a guide to configuring advanced image settings for your Reolink cameras via the Reolink client.

Applies to: Argus 2E 3MP, Argus Eco 3MP, Argus 3 Pro, Argus 3 2K, Argus PT 2K, Reolink Go Plus, Reolink Go PT Plus, Reolink Duo, Reolink Duo 4G, Reolink Duo 2, Reolink Duo 2 LTE, Reolink TrackMix LTE, Reolink TrackMix LTE, Reolink TrackMix LTE Plus and KEEN Ranger PT

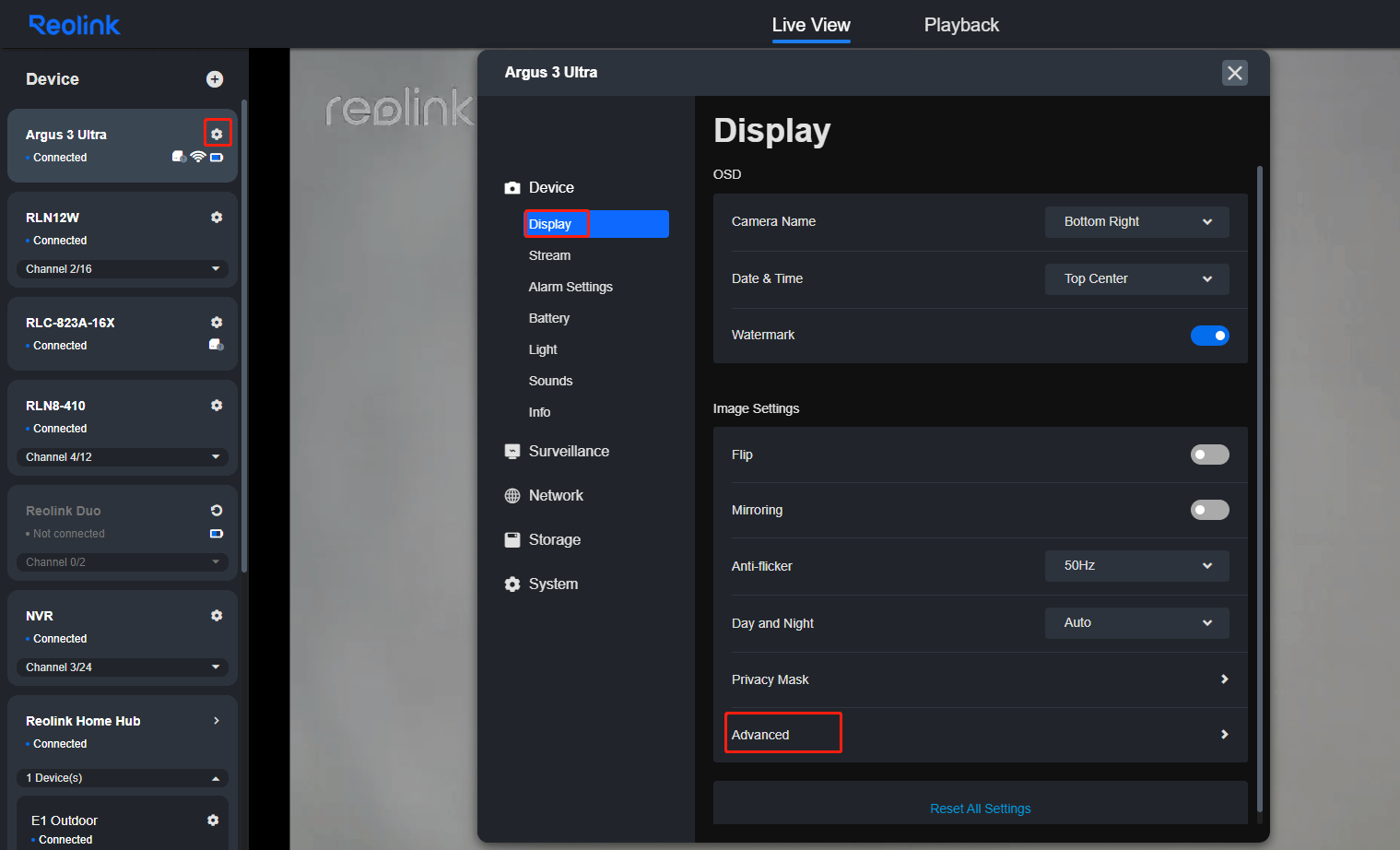

Launch Reolink Client and go to Settings > Camera > Display page and click Advanced to configure the parameter setting for the camera.

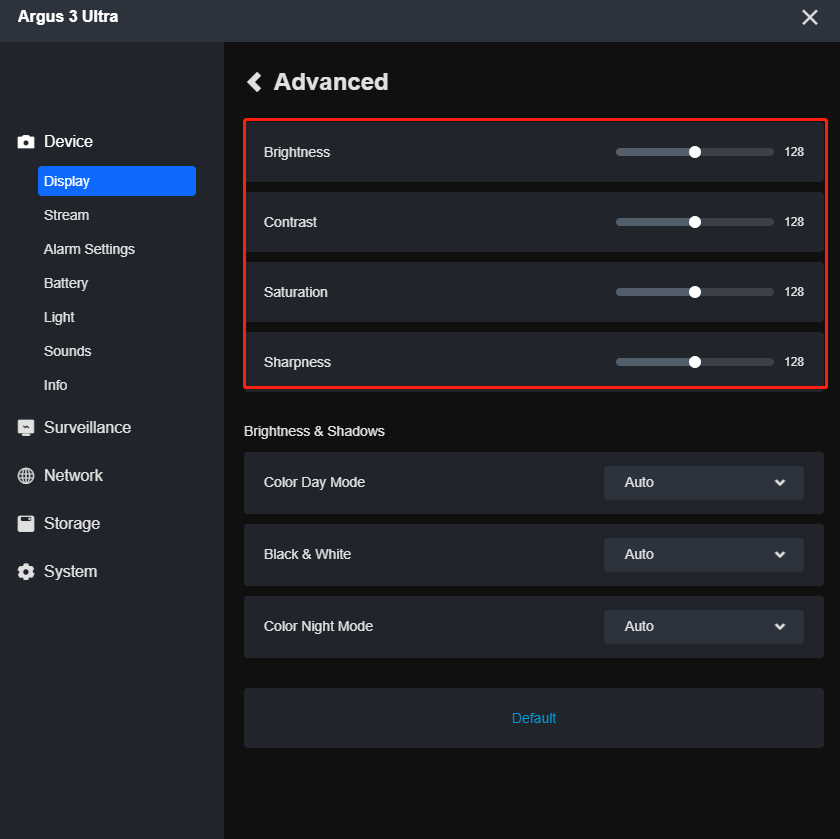

  • Brightness: Use this feature to make the preview darker or brighter.
  • Contrast: Select the contrast level to adjust the range of the light and shadow of the image.
  • Saturation:  Adjust the vividness of the color of the picture. The larger the value, the brighter the color, the smaller the value, the lighter the color.
  • Sharpness: Increase or Decrease the sharpness of the image objects' edges.

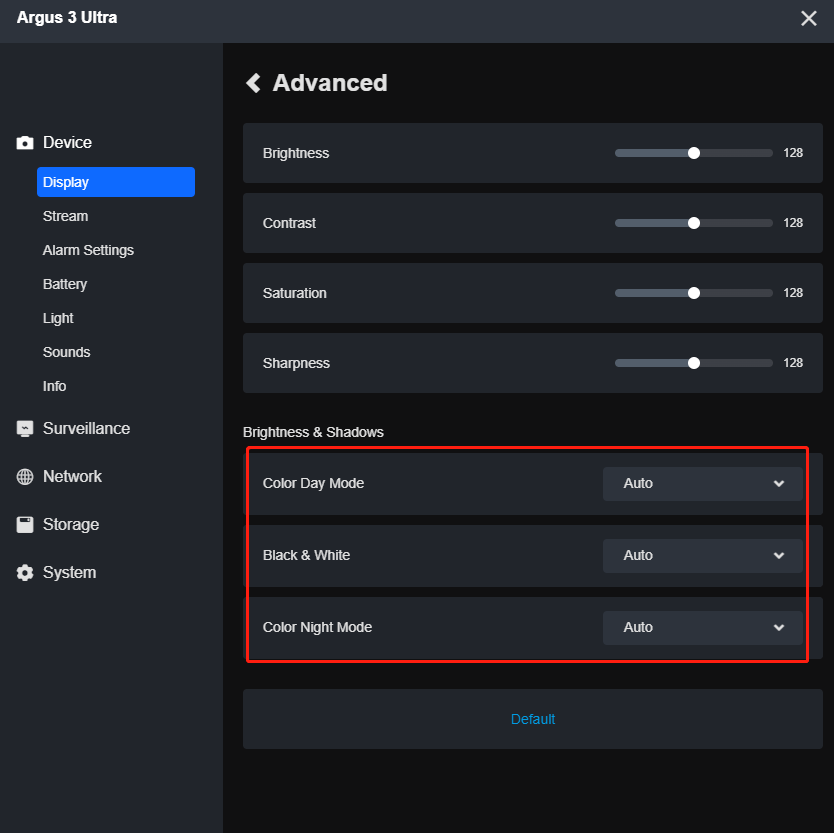

  • Color Day Mode (Color image):
    - Manual: Drag the slider to set up the whole level of the bright and the dark for the color image.
    - Auto: The camera will automatically set up the whole level of the bright and the dark for the color image according to the light conditions.
  • Black & White:
    - Manual: Drag the slider to set up the whole level of the bright and dark for the Black & White image.
    - Auto: The camera will automatically set up the whole level of the bright and dark for the Black&White image according to the light conditions.
  • Color Night Mode (Only available for a camera with a spotlight and takes effect with a spotlight on):
    - Manual: Drag the slider to set up the whole level of the bright and the dark for the color image when the spotlight is turned on.
    - Auto: The camera will automatically set up the whole level of the bright and the dark for the color image when the spotlight is turned on according to the light conditions.
