This article will show you how to set up smart detection including smart detection sensitivity, detection zone, and object size for your camera via the Reolink app.
Applies to: Argus 2E (3MP), Argus Eco (3MP), Argus Eco Pro, Argus Series B340, Argus Eco Ultra, Argus Series B360, Argus 3 Pro, Argus 3 (2K), Argus 3 Ultra, Argus Series B350, Argus 3E, Argus Series B310, Argus PT (2K), Argus PT Lite, Argus Series B420, Argus PT Ultra, Argus Series B440, Argus Track, Argus Series B730, Argus 4, Argus Series B740, Argus 4 Pro, Argus Series B740X, Reolink Go Plus, Go Series G330, Reolink Go PT Plus, Go Series G430, Reolink Go Ultra, Go Series G340, Reolink Go PT Ultra, Go Series G440, Reolink Go Ranger PT, Go Series G450, Reolink Go PT S Lite, Reolink Duo (battery), Reolink Duo 4G, Reolink Duo 2 (battery), Reolink Duo 2 LTE, Duo Series G750, Keen Ranger PT, Reolink TrackMix (battery), Reolink TrackMix LTE, Trackmix Series G770, Reolink TrackMix LTE Plus, TrackMix Series G780, Reolink Altas PT Ultra, Altas Series B660, Reolink Altas, Altas Series B630, Reolink Altas Go PT, Reolink Doorbell (battery).

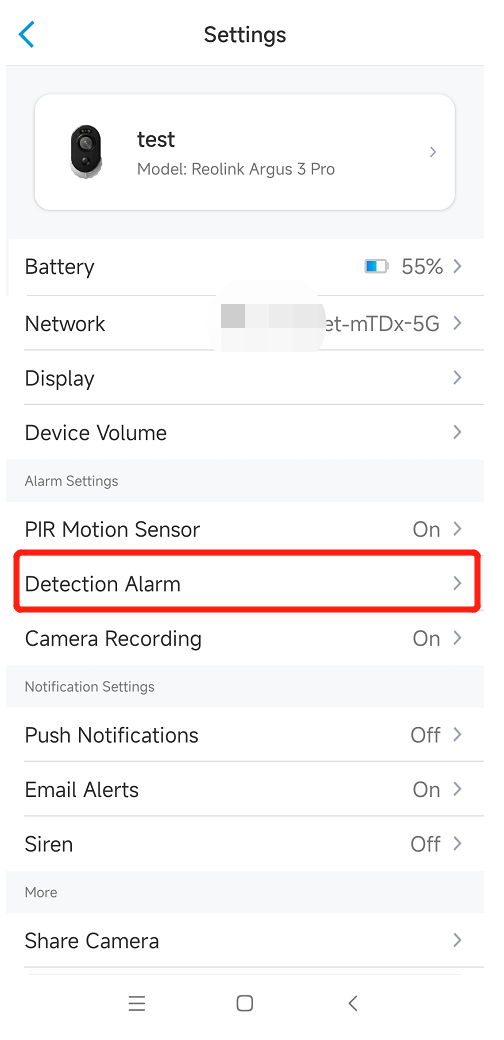

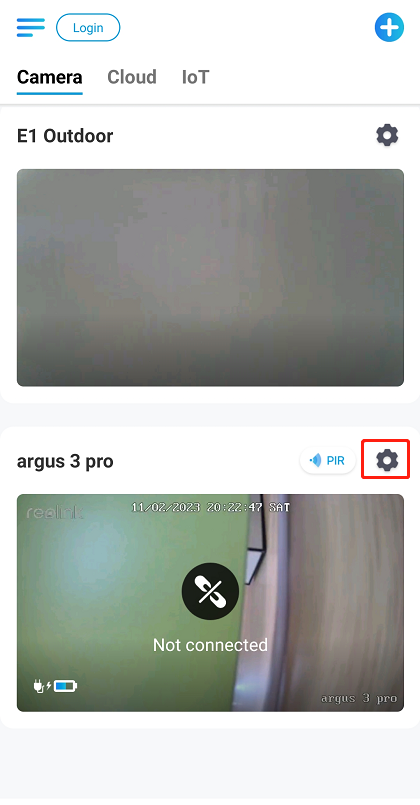

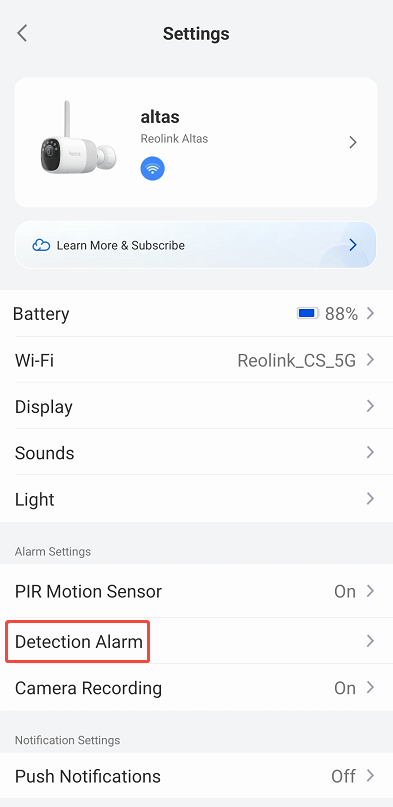

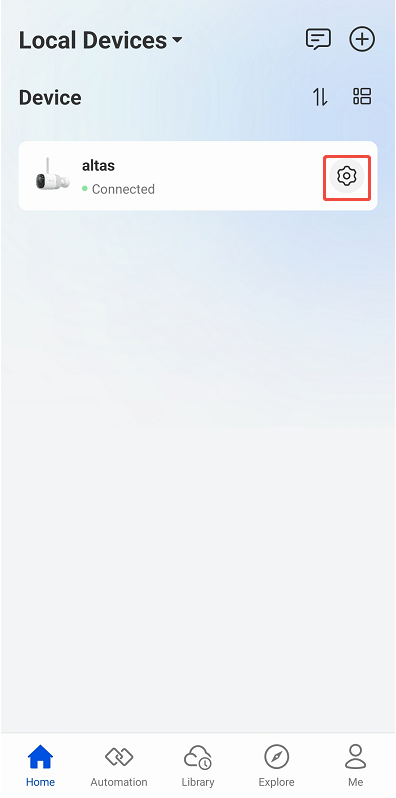

Step 1. Please launch your Reolink App and go to the device settings and tap the Detection Alarm button.

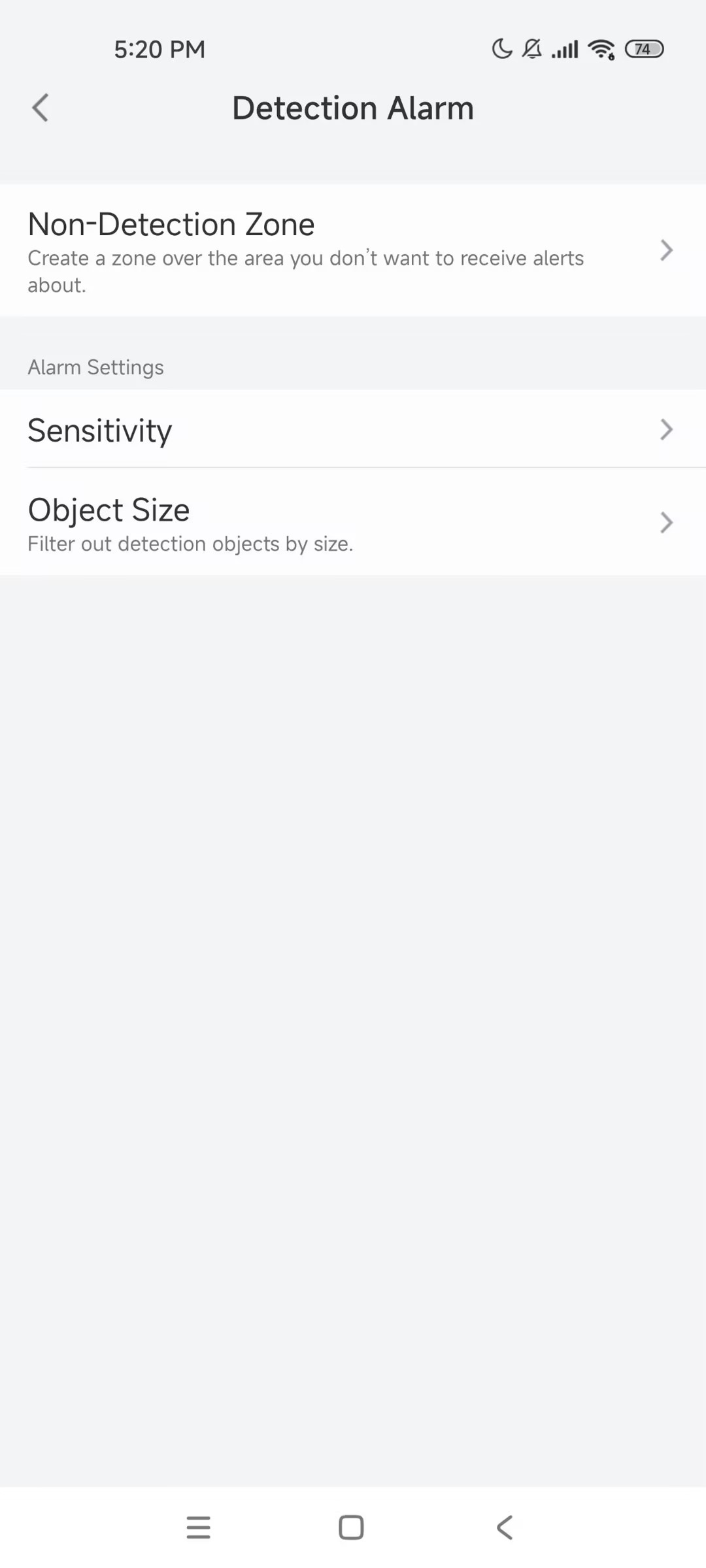

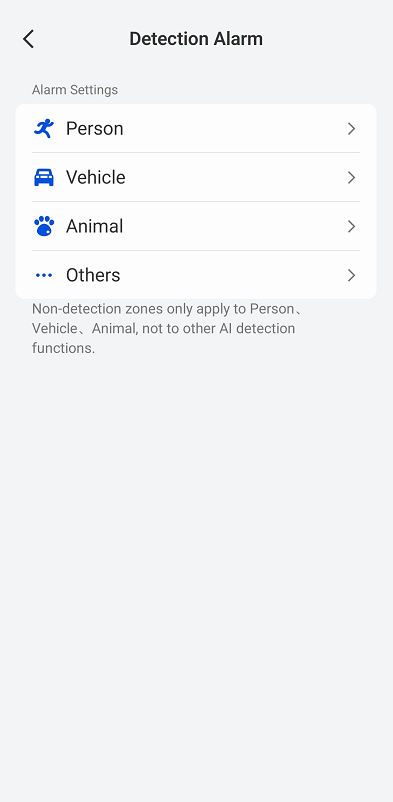

Step 2. In the Detection Alarm interface, you can choose from different alarm types and adjust related settings, such as object size, sensitivity, and non-detection areas.

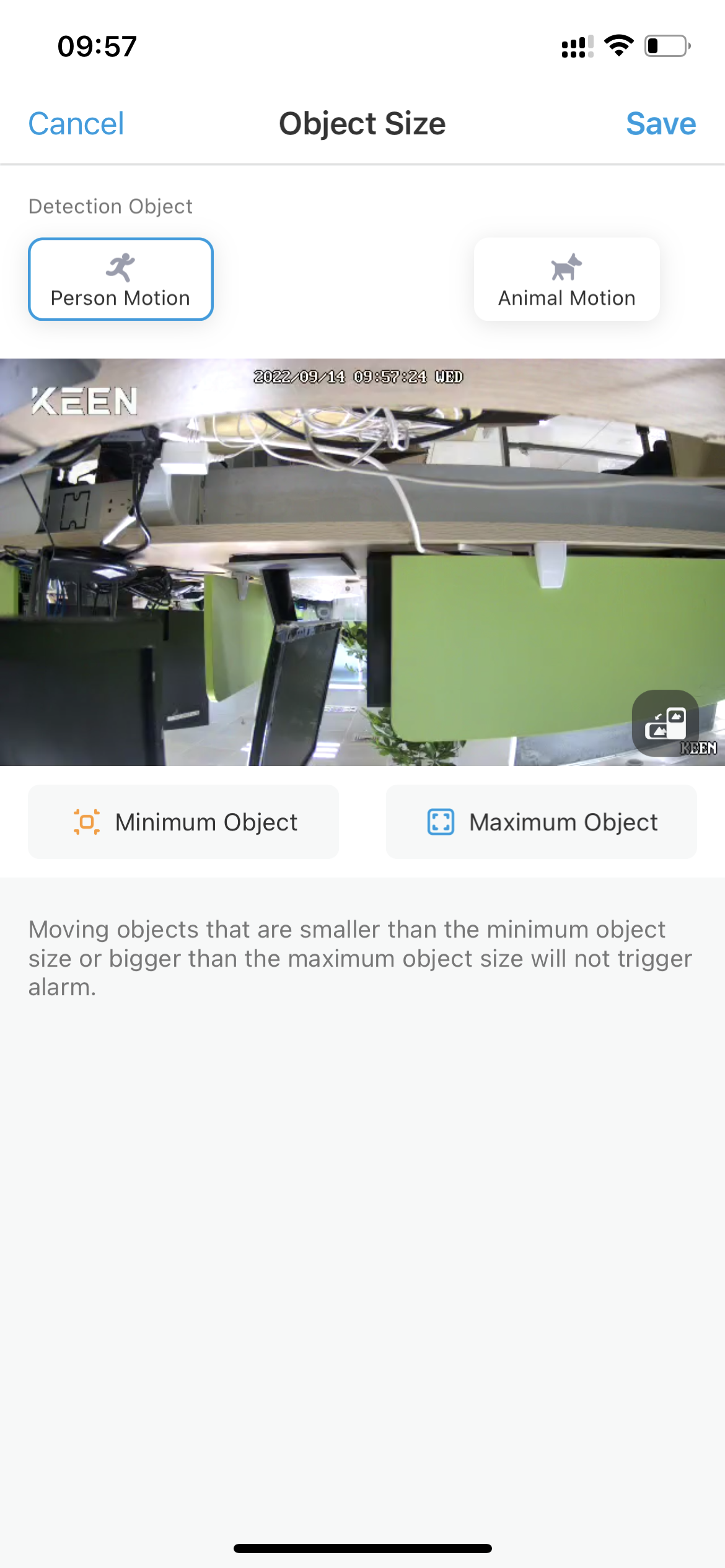

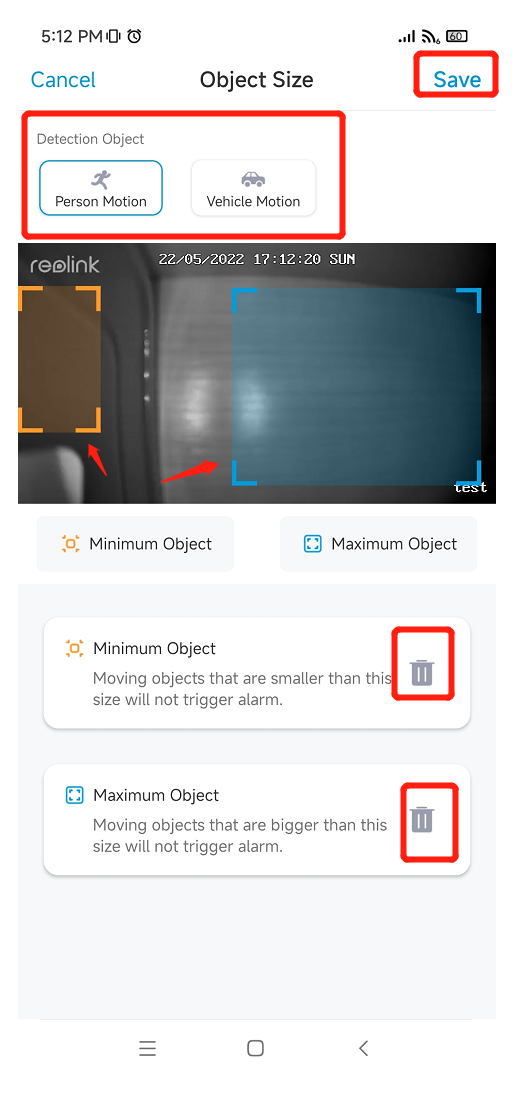

1) Object Size: Used to filter unnecessary alarm objects.

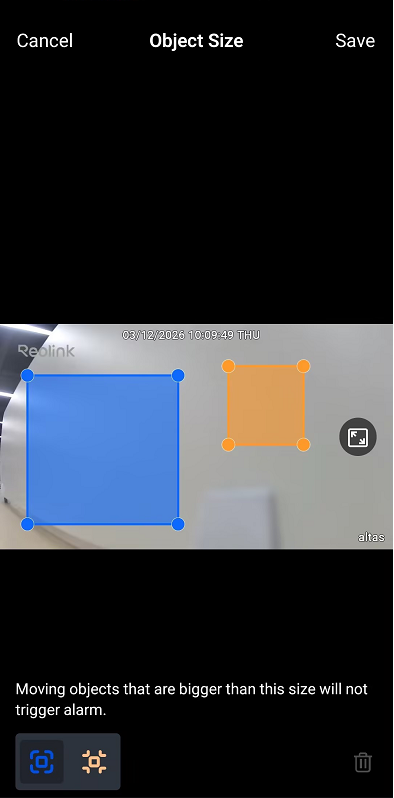

If the moving object is smaller than the minimum object size (yellow box) or larger than the maximum object size (blue box), it will not trigger the alarm, helping to reduce false alarms. This setting is based on the box size, not its position. To filter alarms in a specific area, set the Non-Detection Zone.

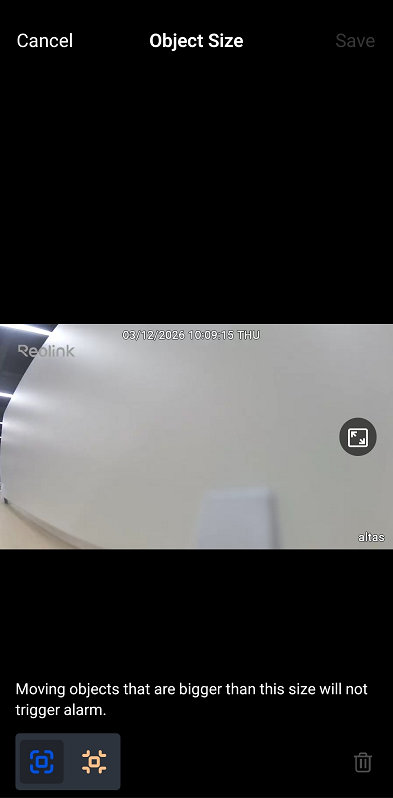

Tap the blue or yellow box in the bottom-left corner to draw it on the screen and adjust the box size. To delete the box, tap the delete button in the bottom-right corner. Finally, tap Save to apply the settings.

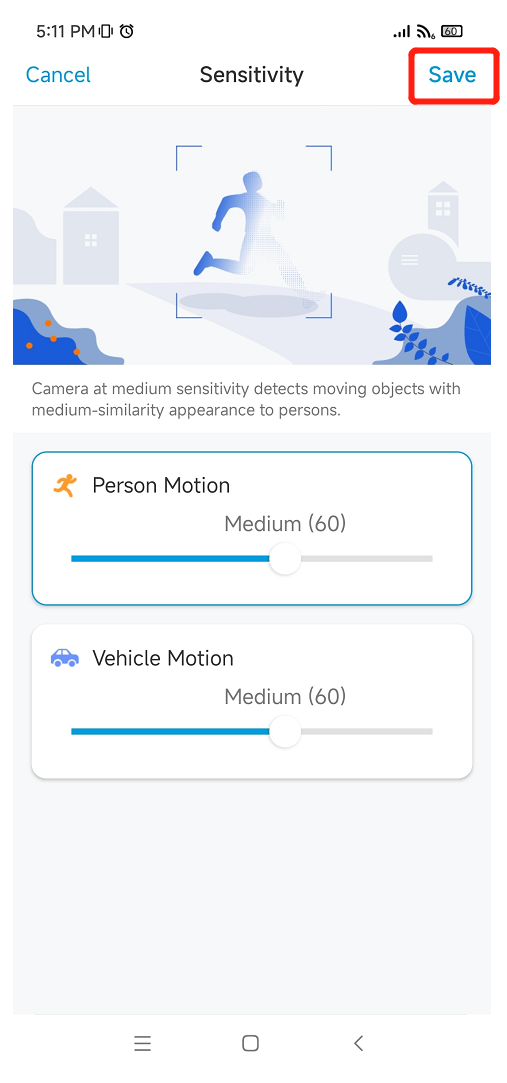

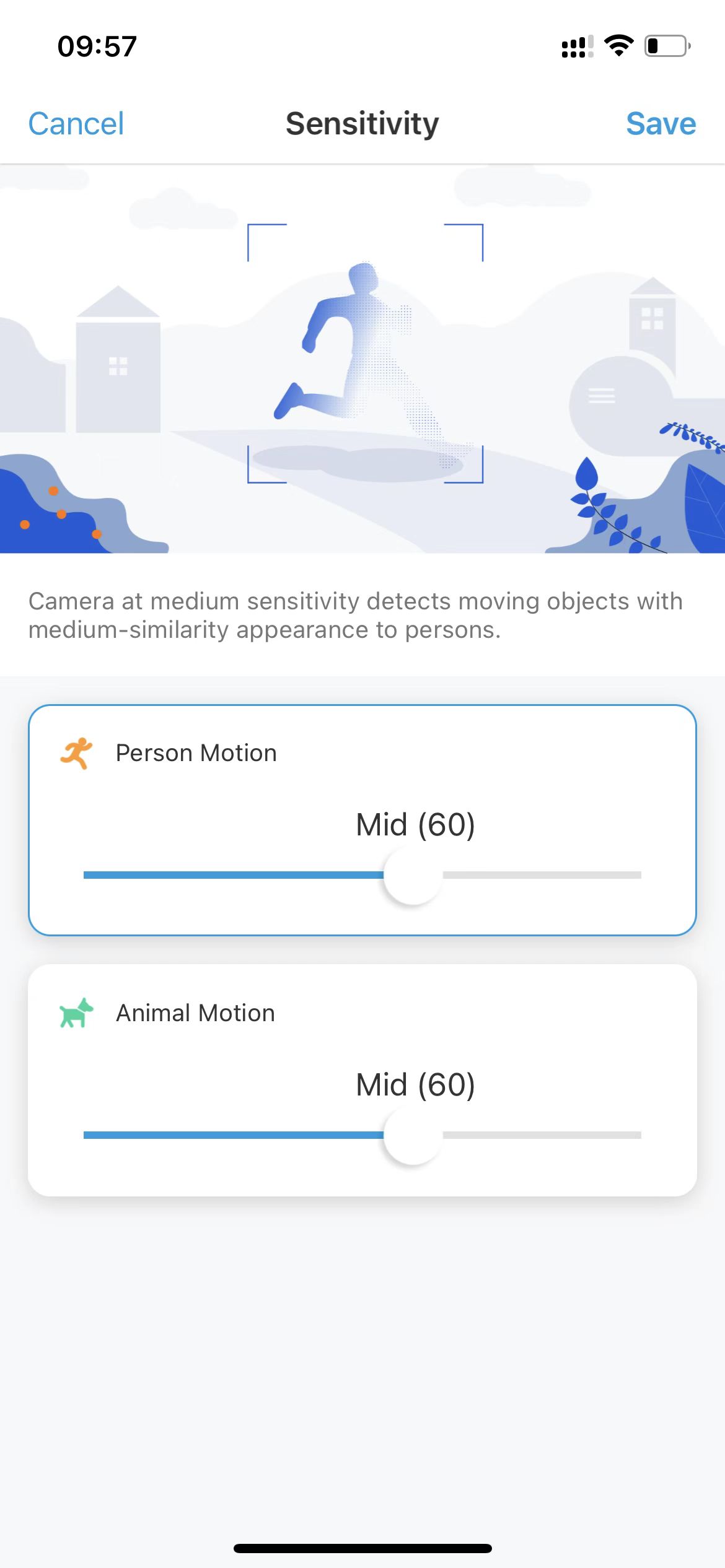

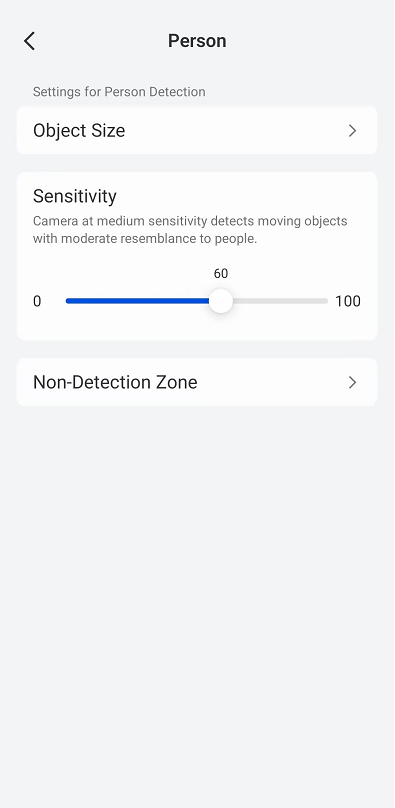

2) Sensitivity: Adjust sensitivity to increase or decrease the alarm detection rate.
Higher sensitivity means the system will detect smaller movements or changes, while lower sensitivity reduces the chances of false alarms but may miss some events.

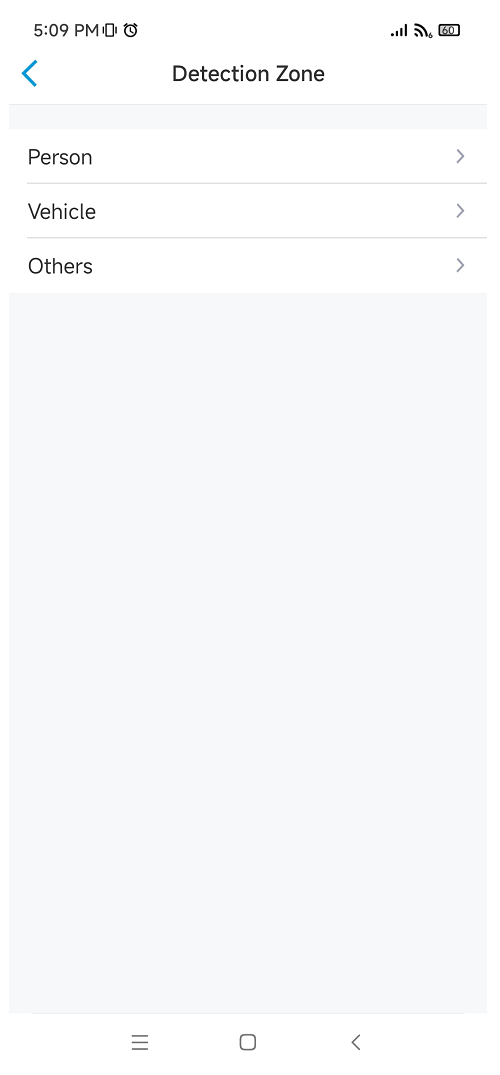

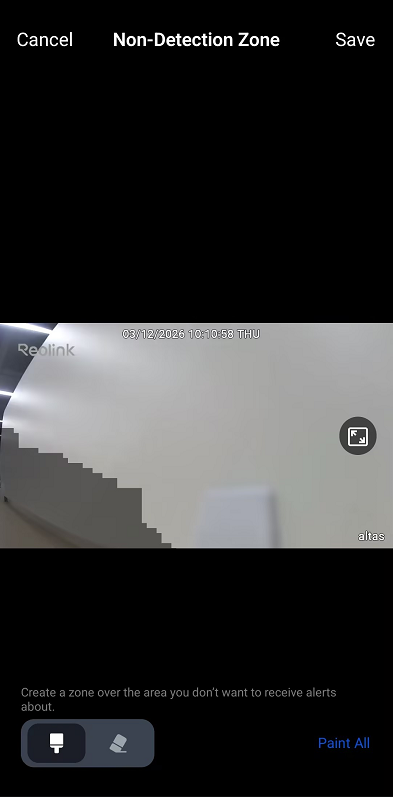

3) Non-Detection Zone: Used to filter out unnecessary areas for alarm detection.

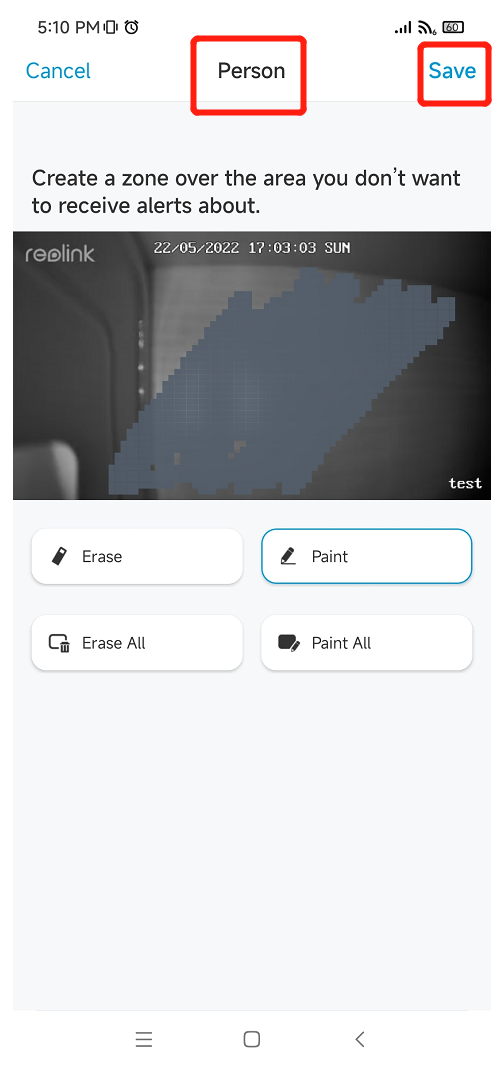

Select the Brush (paint) in the bottom-left corner. Use your finger to paint over areas where detection is not needed. Be sure to completely cover the area to ensure proper filtering and avoid leaving gaps.
To paint the entire area at once, tap Paint All in the bottom-right corner. Then, tap Save to apply the settings. To modify the Non-Detection Zone, tap the Eraser in the bottom-left corner or tap Erase All in the bottom-right corner to make changes.
For some models, the Others section can only be fully covered, and custom drawing is not available. Please follow the specific operation for your camera model.
