Spotlight can serve as an illumination when the environment is dark, and it can also be used as a deterrent when a stranger is approaching at night. In this article, you will find all the information needed to configure the spotlight settings for your camera via Reolink Client.
Applies to: RLC-540A, P327, RLC-840A, P337, RLC-811A, P430, RLC-812A, RLC-823A, RLC-823S1, P840, RLC-823S2, P850, RLC-824A, RLC-830A, RLC-833A, P434, RLC-843A, P437, RLC-1212A, P341, RLC-1224A, P345, RLC-1240A, P347, B800W, W330C, B1200, P341C, D1200, P345C, RLC-81MA, P330M, RLC-81PA, P330P, CX410, ColorX Series P320X, CX410W, ColorX Series W320X, CX810, ColorX Series P330X, RLC-511WA, RLC-523WA, RLC-811WA, W430, RLC-810WA, W330, RLC-823S1W, W840, RLC-840WA, W337, RLC-843WA, W437, Lumus, Lumus Series E430, E1 Outdoor, E Series E540, E1 Outdoor PoE, E Series E560P, E1 Outdoor Pro, E Series E560, E1 Outdoor S, E Series E550, E1 Outdoor CX, E Series E530X, Reolink Duo series, Reolink TrackMix series, Argus 3, Argus 3 Pro, Argus Series B330, Argus 3 Ultra, Argus Series B350, Argus PT(5MP), Argus PT Ultra, Argus Series B440, Go PT Ultra, Argus Eco Pro, Argus Series B340, Argus Eco Ultra, Argus Series B360, Argus Track, Argus Series B730, Argus 4, Argus Series B740, Argus 4 Pro, Argus Series B740X, Reolink Altas PT, Reolink Altas PT Ultra.
Before setting it up, please download and install the latest Reolink Client on your PC in advance.
Part 1. How to Manually Turn On/Off the Spotlight

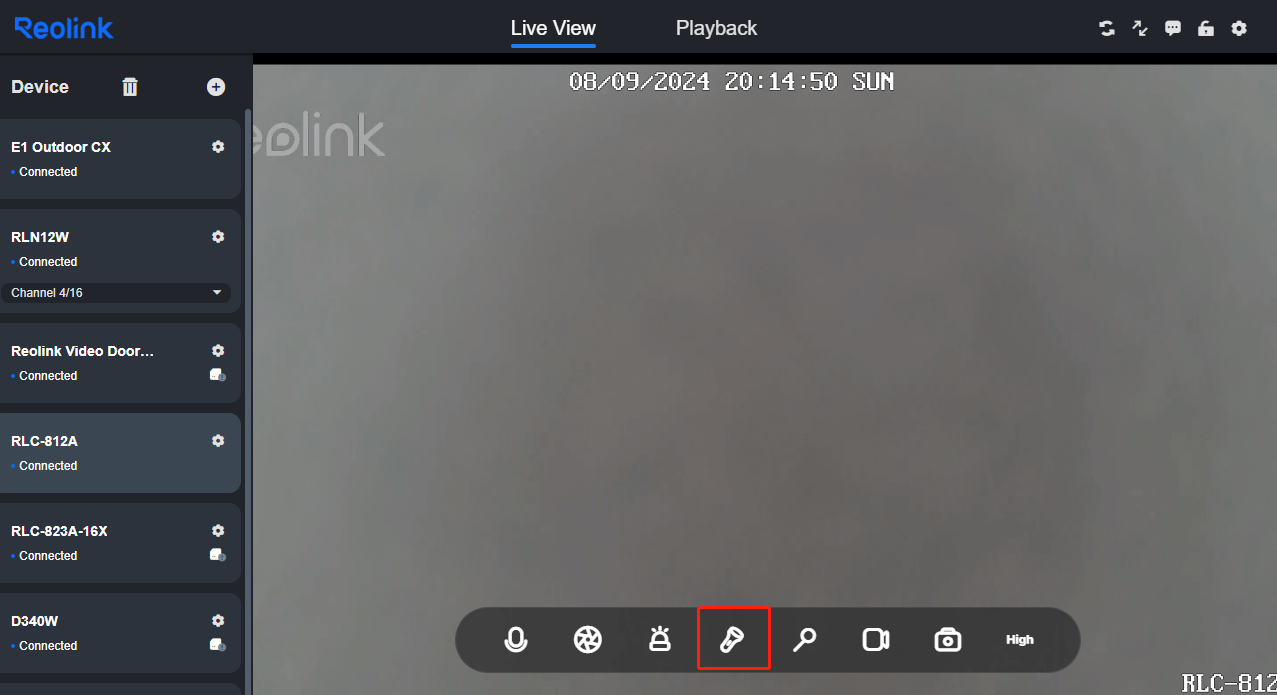

Launch Reolink Client and log in to your camera. On the live view page, please click the Flashlight button, and then the spotlight will be manually triggered. Then click it again to turn it off.
Part 2. How to Configure the Spotlight Settings
For the PoE and WiFi (plug-in) Cameras:

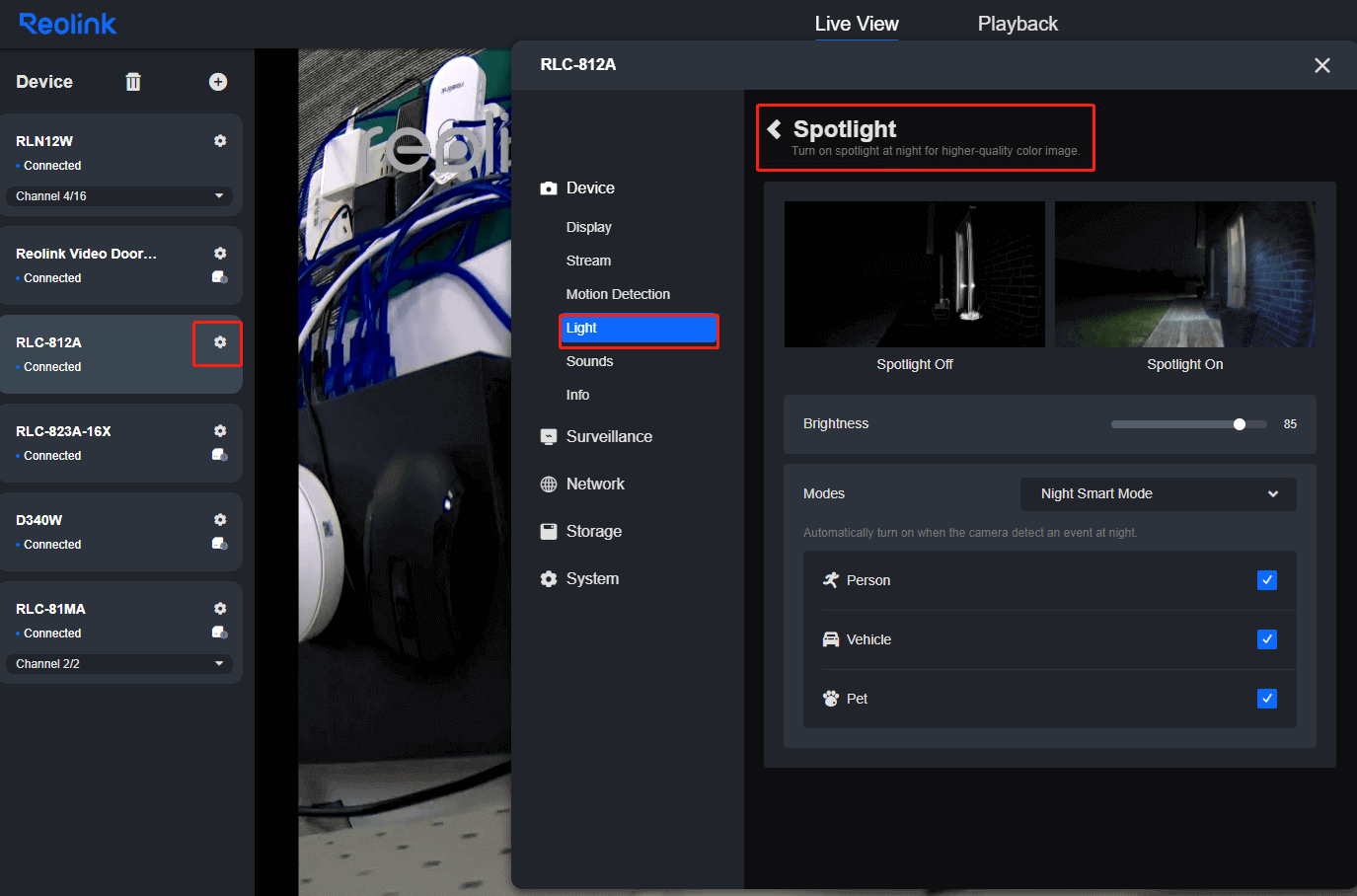

Step 1. Launch Reolink Client and choose Camera Settings > Light > Spotlight.
Step 2. Configure all the settings for the spotlight.
- Only some of the camera models can support adjusting the brightness of the spotlight.

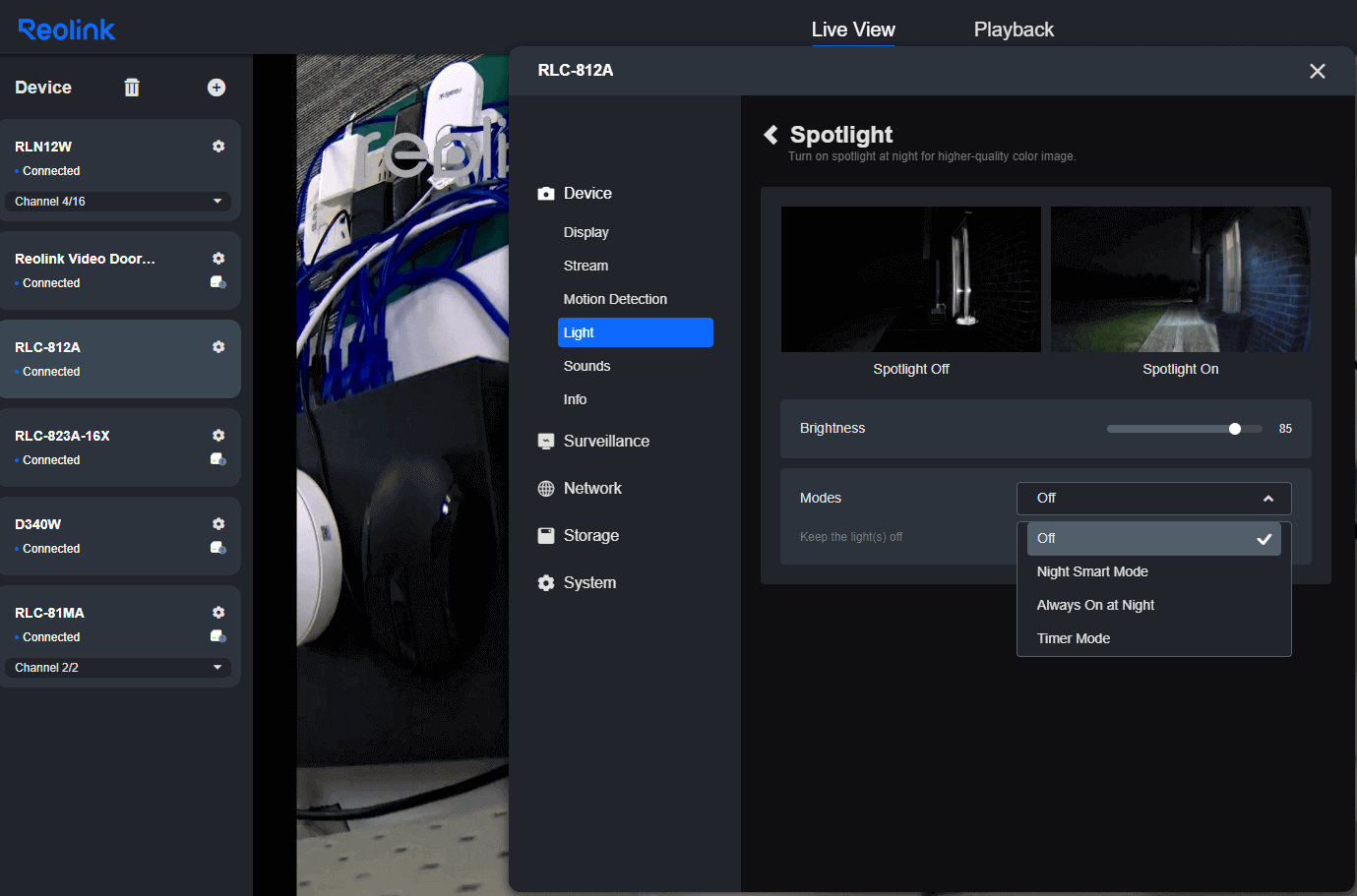

- Click the drag-down arrow of Modes to unfold the spotlight modes option:
- Off: Keep the light(s) off. All the cameras supporting the spotlight have this option.

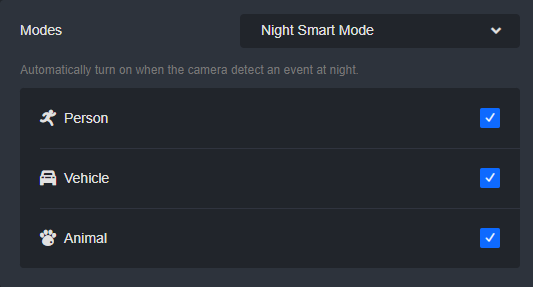

- Night Smart Mode: The spotlight will automatically turn on at night when an alarm event is detected. All the cameras supporting the spotlight have this option. For PoE cameras and WiFi cameras with the smart detection feature, you can also select the detection type to activate the spotlight. (Note: The lighting logic of RLC-823S2 with latest firmware is slightly different: the spotlight and IR light are on at the same time, and the live view is still in black and white mode.)
- Timer Mode: The spotlight will automatically turn on at the start time and turn off at the end time you set. All the cameras supporting the spotlight have this option except for Reolink Lumus, E1 Outdoor series, and battery-powered ones.
- Always On at Night: Spotlight always stays on in night mode. This option only applies to cameras RLC-812A and RLC-824A (needs to upgrade the camera firmware to the latest one), and Duo Floodlight WiFi/PoE.
For Battery-powered Cameras:

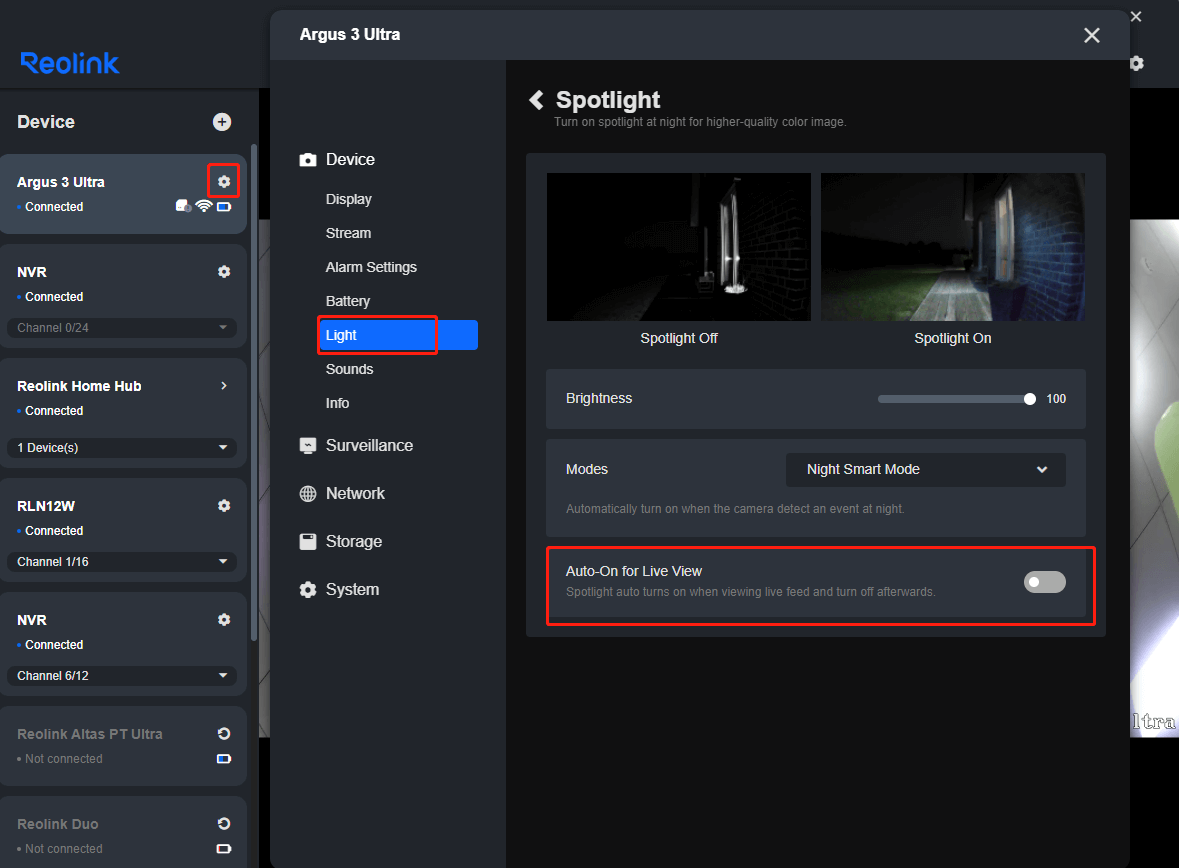

You can enable Auto On for Live View, which means the spotlights will automatically turn on when viewing the live feed and turn off afterward. Photo below is an example of Argus 3 Ultra.
Note: Reolink Altas PT and Reolink Altas PT Ultra only has Off and Auto Mode, which means camera auto adapts the brightness based on ambient lighting conditions for optimal night vision.
Here is a video reference for you:
