This article provides step-by-step instructions for installing Reolink Elite series cameras. You'll learn how to securely mount the cameras on a wall or ceiling, with clear diagrams and important safety notes to ensure a smooth and successful installation. This guide covers three models:

  • Reolink Elite WiFi & Elite XPro PoE Installation Guide

    Materials needed: a camera, a mounting template, screws, a screwdriver, and an electric drill.

    Here are two diagrams showing how to install the Reolink Elite WiFi or Elite XPro PoE camera on a wall or ceiling, along with some precautions before installation:

    wall mount      ceiling mount

    1. Before installation, ensure that the camera has been properly set up and that the area has a stable network connection.
    2. For better waterproofing, position the camera with its microSD card slot and speaker facing downwards.

    Step 1: Drill holes in accordance with the mounting hole template.
    NOTE: Use the drywall anchors included in the package if needed.

    drill holes

    Step 2: Install the mount base with the mounting screws included in the package.
    NOTE: Run the cable through the cable notch on the mount base.

    install the mount base

    Step 3: To get the best field of view, loosen the adjustment knob on security mount and turn the camera.

    loosen adjustment knob

    Step 4: Stiffen the adjustment knob to lock the camera.

    stiffen adjustment knob

  • Reolink Elite Floodlight WiFi Installation Guide

    Materials needed: a camera, a mounting bar(if needed), a mounting bracket, screws, an electric drill, a screwdriver, a marker, wire nuts, wrench.

    Here are two diagrams showing how to install the Reolink Elite Floodlight WiFi camera on a wall or ceiling, along with some precautions before installation:

    wall mount elite floodlight                eave mount elite floodlight

    1. Shut off Power supply at the circuit Breaker

      Check local laws and regulations before installation. If you're outside North America, installation and wiring must be performed by a licensed electrician. Be sure to follow all relevant codes and standards during installation.

    2. WARNING: Risk of Electrical Shock
      • During installation, you'll be handling electrical wires. If you're unsure of the location of the circuit breaker or fuse box, or how to turn off power to the floodlight Circuit Breaker, we recommend hiring a licensed electrician.
      • Turn off the circuit during installation.
      • Do not use a dimmer switch or timer with this product.
      • Ensure the power supply is within 100-240V AC, 50/60 Hz.
    3. Use the drill carefully and follow safety guidelines.

    Step 1: Secure the Mounting Bracket

    Option 1: Install the Camera on an Existing Junction Box

    Use the screws from Screw Pack A to attach the mounting bar to the junction box, ensure the wires inside the junction box pass through the mounting bracket, and use the screws from Pack B to secure the bracket.

    Notes:

    1. Make sure the "FRONT" text is facing outward.
    2. Make sure the arrow on the bracket is pointing in the correct direction based on the mounting method.
      1. If mounting vertically on the wall, the arrow on the bracket should point upward.
      2. lf mounting under an eave, the arrow should point toward your house.

    install camera on junction box

    Option 2: Install the Camera Directly on a Wall(Without Junction Box)

    Mark three spots for the mounting bracket. Drill holes according to the spots and insert the anchors. Carefully pull the wire out of the wall and pass it through the bracket. Use the screws from Pack C to secure the bracket.

    Notes:

    1. Adjust the bracket to ensure the bubble in the level is centered.
    2. Make sure the arrow on the bracket is pointing in the correct direction based on the mounting method.
      1. If mounting vertically on the wall, the arrow on the bracket should point upward.
      2. If mounting under an eave, the arrow should point toward your house

    install camera directly on wall

    Step 2: Connect Wires

    Hang the camera on the bracket. Wire colors for live, neutral, and ground may vary by country or region, so please follow the wiring conventions used in your area.

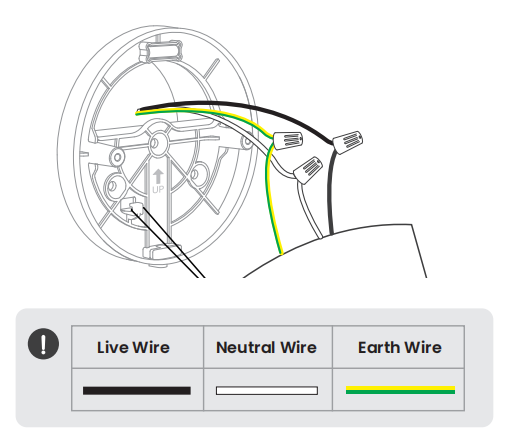

    • For North America, connect the live wire (black), neutral wire (white), and earth wire (yellow-green) from the junction box to the matching wires on the camera.

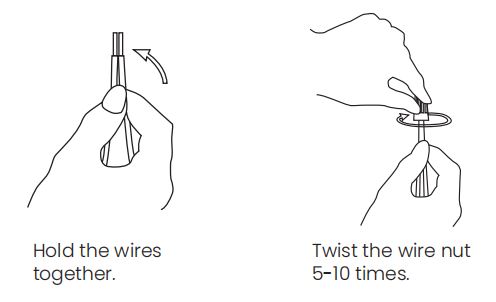

      Cover the wires with the wire nuts and twist them about five turns. Gently pull the nuts to make sure the connection is secure.
      connect wires US

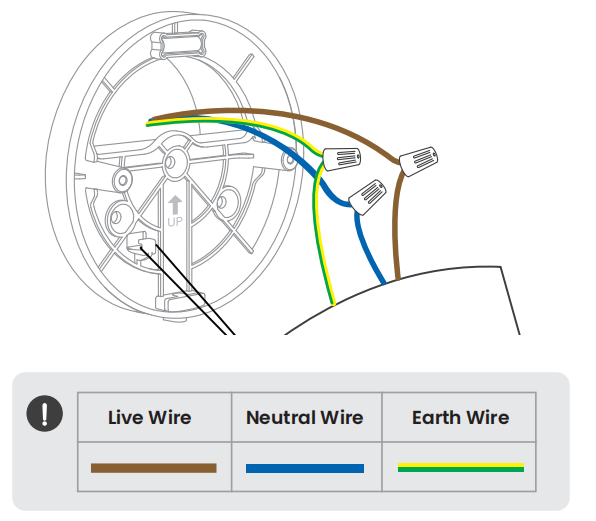

    • For EU/UK/AU, connect the live wire (brown), neutral wire (blue), and earth wire (yellow-green) from the junction box to the matching wires on the camera.
      Cover the wires with the wire nuts and twist them about five turns. Gently pull the nuts to make sure the connection is secure.
        connect wires

    IMPORTANT NOTICE:

    Avoid crossover connections. If you're unsure or can't identify the wires, consult an electrician for safety.

    hold wires together

    Step 3: Secure the Camera

    Secure the camera to the bracket by inserting the screws from Pack D into the holes, then insert the silicone plug.

     secure the camera

    Step 4: Adjust the Angle

    Adjust the movable joint of the camera.

    Notes:

    1. Use the wrench to tighten or loosen the camera knob if needed.
    2. Avoid repeatedly twisting the camera in one direction to prevent internal wire damage.

    adjust angle

    Step 5: Turn on the Circuit Breaker

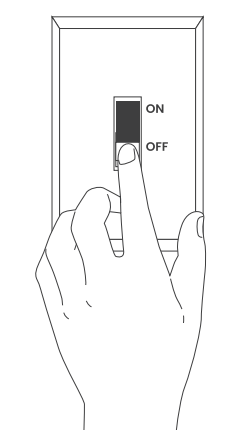

    turn on circuit breaker

    Wait for the indicator light to turn solid blue.

  • Reolink Elite Pro Floodlight PoE Installation Guide

    Materials needed: Camera, mounting bar (if needed), mounting plate, screws, screwdriver, marker, wrench, and an electric drill.

    Here are two diagrams showing how to install the Reolink Elite Pro Floodlight PoE camera on a wall or ceiling, along with some precautions before installation:

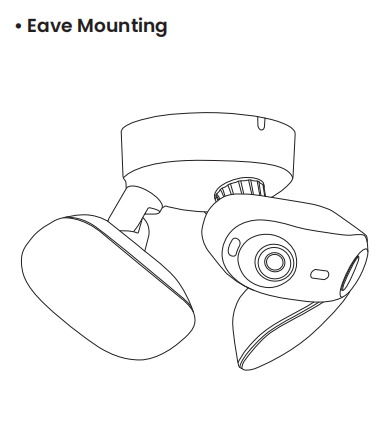

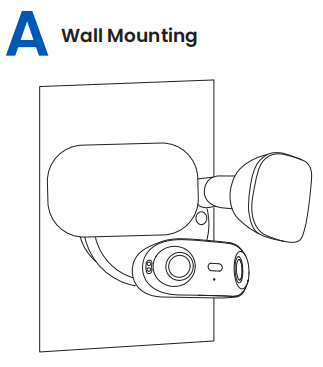

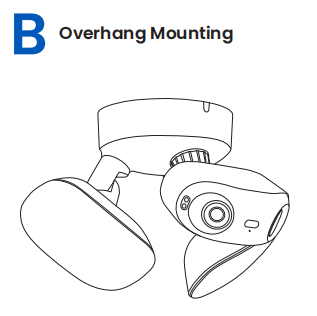

    Wall Mount  Overhand Mounting

    1. Recommended Mounting Locations

      To achieve the best image quality, make sure the camera and the monitored area have consistent lighting.

      • Avoid aiming the camera directly at bright light sources.
      • Avoid pointing the camera toward windows, as infrared LEDs, status lights, or ambient lighting may cause glare or reflections.

      • Do not install the camera in a shaded spot facing a bright area; always aim it toward a well-lit environment.

    2. Water and Dust Resistance
      • Keep the LAN port away from water or moisture. The camera is IP66-rated, meaning it can withstand rain and snow, but it is not suitable for underwater use.
      • Ensure the LAN port remains clean and free of dirt or debris.
    3. Use the drill carefully and follow safety guidelines.

    Step 1: Choose a Mounting Location

    The camera can be mounted vertically on a wall or installed upside down on an eave or overhang, depending on your installation environment.

    Step 2. Secure the Mounting Plate

    Option 1: Direct Installation on a Wall/Ceiling(Without Junction Box)

    1. Mark and Drill Holes

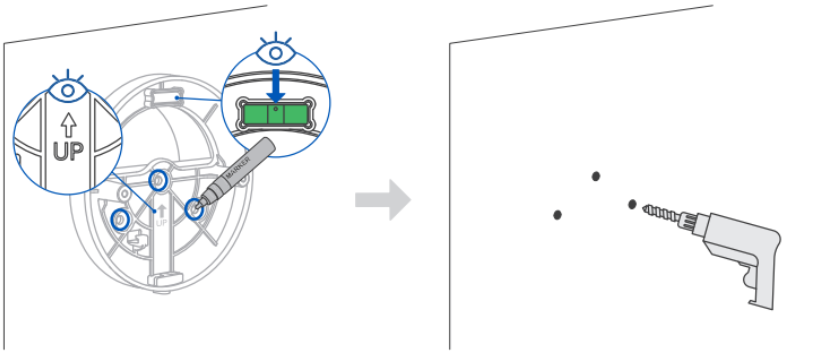

      Place the mounting plate against the installation surface and mark the three hole positions with a marker. Drill three holes approximately 1 inch deep.

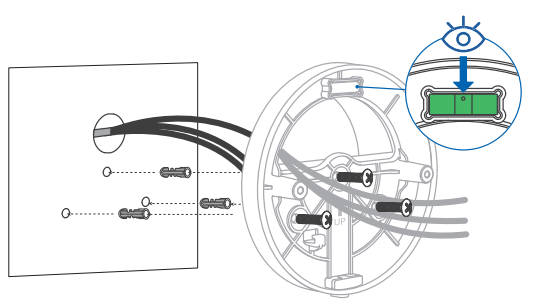

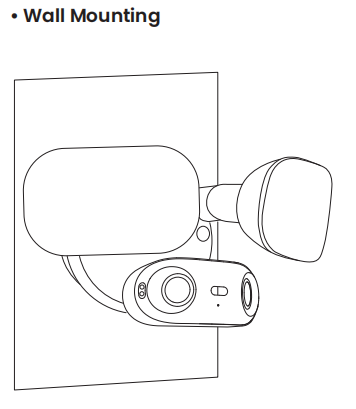

      • Wall Mounting: For wall installations, ensure the arrow on the mounting plate is pointing upward, and verify that the bubble in the built-in level is centered.Mark and Drill Holes--Wall Mounting
      • Overhand Mounting: When mounting on an eave or overhang, ensure the arrow on the plate is pointing toward the house (away from the monitored area).

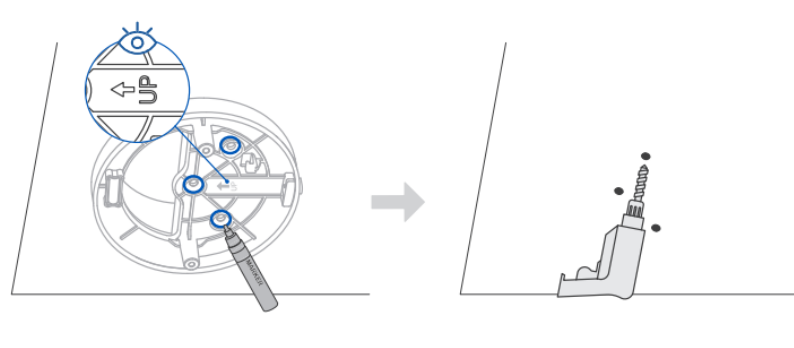

        Mark and Drill Hole--Overhand Mounting
    2. Secure the Mounting Plate
      • Hard Walls (e.g., Concrete, Brick, and Plaster Walls)
        Insert three wall anchors from Bag C into the drilled holes. Then, secure the mounting plate to the wall with the three long screws.

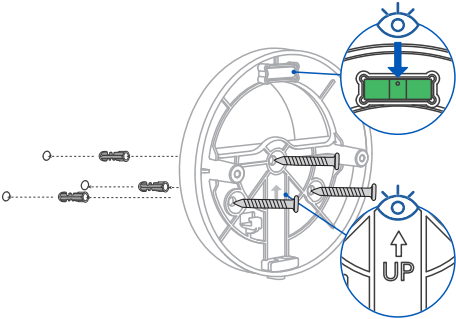

        Hard Walls
      • Soft Walls (e.g., Wooden walls)

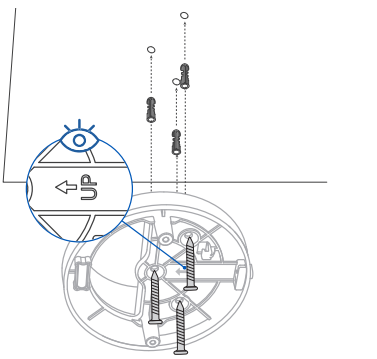

        Secure the mounting plate directly to the wooden surface using the three long screws from Bag C.
        Soft Walls

    Option 2. Mounting on an Existing Junction Box

    Note: If you don't have a junction box and need one for installation, a 4-inch junction box is recommended.

    1. Secure the Mounting Bar

      Attach the mounting bar to the junction box with two short screws from Bag A.

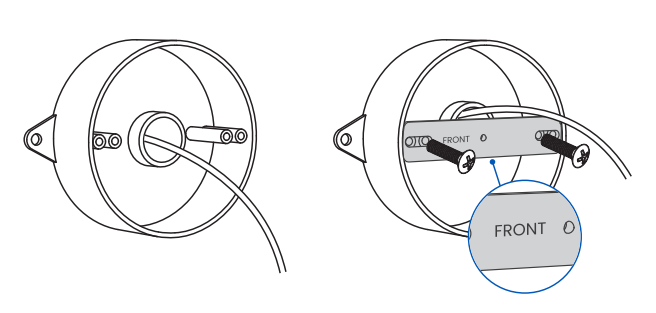

      NOTE: Make sure the "FRONT" text is facing outward.

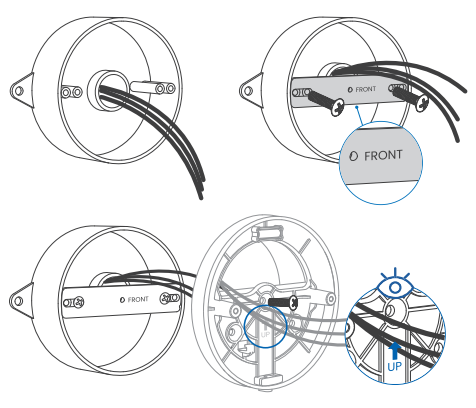

      Front Bar

    2. Secure the Mounting Plate

      Secure the mounting bar to the junction box, then attach the mounting plate to the mounting bar using the screw from Bag B.

      • Wall Mounting: Confirm that the arrow on the plate points upward and that the bubble in the level is centered.

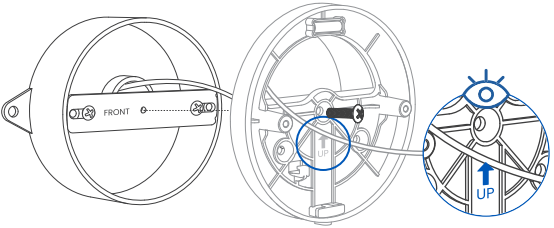

        Mounting Plate--Wall Mounting
      • Overhang Mounting: When mounting on an eave or overhang, ensure the arrow on the plate points toward the house (away from the monitored area).
        Mounting Plate--Overhang Mounting

    Step 3. Hang the Camera

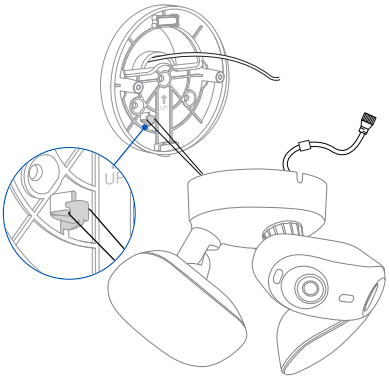

    Hang the strap located on the back of the camera onto the hook on the mounting plate to support the device during installation.

    Hang the strap

    Step 4. Reconnect the RJ45 Cable (Optional)

    If the Ethernet cable was disconnected earlier in the process, reconnect it now.

    reconnect the cable

    Step 5. Secure the Camera

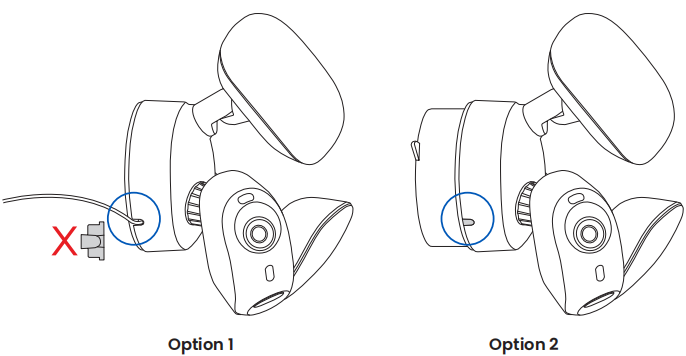

    1. Attach the Camera to the Mounting Plate: Align the cable outlet on the camera base with the corresponding outlet on the mounting plate.
      • Option 1. Routing Cable Through the Mounting Plate: Remove the silicone plug and align it with the cable outlet.
      • Option 2. Cable Hidden in the Junction Box: Keep the silicone plug in place and align it with the cable outlet.

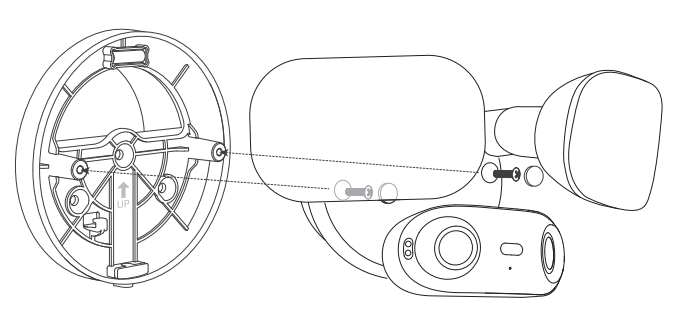

        Secure the Camera
    2. Fasten the Camera: Secure the camera to the mounting plate with two long screws in Bag D.

    3. Insert the Silicone Plug: After installation, insert the waterproof silicone plug to enhance outdoor weather protection.

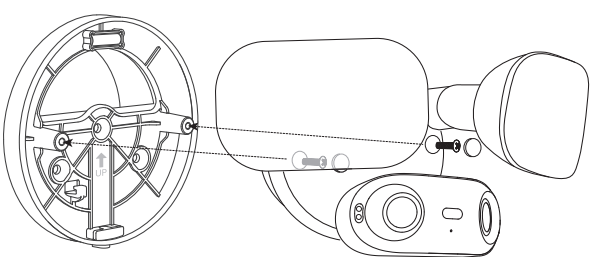

      Insert the Silicone Plug

    Step 6. Adjust the Camera and Floodlight Angle

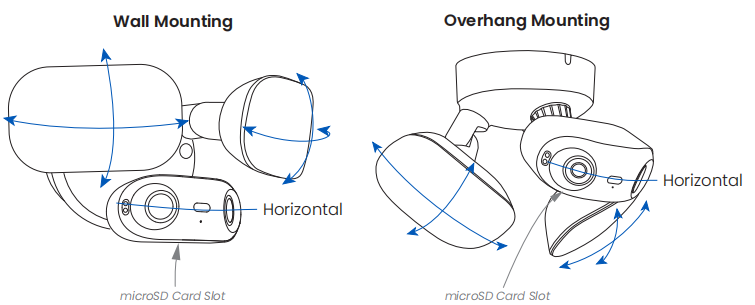

    1. Camera and Floodlight: Adjust the camera and floodlight angles so both point toward the intended monitoring area.
    2. Lens: Make sure both lenses are aligned horizontally with each other.

    3. Slot Cover: Ensure the slot cover faces downward, with the Reolink logo facing up

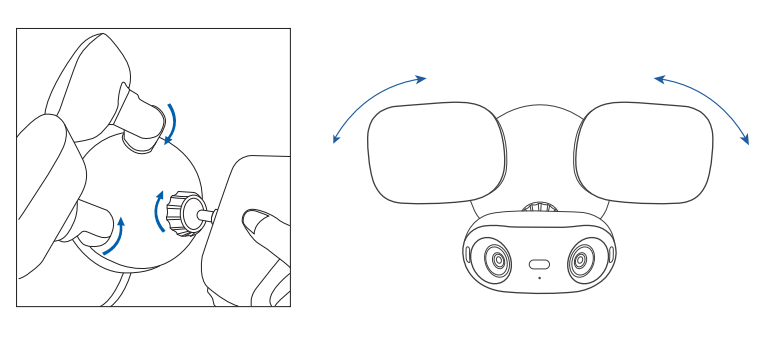

      Adjust the angle

      NOTE: If the camera joint is too tight to adjust, gently loosen it using a wrench before positioning it and then retighten as needed.

      Adjust camera's joint

By following this Reolink Elite installation guide, you'll set up your camera securely and safely, ensuring reliable protection and performance for years to come.
