This guide will walk you through the proper steps to install a microSD card into your Reolink Elite Series camera, like Reolink Elite WiFi, Elite Floodlight WiFi cameras. A correctly installed and compatible microSD card allows the camera to record and store footage locally for easy access and playback.

Materials Needed:

  1. A microSD card
    Only microSD cards are supported; other types of SD cards are not compatible.
    The maximum supported capacity for the Reolink Elite camera is 512GB.
  2. Your Reolink Elite camera

Step-by-Step Guide:

  • Step 1: Prepare the microSD Card
    Make sure you're using a microSD card with a capacity up to 512GB. Cards that exceed this limit or are not microSD format may cause compatibility issues, potentially resulting in data loss or camera malfunction.
  • Step 2: Power Off the Camera
    Before installation, power off your Reolink Elite camera to avoid any risk of electrical damage or data corruption.
  • Step 3: Locate the SD Card Slot

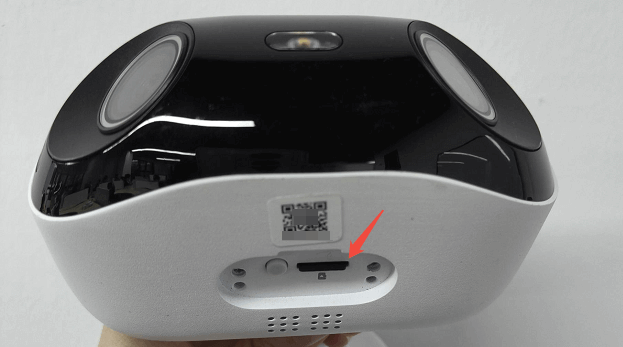

    Flip the camera over and locate the SD card cover on the bottom of the camera. Use a screwdriver to remove the screws and open the slot.
  • Step 4: Insert the microSD Card

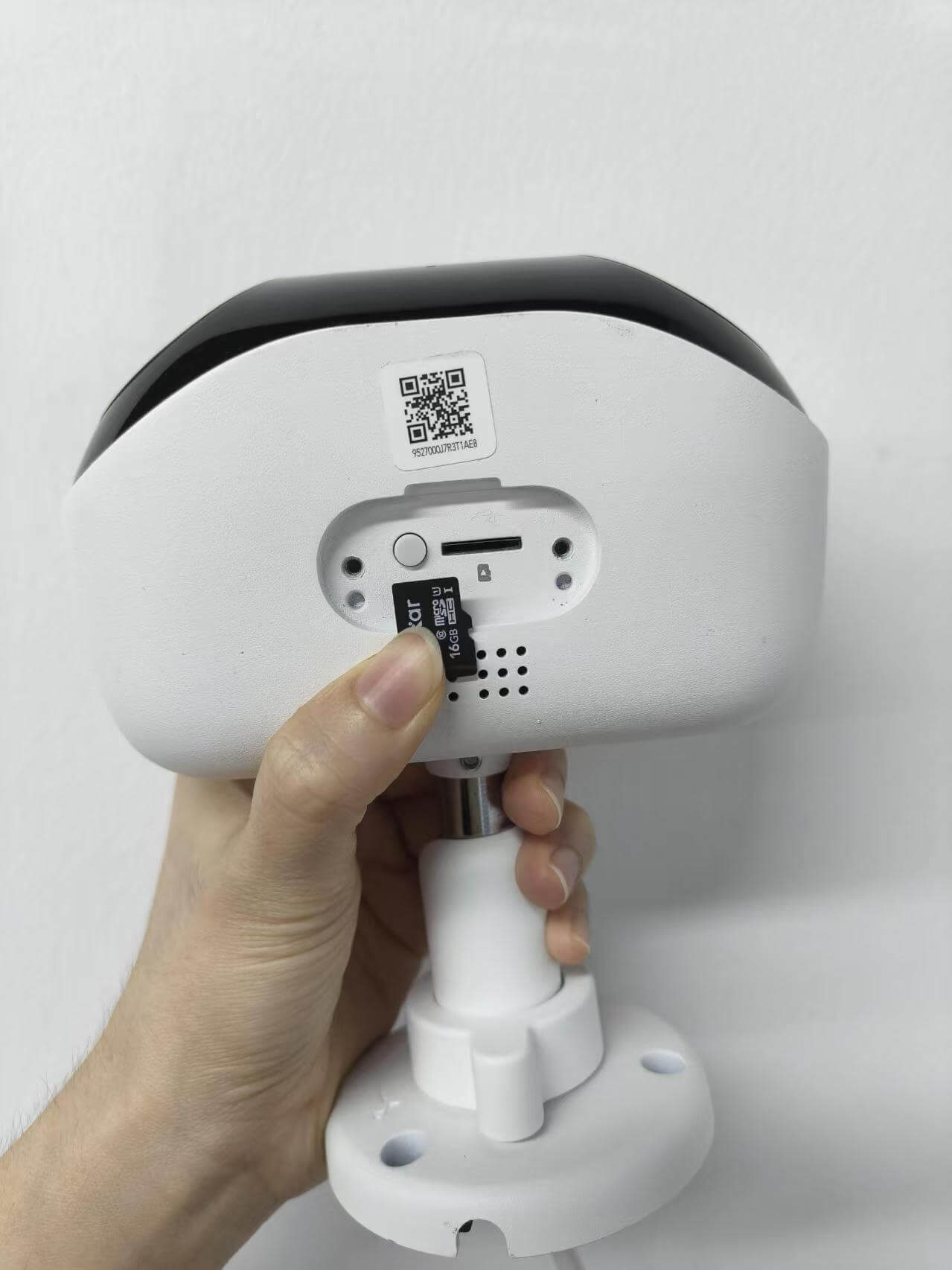

    Take the microSD card and align it with the slot, ensuring it is oriented correctly as shown in the picture below.
    insert sd card to elite camera

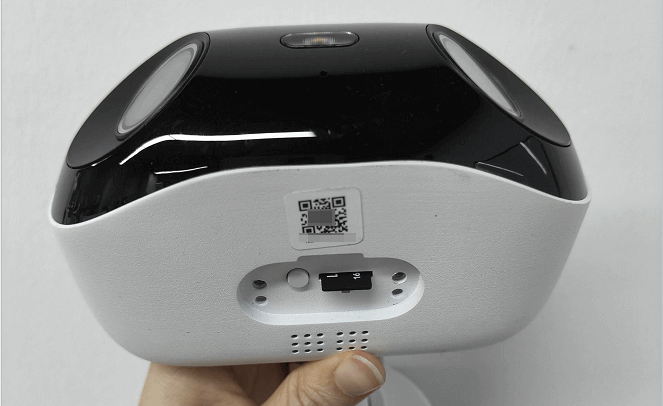

    Gently push the card into the slot until you hear a slight "click," indicating that the card has been securely locked into place.
    put sd card elite camera.pngclick in to elite camera

Once the microSD card is securely inserted and the camera is powered back on, it will begin recognizing the card. Format the SD card in the Reolink software before use — this ensures optimal performance and compatibility for video recording. If you encounter any issues or need further assistance, please contact Reolink Support.
