Seeking a compatible NVR for Reolink Duo Series cameras? Finding the right NVR ensures seamless integration and optimal performance for your surveillance needs. This article will introduce the compatibility between the Duo series cameras and NVRs.
Applies to: All Reolink Duo Series Cameras.
|
RLN8-410 with hardware Hw_N7MB01, RLN16-410 with hardware Hw_N6MB01, RLN36, RLN12W |
RLN8-410/RLN16-410 with hardware Hw_H3MB18, Hw_N3MB01, Hw_N2MB02 | RLN8-410/RLN16-410 with hardware Hw_H3MB16, Hw_H3MB02 | Number of occupied channels |
|
| Duo 2 (Battery) | Fully compatible | Not supported | Not supported | 1 |
| Duo (Battery) | Not supported | Not supported | Not supported | / |
| Duo 2 LTE | Not supported | Not supported | Not supported | / |
| Duo 4G | Not supported | Not supported | Not supported | / |
| Duo PoE | Fully compatible | Fully compatible | Not supported | 2 |
| Duo WiFi | Fully compatible | Fully compatible | Not supported | 2 |
| Duo 2 PoE | Fully compatible | Support up to 6MP | Not supported | 1 |
| Duo 2 WiFi | Fully compatible | Support up to 6MP | Not supported | 1 |
| Duo 3 PoE | Fully compatible | Support up to 6MP | Not supported | 1 |
| Duo 3 WiFi | Fully compatible | Support up to 6MP | Not supported | 1 |
| Duo 2V PoE | Fully compatible | Support up to 6MP | Not supported | 1 |
| Duo 3V PoE | Fully compatible | Support up to 6MP | Not supported | 1 |
| Duo Floodlight PoE | Fully compatible | Support up to 6MP | Not supported | 1 |
| Duo Floodlight WiFi | Fully compatible | Support up to 6MP | Not supported | 1 |
Notes:
1. Please find your NVR model and hardware version through this article: How to Find out System Information (Firmware Version) via Reolink Software
2. If your camera is supported but cannot be added to the NVR, please upgrade the NVR to the latest firmware from the official website: Download Center – Reolink
3. Duo WiFi/PoE occupies 2 channels/screens, while the other Duo series cameras only occupy 1 channel/screen.

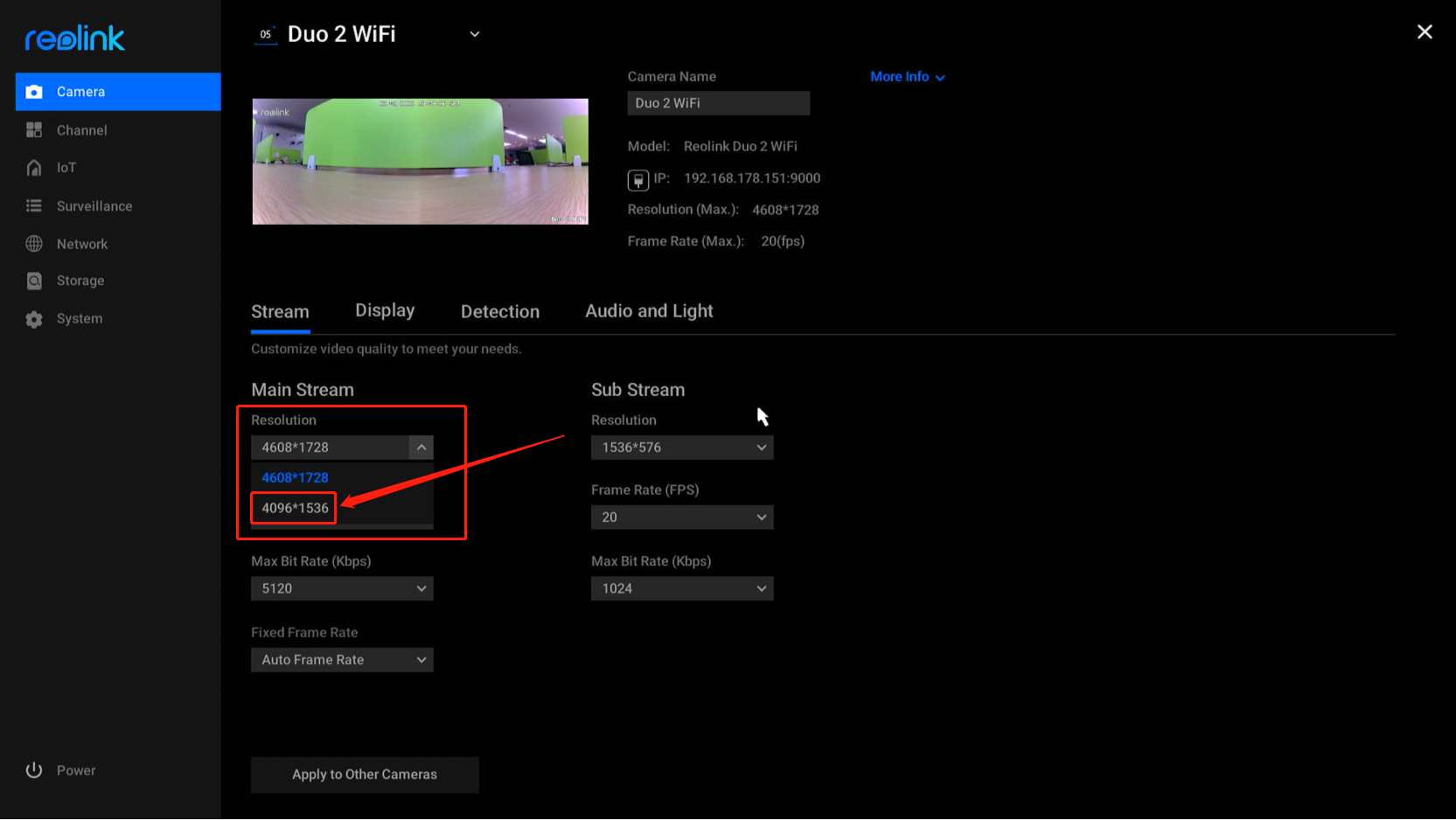

4. The decoding width of Hw_H3MB18 Hw_N3MB01, and Hw_N2MB02 hardware is 4096. Therefore, if you set the mainstream resolution as 4608*1728 or more, the image cannot be displayed on full screen successfully. It is recommended to set the mainstream resolution as 4096*1536, 4096*1152 (Different models have different resolution options).
After confirming the compatibility with the NVR, you can follow this guide: How to Add Reolink Cameras to Reolink NVR (New UI) to add the camera to the NVR.
