The RLA-RM1 Rack Mount Bracket provides flexible and secure installation options for Reolink NVRs. In this article, we will walk you through the compatible NVR models, their corresponding mounting hole positions, and step-by-step installation instructions for both wall and rack setups.

Part 1: Introduction to the RLA-RM1 Rack Mount Bracket

To support diverse installation scenarios, Reolink has developed the RLA-RM1 Rack Mount Bracket specifically for Reolink NVR devices. This bracket removes the limitation of placing your NVR only on flat horizontal surfaces. With the RLA-RM1, you can mount the NVR securely on a wall or in a standard 19-inch server rack, enabling centralized management of multiple devices.

Part 2: Compatible NVR Models and Corresponding Mounting Holes

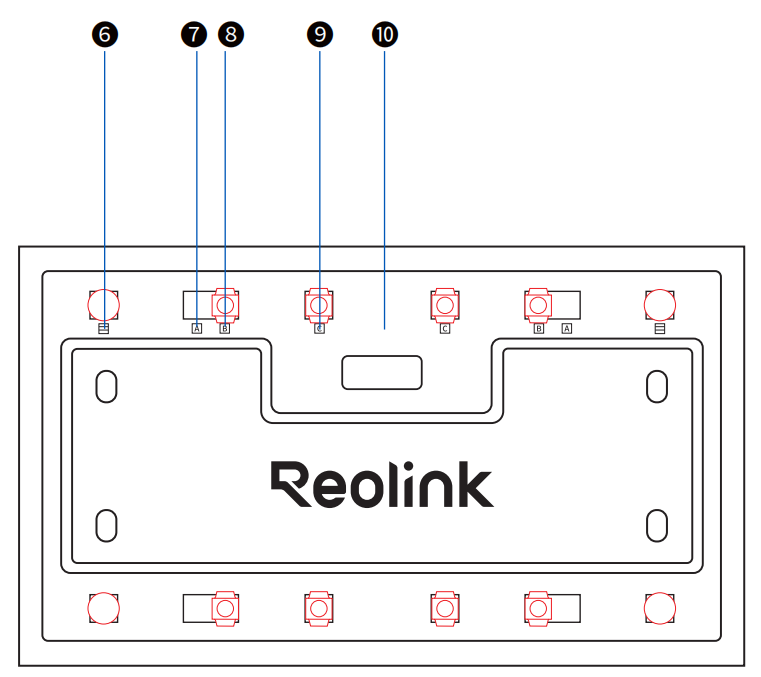

The mounting plate of the RLA-RM1 includes multiple hole positions tailored for different installation scenarios:

  • Rack Holes (Position 6): These are the outermost four holes used to mount the bracket into a standard 19-inch rack.
  • Hole B (Position 8): Use these holes to mount RLN16-410 or RLN36 NVRs on the wall.
  • Hole C (Position 9): Use these holes to mount RLN8-410 or RLN12W NVRs on the wall.

Note:

1. Hole A is currently not applicable to any NVR models.

2. Each mounting hole type includes four corresponding positions (top-left, top-right, bottom-left, bottom-right) that must be used together.

installation hole

Part 3: Installation Instructions

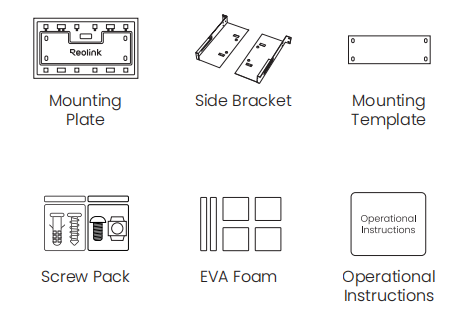

What is in the box

To ensure a smooth installation process, let's first familiarize ourselves with the included parts:

  • 1 × Mounting plate
  • 2 × Side brackets (left and right)
  • 1 × Mounting template
  • 2 × Screw packs
    • One for securing the mounting plate to the wall (includes screws and wall anchors)
    • One for attaching the side brackets to the mounting plate (includes screws and cage nuts)
  • 1 × EVA foam pad (used for shock absorption and to protect the NVR and bracket)
  • 1 × Operational instructions



what is in the box

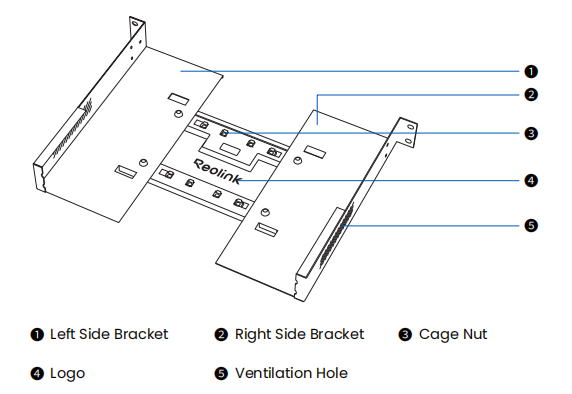

Bracket overview

Be mindful of the ventilation holes on the side brackets. When installing on a wall, these holes should be at the bottom.

bracket overview

Step-by-Step Installation Guide

RLA-RM1 can be installed on the wall or with a standard rack. Click the following title to expand the corresponding installation option:

  • Option 1: Wall Installation

    Note: Ensure the wall can support the total weight of the bracket and the NVR. The surface should be flat and perpendicular to the ground.

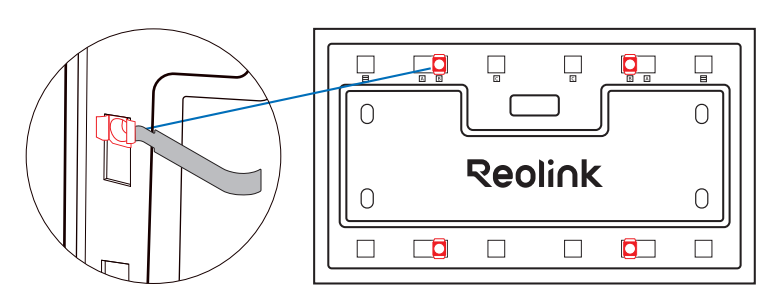

    Step 1: Install the cage nuts into the appropriate holes on the mounting plate, according to your NVR model. (Install from the back side of the mounting plate.)

    install cage nuts

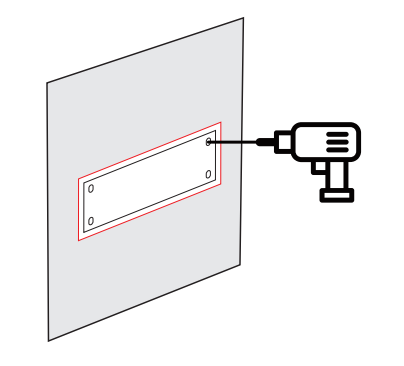

    Step 2: Stick the mounting template on the wall and drill holes as indicated. Use a level tool (not included) to keep the template perfectly horizontal.

    drill holes

    Step 3: Secure the mounting plate to the wall using the screws provided. Refer to the diagram to identify the correct hole positions on the mounting plate.

    srews the mounting plate

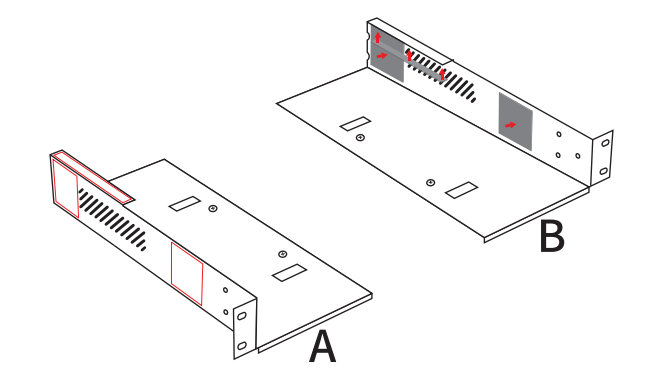

    Step 4 (Optional): Attach the EVA foam to the side brackets for added protection against collision.

    EVA Foam

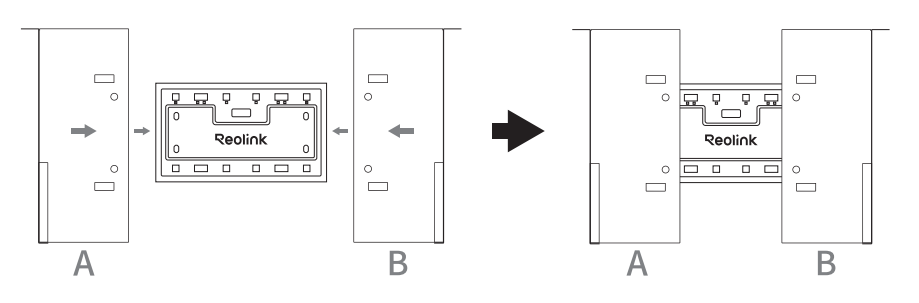

    Step 5: Align the metal tabs on the back of each side bracket with the mounting plate edges. Slide the side brackets onto the mounting plate. Ensure the side with ventilation holes is facing downward.

    install side brackets

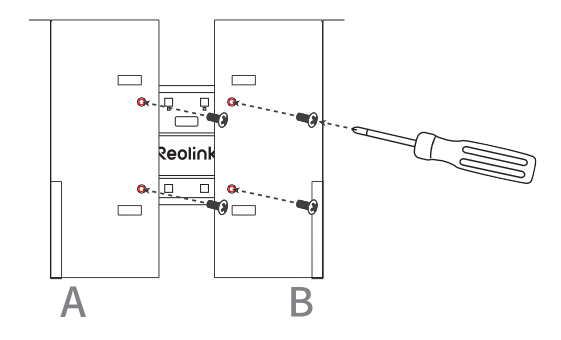

    Step 6: Adjust the side brackets to align their circular holes with the cage nuts installed. Use the provided screws to secure them.

    tighten screws

    secure side bracket

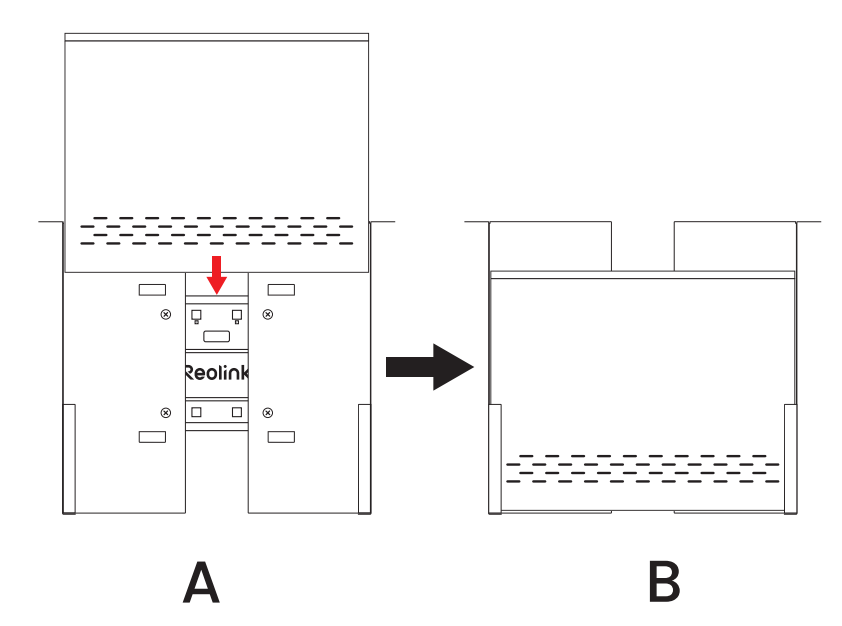

    Step 7: Place the NVR into the mounted bracket. Installation complete!

    place the NVR

  • Option 2: Rack Installation

    Note:

    1. Please ensure the bracket is installed on a rack that can support the combined weight of the NVR and bracket.

    2. The bracket is 2U in height (3.5 inches).

    Step 1: Prepare the Bracket

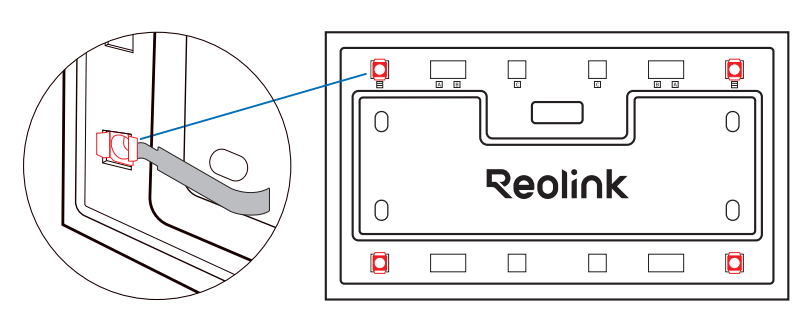

    1. Install the cage nuts into the rack holes on the mounting plate from the back.

    install cage nuts rack

    2. (Optional) Stick the EVA foam onto both side brackets to protect the NVR against collision.

    EVA Foam

    3. Align the metal tabs on the back of each side bracket with the mounting plate edges. Slide the side brackets onto the mounting plate. Ensure the side with ventilation holes is facing downward.

    install side brackets

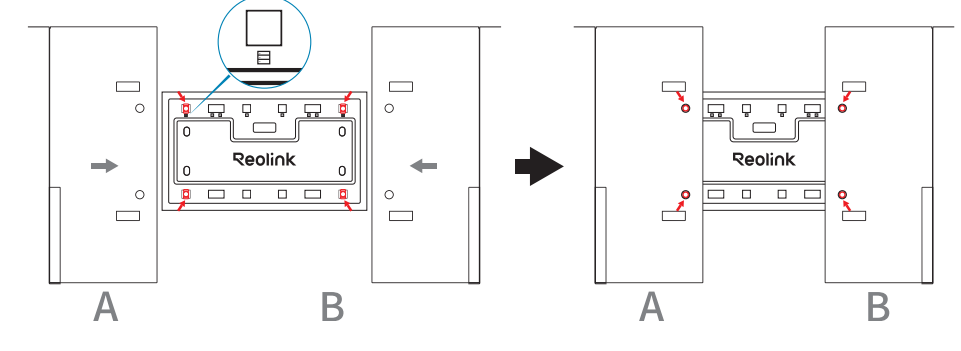

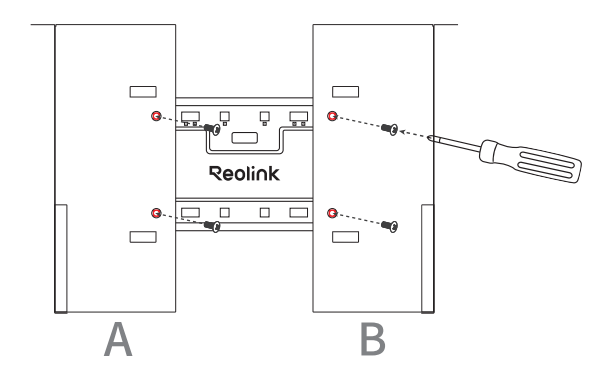

    4. Align the circular holes on the side brackets with the cage nuts, and secure using the provided screws.

    align rack holes

    secure the bracket

    Step 2: Mount the Bracket onto the Rack

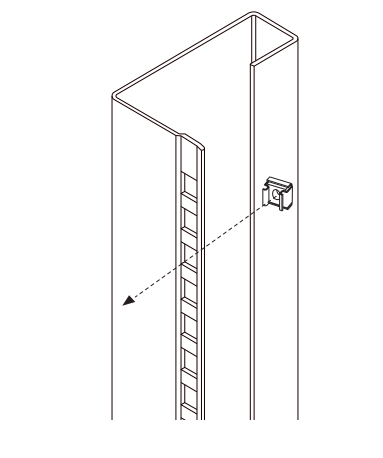

    1. Install four cage nuts at the desired height on the rack.

    cage nuts rack

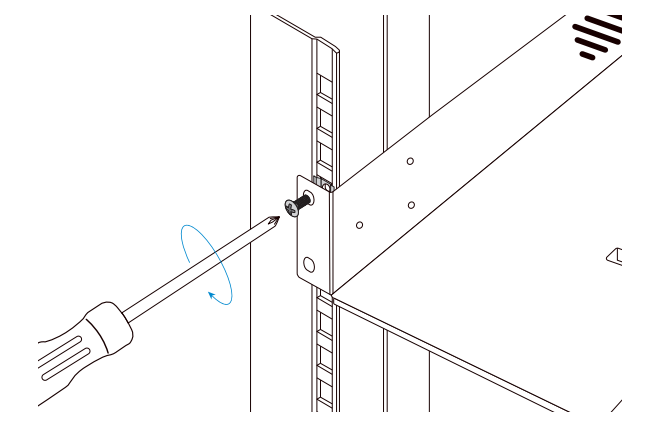

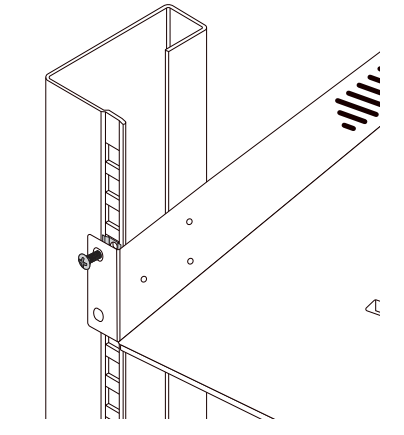

    2. Align the side brackets with the rack holes and use the screws to secure the bracket to the rack.

    secure bracket rack 1secure bracket rack 2g

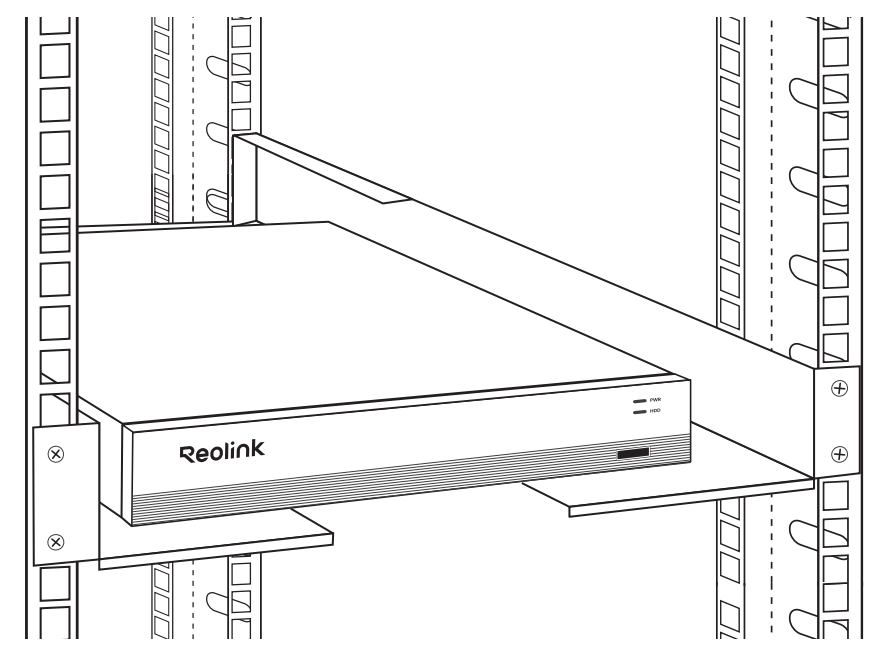

    3. Place the NVR into the bracket. Installation complete!

    place NVR rack

The RLA-RM1 Rack Mount Bracket is a highly versatile mounting solution designed to improve the organization and safety of NVR installations. Whether mounted on a wall or secured in a server rack, it provides professional-grade stability and convenience.

Should you have any inquiries or require further assistance, please click on "Submit a Request" below to contact the Reolink Support team.
