Applies to: Argus 3 Pro;RLC-510A;RLC-810A;RLC-1210A; RLC-520A; RLC-820A; RLC-811A; RLC-812A;RLC-822A; RLC-823A;RLC-824A;RLC-1220A; E1 Outdoor;RLC-510WA;RLC-511WA;RLC-523WA;RLK8-510B4-A;RLK8-510D4-A;RLK8-810B4-A; RLK8-820D4-A;RLK16-810B8-A;RLK16-820D8-A; RLK8-812B4-A;RLK16-812B8-A;RLK8-824B4-A;RLK8-1220D4-A; RLK8-1210B4-A
It can support setting up maximum object size and minimum object size at the same time for the person and vehicle detection separately. If the moving objects that are smaller than the minimum object size or bigger than the maximum object size will not trigger the alarm so as to reduce the false alarm caused by spider webs, light changes, and raindrops.
You may follow the steps below to configure the object size setting via the Reolink client.

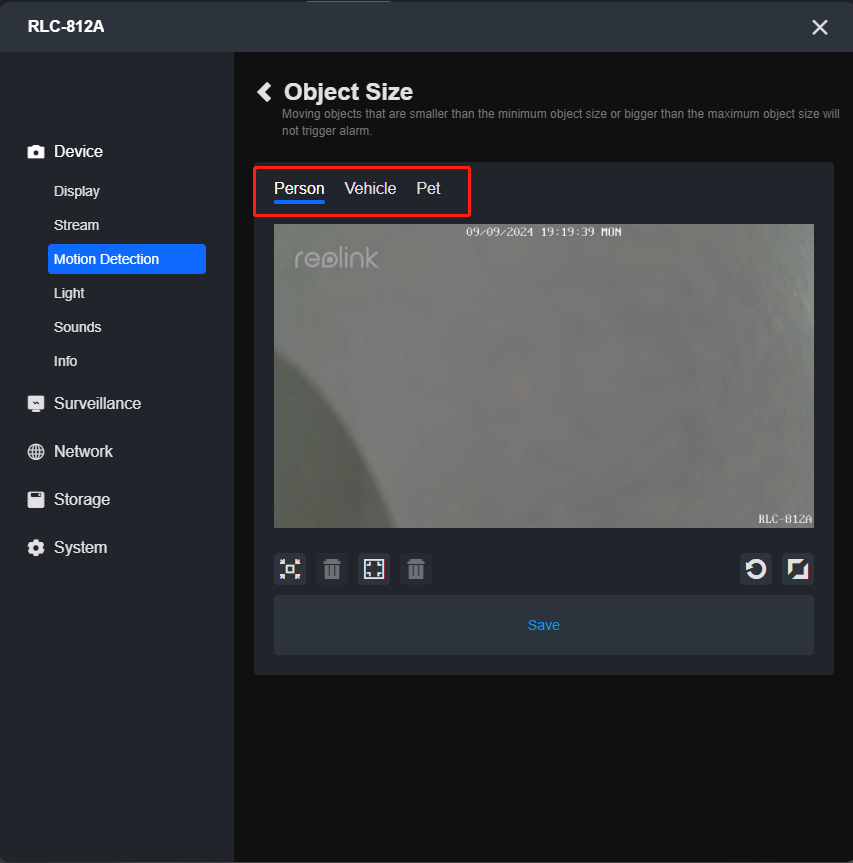

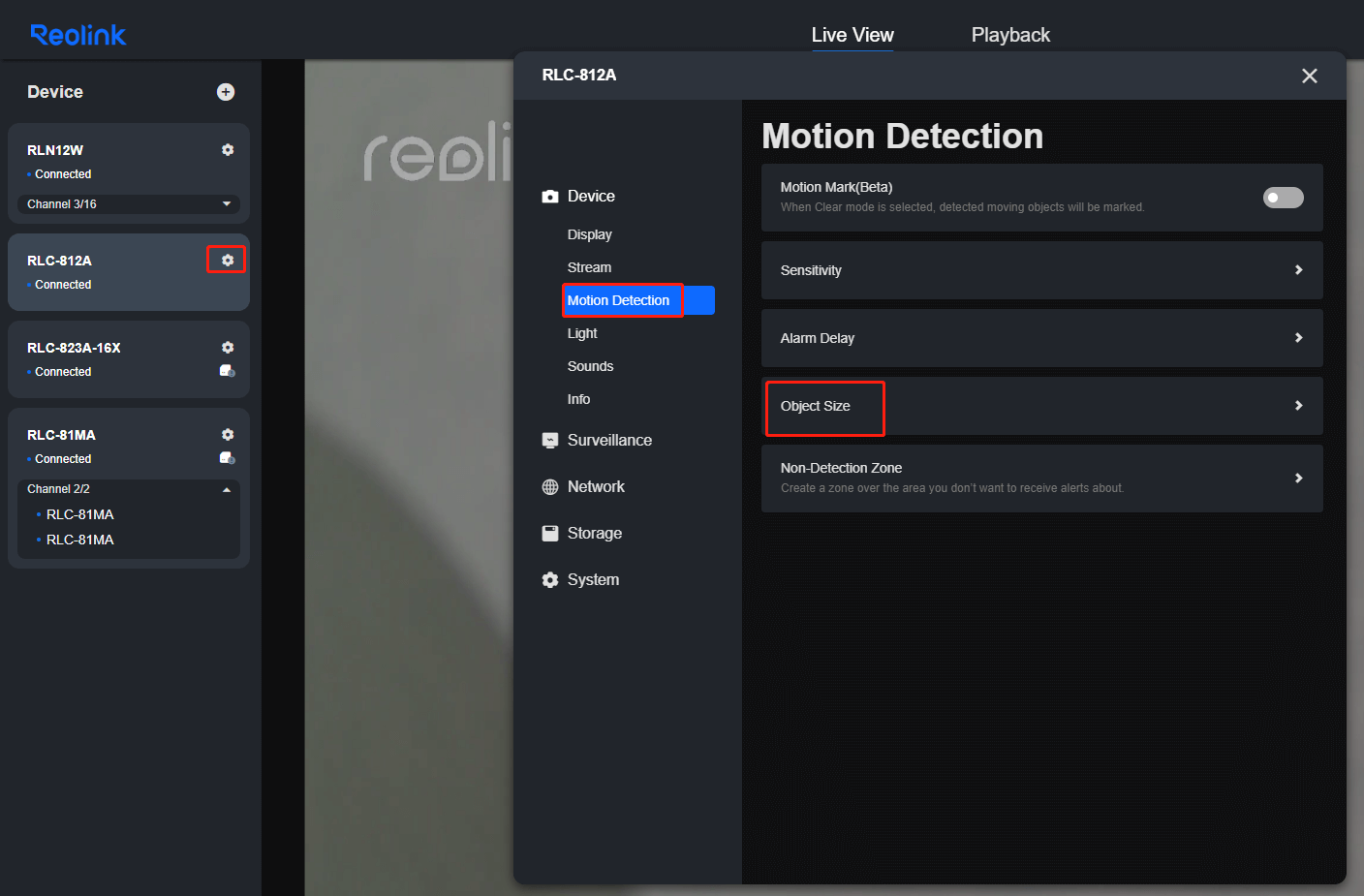

Step 1. Login to your device and then go to Device Settings ->Camera->Detection Alarm page and Click Set Up button to configure for the person or vehicle detection.

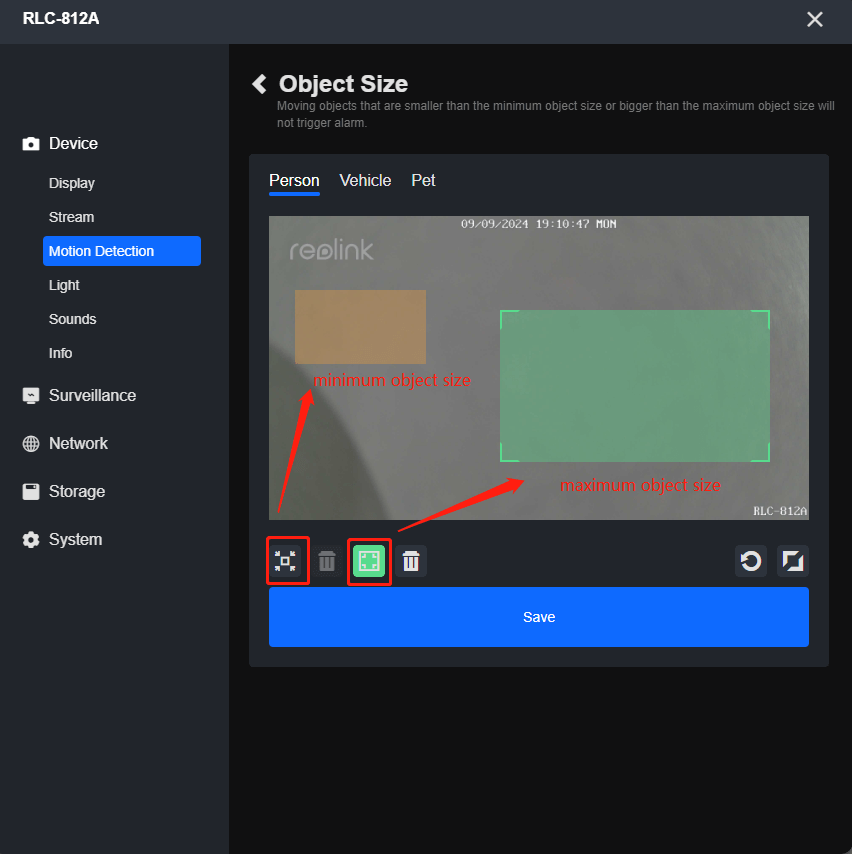

Step 2. Click the icon at the bottom and draw the size you want. Don't forget to click Save to save your configuration.
