Want to monitor multiple camera feeds at once? Reolink NVRs make it easy to switch between single and multi-screen views for better surveillance management.
Applies to: RLN8-410, NVS8, RLN16-410, NVS16, RLN36, NVS36, RLN12W, NVS12W
How to Set Up Multi-Screen View for Reolink NVR
To view more than one camera at the same time on your NVR monitor:
-
Go to the Live View Page on your NVR.
-

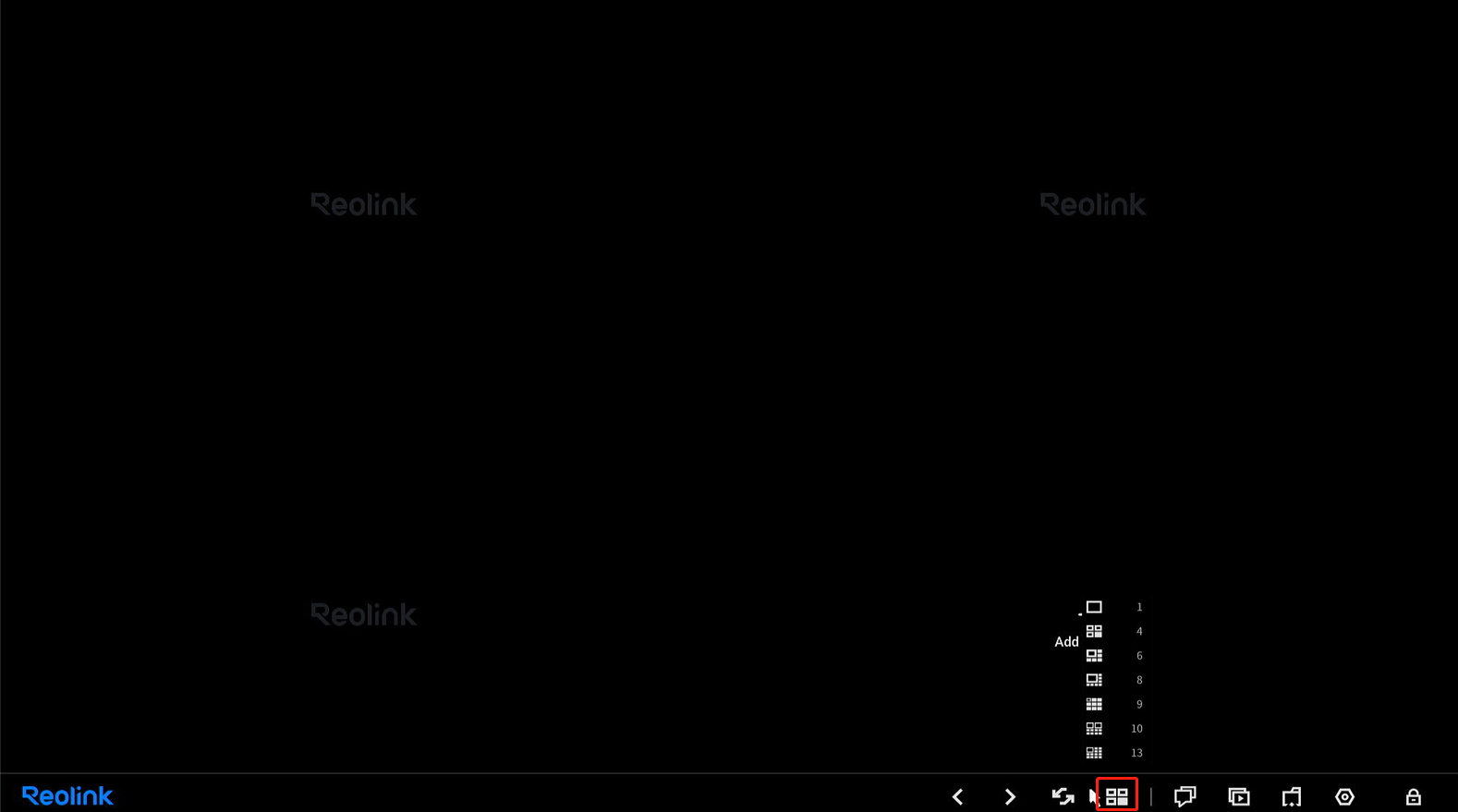

Right-click to pop up the settings menu, select the Display Mode icon (located in the bottom menu).
-
Choose the desired multi-screen layout, such as 4-screen, 8-screen, 9-screen, etc.
This will allow you to monitor multiple camera feeds simultaneously.
Special Note for Reolink RLN36 Users
For the RLN36 NVR, the number of camera feeds that can be displayed at the same time depends on the output screen resolution of your connected monitor:
-
1280×720 or 1280×1024 resolution: Supports up to 16 camera views
-
1920×1080 (Full HD) resolution: Supports up to 25 camera views
-
3840×2160 (4K) resolution: Supports up to 36 camera views
About changing output screen resolution of monitor, refer to: How to Set up the Output Settings for Reolink NVR
Note: The more camera feeds displayed on one screen, the smaller each individual feed will appear. We recommend choosing a layout that best suits your monitoring needs while balancing visibility and the number of cameras.
By adjusting the display mode and resolution, you can customize your viewing experience and stay on top of all your cameras with ease.
