Below is a simple guide to configuring advanced image settings for your Reolink cameras via the Reolink client.

Applies to: All Reolink cameras except the battery-powered camera

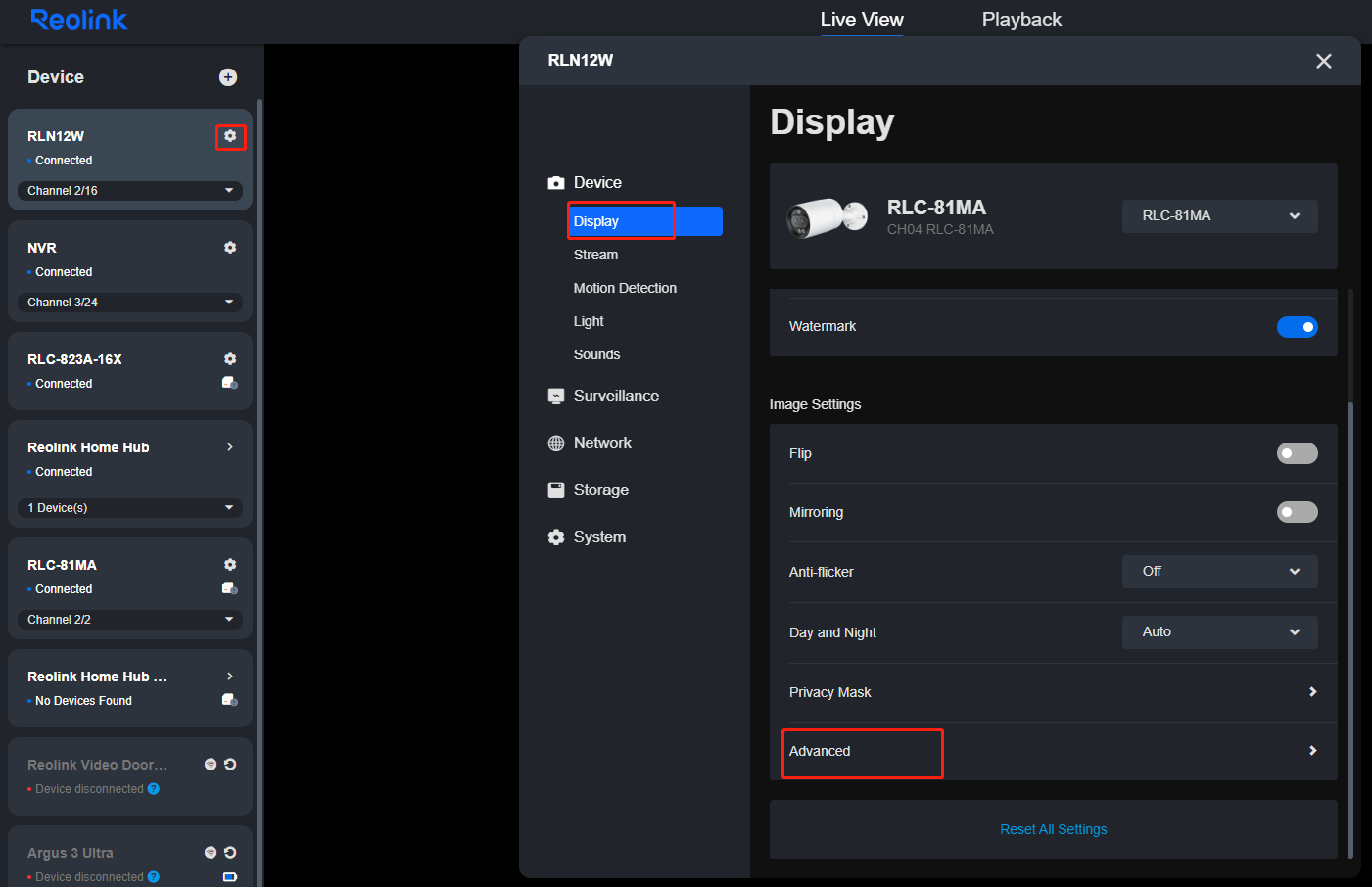

Launch Reolink Client and go to Settings > Device > Display page and click Advanced to configure more parameter settings for the camera.

display page

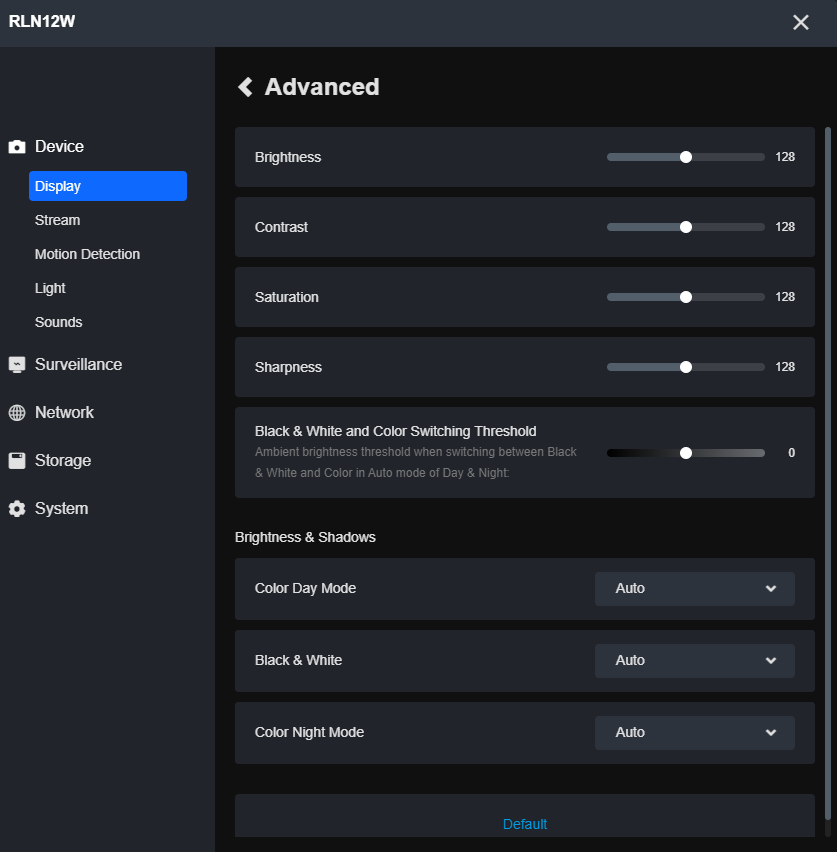

advanced page

  • Anti-flicker: Use this feature if some devices such as TV screens and lights are flickering.
    - 50GHz: Used for Australia and the UK.
    - 60GHz: Used for the USA and Canada.
    - Off: If the camera is for outdoor use, and the image is a bit exposed, please choose off.
  • Day and Night: Set the camera’s color mode during different times of the day and night.
    - Color: The camera will show a color image which is usually in the daytime.
    - Black and white: The camera will show the image only with black and white which is usually during the night when the IR LEDs are on.
    - Auto: The camera will automatically switch between ​color and​ black and white​ according to the light conditions.
  • Brightness: Use this feature to make the preview darker or brighter.
  • Contrast: Select the contrast level to adjust the range of the light and shadow of the image.
  • Saturation:  Adjust the vividness of the color of the picture. The larger the value, the brighter the color, the smaller the value, the lighter the color.
  • Sharpness: Increase or Decrease the sharpness of the image objects' edges.
  • Black & White and Color Switching Threshold: Adjust the threshold to adjust the day/night mode switch time. If you want the camera to stay in the color mode for a longer time, adjust the value to the right, do not exceed +45. If the camera is too early to switch to day mode, you can adjust this threshold to the left, but do not lower than -45.
  • Color Day Mode (Color image):
    - Manual: Drag the slider to set up the whole level of the bright and the dark for the color image.
    - Auto: The camera will automatically set up the whole level of the bright and the dark for the color image according to the light conditions.
  • Black & White:
    - Manual: Drag the slider to set up the whole level of the bright and dark for the Black & White image.
    - Auto: The camera will automatically set up the whole level of the bright and dark for the Black&White image according to the light conditions.
  • Color Night Mode (Only available for a camera with spotlight and takes effect with a spotlight on):
    - Manual: Drag the slider to set up the whole level of the bright and the dark for the color image when the spotlight is turned on.
    - Auto: The camera will automatically set up the whole level of the bright and the dark for the color image when the spotlight is turned on according to the light conditions.
  • Image Stitching: Click How to Set up Image Stitching via Reolink Client to adjust a better stitching effect.
