The Reolink RLA-BP1 is an external battery pack with extended runtime and low-temperature charging support and is designed to boost the performance and reliability of Reolink battery-powered cameras. This article covers the product’s key features, camera compatibility, installation procedures, and how to monitor it via the Reolink App.

Table of Contents

1. Key Features of RLA-BP1

2. Compatibility with Reolink Cameras

3. Installation Guide

4. Connection and Use

1. Key Features of RLA-BP1

To address common challenges like frequent charging and poor battery performance in cold weather, the RLA-BP1 brings the following benefits:

Extended Runtime

Equipped with a 12,800mAh / 92Wh high-capacity battery, the RLA-BP1 can deliver up to 15W of stable output power to your Reolink battery cameras. This significantly prolongs camera uptime and reduces the need for frequent recharging.

Low-Temperature Charging

When connected to a 12W or higher Reolink solar panel, the RLA-BP1 can self-charge in temperatures as low as -10°C, ensuring power supply even in extreme winter conditions. This eliminates the limitations of traditional battery packs in cold weather.

Note: Charging in sub-zero temperatures is only supported when the battery pack is connected to a Reolink solar panel of 12W or higher.

IP67 Waterproof and Dustproof

With an IP67-rated casing, the battery pack is built for reliable outdoor performance in all weather conditions.

2. Compatibility with Reolink Cameras

The RLA-BP1 is compatible with most Reolink battery-powered cameras, except Argus Eco and Argus Series B320.

For Reolink models having a Micro USB charging port, the included USB-C to Micro USB converter allows seamless compatibility.

  • Battery Info in Reolink App

When working with the following Reolink cameras, the detailed battery pack information can be checked in the Reolink App.

Camera Model Hardware version
Reolink TrackMix LTE Plus 2 BIPC_NT14BCNO34MPC1SD7V8
Reolink Altas Go PT BIPC_NT14BCNO34MPC1SD13V1
Argus PT Ultra BIPC_NT2BNO28MPW4SD15V5

Steps to Check the RLA-BP1 Battery Pack Info via the Reolink App

1. Connect the camera to the RLA-BP1 battery pack.

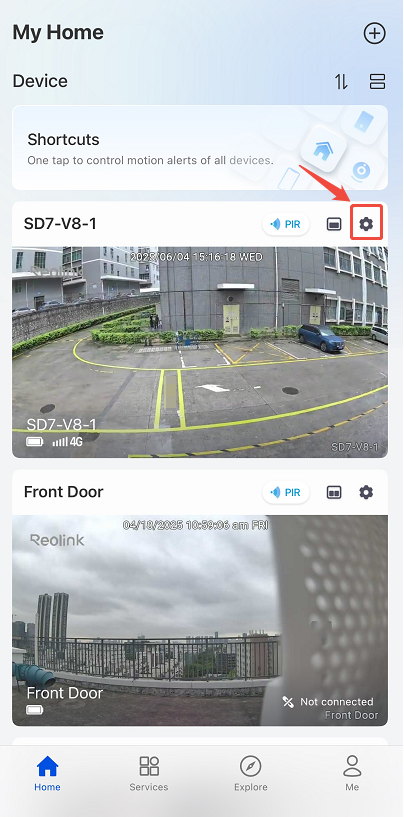

2. Open the Reolink App and log in to the camera.

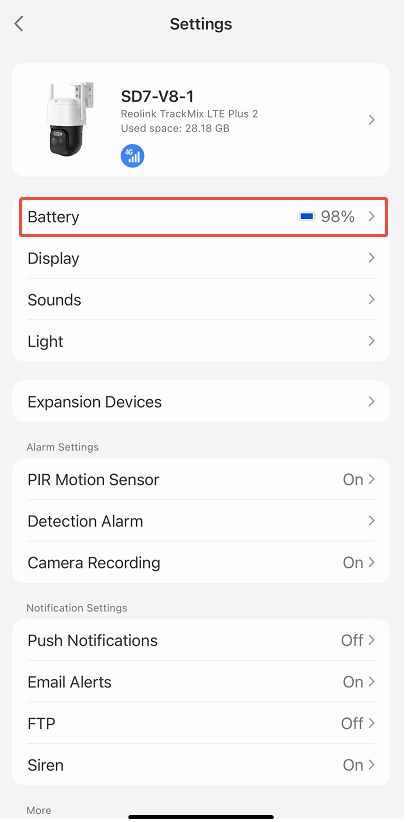

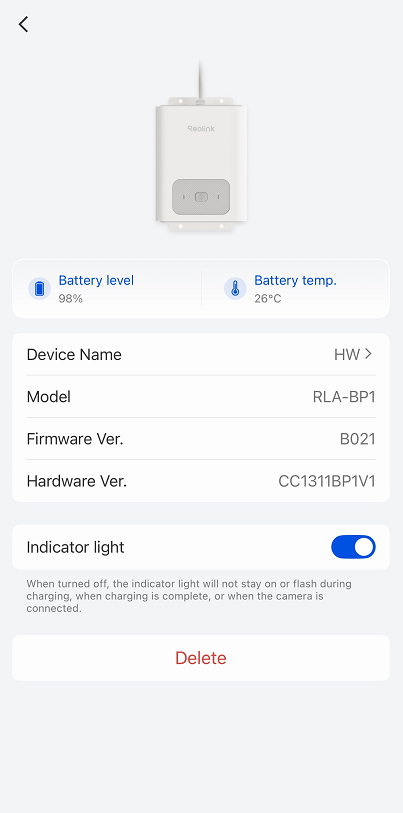

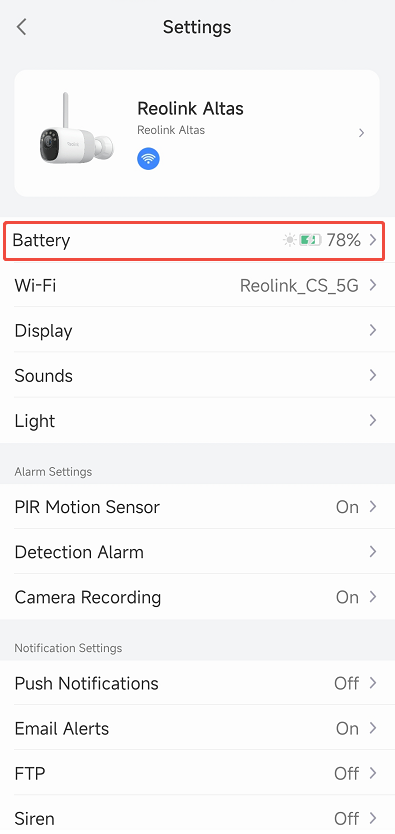

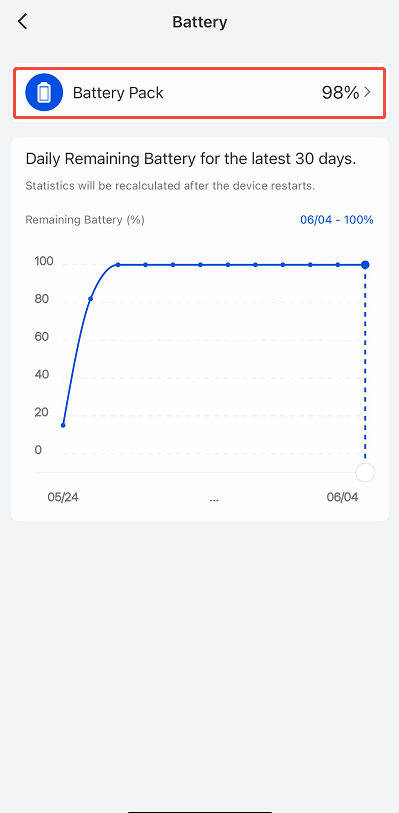

3. Go to Camera Settings > Battery > Battery Pack, where you can view:

  • Battery Level
  • Battery Temperature
  • Device Name
  • Device Model
  • Firmware & Hardware Versions
  • Indicator Light Toggle (When disabled, the LED will remain off during charging or when in use.)

settings icon battery sectionpower pack power pack information

Other camera models can still use the RLA-BP1 for charging, but battery pack data will not be displayed in the App. Only the standard solar charging icon will be visible.

solar panel charging battery status

3. Installation Guide

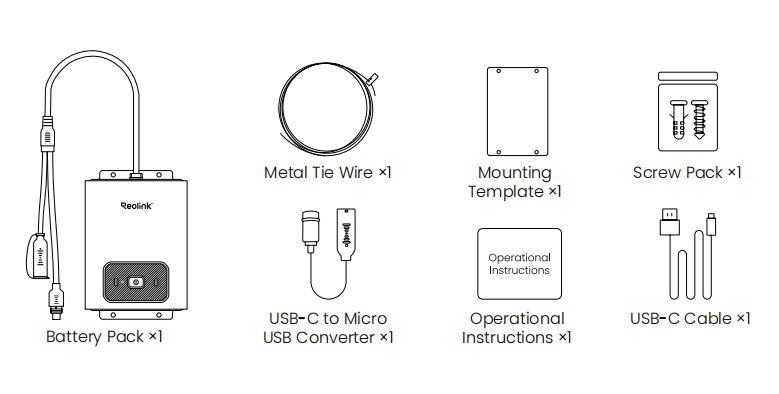

What’s in the Box

what is in the box

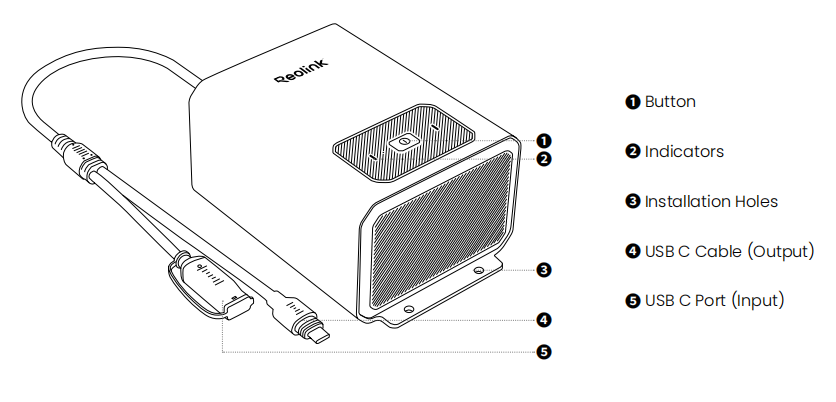

Product Introduction

product introduction

Installation Methods

The RLA-BP1 supports two installation methods: Wall Mounting and Wire Mounting. Please ensure the installation surface can bear the combined weight of the camera and accessories.

  • Wall Mounting

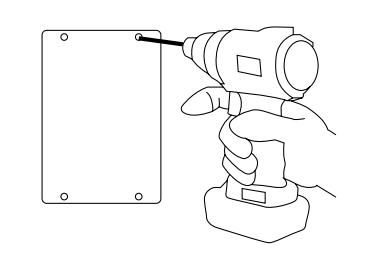

    Step 1: Use the mounting template to drill holes in the wall.

    Step 2: Secure the battery pack with the provided screws.

    drill holessecure battery back

  • Wire Mounting (Tree or Pole)

    Note: The metal wire is elastic. Handle with care during installation to avoid injury.

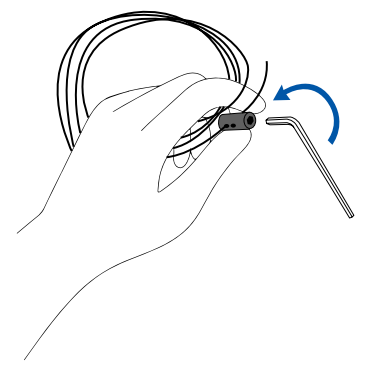

    Step 1: Loosen the screws on the cable clamp using the provided wrench.

    loosen screws

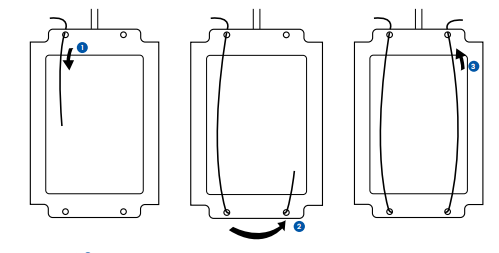

    Step 2: Pass the metal wire completely through the mounting hole, ensuring the cable clamp locks
    into place.

    Note: It is recommended to install with the tail wire facing upward.

    pass wirepass wires

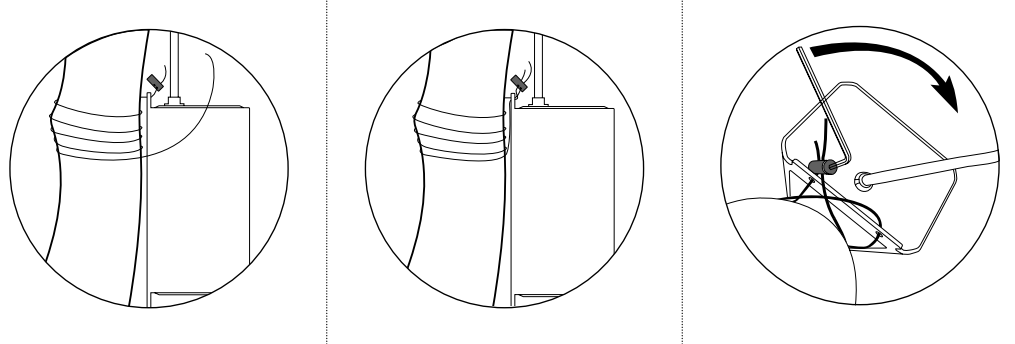

    Step 3: Secure the battery pack to a tree or pole using the metal wire.

    Step 4: Pass the metal wire through the cable clamp. It is recommended to wrap the metal wire several times to ensure it stays secure. Leave a sufficient length of wire for future attachment to the cable clamp

    Step 5: Tighten the screws on the cable clamp using the provided wrench.

    step 3 to 5

4. Connection and Use

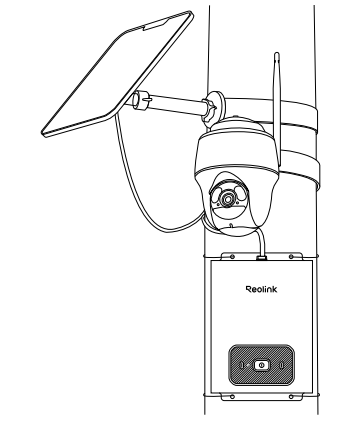

Connect the battery pack to the camera

1. Optionally connect the battery pack to the solar panel. Then connect the battery pack to the camera.

2. Press and hold the button for 1 second to turn on the battery pack.

connection power pack and camera

Turning On / Off

On

Press and hold the button for 1 second.

Off

Press and hold the button for 3 seconds.

Indicator Light Meaning

Press the button on the Reolink RLA-BP1 battery pack once to check the working status through the indicator lights.

Status Indicator Light Behavior
On/Off Flashing red and green
Charging Flashing green
Charging finished Solid green
Low battery Flashing red
Out of power No lights

The RLA-BP1 is an excellent upgrade for users looking to improve the runtime, reliability, and winter performance of their Reolink battery cameras. With flexible installation options and intelligent power management, it ensures a stable power supply. Should you have any inquiries or require further assistance, please click on "Submit a Request" below to contact Reolink Support team.
