Installing a Reolink hard drive in your Home Hub Pro can significantly expand its storage capabilities, providing you with extended recording times and improved management of security footage. Follow this step-by-step guide to ensure a smooth Reolink HDD installation process.

Step 1: Power Off the Device

Before making any hardware modifications, power off the Reolink Home Hub Pro and unplug it from the power outlet. This precaution is essential to minimize the risk of electric shock and prevent potential damage to the device or components.

Step 2: Access the Reolink HDD Slot

As shown in the image below:

  • 1. Locate the HDD slot cover on your Home Hub Pro and open the cover.

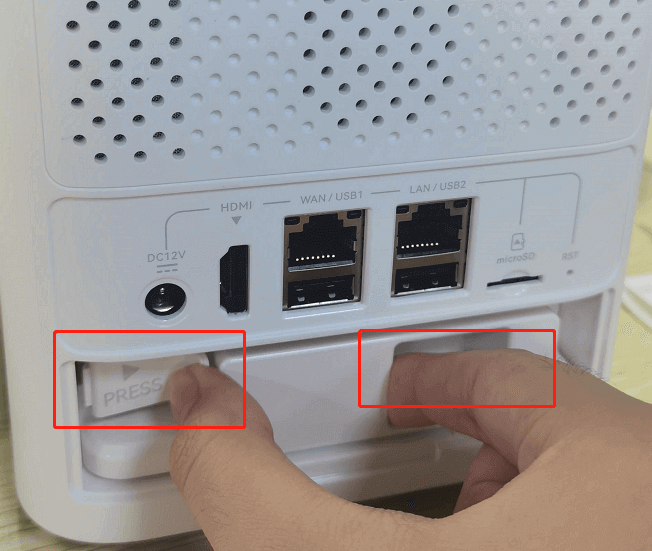

  • 2. Press the release tab on the left side while holding the hollow part on the right (refer to the image).

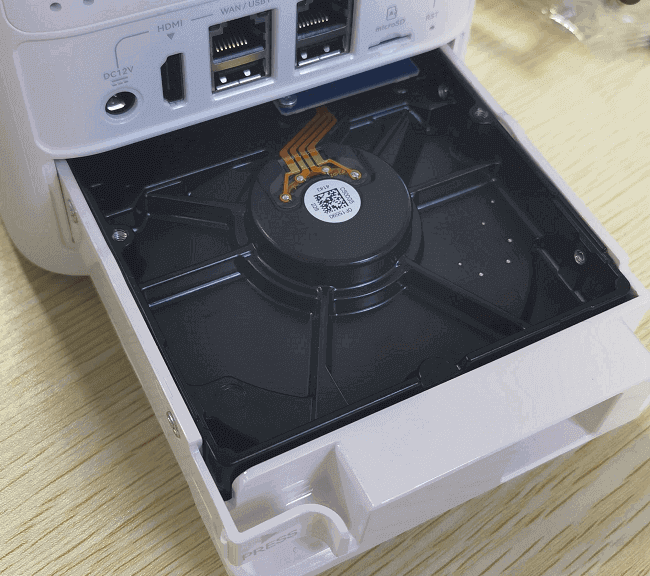

  • 3. Gently pull out the HDD bracket.
    Tip: Handle all components carefully to avoid damage during the process.

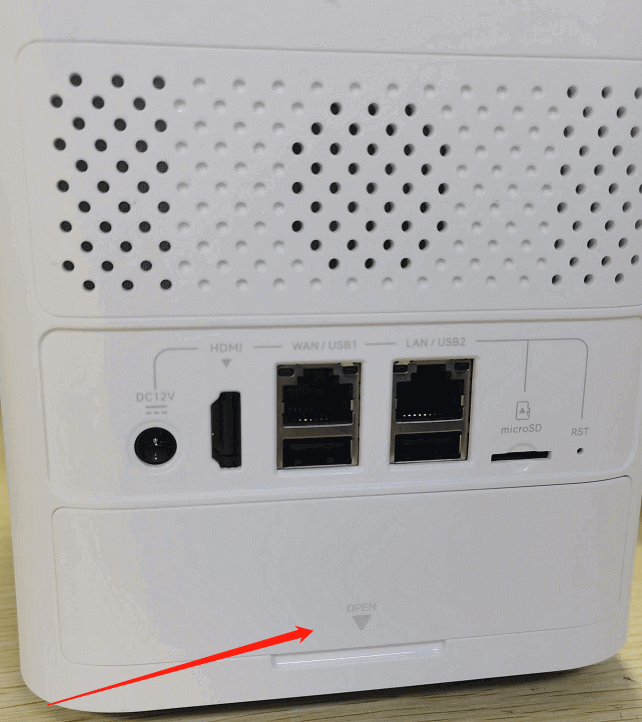

Open the HDD Slot Cover

press

Step 3: Secure the HDD to the Bracket

As shown in the image below:

  • 1. Align your new Reolink hard drive with the connector inside the HDD bracket.
  • 2. Verify the correct installation direction to prevent damage to both the hard drive and the device (refer to the image).
  • 3. Use screws to secure the hard drive to the bracket.
    Note: Tighten the screws firmly but avoid overtightening, so the hard drive remains secure yet easy to remove if necessary in the future.

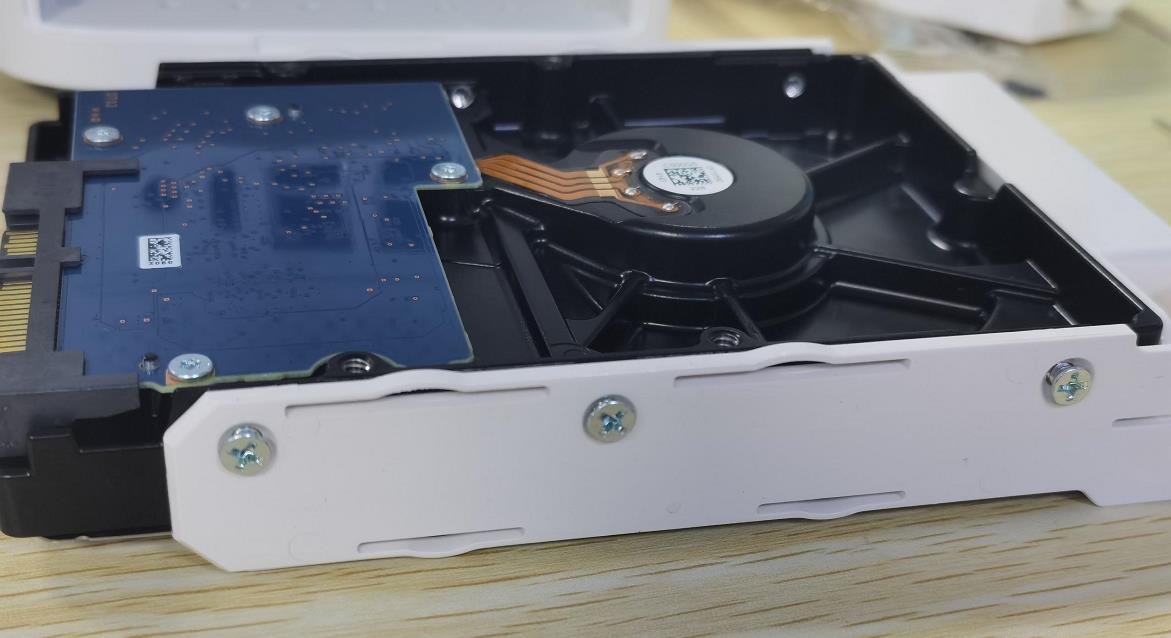

Use screws to secure the slot and the HDD

Step 4: Close the HDD Slot Cover

  • 1. Carefully push the HDD bracket (with the installed drive) back into the slot.
  • 2. Ensure the hard drive fits snugly and is properly connected.
  • 3. Close the HDD slot cover securely.

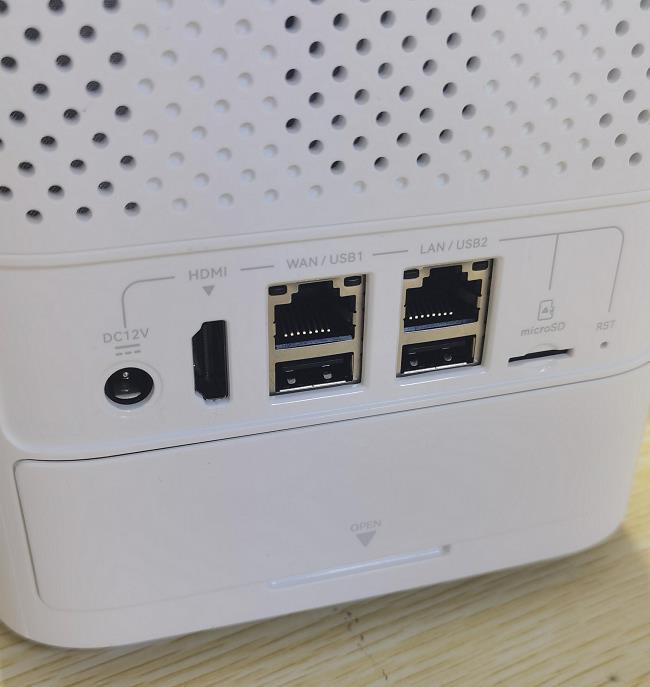

close the slot cover

close

The installation is now complete, and your Home Hub Pro is ready to utilize the additional storage provided by the new Reolink hard drive.

By following these steps, you can enhance your security system's functionality with a Reolink hard drive, offering peace of mind and comprehensive coverage for your home or business surveillance needs. If you encounter any issues during the installation process, do not hesitate to contact Reolink Support for assistance.
