Experiencing Wi-Fi connectivity issues with your Hub can be frustrating. This support article guides you through using the built-in "Diagnose" feature of your Reolink Home Hub or Reolink Home Hub Pro to generate diagnostic logs.

Applies to: Reolink Home Hub, Reolink Home Hub Pro.

Step-by-Step Guide to Generating Diagnostic Logs

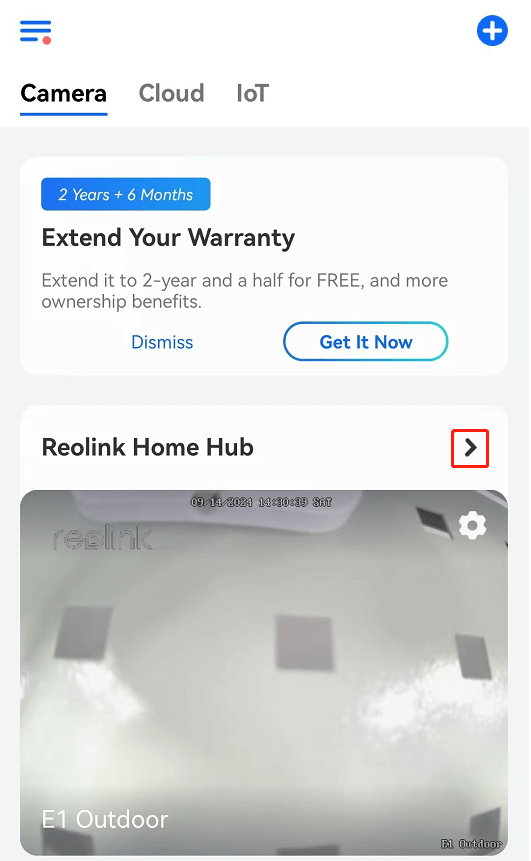

Step 1: Access the Main Menu

  • Open the Reolink App on your mobile device.
  • Locate the Reolink Home Hub/Reolink Home Hub Pro card on the main interface.
  • Tap the arrow icon located on the right side of the card to proceed to the next menu.

go to setting page

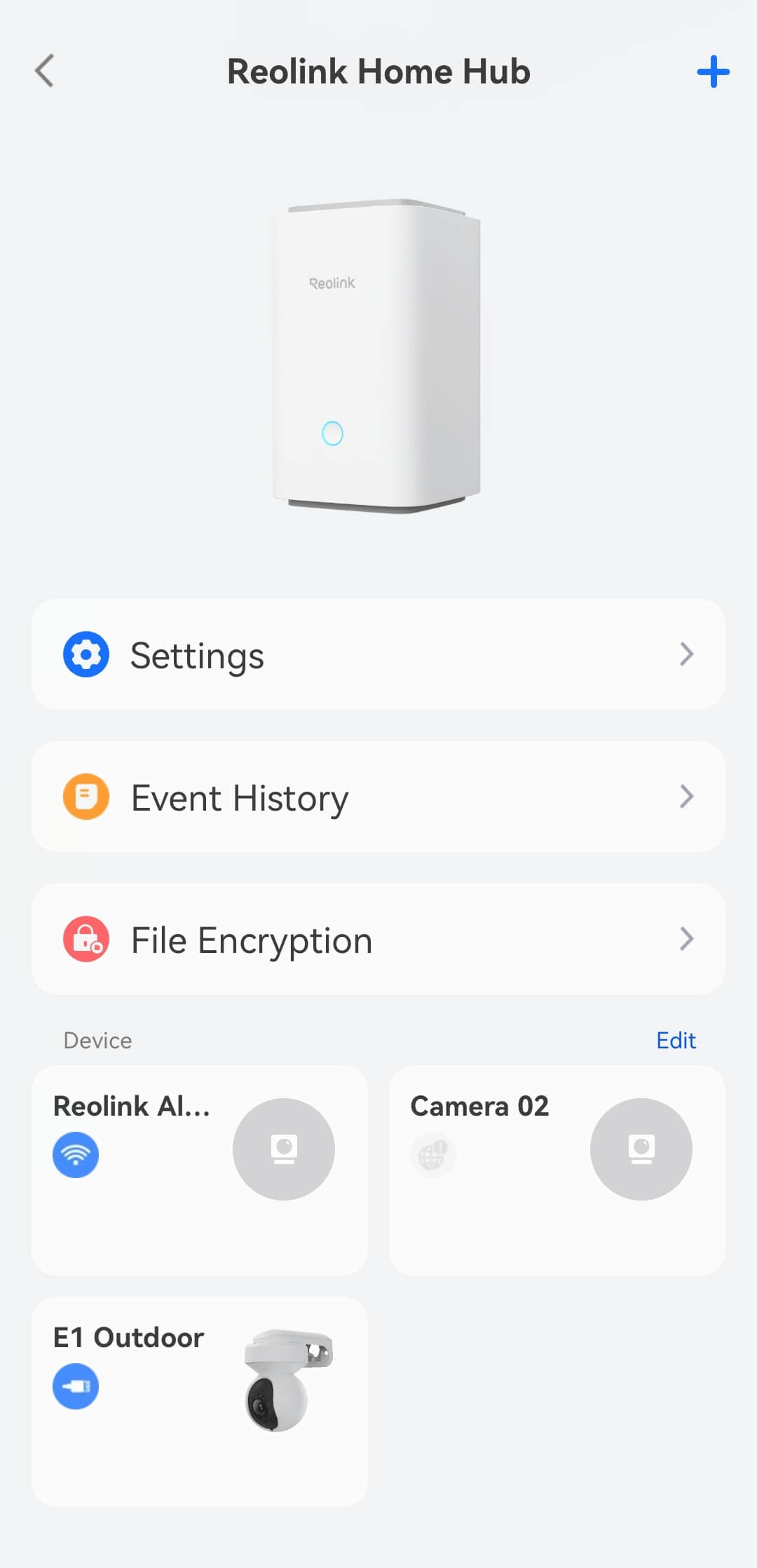

Step 2: Enter Settings

  • Tap "Settings" to open the configuration options for your Home Hub.

Home Hub Settings

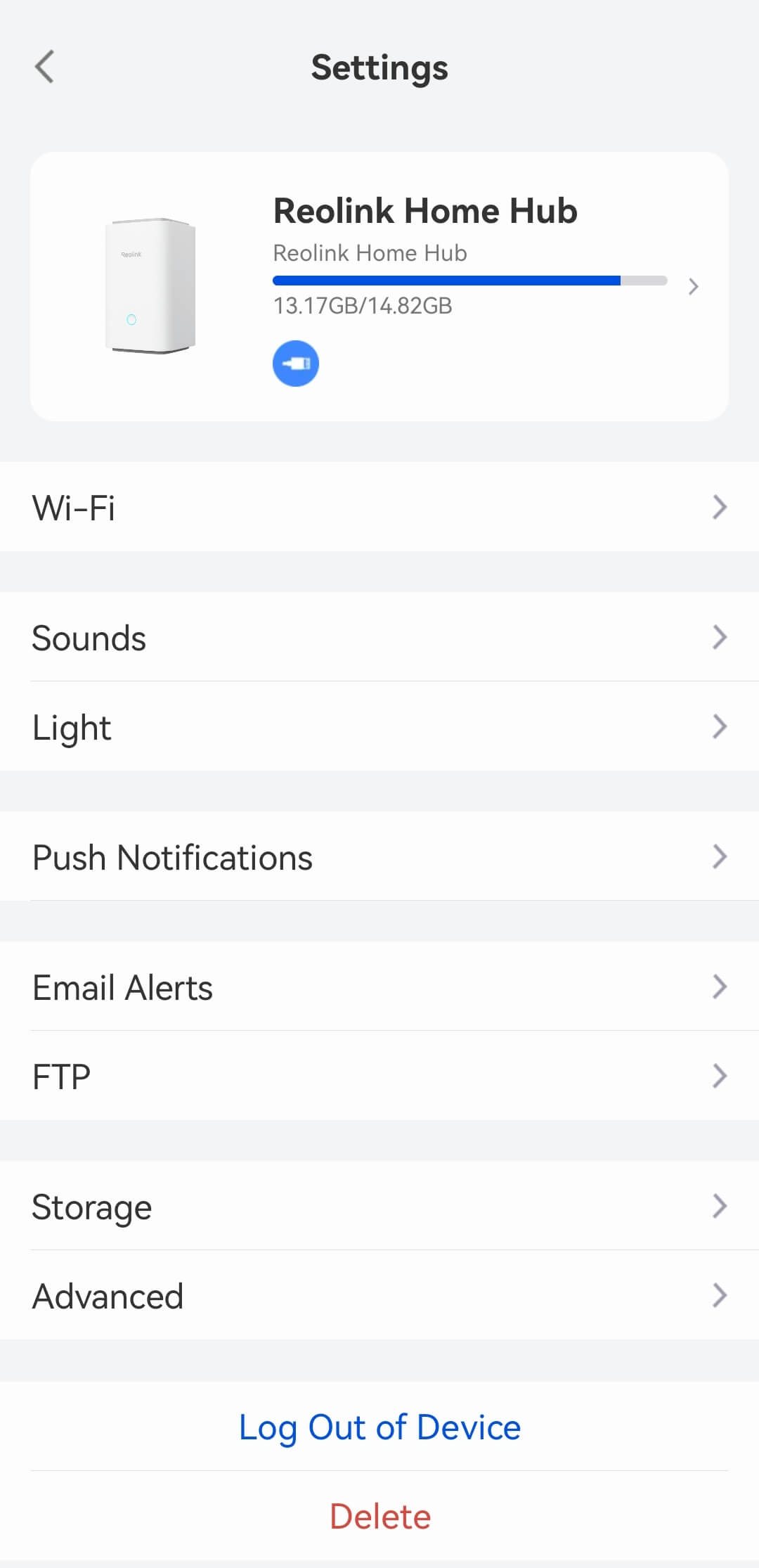

Step 3: Navigate to Wi-Fi Settings

  • Once in the settings menu, locate and select the "Wi-Fi" option.
  • The Wi-Fi settings section contains options for managing your device's connection to wireless networks.

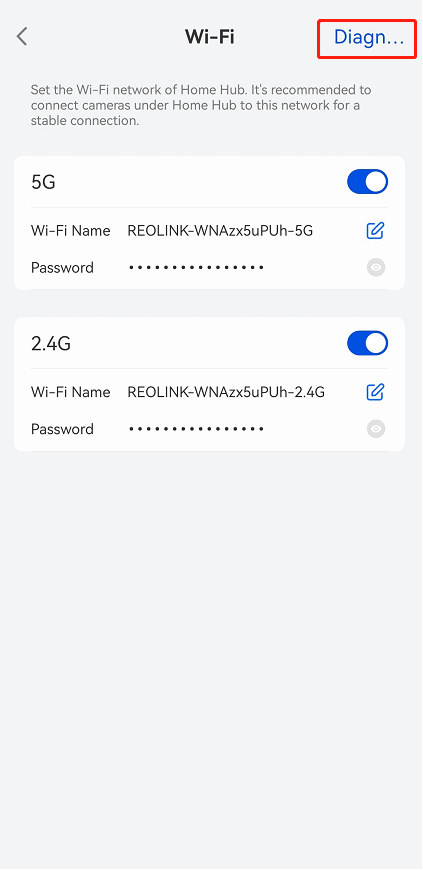

Step 4: Initiate Diagnostic Process

  • Inside the Wi-Fi settings, you will find a "Diagnose" button.
  • Tap this button to start an automated diagnostic test that checks for common Wi-Fi issues.
  • The Hub will analyze its current connection status.

Wi-Fi button Diagnose Wi-Fi

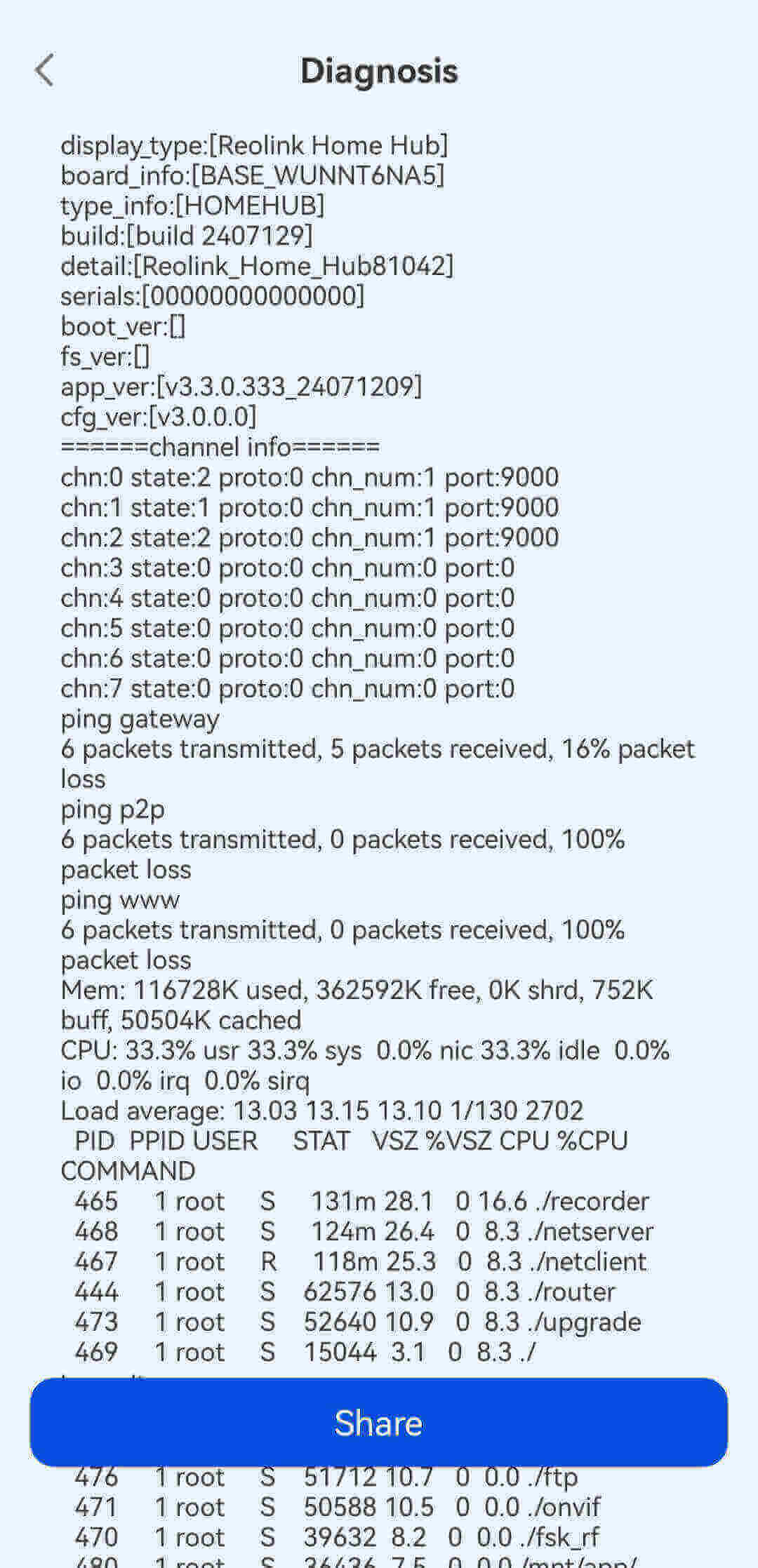

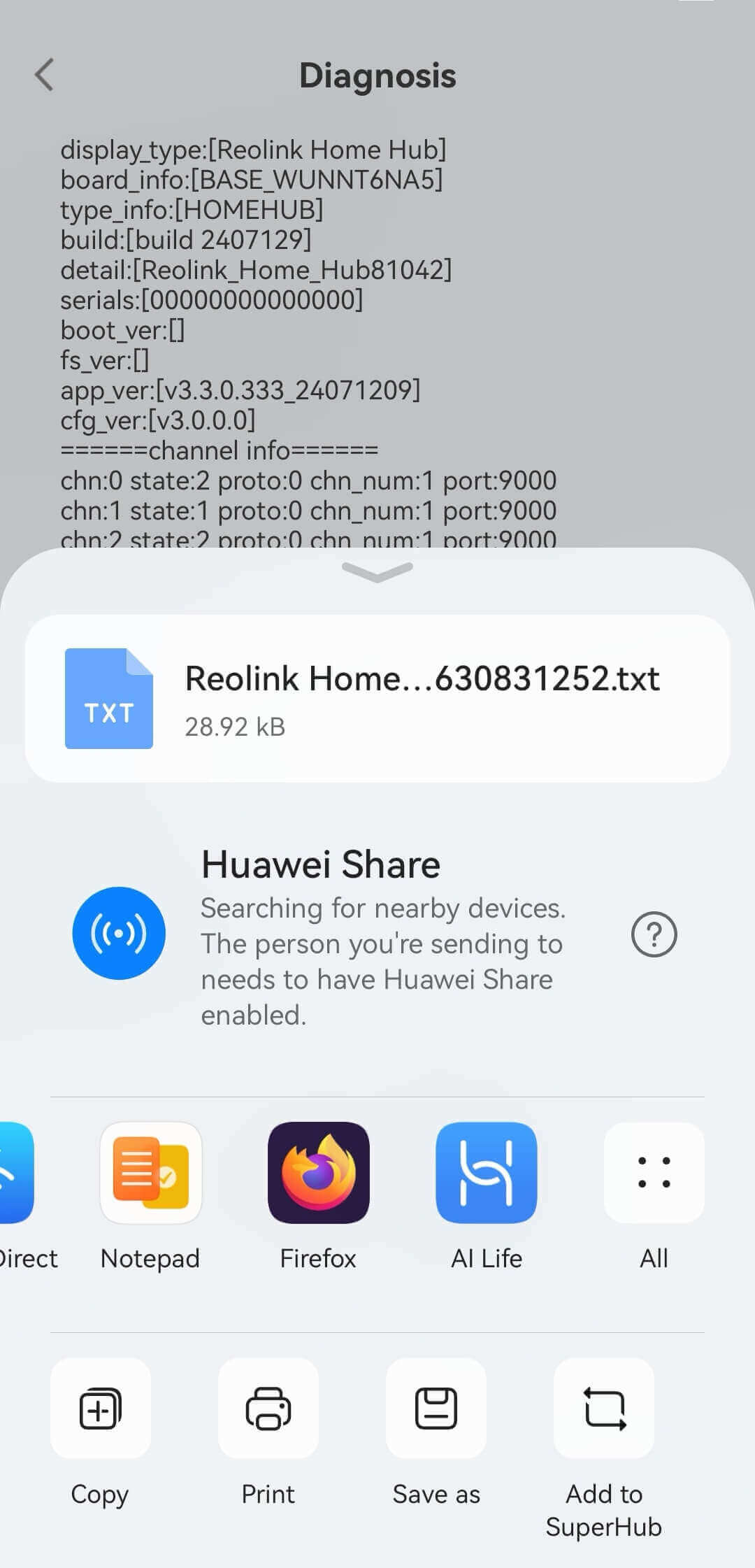

Step 5: Share Diagnostic Results

  • After the diagnosis is complete, you may choose to share the results for further analysis.
  • Tap the "Share" button and then select the desired location to export the diagnostic file.

share choose the app

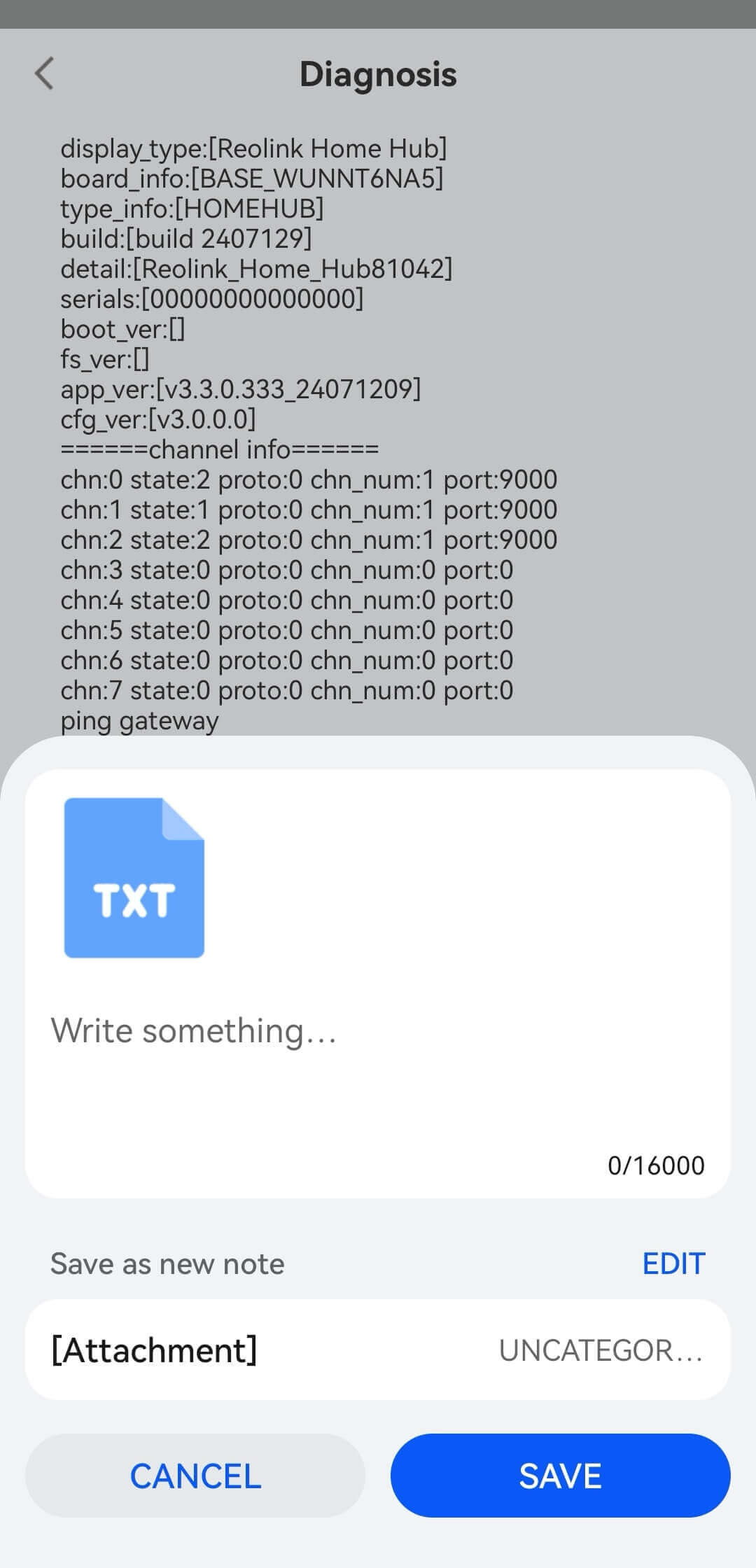

Step 6: Save and Seek Support

  • Finally, tap "Save" to store the diagnostic file.

click save

Important Note:

  • The generated diagnostic logs contain detailed information about your Hub's Wi-Fi connectivity status and environment. While these logs may not provide immediate insight into the problem for non-technical users, they are invaluable tools for our support team.
  • After saving the diagnostic file, please contact Reolink Support and attach the saved log file when you reach out. Our support team will use this information to assist you more efficiently.

By following these steps, you will help us diagnose and potentially resolve Wi-Fi connectivity issues with your Hub. If you encounter any difficulties during this process or have additional questions, do not hesitate to contact Reolink Support for assistance.
