How to Install Reolink Video Doorbell (Battery): A Comprehensive Guide

The Reolink Video Doorbell (Battery) is designed to easily connect to your existing chime system or function wirelessly, giving you flexible options for installation. This step-by-step guide explains how to connect your Reolink Video Doorbell (Battery) to existing chime (wired connection) or install it wire-free, with or without a chime.

Table of Contents

Installation Video for Reference

Pre-Installation Charging & Setup

Method 1: Wiring Reolink Video Doorbell (Battery) to Existing Chimes (Wired Connection)

Method 2: Connecting Reolink Video Doorbell (Battery) Wirelessly (Wire-Free Connection)

Installation Video for Reference

Pre-Installation Charging & Setup

• Charging the Doorbell: Make sure the Reolink Video Doorbell (Battery) is fully charged before installation. The charging indicator will switch from orange to green when it's ready


• Set up the Doorbell
  • Launch the App: Open the Reolink App on your mobile device.
  • Scan QR Code: Use the App to scan the QR code provided with your Reolink Video Doorbell (Battery).
  • Follow Instructions: Complete initial setup as guided


Two Installation Methods

Choose based on your needs: wired or wireless.

• Wired Connection: If you have an existing wired chime at home, connect the Reolink Video Doorbell (Battery) to your current mechanical or digital doorbell system.
• Wireless Connection: If you do not have an existing wired chime, opt for wireless installation.

Method 1: Wiring the Doorbell to Existing Chimes (Wired Connection)

Step 1: Verify Power Supply Specifications

Before proceeding with the installation, ensure that your existing power supply transformer meets the following specifications:

Voltage: 8 to 24 VAC

Frequency: 50/60Hz

VA: 5VA to 40VA

Note: If your power supply voltage is below 8V AC or above 24V AC, it is recommended to replace the transformer with one that meets these requirements. Failure to do so may result in abnormal chime operation.

Step 2: Remove the Existing Doorbell

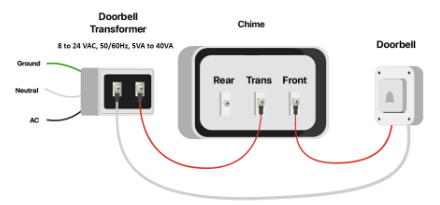

• Connection Diagram of the Existing Wired Chime System

• Confirm Original System Functionality: When the old chime's doorbell button is pressed, the chime will ring.

• Turn Off Power: Ensure the safety of the installation process by turning off the power to the doorbell in the circuit breaker panel.

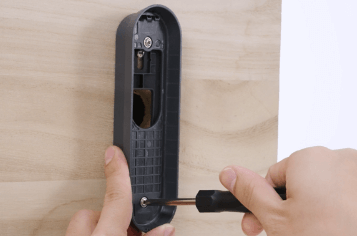

• Remove Old Doorbell: Carefully remove the existing doorbell from the mounting bracket

Step 3: Install the Reolink Video Doorbell (Battery)

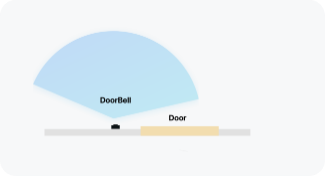

• Install the Wedge (Optional for Better Camera View): Install the wedge if the visitor is not centered in the camera’s view. Otherwise, skip this step.

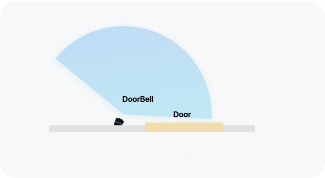

• Installation Illustration of the Wedge:

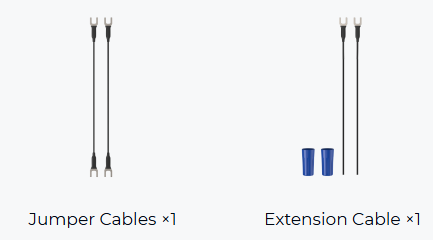

• Connect Wires: Integrate the Reolink Video Doorbell (Battery) into your existing doorbell wiring system. Reolink provides black jumper and extension cables. Note that the red wires in the diagrams are for illustration purposes only and do not indicate polarity.

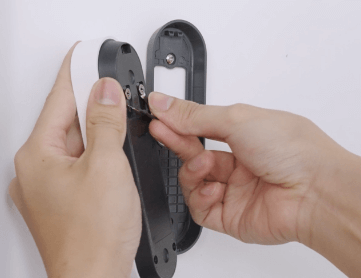

Note: Reolink provides black Jumper cables and Extension cables. The red wires in the diagrams are for illustration purposes only and do not indicate polarity. Please follow the wiring instructions carefully. The two jumper cables connected to the screws on the back of the video doorbell do not have a specific arrangement requirement. As long as the connections are made correctly, the order of the cables does not matter. Just ensure that the cables are securely attached to the screws for proper functionality.

• Mount the Doorbell: Attach the Reolink Video Doorbell (Battery) to the mounting bracket.

• Restore Power: Turn on the power switch at the circuit breaker panel.

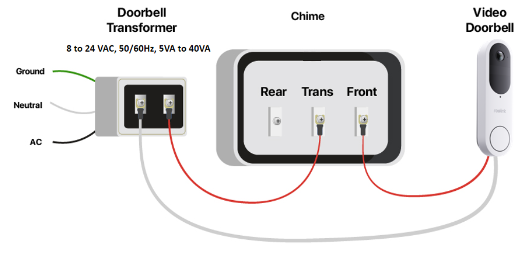

• • Connection Diagram of the Reolink Video Doorbell (Battery) After Connecting to the Existing Chime



Step 4: Complete Pairing on the Reolink App

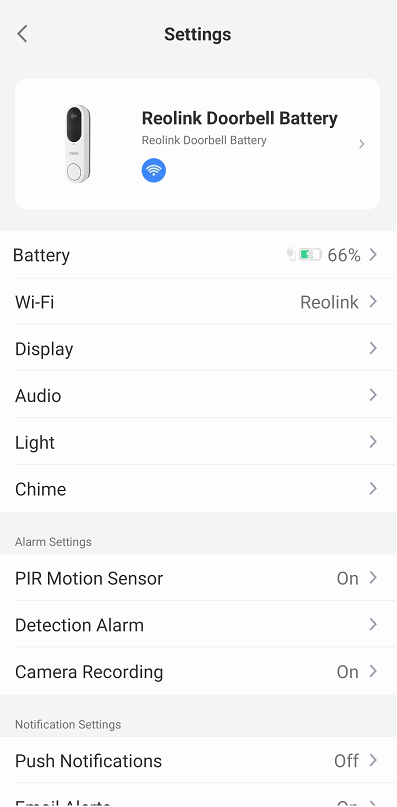

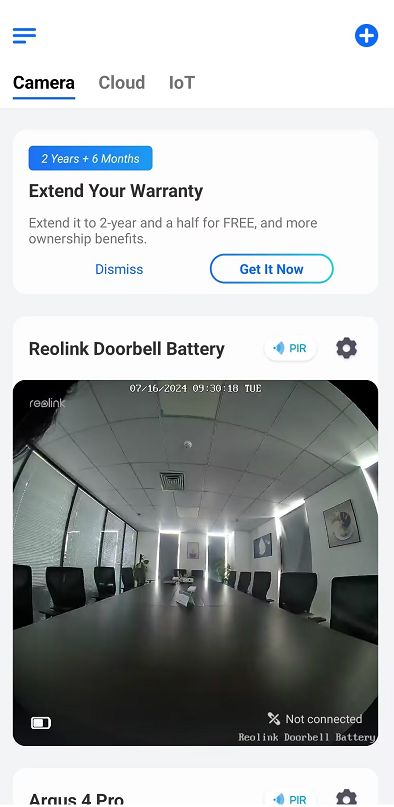

• Navigate to Settings: Tap on the camera's settings icon.

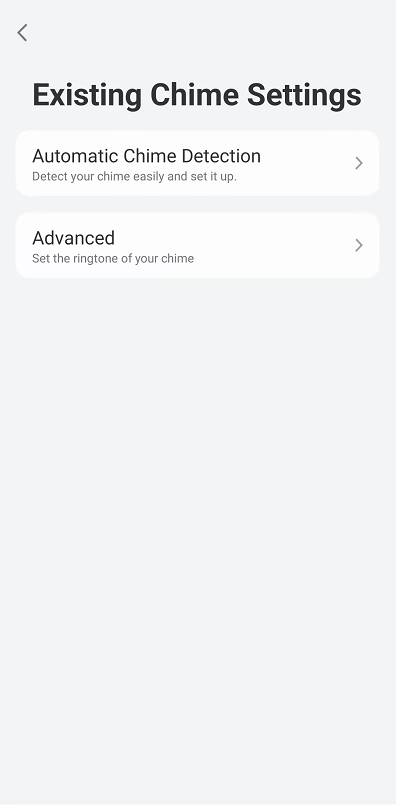

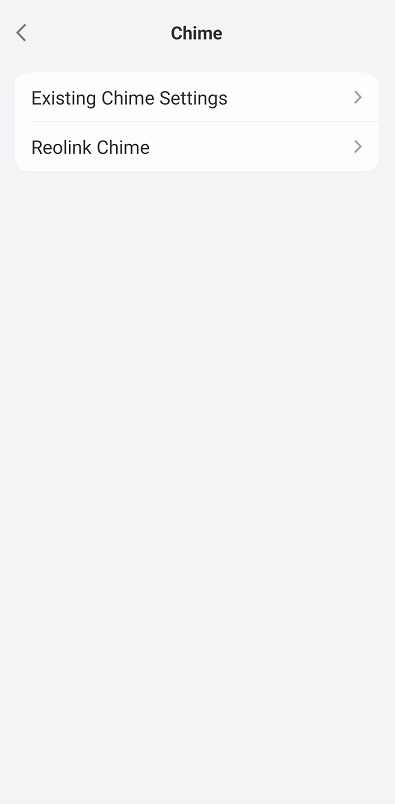

• Chime Settings: Select "Chime" and then tap "Existing Chime Settings."

• Automatic Chime Detection: Enable "Automatic Chime Detection." Follow the on-screen instructions to finish pairing your Reolink Video Doorbell (Battery) with your existing wired chime.

Step 5: Confirm Functionality

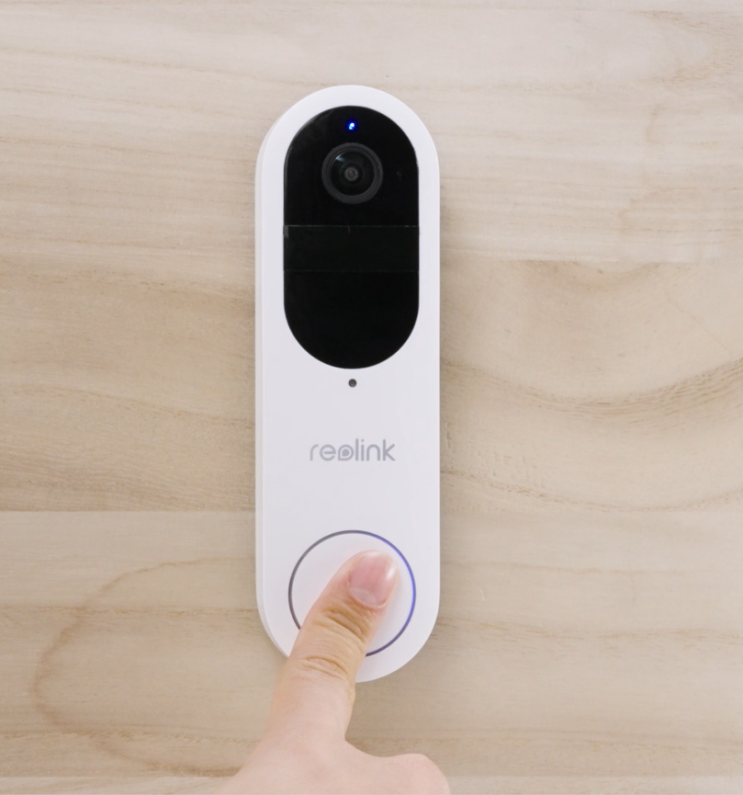

• Test the Doorbell: Press the doorbell button to confirm that the chime rings as expected.
• Troubleshoot: If the chime does not ring normally, go to "Existing Chime Settings" > "Advanced Settings" within the app to troubleshoot and configure the settings accordingly.

Method 2: Installing Reolink Video Doorbell (Battery) Wirelessly (Wire-Free Connection)

Step 1: Install the Reolink Video Doorbell (Battery)

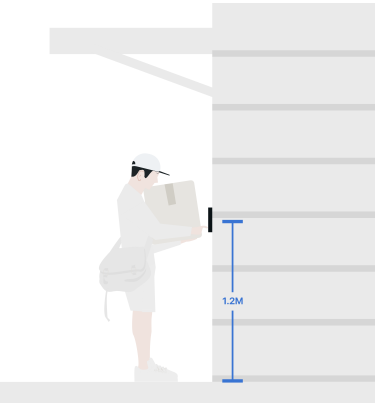

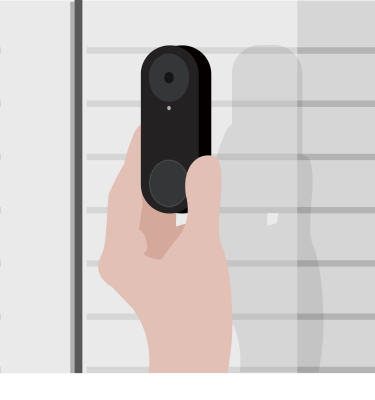

• • Choose Location: Select a spot where the doorbell has a clear view of approaching visitors.

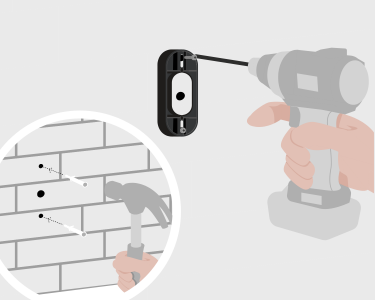

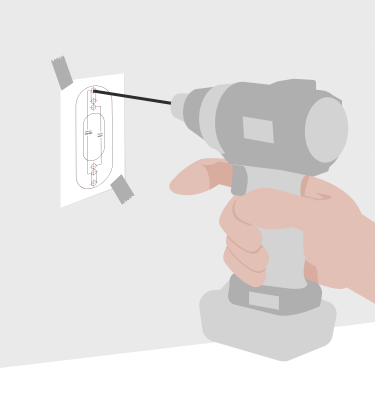

• • Secure Mounting Plate: Drill holes according to the mounting template. For drywall or masonry, insert anchors before mounting. Attach the mounting plate to the drilled holes.

• • Install Wedge (Optional): If needed for a better camera view, install the wedge.

• • Mount Doorbell: Place the doorbell at the bottom and snap it into position at the top.

Step 2: Connect the Doorbell to Reolink Chime/Hub or Smart Home Devices (Optional)

Pair Reolink Video Doorbell (Battery) with wireless Reolink Chime or Home Hub via app. Or integrate with Alexa or Google Assistant for smart alerts.

By following these steps, you can easily connect your Reolink Video Doorbell (Battery) to an existing chime or set it up wirelessly for seamless home security. Whether you choose a wired or wire-free setup, you’ll enjoy enhanced safety and convenience with your video doorbell.
