In traditional mode, cameras connect to the NVR for centralized storage and live preview, which can limit advanced features like smart home integration and time-lapse, and cause compatibility issues with outdated NVRs. To resolve these limitations, Reolink has introduced HyBridge Mode. In this article, we will delve into what HyBridge Mode is, and provides step-by-step instructions on setting up and configuring this feature.

Table of Contents

1. What Is Reolink NVR HyBridge Mode?

2. Compatibility Requirements

3. Setting Up NVR Network for HyBridge Mode

4. Step-by-Step Instructions to Enable or Disable HyBridge Mode

1. What Is Reolink NVR HyBridge Mode?

HyBridge Mode enables all devices connected to the NVR's Power over Ethernet (PoE) ports to be directly mapped onto the Local Area Network (LAN). By disabling the NVR network gateway, this mode allows each connected device to operate independently on your LAN, with IP addresses assigned by the router.
This enables users to access IP cameras with NVR and PoE switch for centralized preview and storage, while maintaining each camera's independent network presence and functionality. Users can connect to their cameras either via the NVR or directly through the Reolink Client or App, ensuring full utilization of advanced features like smart home integration and time-lapse capabilities.

Important Note: Connecting multiple cameras directly to the LAN can increase bandwidth consumption and router load, especially during simultaneous data transmissions.

2. Compatibility Requirements

  • Compatible NVRs:
    HyBridge Mode is available on specific models of Reolink NVRs with certain hardware versions and firmware updates.
    • RLN8-410 (Hardware version N7MB01)
    • RLN16-410 (Hardware version N6MB01)
    • These models require the latest firmware update (v3.5.1) for HyBridge Mode support.
  • Compatible Cameras
    Most Reolink cameras are compatible with HyBridge Mode, except for those without a UID and battery-powered models.
    • Cameras without a UID: These cameras, known as add-on cameras, do not support features like smart home integration or time-lapse. Enabling HyBridge Mode for these cameras changes only how they connect to the NVR, without adding any new functionalities.
    • Battery-Powered Cameras: Once connected to the NVR, these cameras can no longer be accessed independently.

3. Setting Up NVR Network for HyBridge Mode

To ensure seamless operation of HyBridge Mode, follow these setup guidelines:

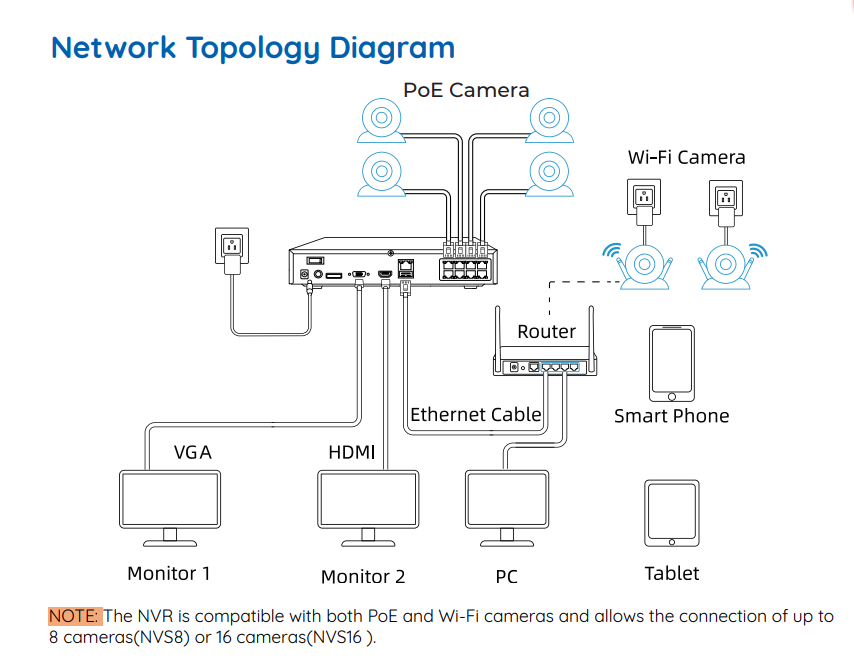

  1. Ensure cameras are correctly connected to the NVR using PoE cables or Wi-Fi. Refer to the topology diagram below for connecting cameras to the NVR.HyBridge Mode
  2. Verify that the NVR is properly connected to your router.
  3. Enable HyBridge Mode within the NVR settings to disable the NVR network gateway and allow connected devices to directly access the LAN, with IP addresses managed by the router.
    • Take the pictures below as examples:
      • With HyBridge Mode disabled, the 840A and RLC-423 cameras' IP addresses are assigned by the NVR (starting with 172.); They are restricted from direct access from the Reolink App or Reolink Client.
      • In contrast, with HyBridge Mode enabled, the router assigns IP addresses to the cameras, allowing independent access.

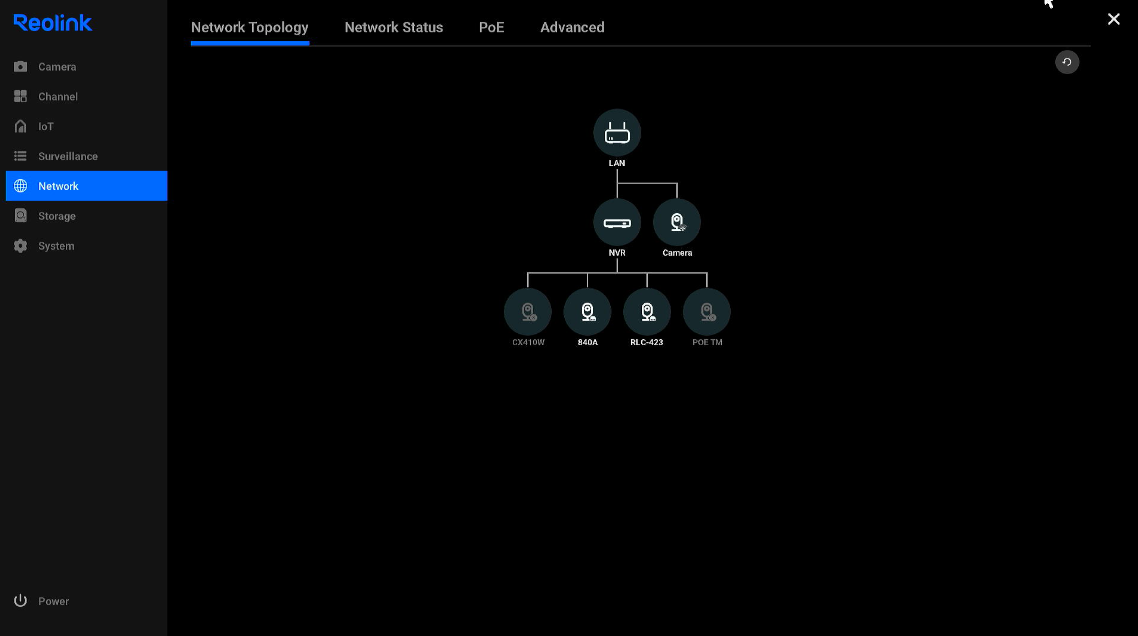

HyBridge Mode disable

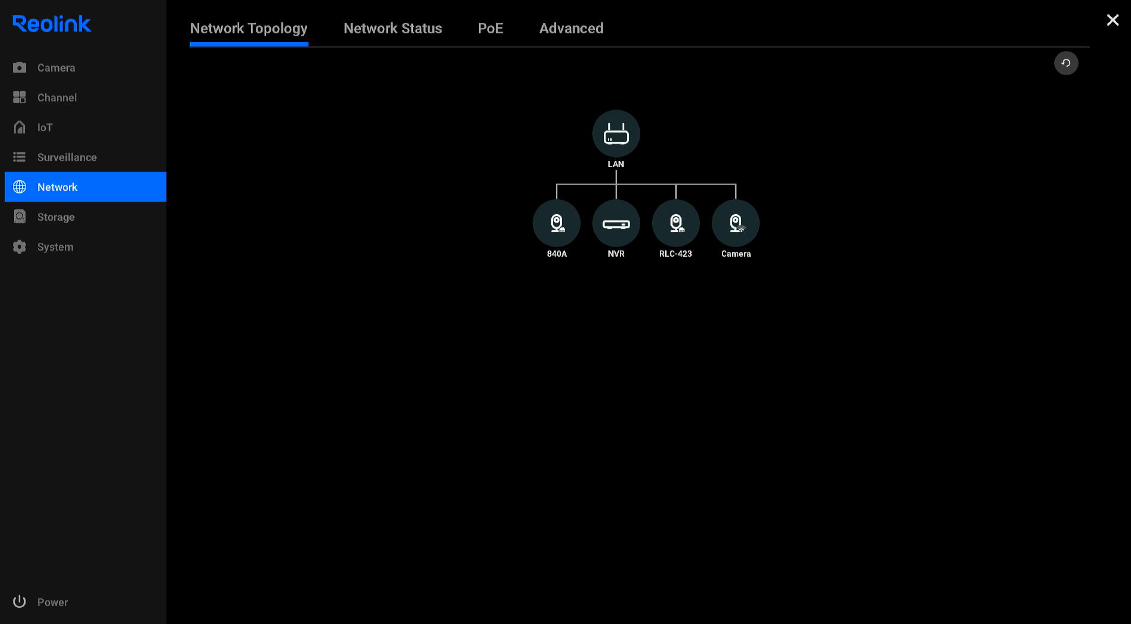

Hybrid Mode enable

Note:
Enabling or disabling HyBridge Mode on a Reolink NVR alters the network topology and changes the IP addresses of connected cameras. When HyBridge Mode is disabled, the NVR assigns the cameras' IP addresses; when enabled, the router assigns them instead.

4. Step-by-Step Instructions to Enable or Disable HyBridge Mode

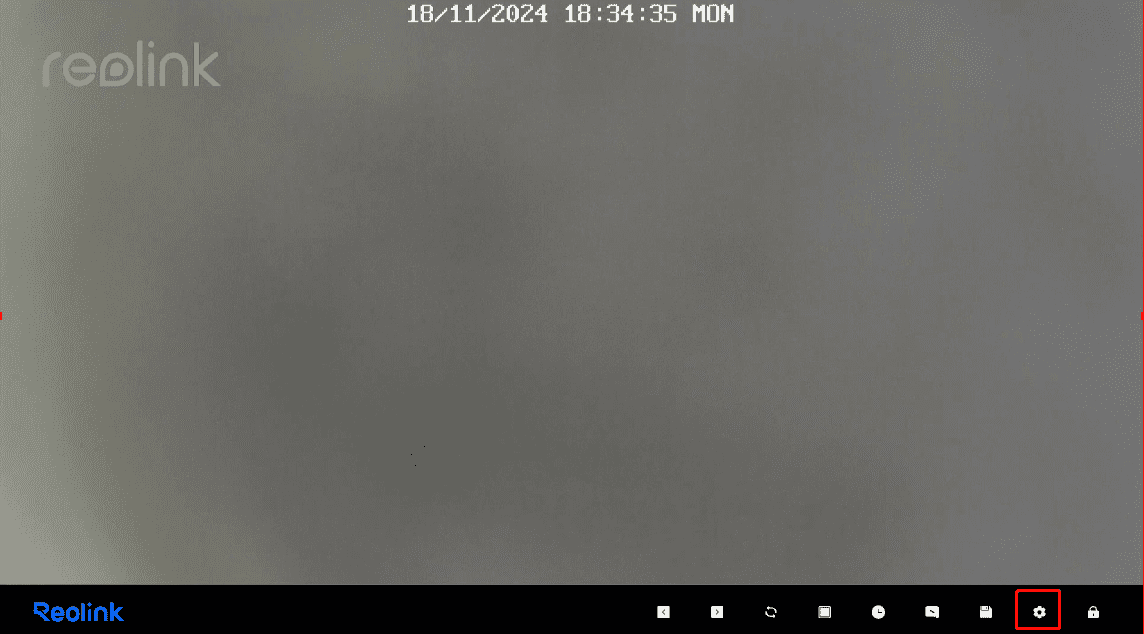

Step 1. Access Settings Page: Right-click to bring up the settings bar and click the gear icon to enter the settings menu.

enter NVR settings

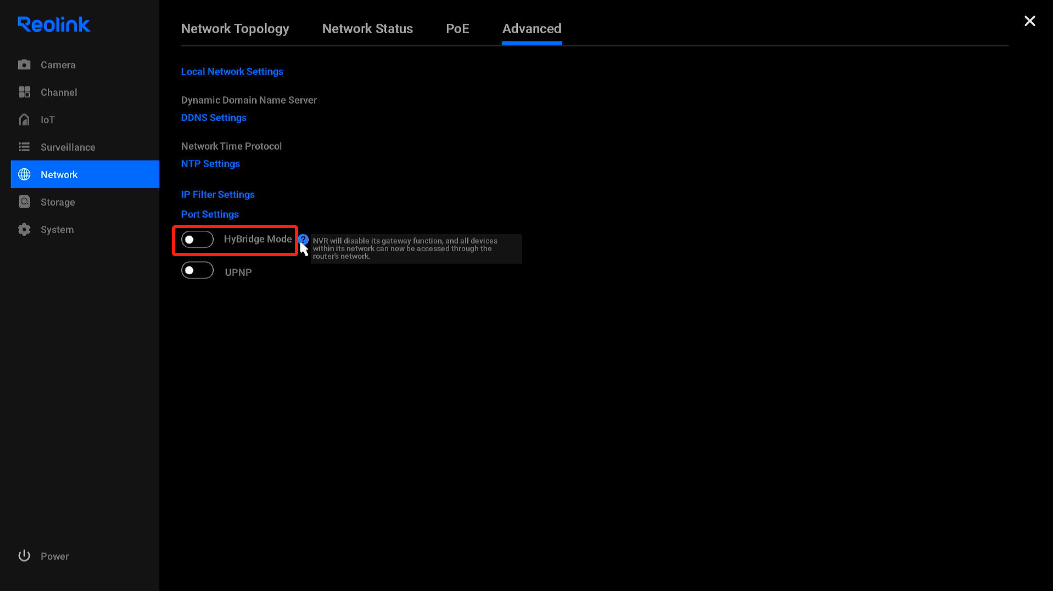

Step 2. Navigate to HyBridge Mode: Select Network > Advanced > HyBridge Mode.  HyBridge Mode button

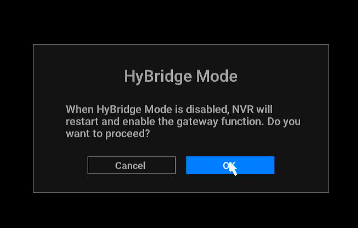

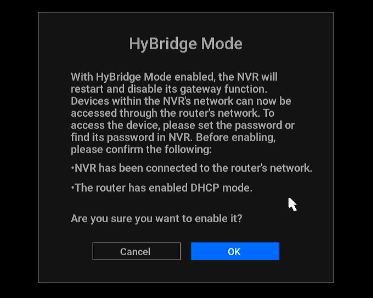

Step 3. Confirmation: A confirmation dialog will appear after enabling/disabling HyBridge Mode. Confirm your choice by clicking "OK".

enable HyBridge Modedisable HyBridge Mode

Step 4. Verification:

  • After enabling the HyBridge Mode, wait a few minutes for changes to take effect. The NVR will disable its gateway from function, and all devices within its network can now be accessed through the router's network.
  • After disabling the HyBridge Mode, the NVR will restart and re-enable the gateway function.

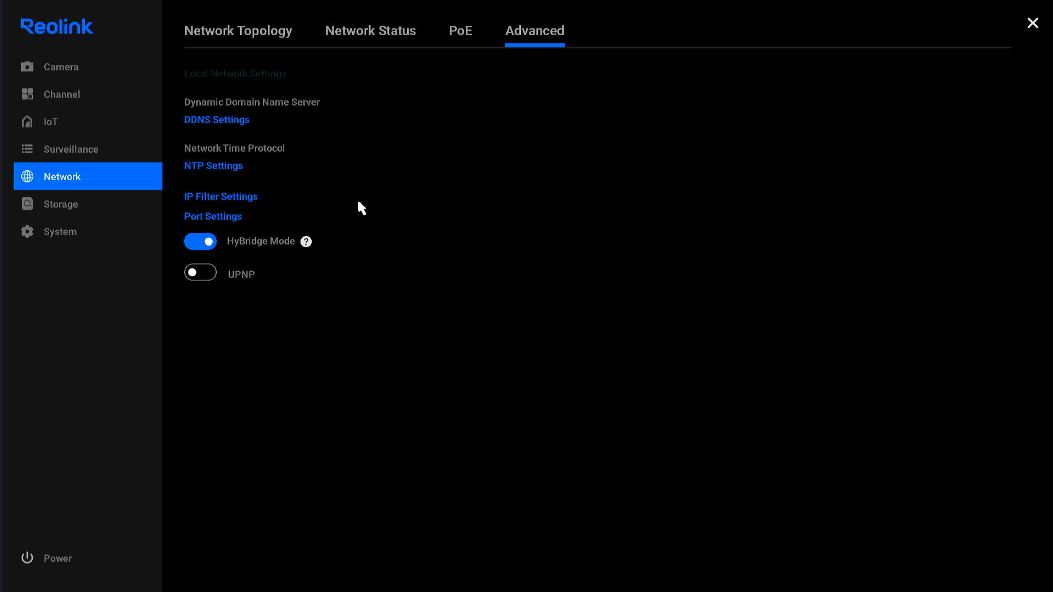

HyBridge Mode on



Reolink NVR HyBridge Mode provides a flexible and powerful solution for seamlessly integrating your cameras into your surveillance system. By allowing direct access to IP cameras with NVR, it enhances both centralized management and smart home integration. For optimal performance, make sure to configure your NVR network correctly and keep the firmware updated. For any additional assistance, feel free to contact Reolink Support.
