This article will guide you through the proper Reolink Altas camera installation. Please follow these instructions.
Applies to: Reolink Altas PT Ultra, Reolink Altas.
Before installing the camera, please read the following precautions to help you choose a suitable installation location.
- Lighting: Install the camera in residential areas with faint ambient lighting at night or wild areas with moon-light or starlight, so it can deliver true full-color night vision. Even in extreme darkness with no light source, the camera will turn on its spotlights for extra lighting.
- Height: Install the camera 2-3 meters (7-10 ft) above the ground. This height maximizes the detection range of the PIR motion sensor.
- Angle: For better motion detection performance, please install the camera angularly. Make sure the side-to-side movement crosses the camera's field of view. lf a moving object approaches the PIR sensor vertically, the camera may fail to detect motion.
Click on your camera model below to jump to the corresponding installation guide:
Reolink Altas PT Ultra Installation Guide
Method 1. Ceiling or Wall Mounting Camera Installation
Step 1: Drill holes according to the installation template.
Step 2: Drive 4 long screws into the drill holes. If it is a hard wall, please drive the wall anchor into the drill hole first, and then tighten the long screws.
Step 3: Install the camera onto the mounting base.
Step 4: To secure the camera, insert the two short screws into the corresponding holes on both the mounting base and the side of the camera.
Method 2. Camera Mounting Strap
Thread the provided straps onto the board and secure it to the tree.
Reolink Altas Installation Guide

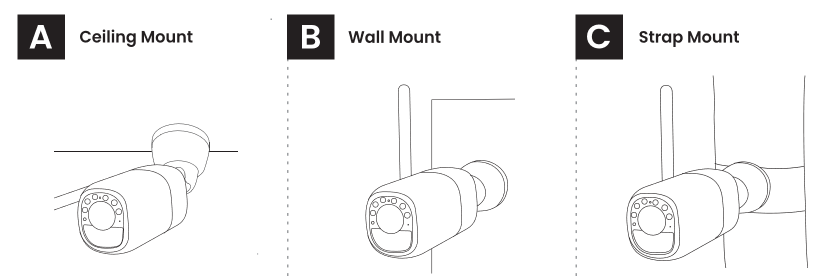

Choose Your Installation Method
Notes:
- For good Wi-Fi signal, do not point the antenna at the router.
- Use the drill carefully and follow safety guidelines.

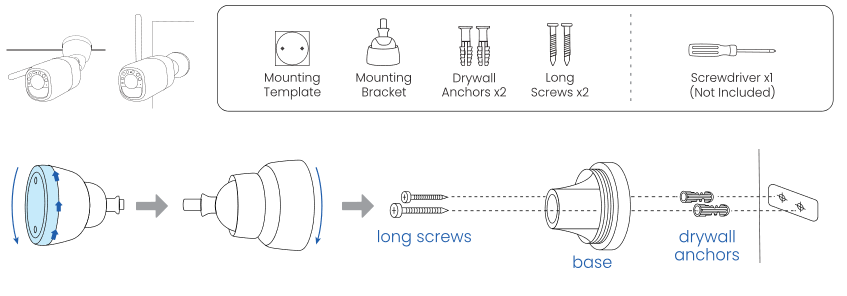

Method 1. Ceiling Mount & Wall Mount
Rotate the base counterclockwise to separate it from the bracket.

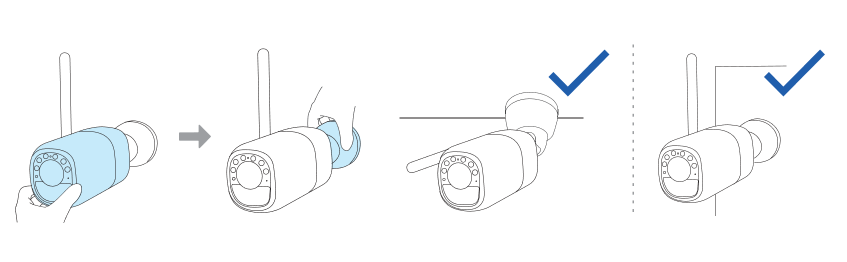

For wall mounting, adjust the antenna upward. For ceiling mounting, we recommend adjusting it horizontally.

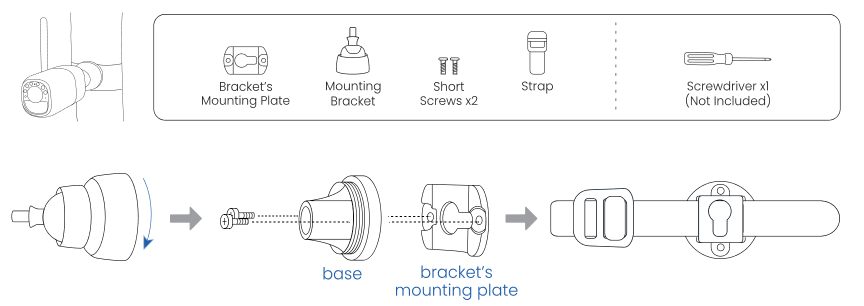

Method 2. Strap Mount
Rotate the base counterclockwise to separate it from the bracket. Pass the strap through slot on the mounting plate.
Then secure it at the wanted position (e.g. on a tree).
Installation is now complete. If you need further assistance or want to explore more features, please visit the Reolink Help Center or contact support.
