This article will guide you on how to set up general system settings, such as language, time zone, video format, etc via PoE NVRs on the monitor.

Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

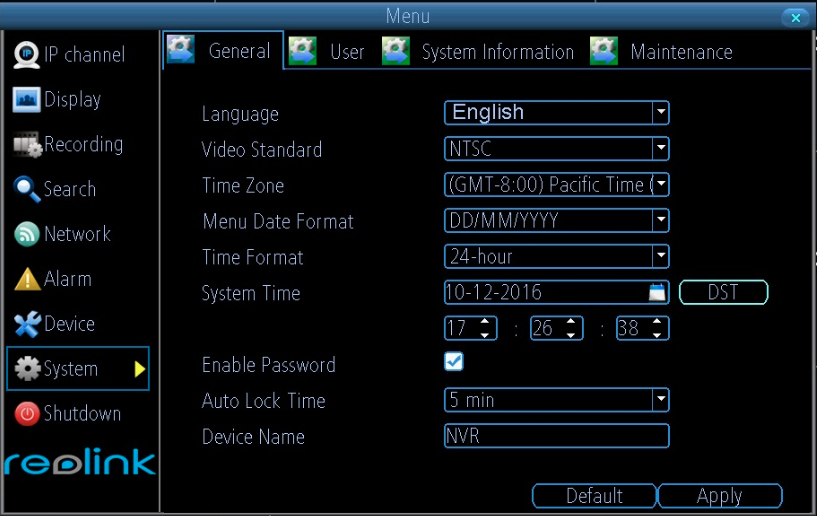

Log in your NVR, go to Menu > System > General page:



  • Language: select the operation page language. Including 简体中文, English,français, español, português, polski, עברית and Deutsch.
  • Video Standard: is divided into PAL and NTSC. The difference between them, you can refer to what is PAL and NTSC Standard in Reolink Cameras.
  • Time Zone: select the time zone according to your place of residence.
  • Menu Date Format: is divided into three types, MM/DD/YYYY, YYYY/MM/DD, and DD/MM/YYYY.
  • Time Format: includes 12-hour format and 24-hour format.
  • System Time: here allows you to set the system time manually.
  • Enable Password: you need to enter the password to enter the Menu page if you check on this option.
  • Auto Lock Time: this option can be chosen when you enable the Enable Password option. It is divided into four types, none, 1 min, 5 min, and 10 min.
  • Device name: modify the name of your device.
