With the optical zoom function, you can enlarge the image to focus on a specific area you want to check. Here are the instructions on how to use it.

Applies to: C2 Pro, E1 Zoom, E Series E340, E1 Outdoor, E Series E540, E1 Outdoor PoE, E Series E560P, E1 Outdoor Pro, E Series E560, RLC-422-4MP, RLC-422-5MP, RLC-423 Series, RLC-511, RLC-522, RLC-811A, P430, RLC-822A, P433, RLC-823 Series (RLC-823A, RLC-823A 16X, RLC-823S1, P840, RLC-823S2, P850, RLC-823S1W), RLC-833A, P434, RLC-842A, RLC-843A, P437, RLC-422W, RLC-511W, RLC-511WA, RLC-523WA, RLC-542WA, RLC-843WA, W437, TrackMix Series and Argus Track (with zoom only available on the telescope/tracking lens)

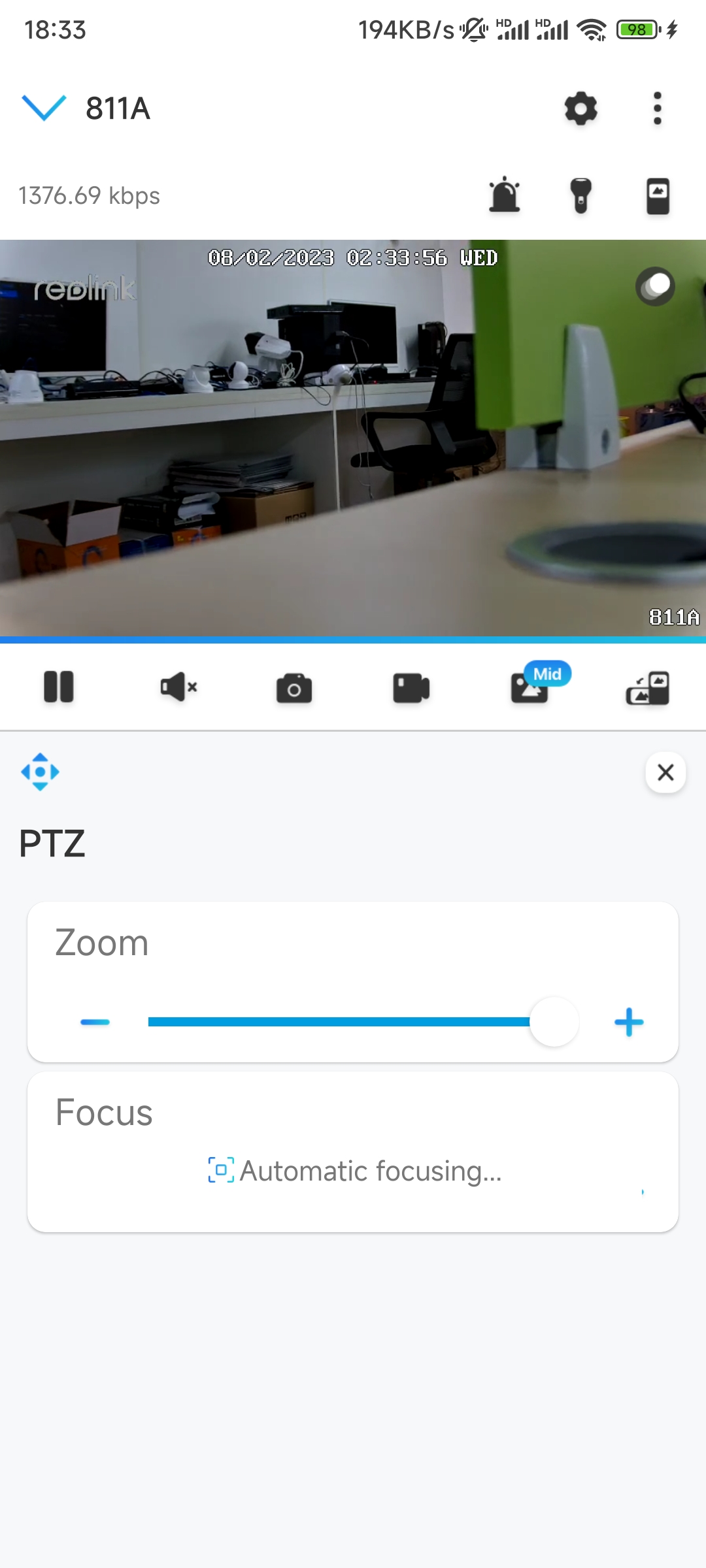

Note: When you adjust the zoom, the camera will start focusing automatically to get a clear image. You can adjust the Focus value manually if the effect of automatic focus is unsatisfying to you.

  • Via Reolink App

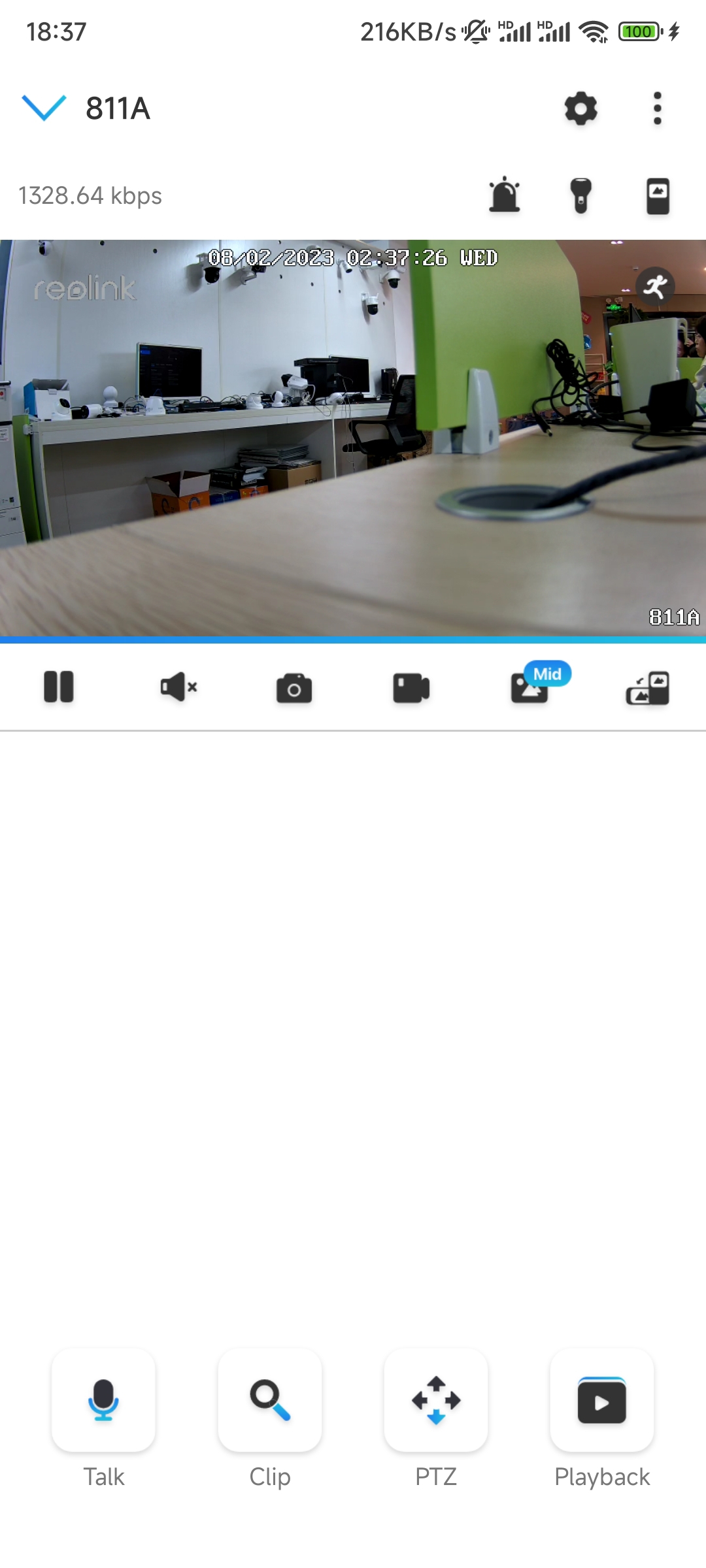

    Step 1. Launch Reolink App and log in to your camera. Then enter the Live View page and tap the PTZ icon.

    Live view page PTZ menu

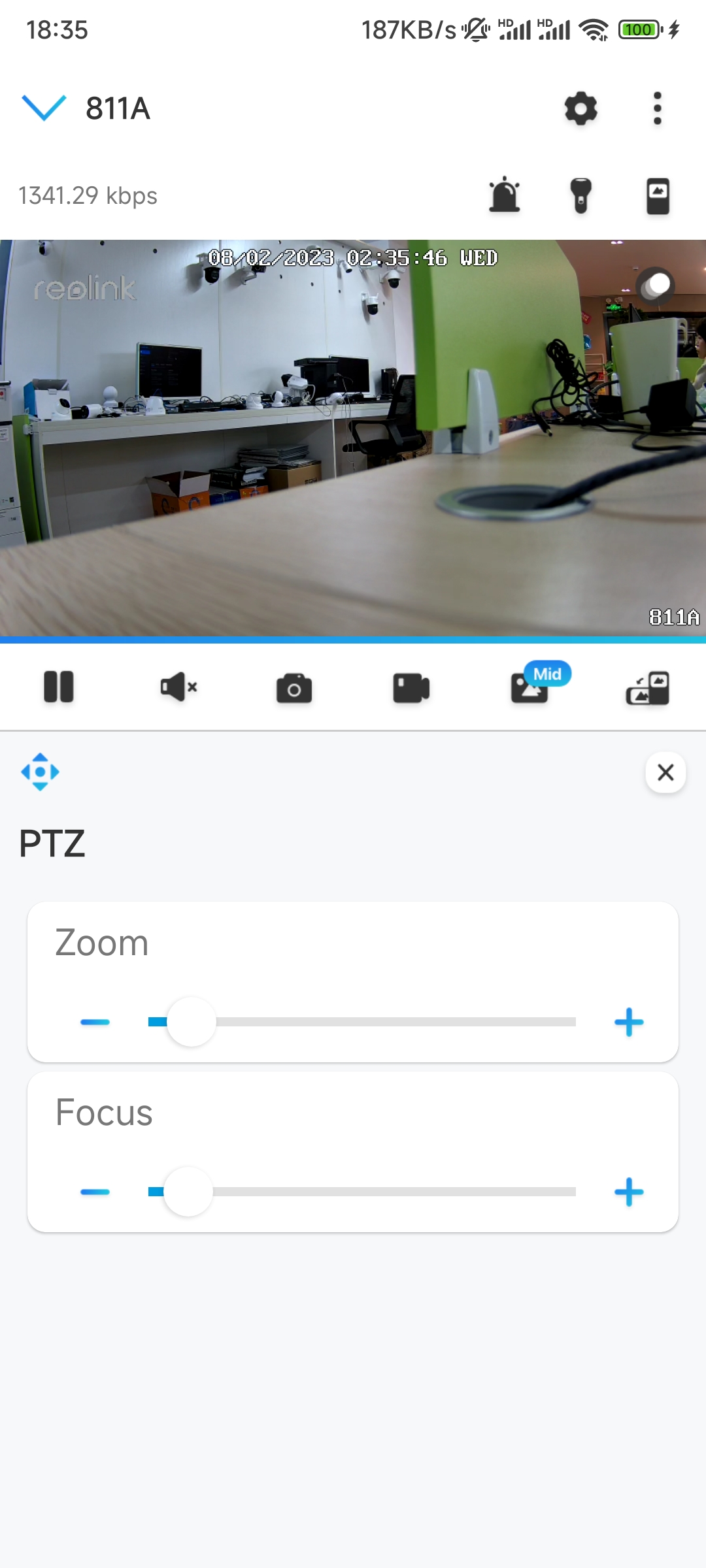

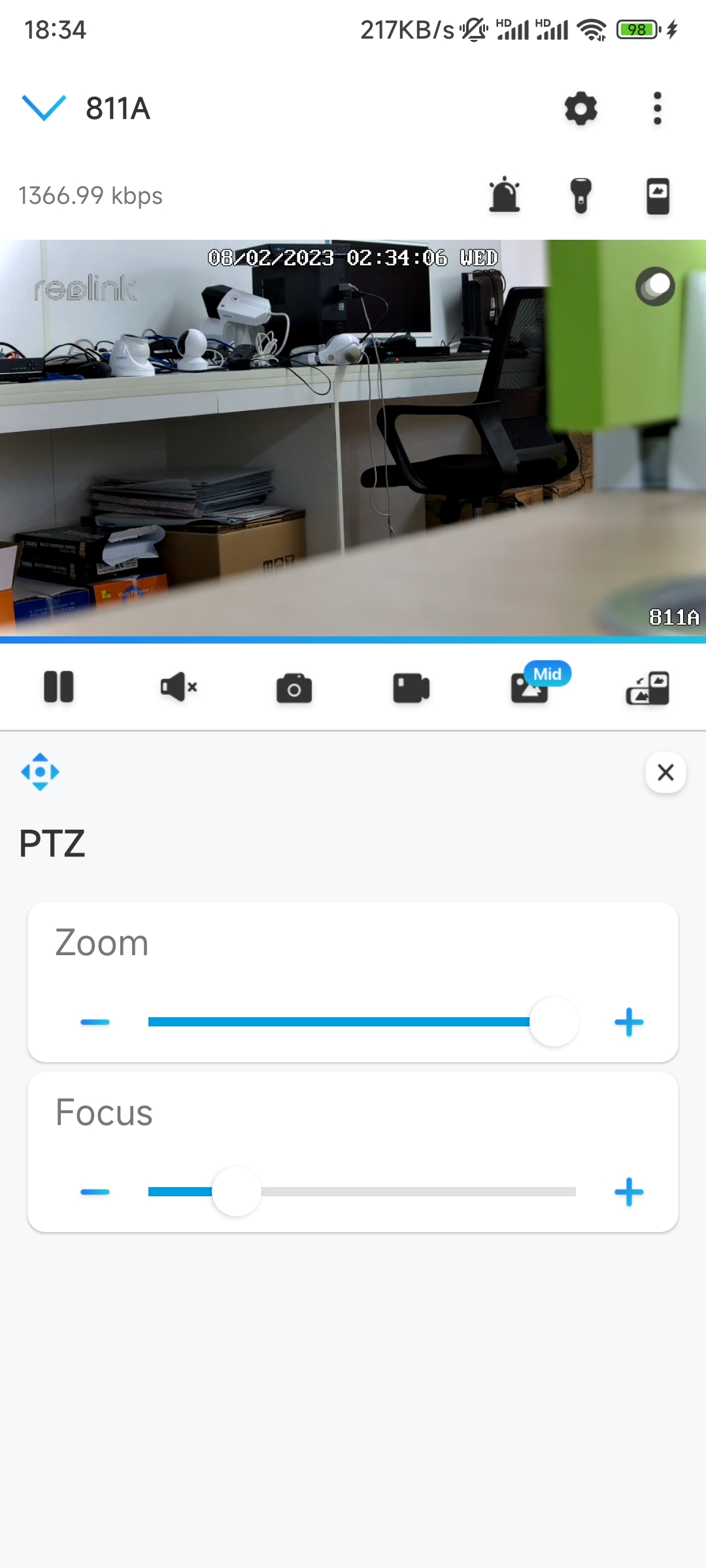

    Step 2. Adjust the value of Zoom. You can tap "+"/"-" to zoom in/out, or you can slide the slider bar of Zoom to zoom in/out.

    adjust zoom zoom

  • Via Reolink Client

    Step 1. Launch Reolink Client on your PC and access the cameras.

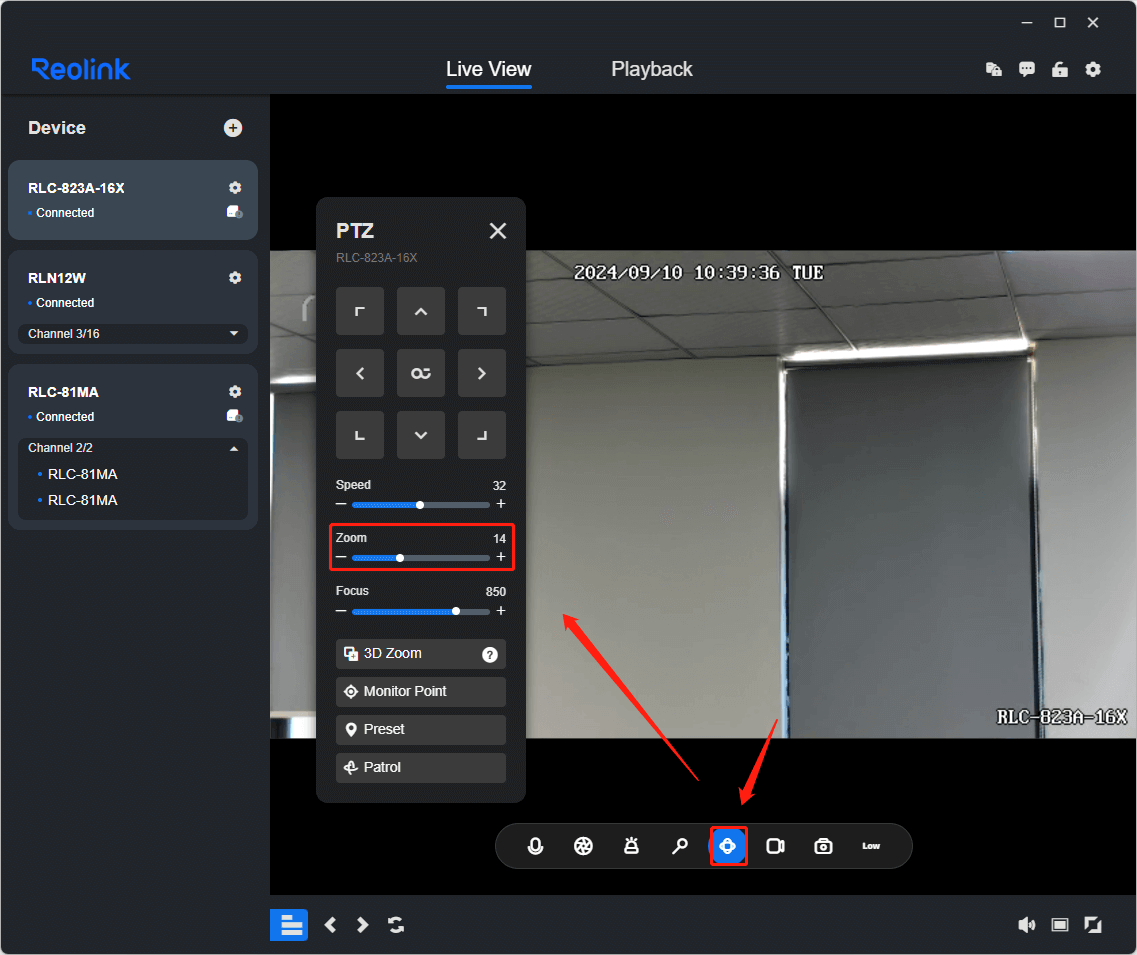

    Step 2. Go to the Live View page and click on the PTZ button. Then slide on the Zoom bar, or click the "+" and "-" to zoom in or zoom out.

    zoom

  • Via Reolink Web Browser

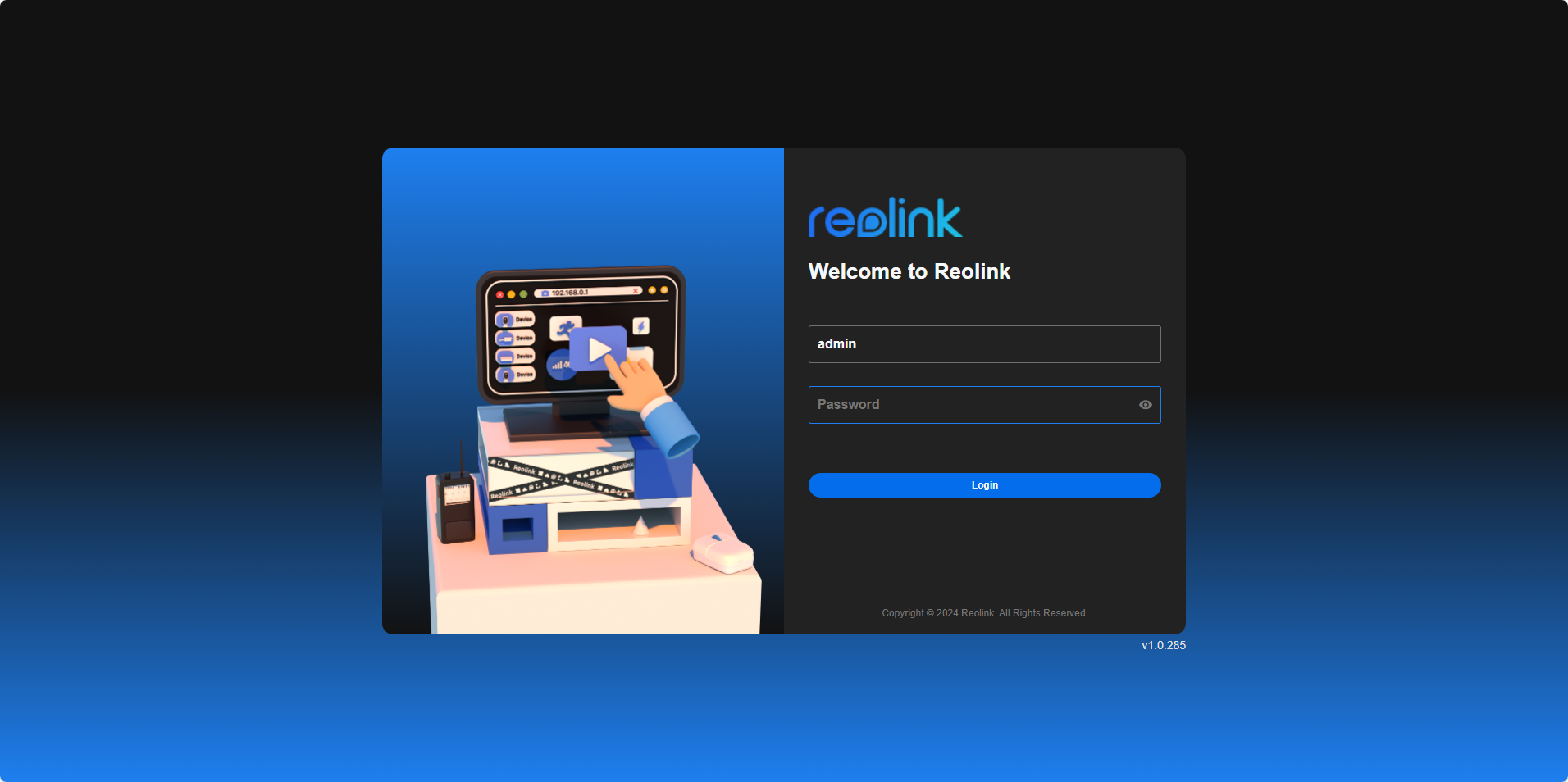

    Step 1. Input IP address of your device on the Web Browser to log in to your device.

    Web

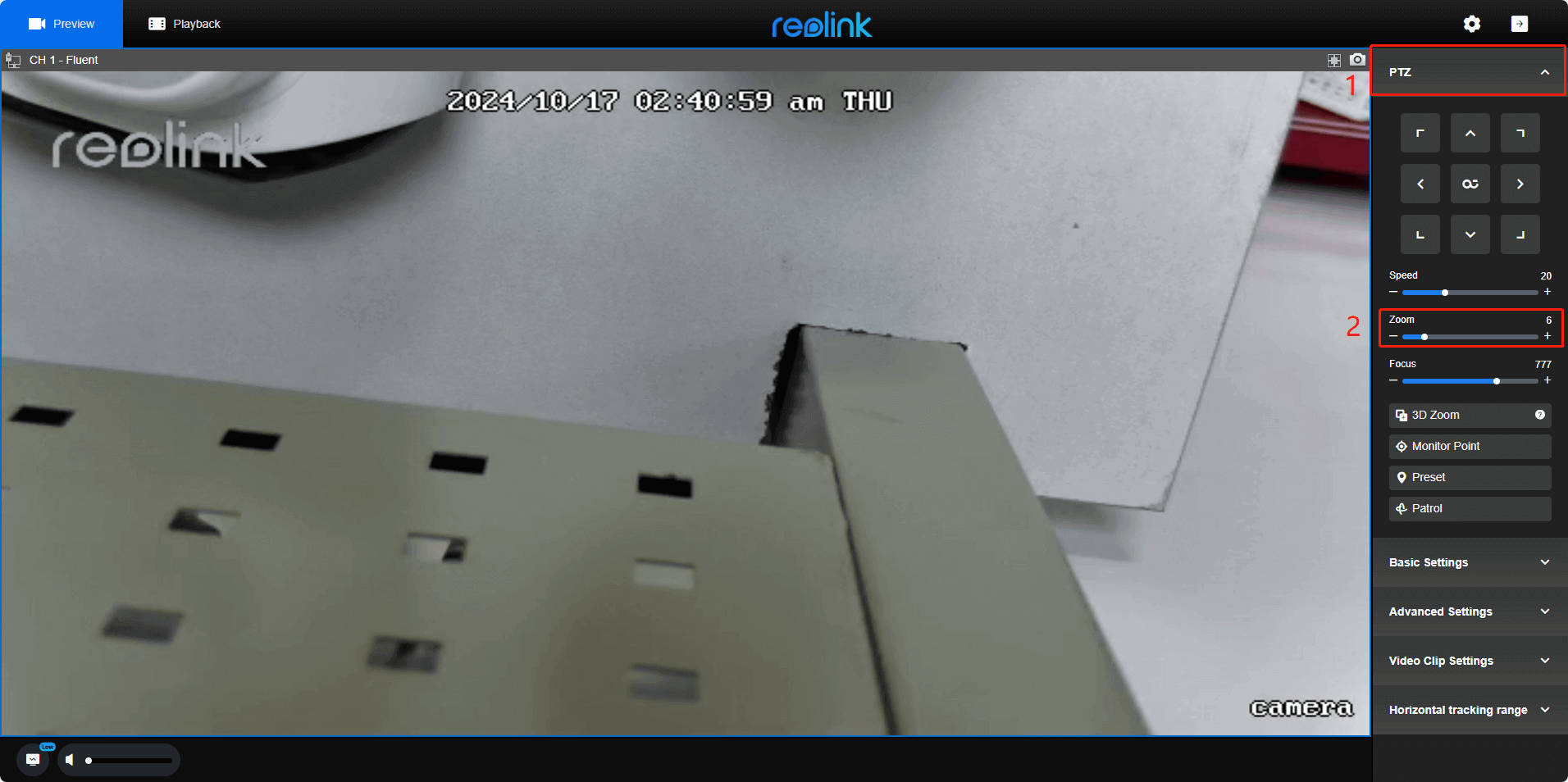

    Step 2. Click PTZ, and adjust the value of Zoom. You can tap "+"/"-" to zoom in/out, or you can slide the slider bar of Zoom to zoom in/out.

    FTP web

  • Via Reolink NVR (New UI)

    Applies to: RLN8-410 with hardware version N2MB02/H3MB18/N3MB01/N7MB01, RLN16-410 with hardware version H3MB18/N6MB01, RLN36, RLN12W.

    Step 1. Log in to the NVR on the monitor. On the Preview page, click the camera you want, and click the PTZ icon.

    PTZ

    Step 2. On the PTZ control panel, click Zoom or Focus to adjust the image.

    PTZ control panel

  • Via Reolink NVR (Old UI)

    Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

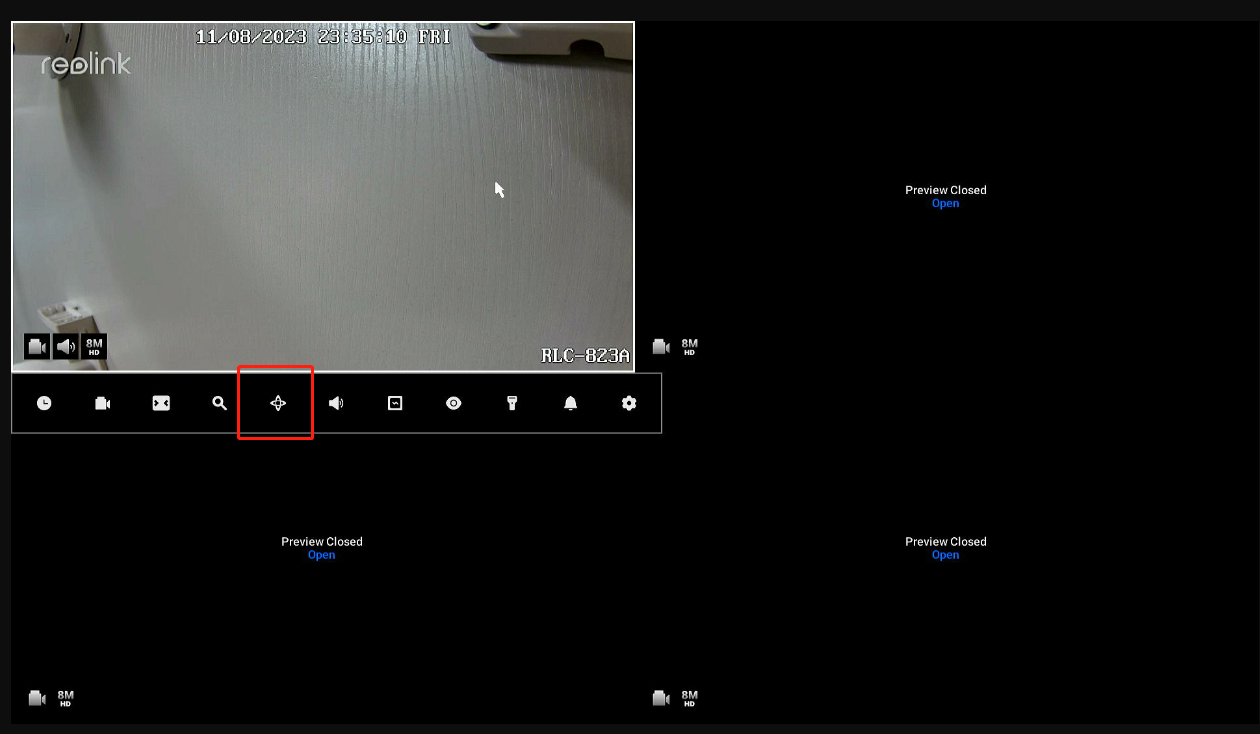

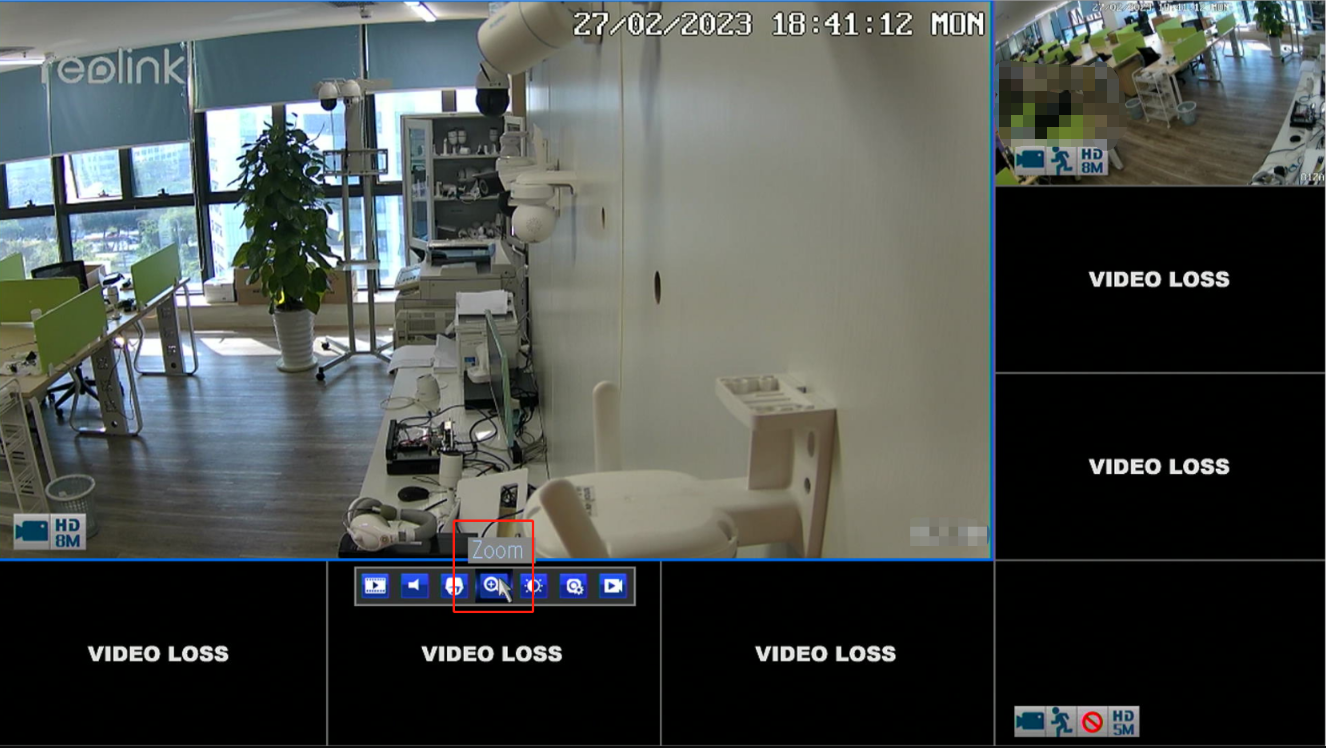

    Step 1. Log into the POE NVR on the monitor and left-click the camera image to select the Zoom icon in the middle of the bottom.

    zoom

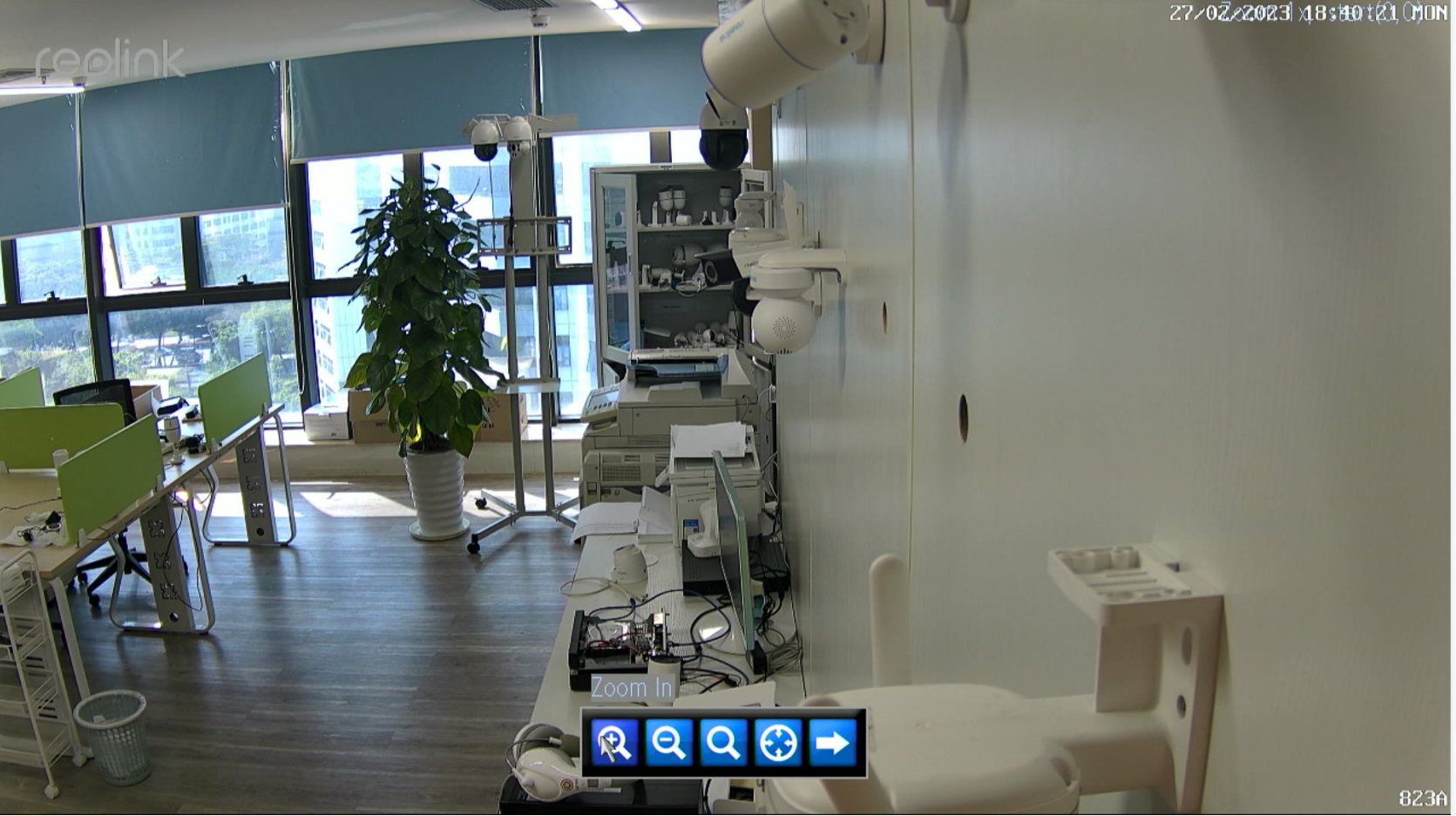

    Step 2. While entering the secondary operation interface, you can click Zoom in and Zoom out buttons to adjust the image.

    zoom in and out

    optical zoom in: Zoom in.

    optical zoom out: Zoom out.

    region zoom: Click Region zoom and click an area to zoom in on a specific region.

    restore optical zoom: Click Restore to return to its original position.

    exit optical zoom: Click Exit to exit the optical zoom operation interface.

If you need more help, please contact Support.
