Digital zoom allows you to enlarge the image on-screen and inspect specific areas more closely—without moving the camera. This feature is available on the Reolink App, Client, and Reolink NVRs. Follow this guide to learn how to use it across different platforms.

Applies to: All Reolink cameras except RLC-210W.

1. What is Digital Zoom

Digital zoom enlarges the image by cropping the edges and magnifying the center portion of the original field of view. It works similarly to cropping and enlarging an image in a photo editor—no optical elements are moved.

Note: Digital zoom does not change the actual image resolution or angle of the camera, and the zoom setting will not be saved after you exit Live View or Playback. If you are looking for zoom settings that persist, check out: How to Use Optical Zoom for Reolink Cameras

Learn more: Introduction to Optical Zoom, Digital Zoom and Hybrid Zoom

2. How to Use Digital Zoom

  • Via Reolink App

    Step 1. Launch the Reolink App and log in to your camera. Enter the Live View or Playback page.

    go to the live view page

    Step 2. Use two fingers to pinch-to-zoom in or out. Once zoomed in, you can drag the image to explore different parts of the screen.

    digital zoom

    For Reolink FE-W / FE-P Cameras:

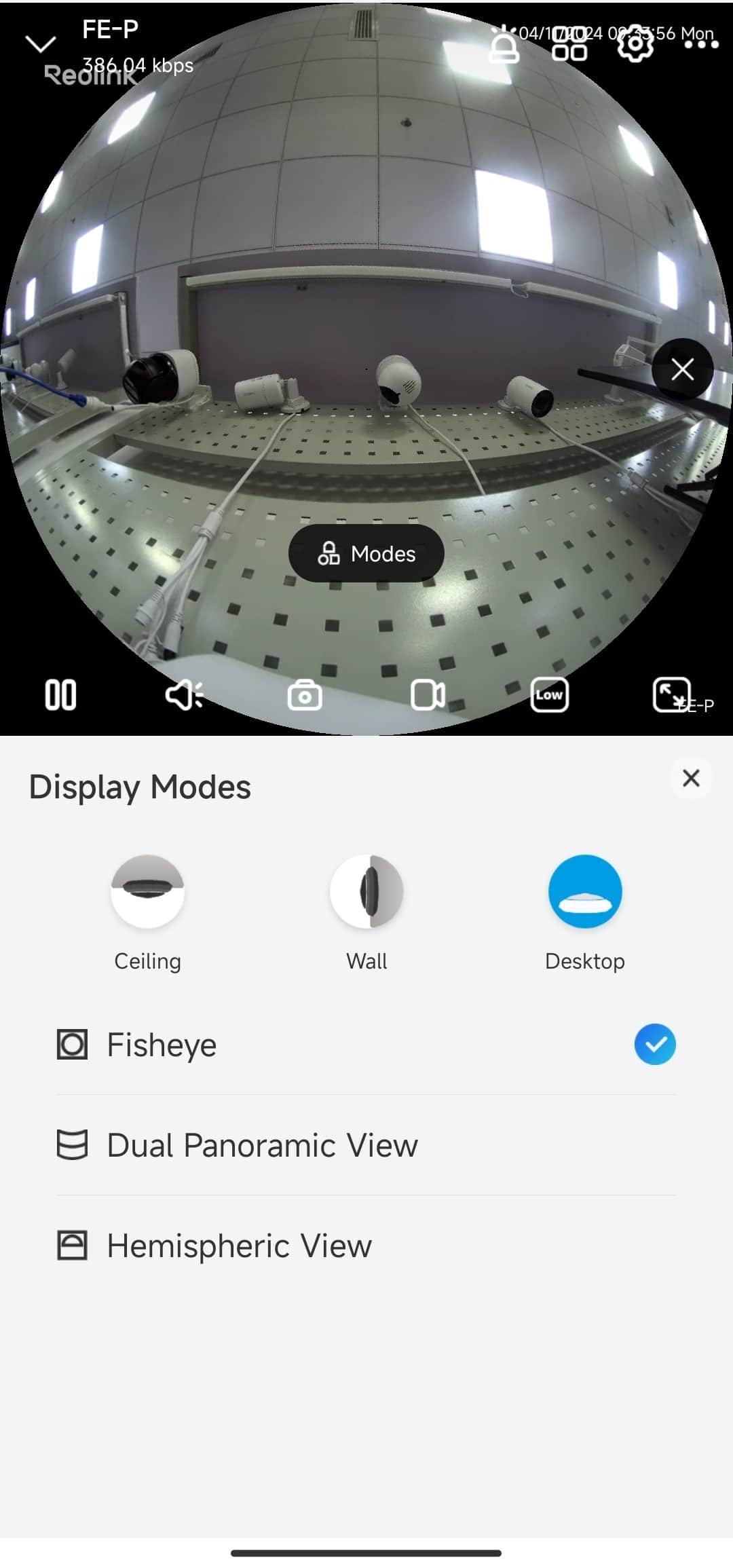

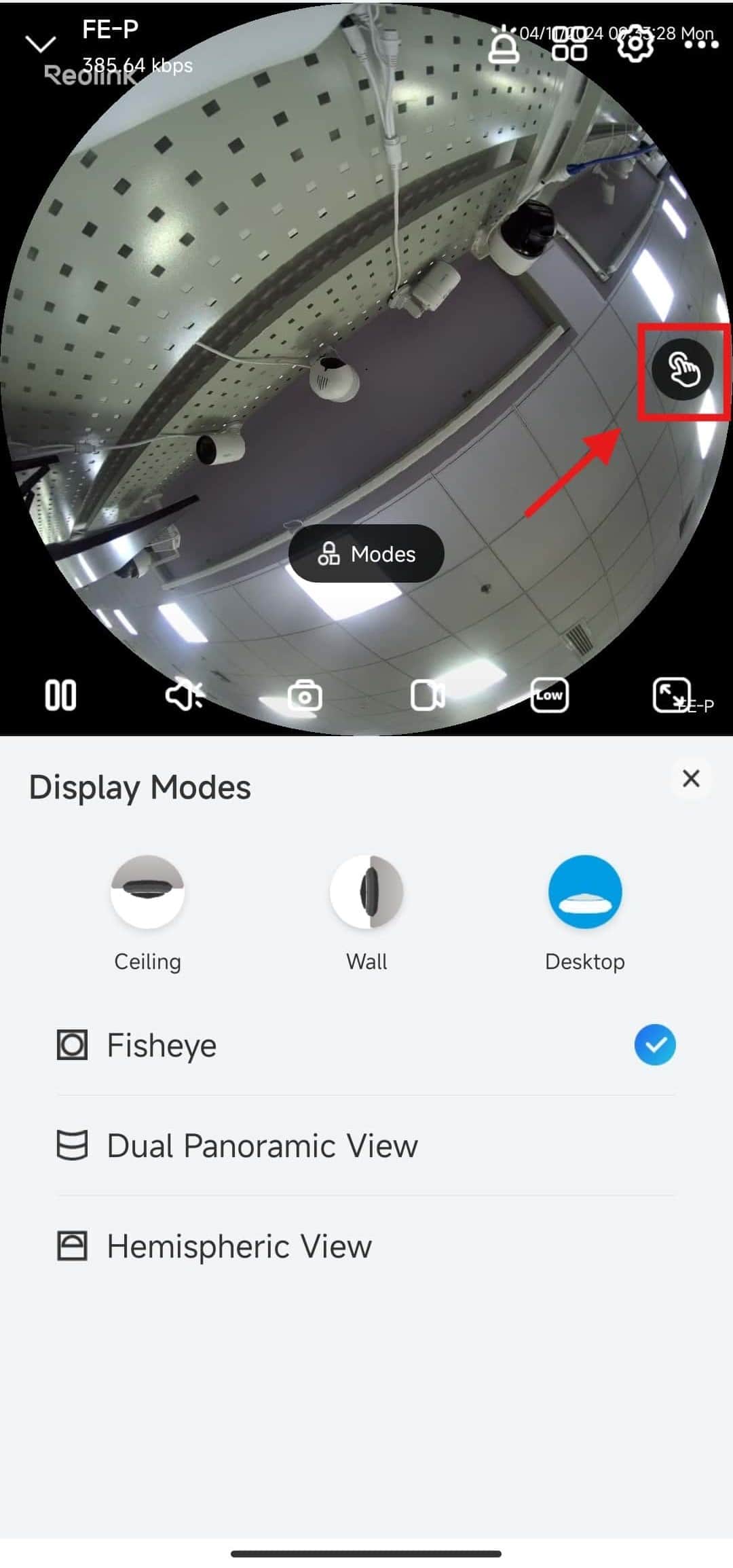

    If the image layout is set to Fisheye, tap the touch icon on the right first, then pinch-to-zoom and swipe to move around the view.

    FEP touchFEP rotate

  • Via Reolink Client

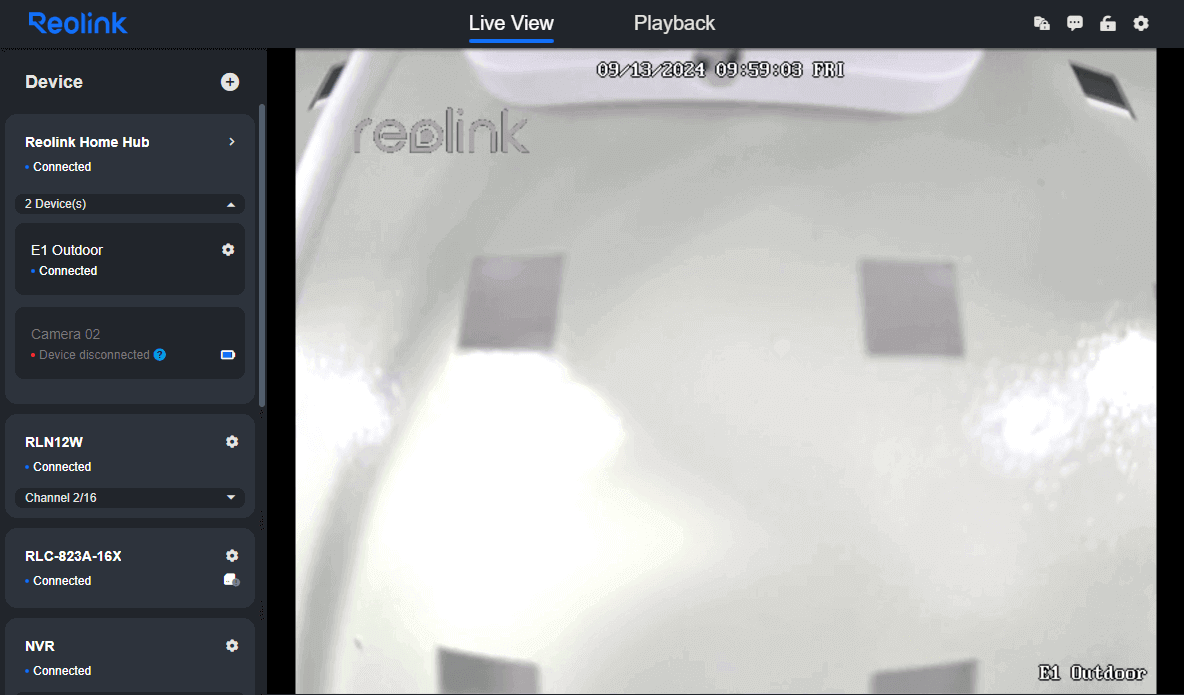

    Step 1. Launch Reolink Client on your PC and log in to the camera, then go to the Live View/Playback page.

    live view

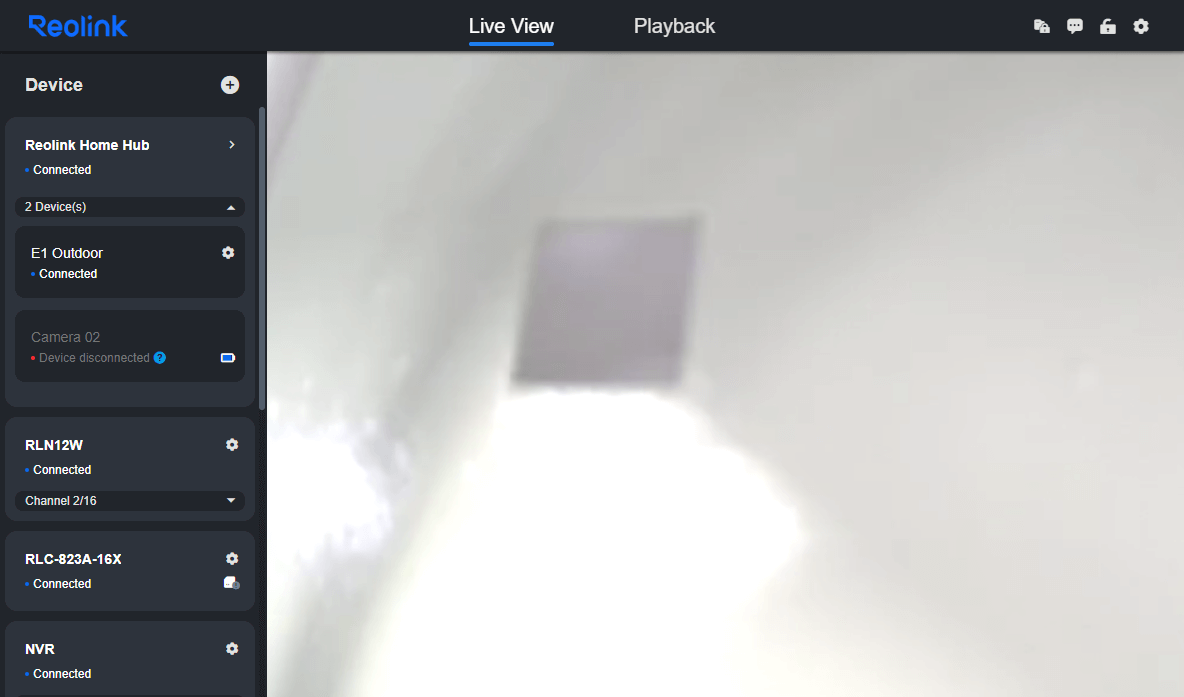

    Step 2. Scroll your mouse wheel to zoom in or out. Once zoomed in, you can click and hold the image, then drag it to view specific areas.

    drag the screen
    Special Note for Reolink FE-P and Reolink FE-W cameras:

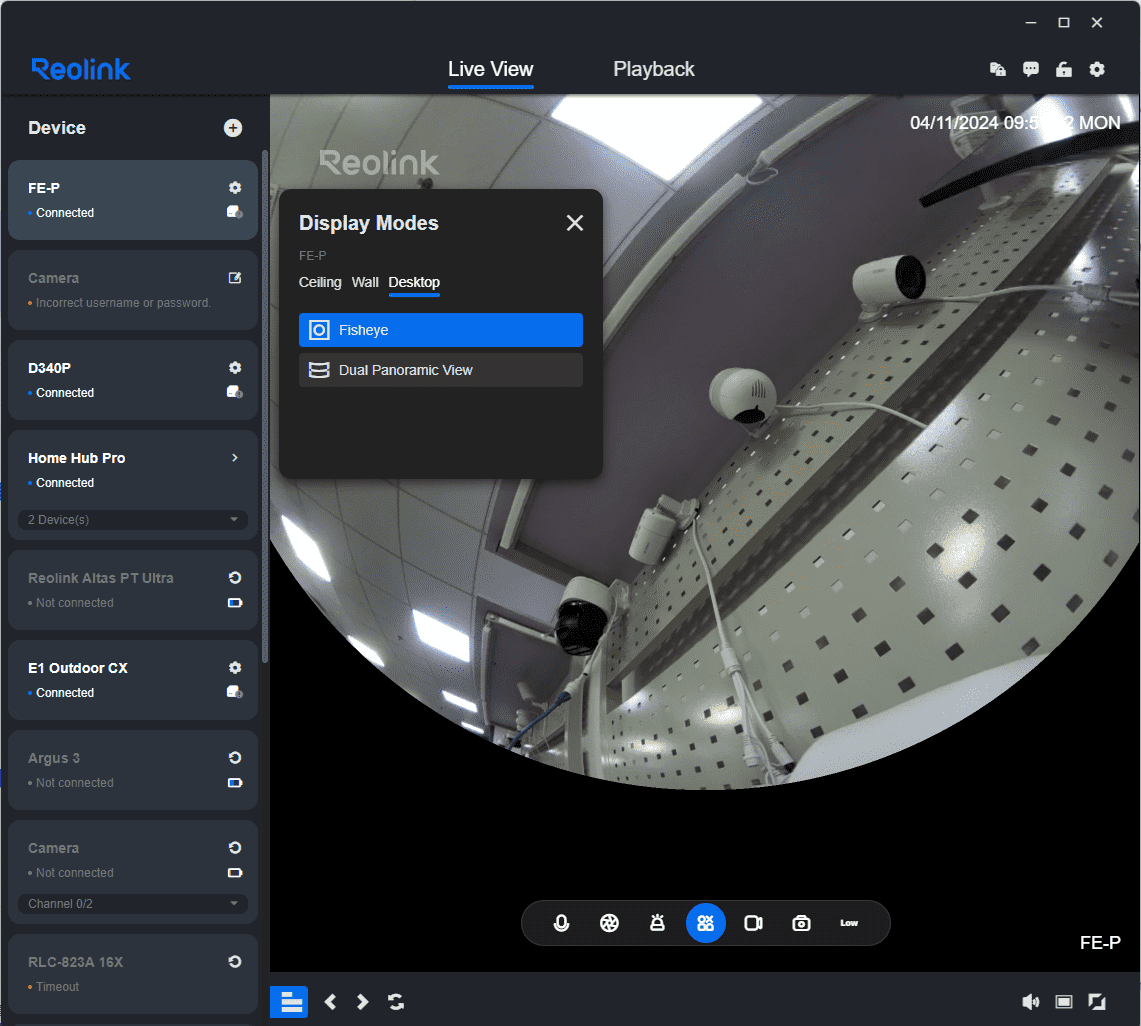

    If the image layout is set to Fisheye, click the Display Modes icon on the live view page first, and then scroll your mouse wheel to zoom in or out.

    Note: The Display Modes window needs to remain open.

    FEP touch

  • Via Reolink NVR (new UI)

    Applies to: RLN8-410, RLN16-410, RLN12W, and RLN36

    Step 1. Log in to the Reolink NVR interface via a monitor. Click the camera channel you want, and a magnifying glass (Zoom icon) should appear.

    digital zoom

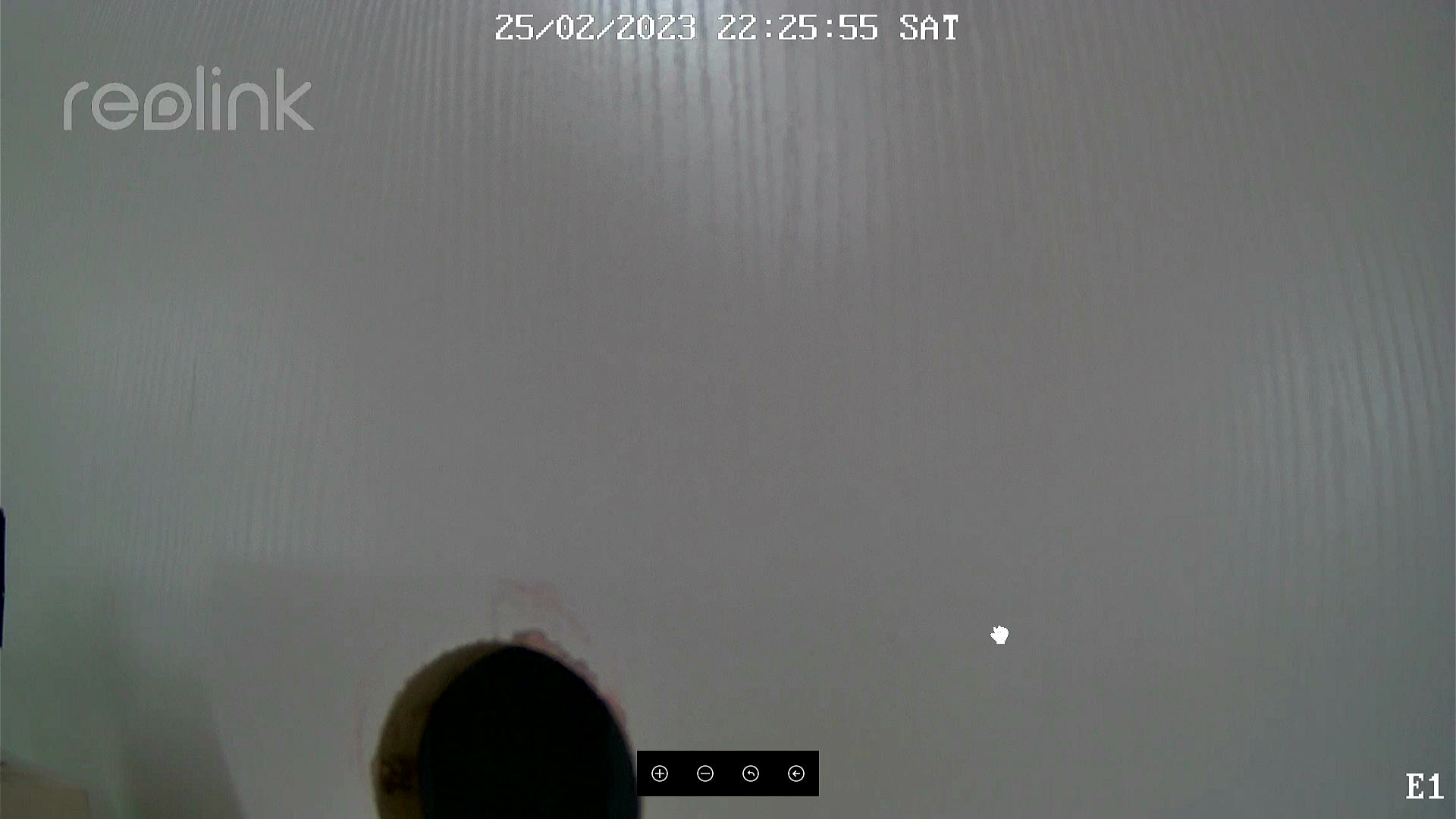

    Step 2. Click on the icon to enter the Zoom page of the camera, then scroll the mouse to zoom in/out the image. You can drag the screen to view the specific area.

    digital zoom

    zoom in: click to zoom in.

    zoom out: click to zoom out.

    return original position: return to original position.

    exit: exit and return to camera's live view image.

    Note:

    Depending on your NVR's hardware and firmware, the user interface may vary slightly. If your NVR interface looks different or lacks zoom controls, refer to How to Change Live View mode on Reolink NVR to set it to Full-screen mode and use the mouse scroll to achieve zoom in and zoom out effects.

  • Via Reolink NVR (Old UI)

    Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

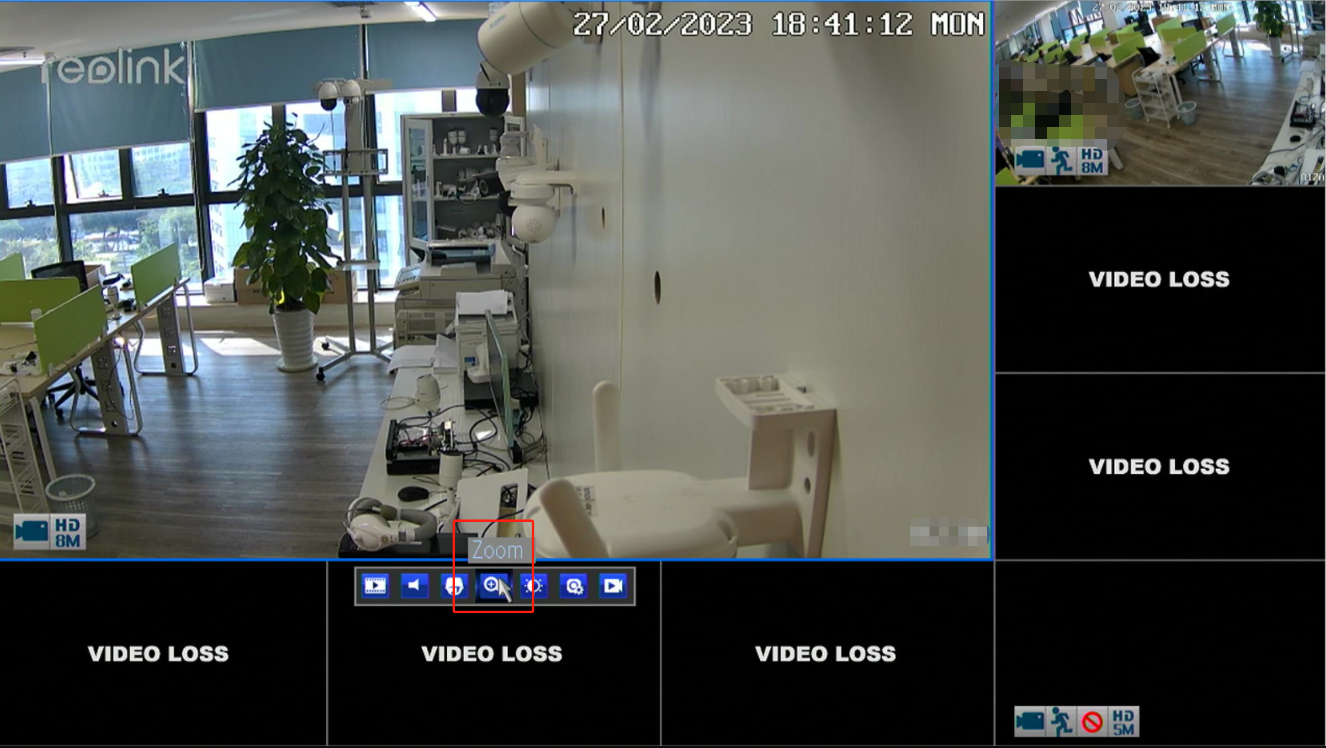

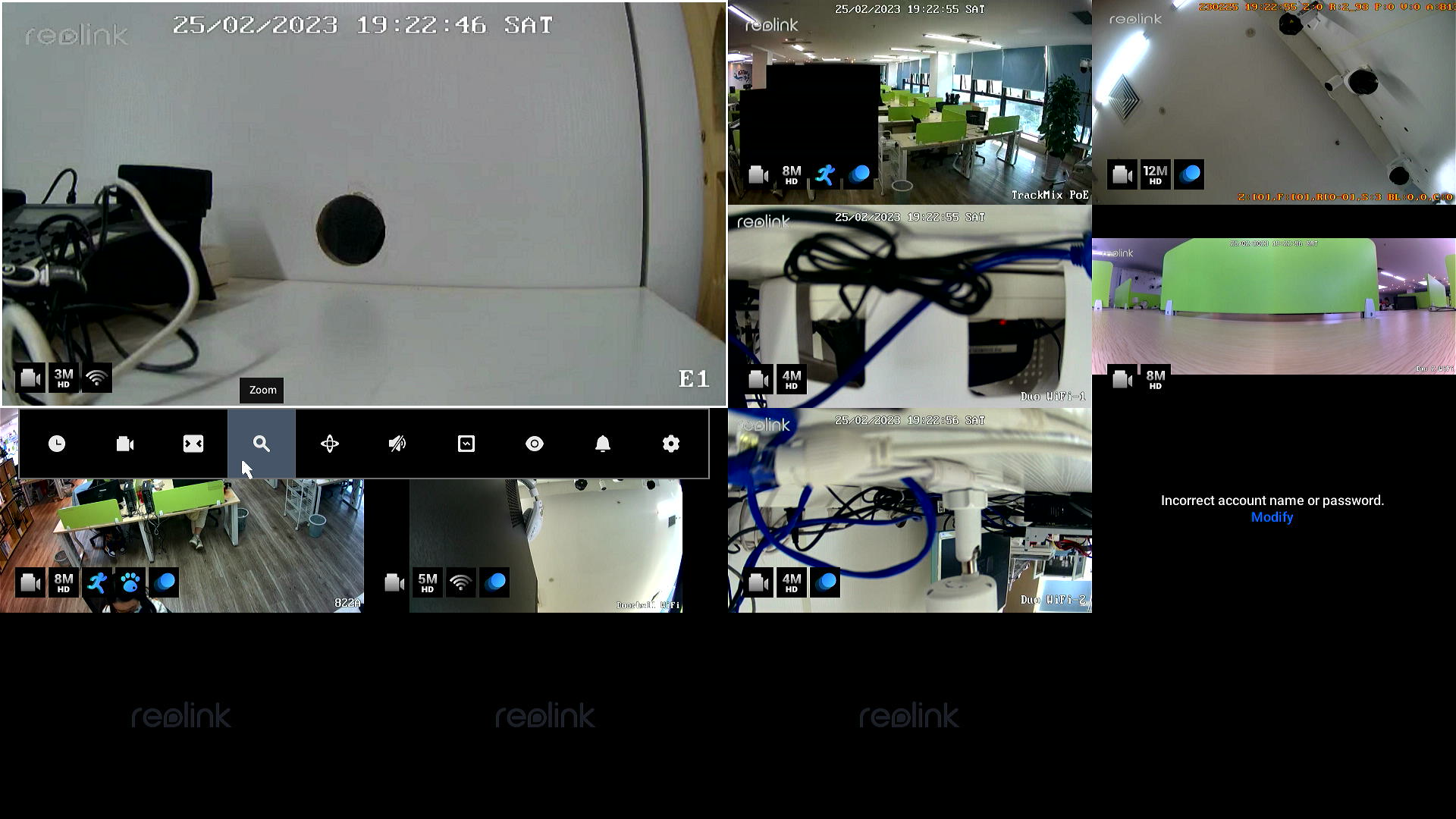

    Step 1. Log in to the PoE NVR on a monitor, left-click camera live view to pop up the toolbar, then click on the Zoom icon in the middle of the bottom bar to enter the next page.

    zoom

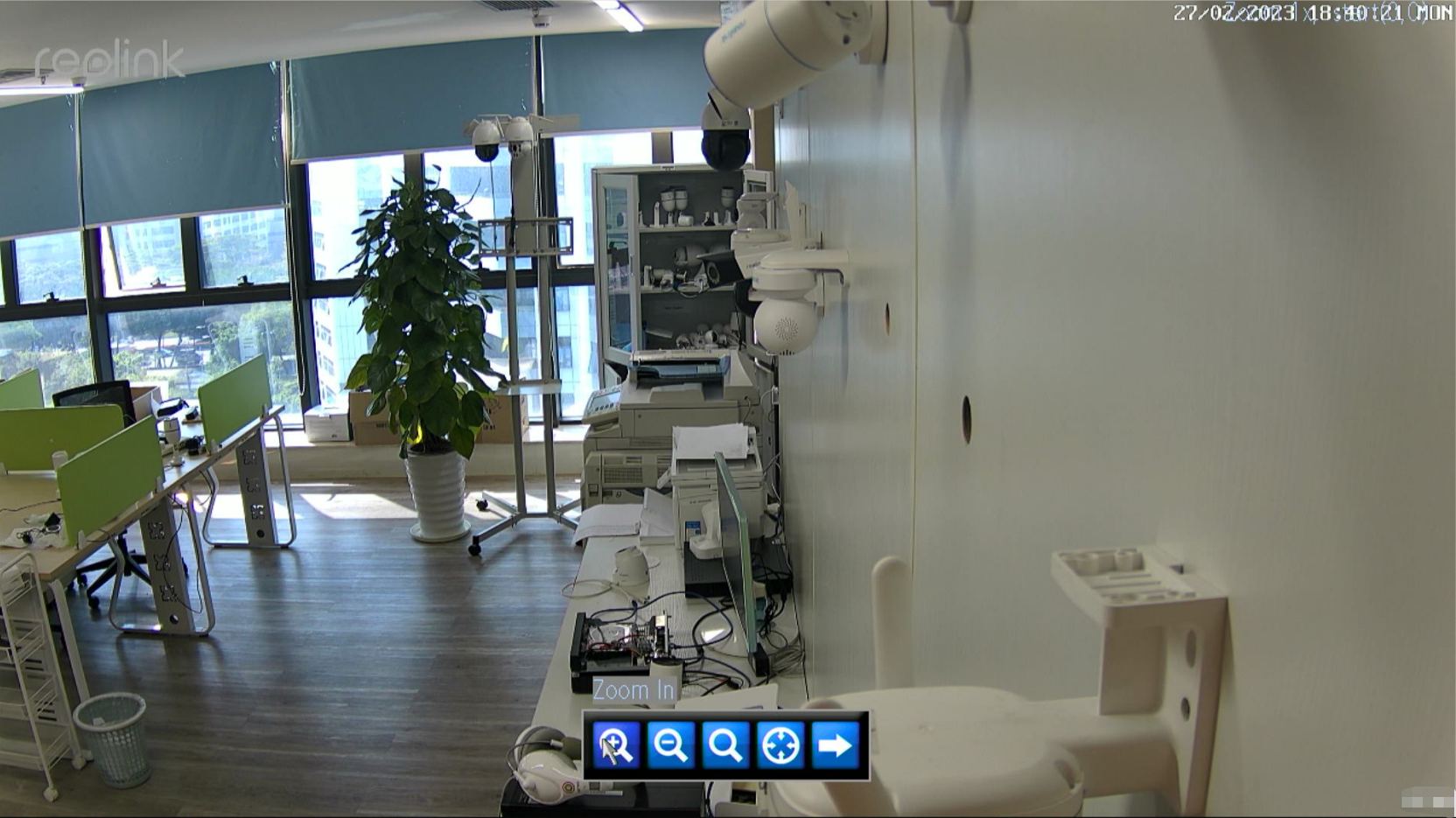

    Step 2. Tap on the Zoom in or Zoom out button to adjust the image.

    digital zoom

Digital zoom offers a quick way to get a closer look at any detail in your footage—but it’s not a substitute for optical zoom. If you encounter difficulties or your NVR interface looks different, please click the link Submit a request below to contact Reolink Support.
