This article will show you how to use optical zoom via Reolink PoE NVR on the monitor if you want to zoom the picture to see the details.

Applies to: All Reolink Cameras that support the optical zoom on RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

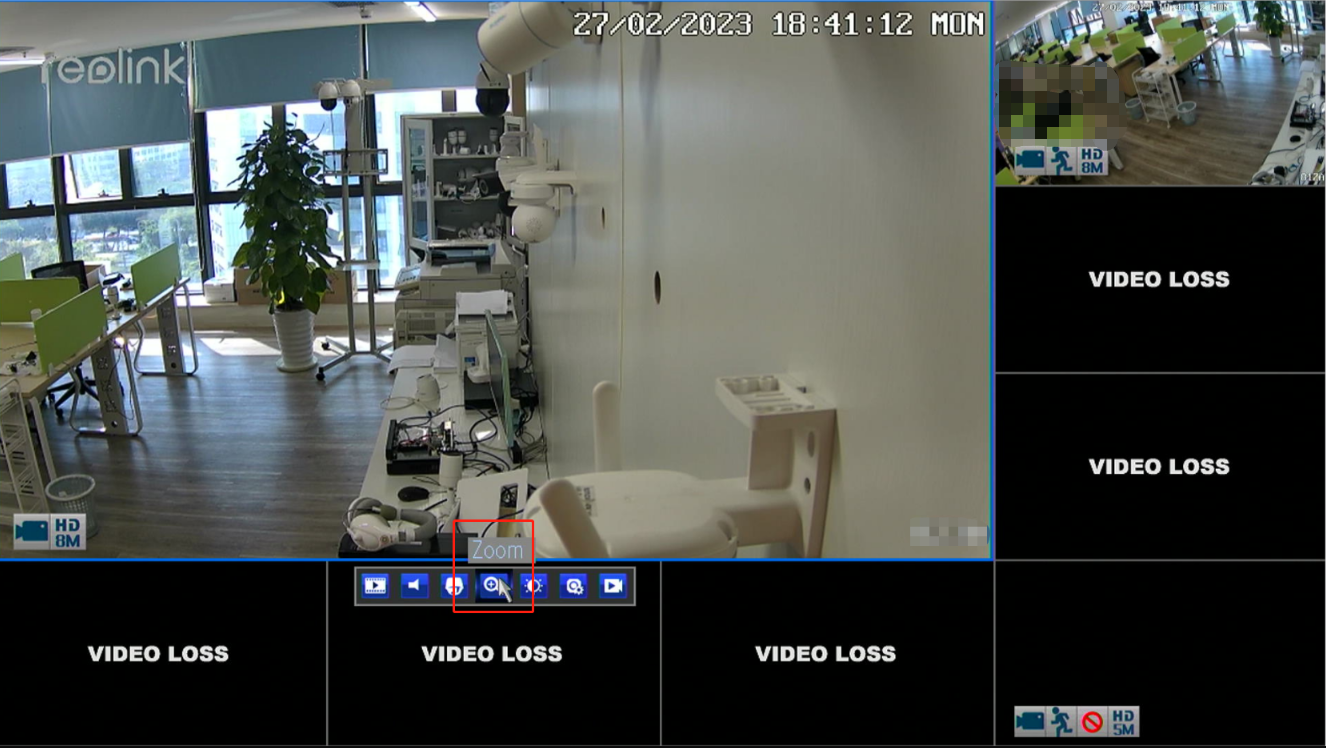

Step 1. Log into the POE NVR on the monitor and left-click the camera image to select the Zoom icon in the middle of the bottom.

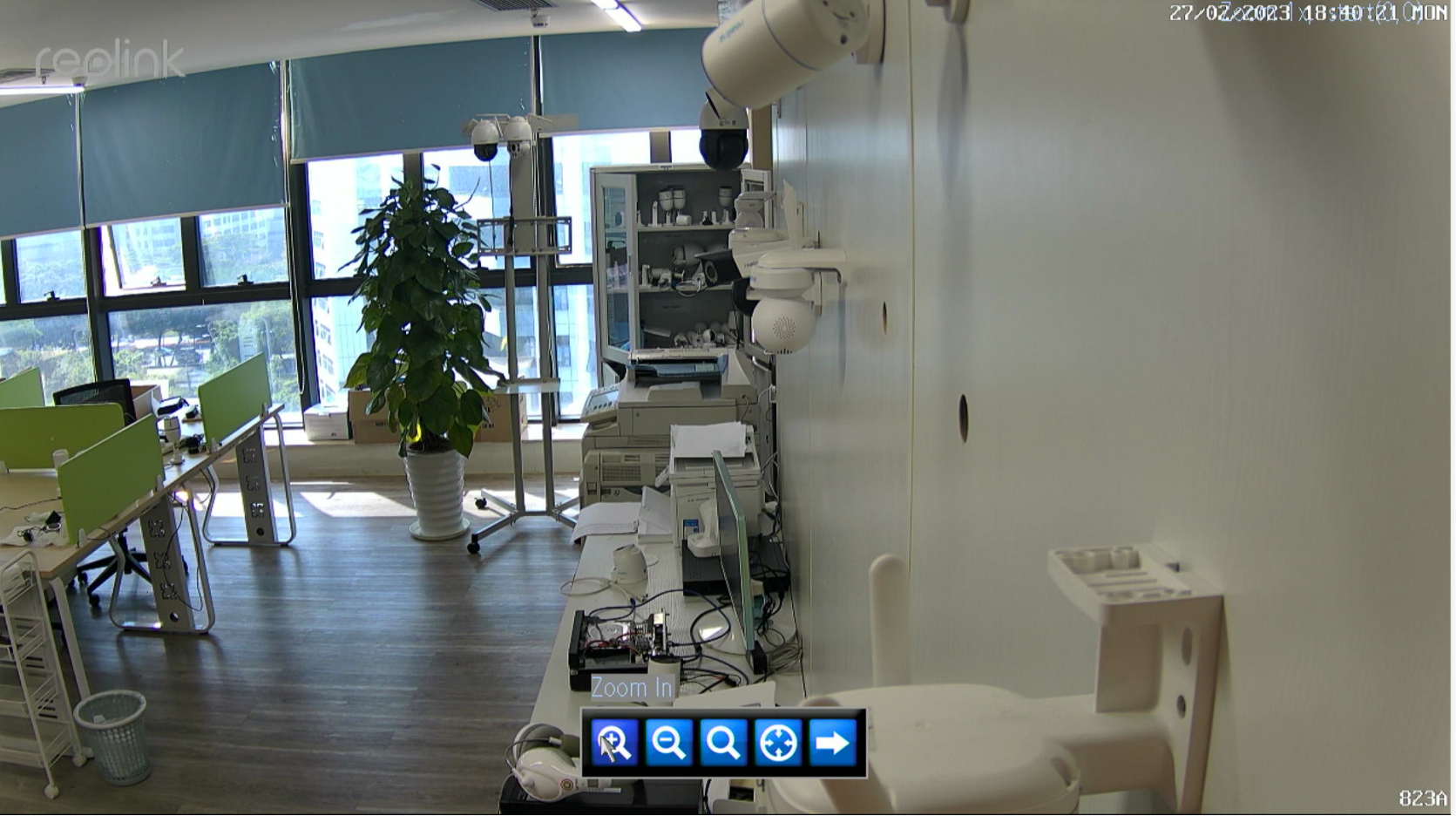

Step 2. While entering the secondary operation interface, you can click Zoom in and Zoom out buttons to adjust the image.


optical_zoom_in.png: Zoom in.

optical_zoom_out.png: Zoom out.

region_zoom.png: Click Region zoom and click an area to zoom in on a specific region.

restore_optical_zoom.png: Click Restore to return to its original position.

exit_optical_zoom.png: Click Exit to exit the optical zoom operation interface.
