This article will show you how to install a microSD card for RLC-420. Check for detailed information below.

Note: Before installing/uninstalling the SD card, power off the camera first, in case it will damage the SD card.

Here is a video for your reference:

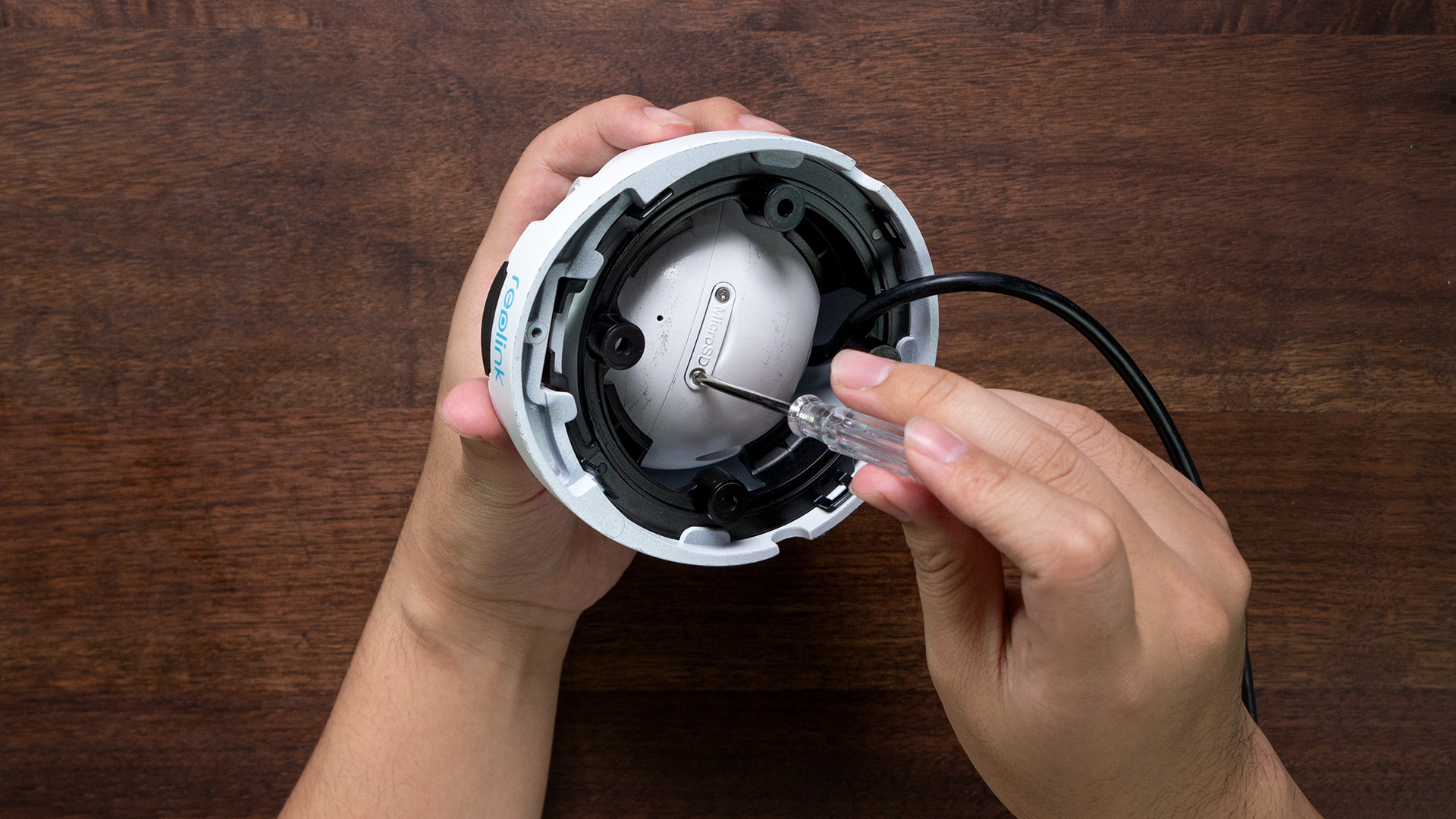

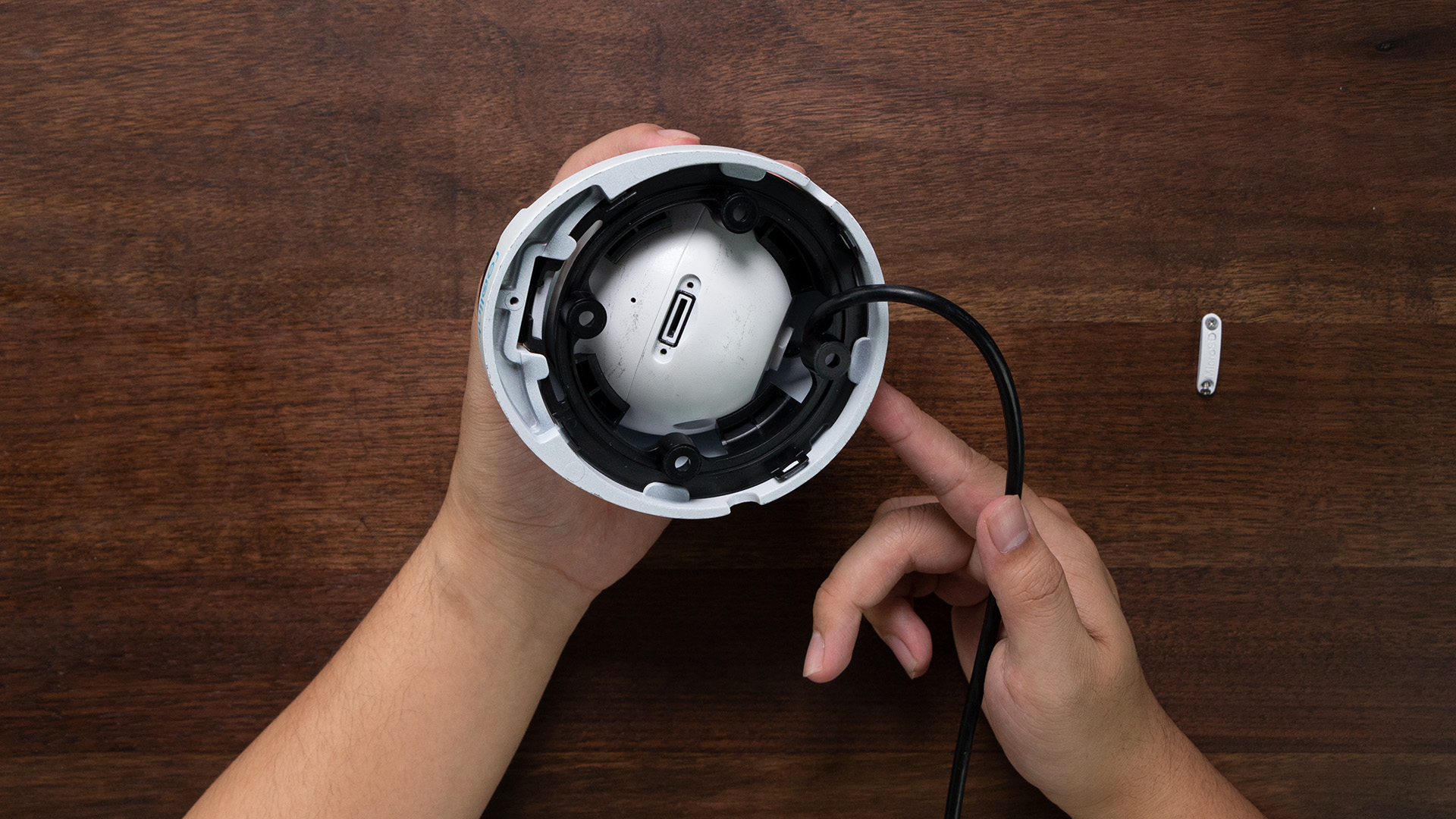

Step 1. Find the microSD card slot at the top of the camera and unscrew the screws to open it.

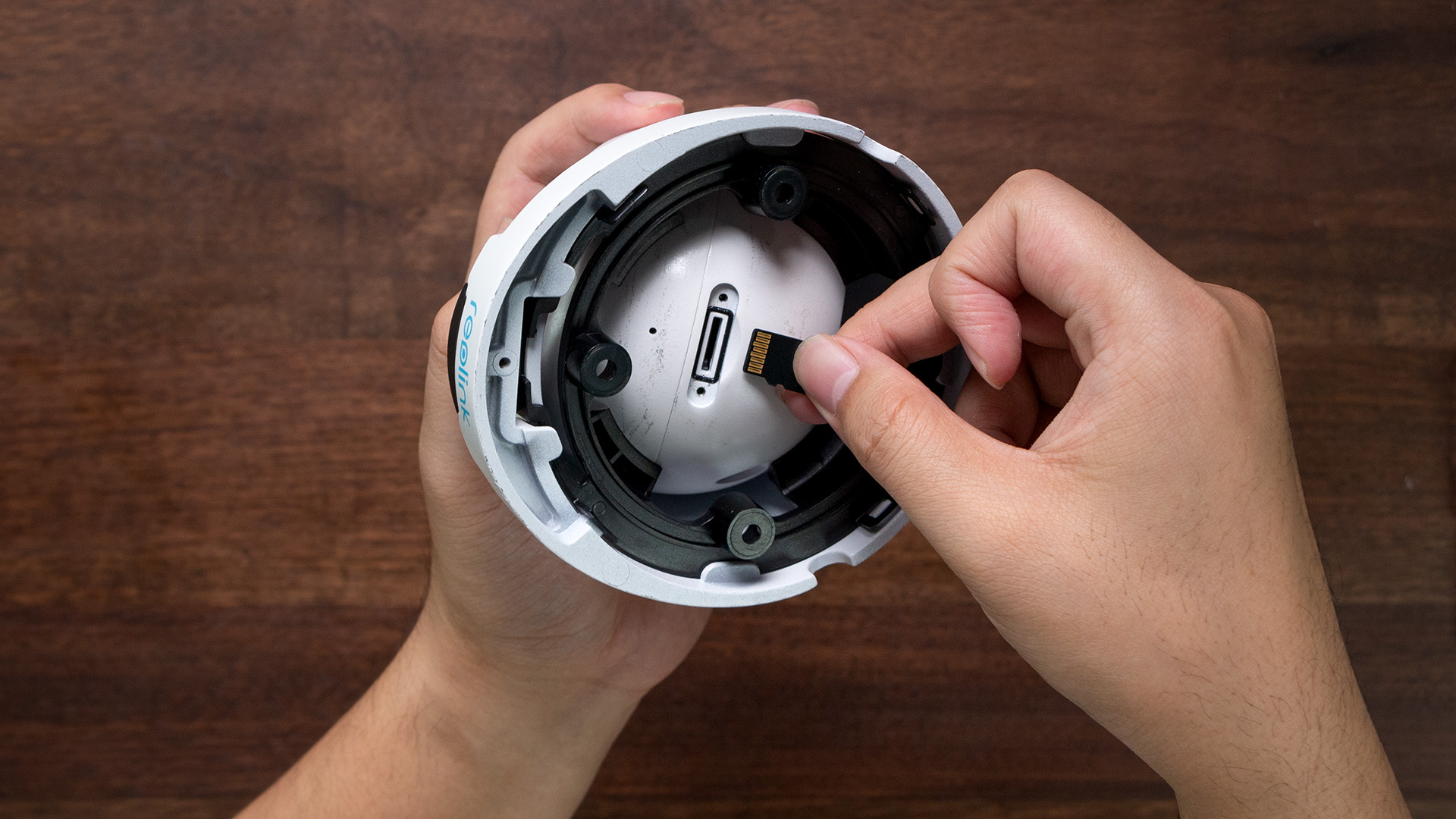

Step 2. Insert the micro SD card like the direction of the micro SD card in the picture below. Use your fingernail (or use the provided reset needle) to push the micro SD card in until you feel it is locked. And you will hear a click sound and the micro SD card will not pop out if the camera is inserted in properly.


Step 3. Screw the screws to close the cover tightly.
