Here is a collection of articles that guide you to initially set up different Reolink models via the Reolink software.
Applies to: All Reolink devices
▶ Before the initial setup, please download Reolink Client in the Download Center or scan the QR code to download and install the latest version of the Reolink App.
Table of Contents
▶ Not sure which method applies to your camera?
Reolink offers multiple camera series, each containing various models. The applicable configuration method depends on the specific camera model, and in some cases, different hardware versions of the same model may require different setup procedures. Please choose the setup method based on your camera's power supply method (e.g., DC adapter–powered or battery-powered) and series, or scan the QR code on your device and follow the in-app guide to select the corresponding method and instruction link from the table below.
For example, after scanning the QR code on the camera's body in the app, follow the setup method prompted by the app: if the app prompts you to set up via Bluetooth, follow the Bluetooth Setup article to complete the configuration; or the QR Code Setup article if it guides you to scan QR code on the app.
Reolink Battery-powered Cameras
There are two setup methods for Reolink battery-powered cameras. In the Wi-Fi setup table, you may see the same camera series listed, but this does not mean that either QR Code Setup or Bluetooth Setup applies. After scanning the camera’s QR code, follow the instructions in the app to select the correct setup method.
| Setup Method | Compatible Models | Brief Description | Instruction | |
| Wi-Fi | QR Code Setup |
Argus Series TrackMix (Battery) Series Duo (Battery) Series Doorbell (Battery) Series |
Power on the camera, use the app/client to generate a QR code containing Wi-Fi Info, then scan this code with the camera to connect Wi-Fi. | |
| Bluetooth Setup |
Argus Series Altas Series (Wi-Fi) TrackMix (Battery) Series |
Power on the camera and enable Bluetooth on the mobile phone. Through Bluetooth, the camera receives the Wi-Fi information sent from the mobile app and connects to the Wi-Fi network. (*Only Reolink App supported) |
Instruction on App | |
| 4G / LTE Setup |
Go Series Duo 4G/LTE Series Altas Series (4G) TrackMix LTE Series |
Power on the camera and insert the SIM card to finish the initial setup. | ||
Reolink Plug-in Wi-Fi Cameras
The initial setup process for a Wi-Fi camera can vary depending on whether the camera has an Ethernet port and hardware differences. To begin, check whether your camera includes an Ethernet port, and then refer to the specific setup method for your model accordingly. For specific hardware/LAN port availability guidance, refer to the applicable models in the Instruction link.
| LAN Port Availability | Setup Method | Compatible Models | Brief Description | Instruction |
| Cameras with LAN port | Wired |
RLC-Series (Wi-Fi) Duo Series ColorX Series RP-WCB8MZ |
Power on the camera with a DC adapter and must connect to router via wired LAN cable first, complete initial setup, then switch to Wi-Fi. | Initially Setup Guide |
| WiFi-QR code |
E/E1 Series E1 Outdoor Series TrackMix Series Doorbell Wi-Fi Series Fisheye Series |
Power on the camera with a DC adapter, use the app/client to generate a QR code containing Wi-Fi Info, then scan this code with the camera to connect Wi-Fi. Apart from the above mentioned setup, these series can also be connected to router via wired LAN cable. |
Initially Setup Guide | |
| WiFi-Bluetooth |
E/E1 Series E1 Outdoor Series TrackMix Series RLC-823S1W/ W840 Duo 2 WiFi/ |
Power on the camera and enable Bluetooth on the mobile phone. Through Bluetooth, the camera receives the Wi-Fi information sent from the mobile app and connects to the Wi-Fi network. (*Only Reolink App supported.) |
Initially Setup Guide | |
| Cameras without LAN port |
E/E1 Series Lumus Pro/ Elite Series TrackFlex Series |
|||
| WiFi-QR code |
E/E1 Series Lumus/ |
Power on the camera with a DC adapter, use the app/client to generate a QR code containing Wi-Fi Info, then scan this code with the camera to connect Wi-Fi. |
Reolink PoE Cameras
For all Reolink PoE models, the initial setup must be performed using a wired Ethernet connection. This method provides the necessary network stability and allows the system to complete activation correctly.
| Compatible Models | Brief Description | Instruction |
|
RLC-Series (PoE) E1 Outdoor Series Elite Series Professional Series ColorX Series Fisheye Series Doorbell PoE Series TrackMix Series Duo Series |
Powered up by DC adapter or a PoE switch via wired LAN cable and then complete initial setup.
Note: for Elite Pro Floodlight PoE, no DC-powered port; power & network only via wired LAN cable. |
Reolink NVR
All Reolink NVRs use the same connection method, but the initial setup on the monitor may vary depending on the UI and model. Make sure to choose the instructions for your model and UI.
| UIs | Compatible Models | Setup on Monitor | Brief Description | Instruction |
|

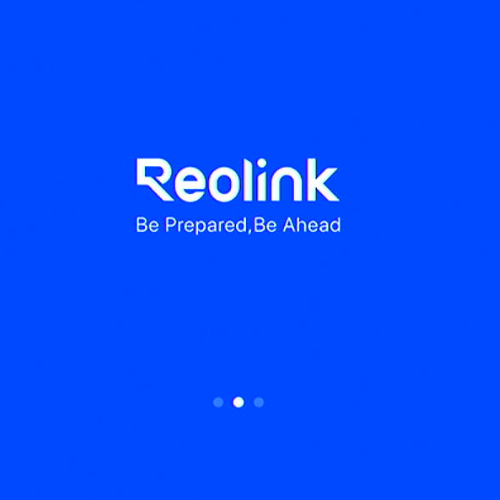

New UI: |
RLN8-410/NVS8 RLN16-410/NVS16 RLN36/NVS36 RP-PN8/RP-PN16 |
Guide on monitor | Power on the NVR with DC adapter, connect to network/router via an Ethernet cable, and then complete the initial setup on the monitor connected to HDMI/VGA cable. | |
| RLN12W/NVS12W | Guide on monitor | |||
|
Old UI: |
RLN8-410 RLN16-410 |
Guide on monitor |
Reolink Home Hub
| Setup Method | Compatible Models | Brief Description | Instruction |
| Wired Setup |
Home Hub/Home Hub Pro Hub 1/Hub P1 |
Power on the Hub and then connect it to your router via an Ethernet cable. | Initially Setup Guide |
Reolink IoT
| Setup Method | Compatible Models | Brief Description | Instruction |
| Wired Setup | Floodlight PoE | Powered up by DC adapter or a PoE switch via wired LAN cable and then complete initial setup. | Initially Setup Guide |
| Wi-Fi & Wired Setup | Floodlight Wi-Fi | Powered up by DC adapter and then complete initial setup via WiFi or wired LAN cable. | Initially Setup Guide |
| Wi-Fi & Wired Setup | RLA-WE1(Wi-Fi Extender) | Power on the extender, configure it via wired LAN or Wi-Fi depending on the Reolink system. | Initially Setup Guide |
This article provides a comprehensive overview of the initial setup methods for all Reolink device models, helping users choose the correct configuration path and complete the setup quickly and smoothly.
If you encounter a failure at any step while following the initial setup guide, please contact Reolink Support for advanced troubleshooting.
