This article will show you how to set up OSD settings, for example, set a camera name, and change the camera name's position. etc. via Reolink PoE NVR on the monitor.
Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

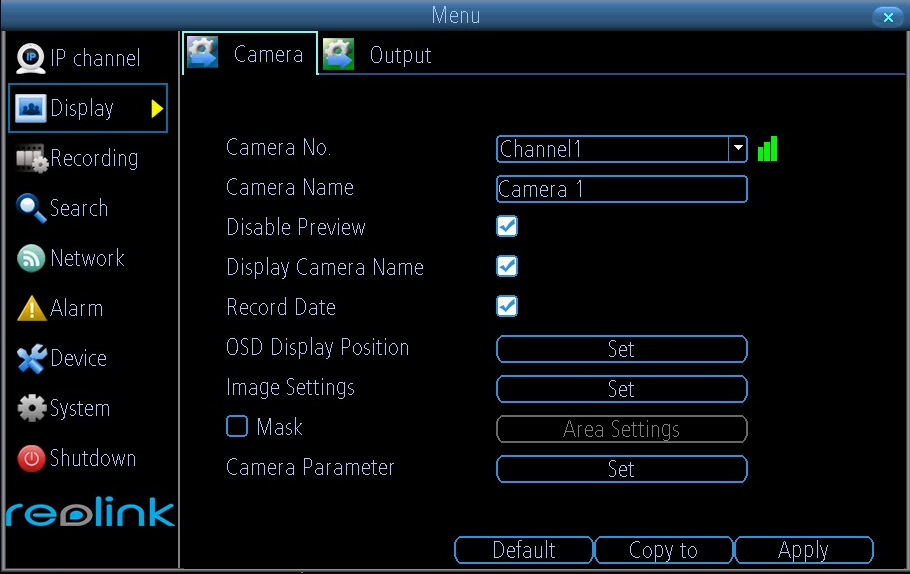

Step 1. Log in the NVR and go to Menu > Display > Camera page.
Step 2. Select the channel (Camera No.) and configure the OSD settings as you need. Then you may click the Copy to copy the same settings to other channels and click Apply to save the settings.
