To check the monitoring image of different cameras on Reolink PoE NVR, you may need to switch the screens continuously, or you can refer to the following steps to easily set the cameras on tour.

Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

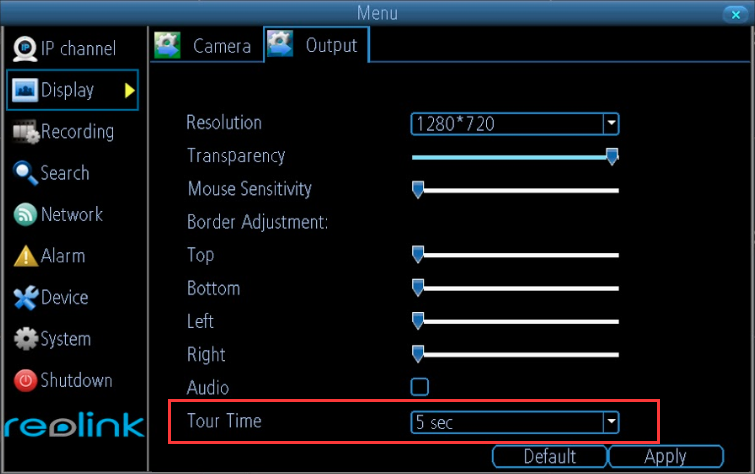

Step 1. Log in to your PoE NVR on the monitor, then go to the Menu > Display > Output page to set the Tour Time as you need.

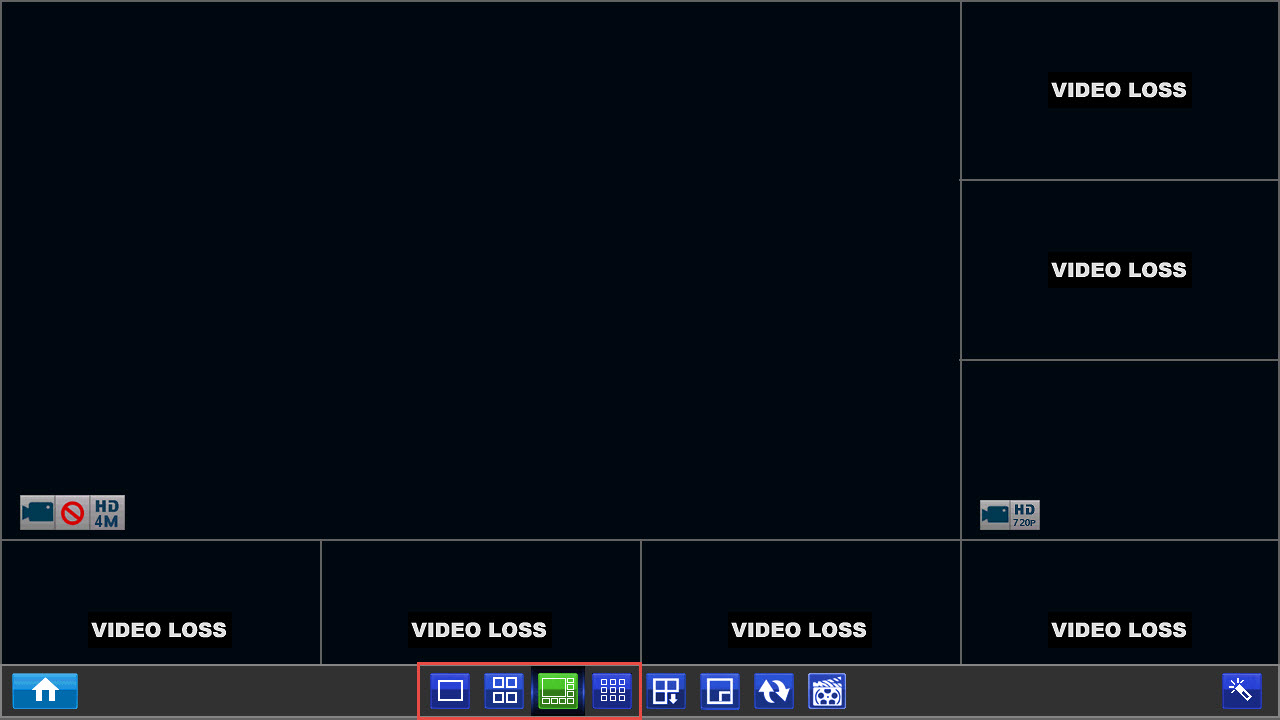

Step 2. Select any split (less than the total number of the cameras connected to the NVR) and click on the Tour Tour Icon icon to start/stop the tour of the pages.


For example, if you select 4-camera split and set the Tour Time to 1 min, the monitor will display one camera image for 1 min, then turn to the next page, and so on.
